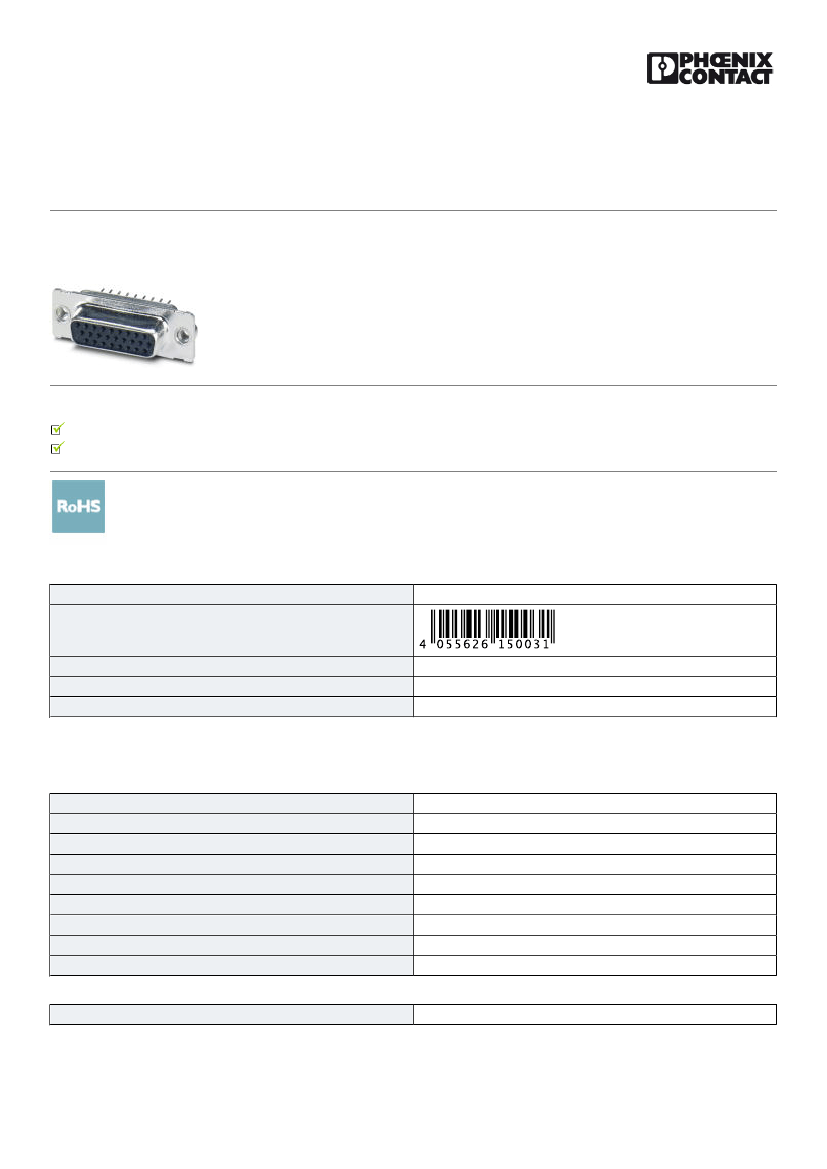

D-SUB contact insert - CUC-DSI-J1STZ-S/DSLSB15 HD - 1418737
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
D-SUB contact insert, Number of positions: 26, Material: Steel, Connection method: Solder pins
Why buy this product
Various connection methods for every application
Standard-compliant pin connector pattern
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4055626150031
85366990
Made to Order (non-returnable)
10 STK
Technical data
Mechanical characteristics
Standards/specifications
Number of positions
Number of slots
Connection profile
Insertion/withdrawal cycles
Connection method
Type of contact
Mounting type
Design
DIN 41652
26
1
D-SUB 15
50
Solder pins
punched contacts
4-40 UNC thread
15
Ambient conditions
Ambient temperature (operation)
-55 °C ... 105 °C
11/13/2016 Page 1 / 2
https://www.phoenixcontact.com/hq/products/1418737
D-SUB contact insert - CUC-DSI-J1STZ-S/DSLSB15 HD - 1418737
Technical data
Material data
Flammability rating according to UL 94
Housing material
Housing surface material
Contact carrier material
Contact material
Contact surface material
V0
Steel
tin-plated
Glass-fiber reinforced thermoplastics, UL 94 V0
Copper alloy
Sn/Au
Electrical characteristics
Number of positions
Rated current
Degree of pollution
26
3A
2
Standards and Regulations
Standards/regulations
Flammability rating according to UL 94
DIN 41652
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Schematic diagram
9
8
7
3
2
1
Dimensional drawing
39,1
18
26 25 24 21 20 19
10
10,3
6,3
12,5
33,3
D-SUB contact insert
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/13/2016 Page 2 / 2
4-40UNC-2B
0,8
