FR2A THRU FR2K
SURFACE MOUNT ULTRAFAST RECTIFIER
VOLTAGE - 50 to 800 Volts CURRENT - 2.0 Amperes
FEATURES
l
l
l
l
l
l
l
l
For surface mounted applications
Low profile package
Built-in strain relief
Easy pick and place
Fast recovery times for high efficiency
Plastic package has Underwriters Laboratory

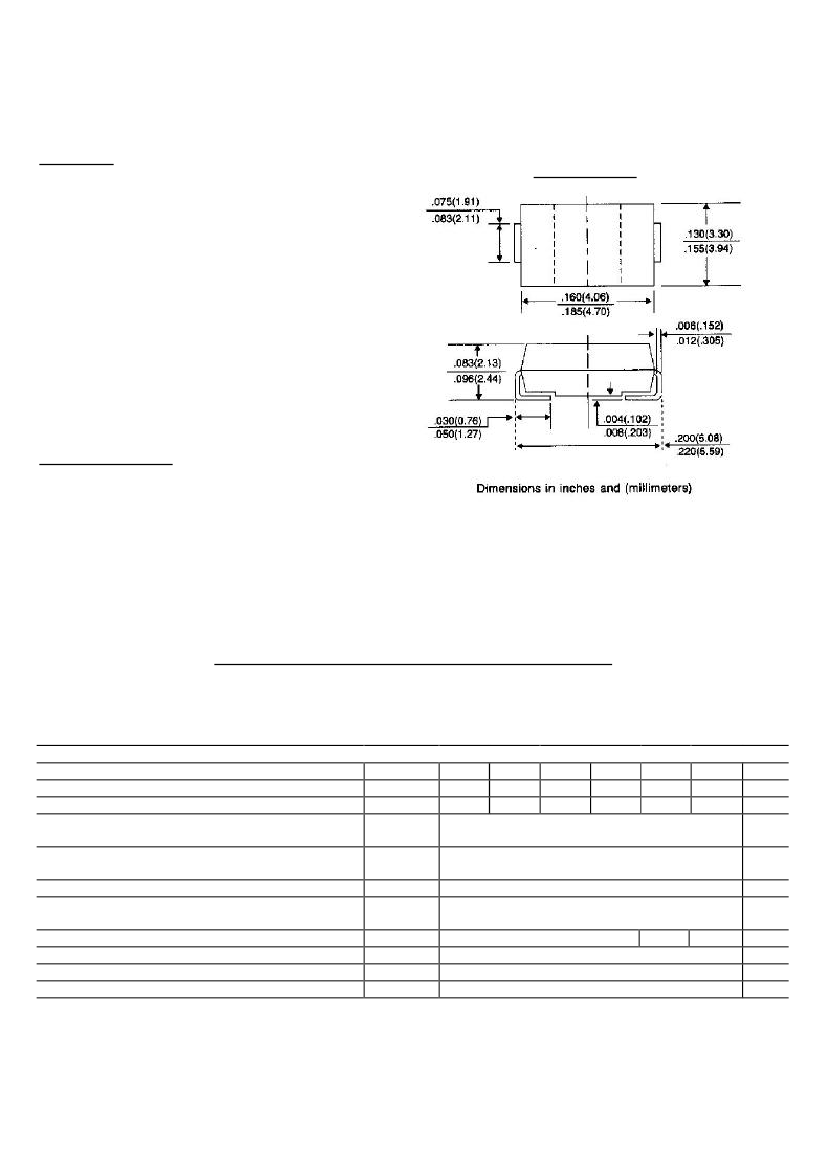

SMB/DO-214AA
Flammability Classification 94V-O
Glass passivated junction
High temperature soldering:
260 /10 seconds at terminals
MECHANICAL DATA
Case: JEDEC DO-214AA molded plastic
Terminals: Solder plated, solderable per MIL-STD-750,
Method 2026
Polarity: Indicated by cathode band
Standard packaging: 12mm tape (EIA-481)
Weight: 0.003 ounce, 0.093 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Resistive or inductive load.
For capacitive load, derate current by 20%.
SYMBOLS
FR2A
FR2B
FR2D
FR2G
FR2J
FR2K
UNITS
Volts
Volts
Volts
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current,
at T
L
=90
Peak Forward Surge Current 8.3ms single half sine-
wave superimposed on rated load(JEDEC method)
Maximum Instantaneous Forward Voltage at 2.0A
Maximum DC Reverse Current T
A
=25
At Rated DC Blocking Voltage T
A
=125
Maximum Reverse Recovery Time (Note 1) T
J
=25
Typical Junction capacitance (Note 2)
Maximum Thermal Resistance (Note 3)
Operating and Storage Temperature Range
NOTES:
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
T
RR
C
J
R JL
T
J
,T
STG
50
35
50
100
70
100
200
140
200
2.0
400
280
400
600
420
600
800
560
800
Amps
Amps
Volts
A
250
500
n
S
P
F
50.0
1.30
5.0
200
150
40
20.0
-50 to +150
/W
1. Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, Irr=0.25A
2. Measured at 1 MHz and Applied reverse voltage of 4.0 volts
3. 8.0mm
2
(.013mm thick) land areas
RATING AND CHARACTERISTIC CURVES
FR2A THRU FR2K

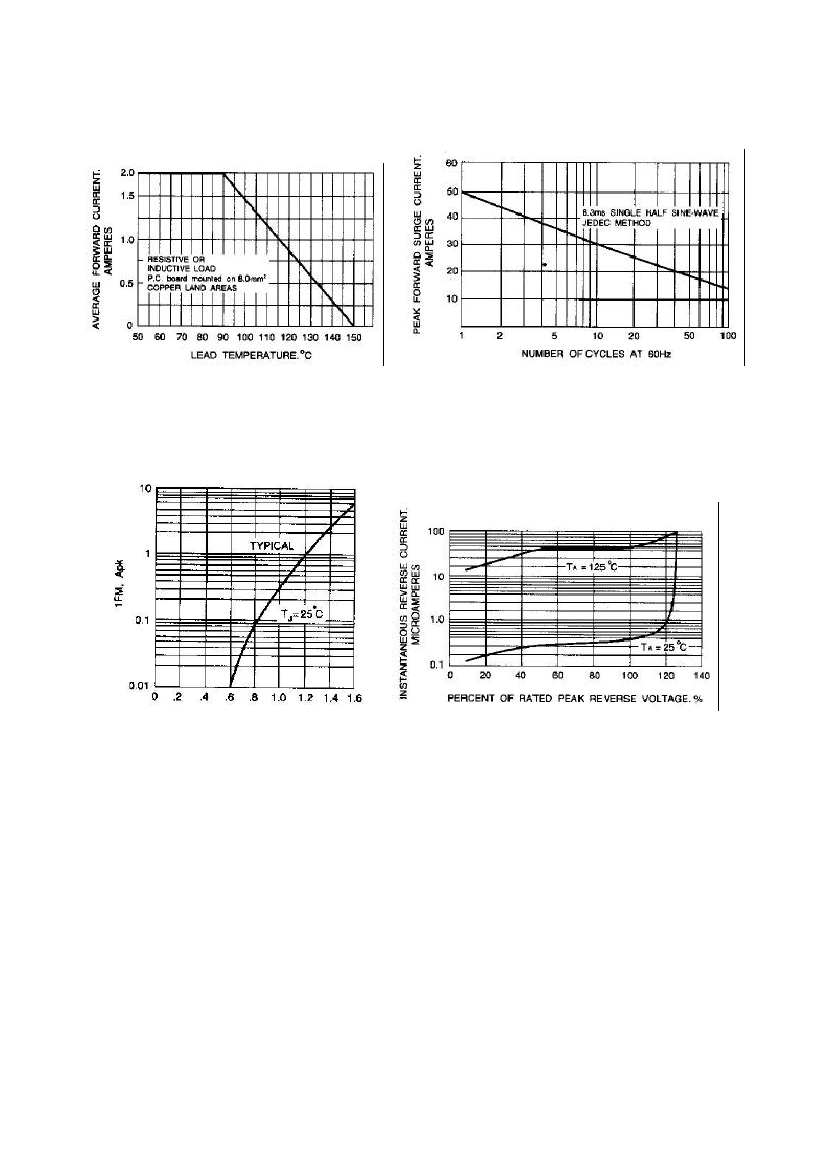

Fig. 1-FORWARD CURRENT DERATING CURVE
Fig. 2-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
Fig. 3-TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS

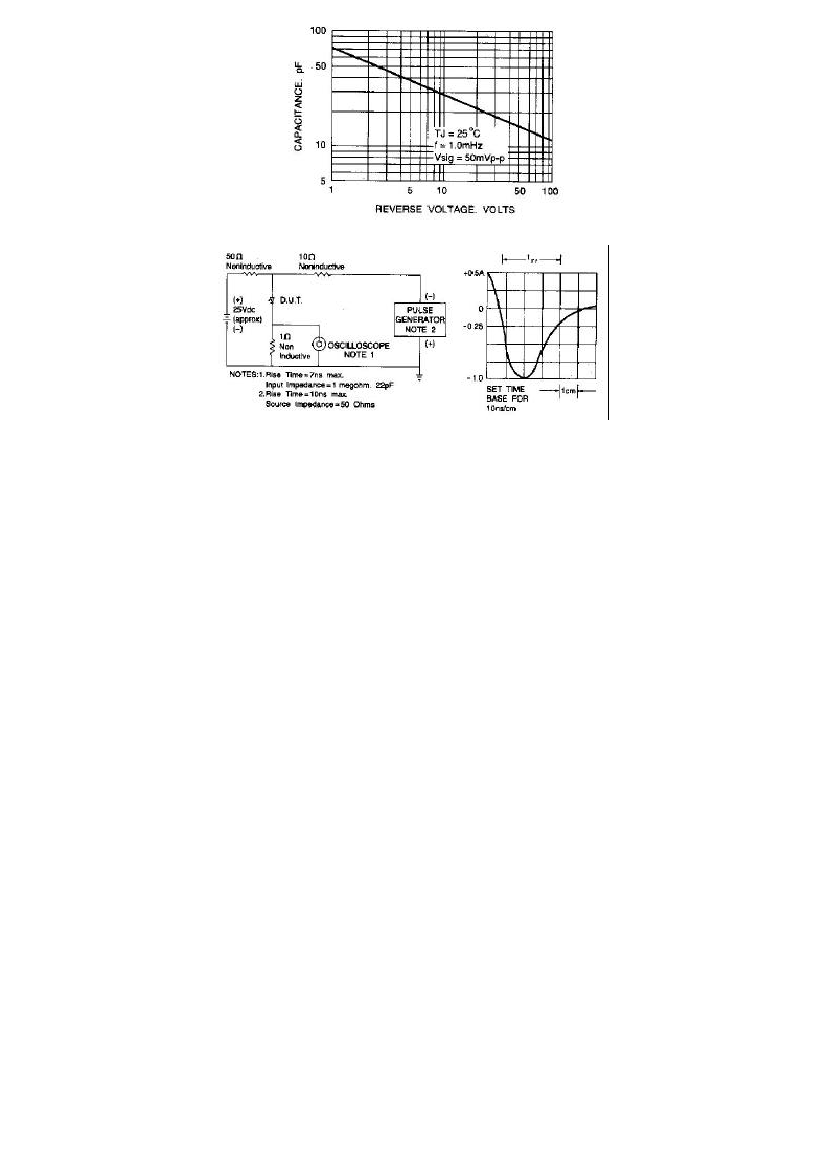

Fig. 4-TYPICAL REVERSE CHARACTERISTICS
