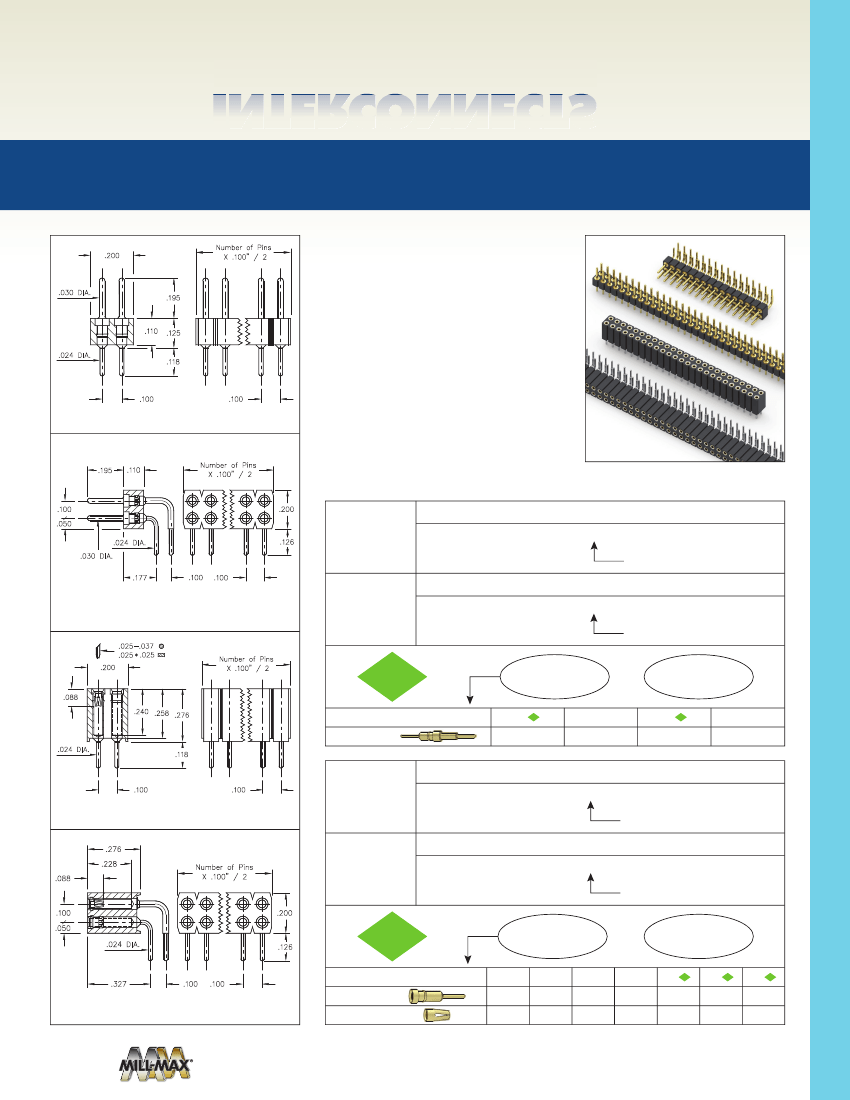

INTERCONNECTS

SERIES 802 & 803 • .100” GRID (.030” DIA. PINS), STRAIGHT &

RIGHT ANGLE HEADERS AND SOCKETS • DOUBLE ROW STRIPS

•

Pin interconnects available with straight MM

#7007 or right angle MM #5005/5107 solder

tails. See page 215 for details

.200

Number of Pins

X .100" / 2

.030 DIA.

.195

•

Sockets are available with straight MM #1304

or right angle MM #1305/1306 soldertails. See

pages 177 and 179 for details

.110

.024 DIA.

.125

.118

•

MM #1304, #1305 and #1306 receptacles use

.100

FIG. 1

.195

.110

Number of Pins

X .100" / 2

Hi-Rel, 6- nger BeCu #47 contact rated at 4.5

amps. Receptacles accept .030” diameter and

.025” square pins. See page 256 for details

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

.200

.100

.050

.024 DIA.

.030 DIA.

.177

.100

Series 802...10-001

Straight Pin Header

04-64

.126

FIG. 1

802 XX 0_ _ 10 001000

Specify number of pins

Series 802...20-001

Right Angle Pin Header

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

.025-.037

.025

.200

Number of Pins

X .100" / 2

FIG. 2

RoHS - 2

802 XX 0_ _ 20 001000

Specify number of pins

XX=Plating Code

See Below

µ”

2011/65/EU

.088

.240 .258

.276

SPECIFY PLATING CODE XX=

Pin Plating

200

µ”

Sn/Pb

200

µ”

.024 DIA.

.118

Series 803...10-001

.100

Straight Socket

004-100

FIG. 3

.276

.228

.088

Number of Pins

X .100" / 2

FIG. 3

803 XX _ _ _ 10 001000

Specify number of pins

Series 803...20-001

Right Angle Socket

002-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

.100

.050

.024 DIA.

.126

.200

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

µ”

.327

.100

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

200

µ”

200

µ”

Au Flash

200

µ”

Sn/Pb 200

µ”

Sn/Pb 200

µ”

Sn/Pb

200

µ”

FIG. 4

µ”

100

µ”

Sn/Pb

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
