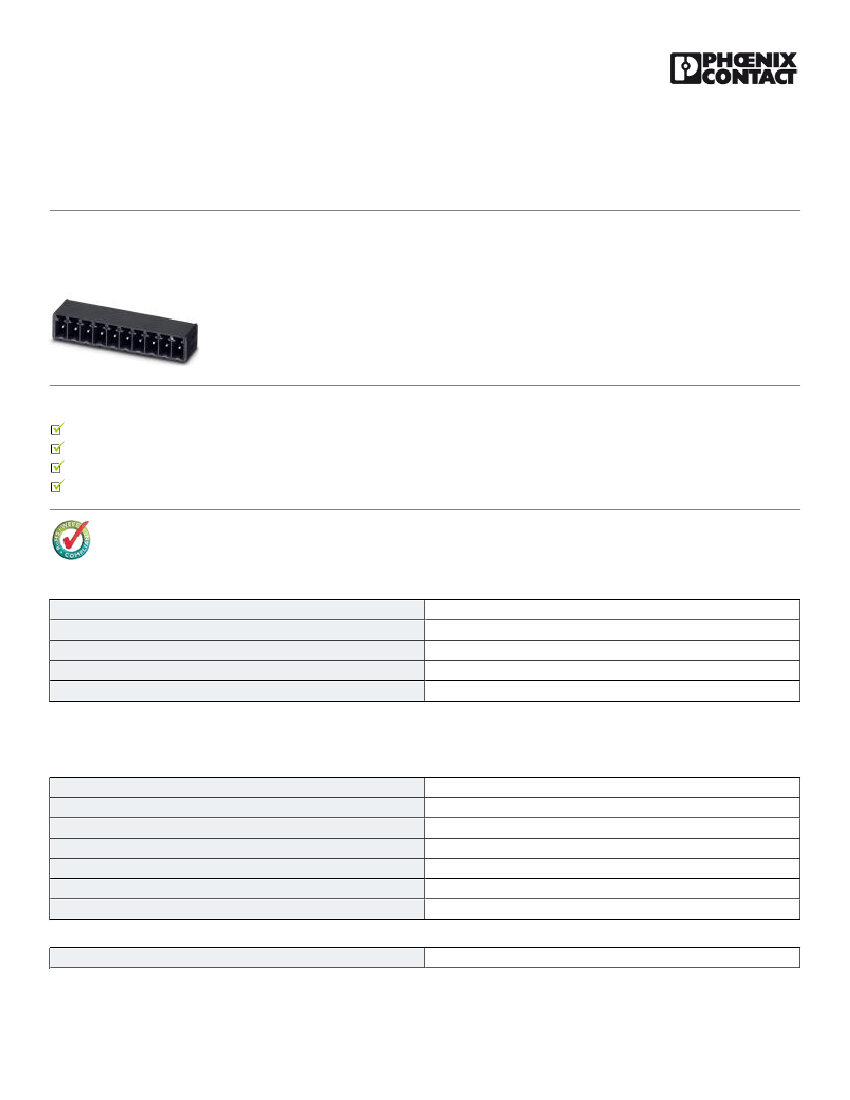

Printed-circuit board connector - MC 1,5/ 5-G-3,81 P26 THR - 1722011
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Color: black,
Contact surface: Tin, Assembly: SMD/THT/THR
Product Features
Plug-in direction parallel to the PCB
Pitch: 3.81 mm
Low-profile THR headers with a compact pitch
Use in SMT reflow processes
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
1.6 GRM
85366990
Germany
Technical data
Dimensions
Length
Height
Width
Pitch
Dimension a
Pin dimensions
Hole diameter
9.2 mm
9.5 mm
20.44 mm
3.81 mm
15.24 mm
0,8 mm x 0,8 mm
1.4 mm
General
Range of articles
MC 1,5/..-G-THR
10/23/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/1722011
Printed-circuit board connector - MC 1,5/ 5-G-3,81 P26 THR - 1722011
Technical data
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Insulating material
Inflammability class according to UL 94
Color
Number of positions
IIIa
2.5 kV
2.5 kV
2.5 kV
160 V
160 V
250 V
EN-VDE
8A
LCP
V0
black
5
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
10/23/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/1722011
Printed-circuit board connector - MC 1,5/ 5-G-3,81 P26 THR - 1722011
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
Nominal current IN
Nominal voltage UN
B
8A
300 V
D
8A
300 V
cUL Recognized
Nominal current IN
Nominal voltage UN
B
8A
300 V
D
8A
300 V
GOST
GOST
cULus Recognized
10/23/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/1722011
Printed-circuit board connector - MC 1,5/ 5-G-3,81 P26 THR - 1722011
Drawings
Drilling diagram
a
3,5
(3,81)
2,45
(2,6)
Dimensioned drawing
18,7
9,2
Ø1,4
a+4,9
(a+5,2)
8
11,1
8
2,6
6,9
2,45
(2,6)
3,5
(3,81)
a
Diagram
16
14
12
10
8
6
4
2
0
0
Current strength [A]
= 2-pos.
= 5-pos.
= 12-pos.
20
40
60
80
100
Ambient temperature [°C]
Type: FK-MCP 1,5/...-ST-3,81 with MC 1,5/...-G-3,81 P26 THR
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
10/23/2014 Page 4 / 4
