DC COMPONENTS CO., LTD.
R
FR301G
THRU
FR307G
RECTIFIER SPECIALISTS
TECHNICAL SPECIFICATIONS OF FAST RECOVERY GLASS PASSIVATED RECTIFIER
VOLTAGE RANGE - 50 to 1000 Volts
CURRENT - 3.0 Amperes
FEATURES
*
*
*
*
High reliability
Low leakage
Low forward voltage drop
High current capability
* High switching capability
* Glass passivated junction
DO-27
MECHANICAL DATA
*
*
*
*
*
*
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: MIL-STD-202E, Method 208 guaranteed
Polarity: Color band denotes cathode end
Mounting position: Any
Weight: 1.18 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Dimensions in inches and (millimeters)
SYMBOL
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at T
A
= 55
o
C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC Method)
Maximum Instantaneous Forward Voltage at 3.0A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage T
A
= 25
o
C
Maximum Full Load Reverse Current Average,
Full Cycle .375*(9.5mm) lead length at T
L
= 55
o
C

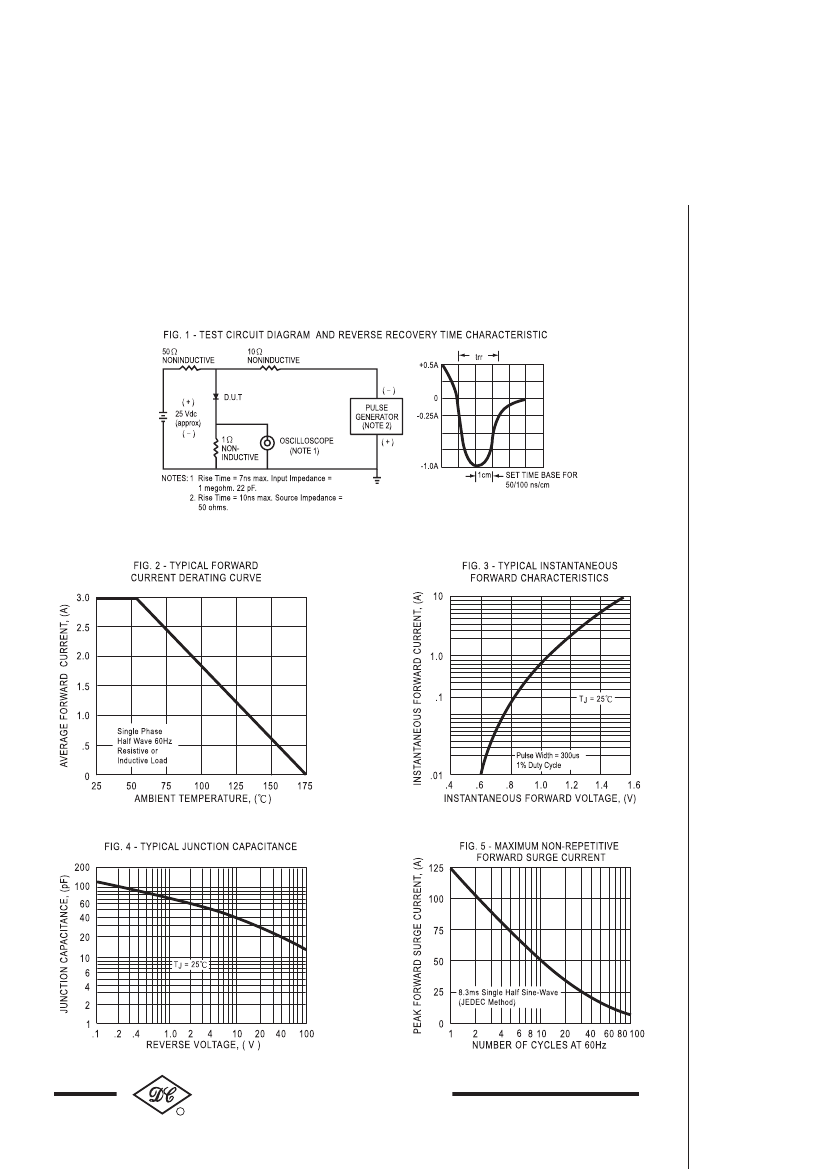

Maximum Reverse Recovery Time (Note 1)
Typical Junction Capacitance (Note 2)
Operating and Storage Temperature Range
NOTES : 1. Test Conditions: I
F
= 0.5A, I
R
= 1.0A, I
RR
= 0.25A
2. Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
V
RRM
V
RMS
V
DC
I
O
I
FSM
V
F
FR301G FR302G FR303G FR304G FR305G FR306G FR307G UNITS
50
35
50
100
70
100
200
140
200
400
280
400
3.0
125
1.3
5.0
600
420
600
800
560
800
1000
700
1000
Volts
Volts
Volts
Amps
Amps
Volts
uAmps
uAmps
250
50
-65 to + 150
500
nSec
pF
0
I
R
100
trr
C
J
T
J
, T
STG
150
C
130
