5646529-1 datasheet, PDF - EEWORLD Datasheet

5646529-1: DescriptionZ-PACK 2MM HM TYPE A/B 169P; CategoryThe connector The connector; File Size223KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5646529-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5646529-1	-	-	View	Buy Now

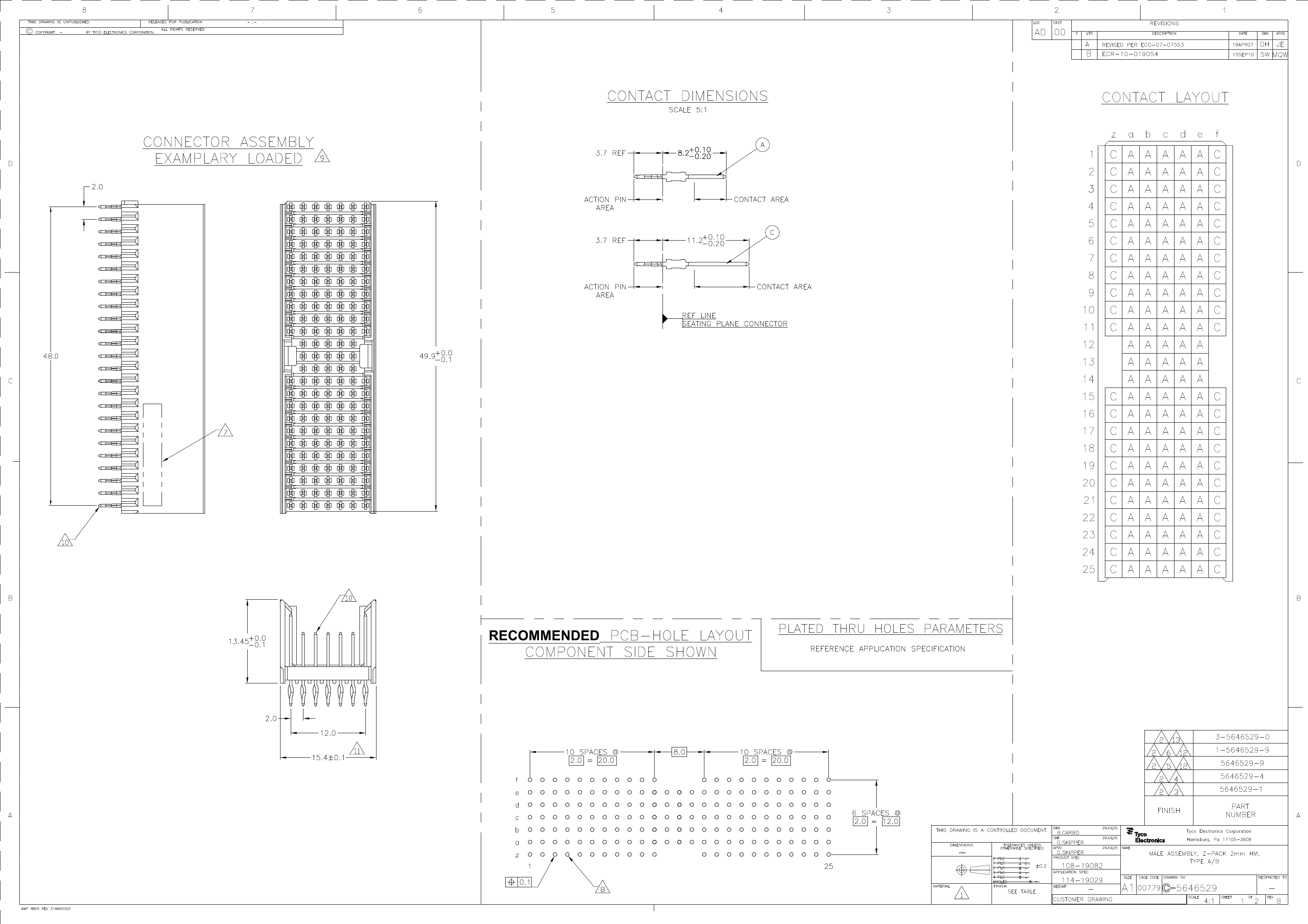

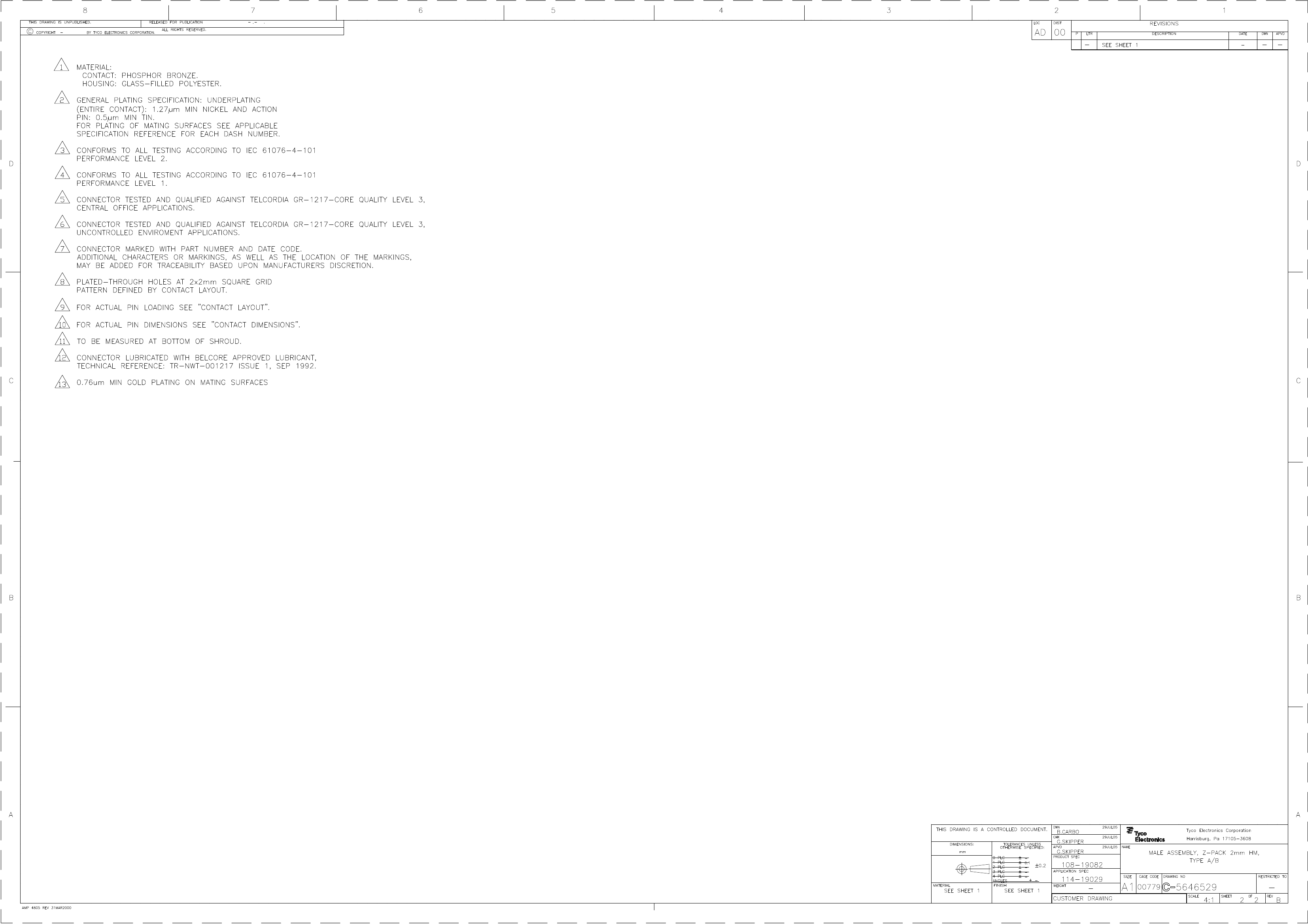

Z-PACK 2MM HM TYPE A/B 169P

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks
body width	0.606 inch
subject depth	0.53 inch
body length	1.965 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Durability	250 Cycles
maximum insertion force	.7506 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	5646529
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	7
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	169
Evacuation force-minimum value	.14734 N
Base Number Matches	1
