2mm Double-Row Connector (Product Compliant to UL/CSA Standard)
DF11 Series
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

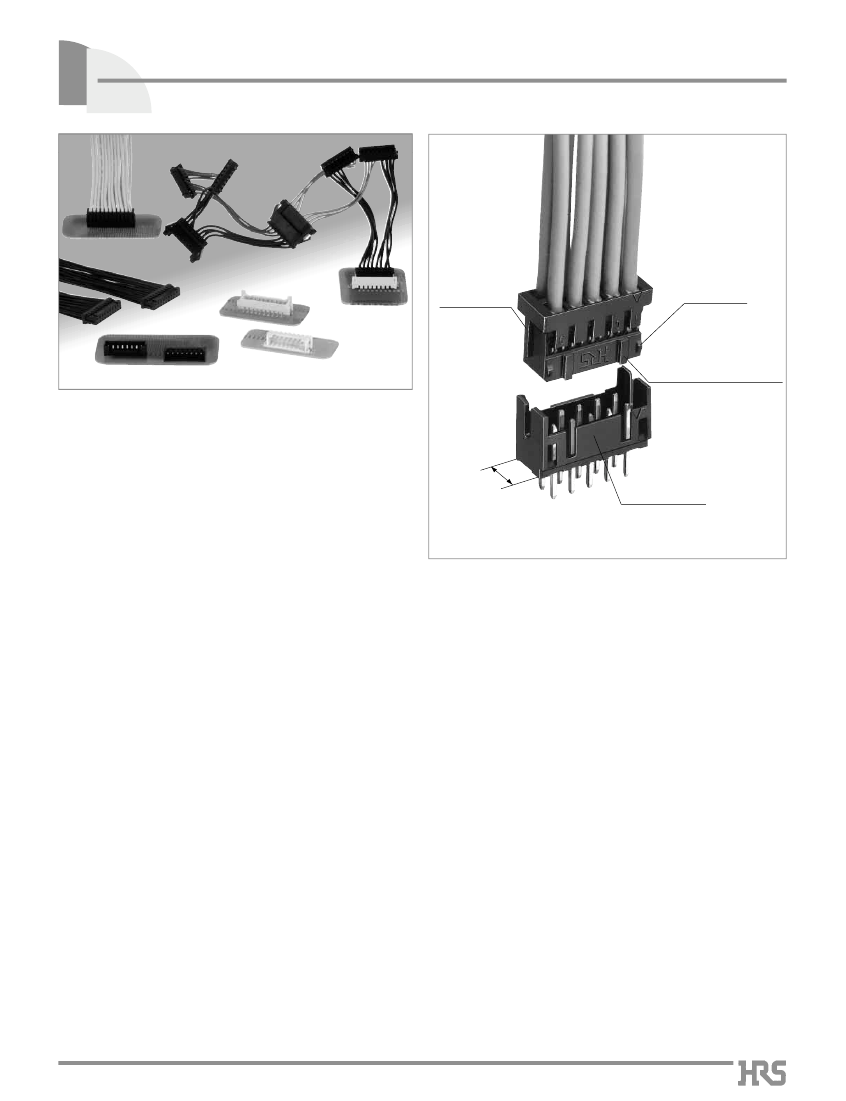

Rib to prevent
mis-insertion
Simple lock
Rib to prevent contact
mis-insertion as well as
disimilar contact mis-insertion
sFeatures
1. Space-saving on Board Realized
Double rows of 2mm pitch contact has been condensed
within the 5mm width.
The multiple number of signals can be secured in the same
space as the conventional 2mm single-row contact.
5mm
4 wall box style
2. Broad Variation
The insulation displacement and crimping methods are
prepared for connection. Thus, board to cable, in-line,
board to board connectors are provided in order to widen a
board design variation.
In addition, "Gold" or "Tin" can be selected for the plating
according application, while the SMT products line up.
3. Applicable Wire Covers Wide Range
According to the double rows of 2mm pitch compact
design, the applicable wire can cover AWG22 to 30.
4. The ID Type Connector Achieves Connection
Work.
Using the full automatic insulation displacement machine,
the complicated multi-harness can be easily connected,
reducing the man-hour and eliminating the manual work
process.
103
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF11 Seriesq2mm Double-Row Connector (Product Compliant to UL/CSA Standard)
sFeatures
of DF11 Insulation Displacement Machine
(Single Core Punching Full Automatic ID Machine AM700/DF11)
q
5 Major Features of ID Machine AM700/DF11
1. Perform the multi-harness.
2. The setup time has been widely reduced. (10 minutes maximum)
3. Space saving design.
(About half space compared with the conventional machine)
4. Minimize initial cost with low cost.
5. The harness data can be saved in the floppy disk and easily
changed.
Data storage
Low cost
Setup in 10 minutes
Multi-harness
Half space
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
sPoints
Since the DF11 insulation displacemention allows double rows ID with a single part, the harness service is completed with
machine connection only.
sProduct
Specifications
AWG #22 to #26 : 2A
Current rating
Rating
(Note 1)
Insulation Displacement Wire size
Voltage rating
Crimping
Crimping
Wire size
AWG #28
AWG #30
AWG #26
: 1A
: 0.5A
: 1A
Storage Temperature Range -10 to 60ç Note 3
40 to 70%
Operating Temperature Range -30 to 85ç Note 2
Operating Humidity Range
40 to 80%
250V AC Insulation Displacement 100V AC Storage Humidity Range
UL-CSA Safety Standard Approved Specification
AWG #22
Rating
Current rating
Voltage rating
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
5. Vibration
1000M
ohms
min.
Wire size
AWG #24 to #28
AWG #30
30V AC
Specification
500V DC
: 2A
: 1A
: 0.5A
sUL
·CSA Safety Standard File No.
UL
:E52653
CSA
:LR95109
Condition
650V AC/1 minute
100mA
Measured by the square steel-made pin of 0.5±0.002mm
No flashover or insulation breakdown.
30m
ohms
max.
4. Single Insertion/Extraction Force 0.3N (30gf) min., 4.4N(450gf) max.
No electrical discontinuity of 1µs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
No deformation of components affecting performance.
Manual soldering:
300ç for 2 seconds
Manual soldering:
260ç for 10 seconds
Reflow:
At the recommended temperature profile 300ç for 3 seconds
Note 1: Current rating of header is 2A.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 4: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
104
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF11 Seriesq2mm Double-Row Connector (Product Compliant to UL/CSA Standard)
sMaterial
Product Type
Crimping Socket
Crimping Contact for Socket
ID Socket
Receptacle
Pin Header
Part
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
Contact
Insulator
SMT Header
In-line Plug
In-line Plug Crimping Contact
In-line Adaptor
Contact
Metal fittings
Insulator
Contact
Insulator
Contact
MateriaI
Polyamide
Phosphor copper
Polyamide
Phosphor copper
Polyamide
Phosphor copper
Polyamide
Brass
Polyamide
Brass
Brass
Polyamide
Phosphor copper
Polyamide
Brass
Finish
Black
Tin plated or gold plated
Black
Tin plated
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Beige
Tin plated or gold plated
Tin plated
Black
Tin plated or gold plated
Black
Tin plated
Remarks
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
–––––––
UL94V-0
–––––––
UL94V-0
–––––––
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
sOrdering
Information
qConnector
DF11 -
*
DS - 2C
q
q
Series Name
e
Connector Type
DS : Double Row socket
DP : Double Row pin header
DEP : Double Row in-line plug
r
Contact Pitch
: 2mm
: DF11
w
e
r t
t
Connection Form/Contact Style
C
: Crimping socket
R26 : Insulation Displacemented socket for AWG26
DSA: Straight through hole
DS : Right angle through hole
V
A
: Straight SMT
: Adaptor
w
Number of Contacts : 4
to
32
qContact
DF11 - EP2428PCFA
q
q
Contact Type
Blank : For socket
EP
22
30
: For in-line plug
: AWG22
: AWG30
w
Applicable Wire Size
2428 : AWG24
to
28
w
e
r
e
Contact Type/Packaging Type
SCF
SC
PCF
PC
Blank
A
: Socket contact, Embossed tape
: Socket contact, Bag
: Plug contact, Embossed tape
: Plug contact, Bag
: Tin plated
: Gold plated
r
Plating Type
105
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF11 Seriesq2mm Double-Row Connector (Product Compliant to UL/CSA Standard)
sID
Socket
Note1: Port 1-piece indicates odd number row,
and port 2- pcs. indicate even number row.
Note2: Use the dip type header as follows.
·
Straight angle type : DF11-*DP-2DSA ( 08 )
·
Angle type: DF11-*DP-2DS(24)
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

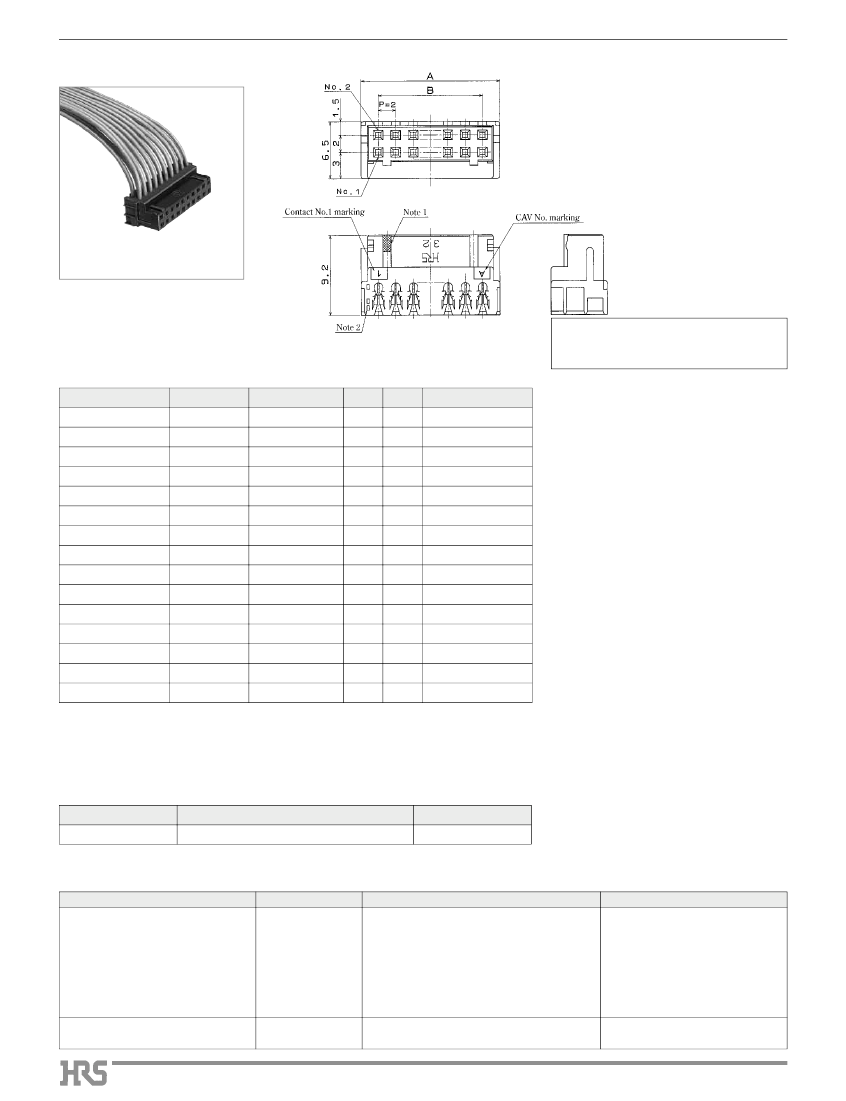

Photo: Cable connection status
[Specific No.]
–
* *
,
(*
*)
(05)
:Tin plated, 100 pcs. per bag
(25)
:Tin plated, Tube packaging
Unit: mm
Part Number
CL No.
Number of Contacts
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
A
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
B
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
Tube Packaging Quantity
188
140
112
94
80
70
62
56
50
46
42
40
36
34
32
DF11- 4DS-2R26(**) 543-0652-0-**
DF11- 6DS-2R26(**) 543-0653-3-**
DF11- 8DS-2R26(**) 543-0654-6-**
DF11-10DS-2R26(**) 543-0655-9-**
DF11-12DS-2R26(**) 543-0656-1-**
DF11-14DS-2R26(**) 543-0657-4-**
DF11-16DS-2R26(**) 543-0658-7-**
DF11-18DS-2R26(**) 543-0659-0-**
DF11-20DS-2R26(**) 543-0660-9-**
DF11-22DS-2R26(**) 543-0661-1-**
DF11-24DS-2R26(**) 543-0662-4-**
DF11-26DS-2R26(**) 543-0663-7-**
DF11-28DS-2R26(**) 543-0664-0-**
DF11-30DS-2R26(**) 543-0665-2-**
DF11-32DS-2R26(**) 543-0666-5-**
Note1: The specific No. (05) item is delivered per bag unit (100 pcs.). Please order products per bag unit.
Note2: To use the full automatic insulation displacement machine to punch the DF11 single contact, the (25) tube packaging specification
should be applied.
Note3: Please order the tube packaging products by multiplying the packaging quantity ( pcs.).
sApplicable
Cable
Part Number
DF11-*DS-2R26
Applicable Cable
UL1061 AWG26 (7/0.16)
Jacket Diameter
Ø0.9 to
1.05mm
sDF11-*DS-2R
Insulation Displacement Machine
Type
Part Number
Connection Type
sEffective
harness form
1. DF11-both ended, one ended
2. DF11-DF11, separation
3. DF11-DF3, separation
sEffective
harness length
100 to 2,000mm
sContinuity
Inspection Mechanism Equipped
sUsed
for DF11 only, No restricted condition
Remarks
Punching full automatic ID
machine DF11 single contact
AM700/DF11
The connector is applicable to
(25) tube packaging.
Desktop ID Machine
SA700/DF11
CL903-0013-5
Desktop machine for small lot
106
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF11 Seriesq2mm Double-Row Connector (Product Compliant to UL/CSA Standard)
sCrimping
Socket
[Specific No.]
–
* *
,
(*
*)
Blank :100 pcs. per pack
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.

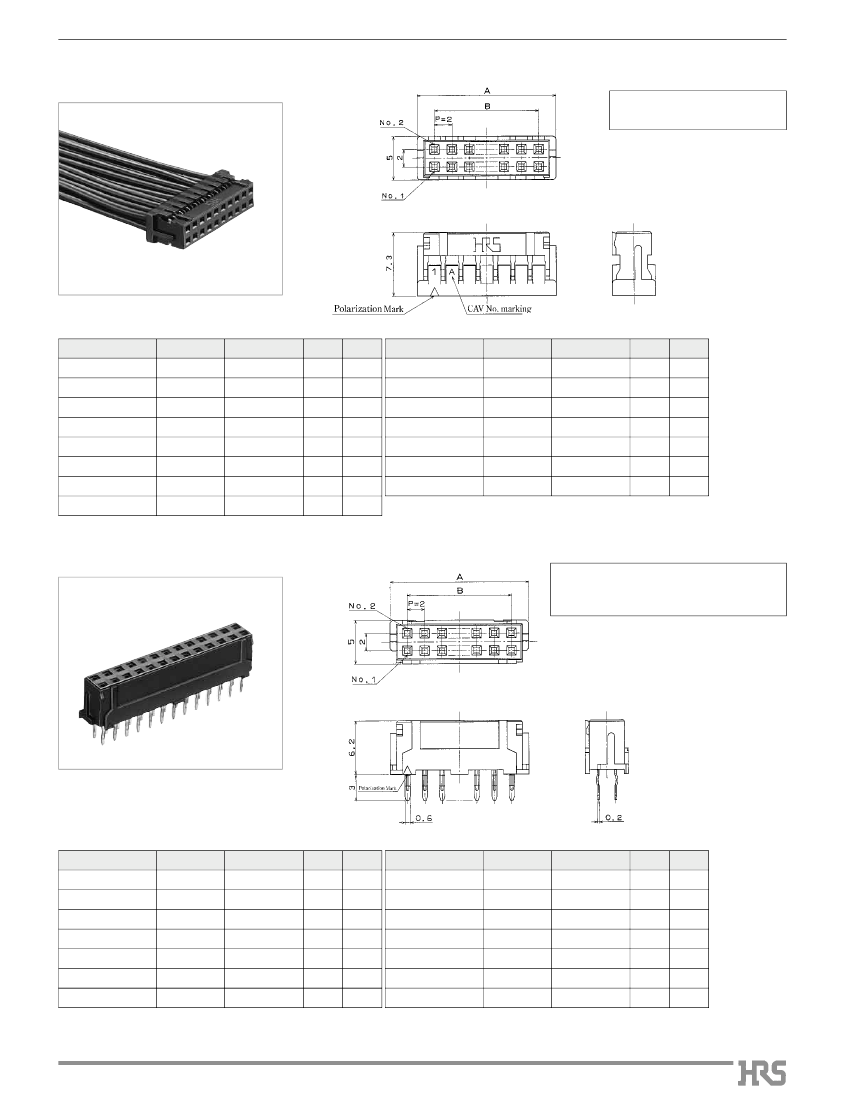

Photo: Contact insertion status
Unit: mm
Part Number
DF11- 4DS-2C(**)
DF11- 6DS-2C(**)
DF11- 8DS-2C(**)
DF11-10DS-2C(**)
DF11-12DS-2C(**)
DF11-14DS-2C(**)
DF11-16DS-2C(**)
CL No.
543-0568-6-**
543-0502-8-**
543-0503-0-**
543-0504-3-**
543-0505-6-**
543-0506-9-**
543-0507-1-**
Number of Contacts
4
6
8
10
12
14
16
A
6.0
8.0
10.0
12.0
14.0
16.0
18.0
B
2.0
4.0
6.0
8.0
10.0
12.0
14.0
Part Number
DF11-20DS-2C(**)
DF11-22DS-2C(**)
DF11-24DS-2C(**)
DF11-26DS-2C(**)
DF11-28DS-2C(**)
DF11-30DS-2C(**)
DF11-32DS-2C(**)
CL No.
543-0509-7-**
543-0510-6-**
543-0511-9-**
543-0512-1-**
543-0513-4-**
543-0514-7-**
543-0515-0-**
Number of Contacts
20
22
24
26
28
30
32
A
22.0
24.0
26.0
28.0
30.0
32.0
34.0
B
18.0
20.0
22.0
24.0
26.0
28.0
30.0
20.0 16.0
18
DF11-18DS-2C(**) 543-0508-4-**
Note: Delivered per bag unit (100 pcs.). Please order products bag pack unit.
sReceptacle
(DIP)
[Specific No.]
–
* *
,
(*
*)
(05) :Tin plated 100 pcs. per pack
(06) :Gold plated 100 pcs. per pack
qBoard
Through-hole Diameter:
Ø0.8
+
0.1
+
0
qKink
Prefixed Effective Diameter:
Ø0.8
+
0.05
+
0
Unit: mm
Part Number
CL No.
Number of Contacts
6
8
10
12
14
16
A
8.0
10.0
12.0
14.0
16.0
18.0
B
4.0
6.0
8.0
10.0
12.0
14.0
Part Number
CL No.
Number of Contacts
20
22
24
26
28
30
32
A
22.0
24.0
26.0
28.0
30.0
32.0
34.0
B
18.0
20.0
22.0
24.0
26.0
28.0
30.0
DF11- 6DS-2DSA(**) 543-0553-9-**
DF11- 8DS-2DSA(**) 543-0554-1-**
DF11-10DS-2DSA(**) 543-0555-4-**
DF11-12DS-2DSA(**) 543-0556-7-**
DF11-14DS-2DSA(**) 543-0557-0-**
DF11-16DS-2DSA(**) 543-0558-2-**
DF11-20DS-2DSA(**) 543-0560-4-**
DF11-22DS-2DSA(**) 543-0561-7-**
DF11-24DS-2DSA(**) 543-0562-0-**
DF11-26DS-2DSA(**) 543-0563-2-**
DF11-28DS-2DSA(**) 543-0564-5-**
DF11-30DS-2DSA(**) 543-0565-8-**
20.0 16.0 DF11-32DS-2DSA(**) 543-0566-0-**
18
DF11-18DS-2DSA(**) 543-0559-5-**
Note: Delivered per bag unit (100 pcs.). Please order products per bag unit.
I am working on my graduation project recently, but I have been thinking about the simulated sound source of the music fountain for a long time but have not been able to solve it. I hope you can suppo...
I feel very happy today. The last article I posted did not have code, only PDF. I am making up for it this time. I hope you will not blame me for making up for it now. The PDF document is a companion ...
When drawing the differential line of the USB2.O device interface, the following requirements should be noted: ① During the component layout (PCB Layout), the USB2.O chip should be placed on the signa...
When using Xilinx SDK to develop an ARM program, I copied and pasted several unmodified problems from outside, and the editor reported an error
After correcting the errors in the pasted file, the foll...
With the continuous development and progress of science and technology and manufacturing technology, digitally controlled engraving machines have gradually become special tools for the engraving indus...
I am studying measurement and control technology and instruments. I don't know what the future holds. Please give me some advice. Thank you in advance!...
In the actual project development process, it is common to encounter modifications to the hardware circuit, and then the modified part requires the modification of the driver. Thinking about the comi...[Details]
When the domestic discussion about "ZTE being banned" was hot, Alibaba officially announced the acquisition of chip supplier
Zhongtianwei
, but the investment amount was not disclosed. At t...[Details]
China Energy Storage Network:
Blockchain + finance, blockchain + environmental protection, blockchain + insurance, even a roadside fried chicken shop is using the banner of blockchain + fried...[Details]
1. About FPU transplantation As long as the chip has FPU function, the use of FPU is generally enabled by default. You can also select it in the Options tab; 2. About the transplantation of DSP li...[Details]
1. Initial understanding of FSMC: FSMC consists of 4 modules: (1) AHB interface (including FSMC configuration register) (2) NOR flash memory and PSRAM controller (when driving LCD, LCD is like a PSRA...[Details]
At the beginning of the new year of 2018, after the release of the national photovoltaic policy, we found that the state’s support for village-level poverty alleviation power stations has not weake...[Details]
Every era has anxiety that has nowhere to go. Let's follow the embedded editor to learn about the relevant content.
The anxiety of the post-Internet era is that if you don’t revolutionize ...[Details]
Photovoltaic inverters are the core equipment of photovoltaic systems. Their main function is to convert the direct current generated by photovoltaic modules into alternating current that meets the...[Details]
The pins of stm32 have two uses: GPIO (general purpose io) and AFIO (alternate function io) For some pins (depending on the chip), neither of these two uses exists. For example, in 64-pin products, O...[Details]
I have encountered many problems when tinkering with LD driver recently. I will record them one by one below. Otherwise, who will remember who in five hundred years? 1. Configuration issues of multi-...[Details]
Internal channels of ADC: In addition to using external channels to collect external analog voltage signals, the ADC of STM32 also has two internal channels 16 and 17. Channel 16 is connected to ...[Details]
environment: Host: XP Development environment: MDK4.23 MCU:STM32F103CBT6 illustrate: Collect AD through pins PA1 and PA2. Collect AD 10 times for each channel. #include "ad_driver.h" //Global ...[Details]
In the packaging process of a production line, every time the conveyor belt of the production line delivers a product to the packaging machine, the "SP" terminal outputs a pulse to the T1 terminal of...[Details]
LiDAR is a comprehensive light detection and measurement system. Compared with ordinary radar, LiDAR can provide high-resolution radiation intensity geometric images, distance images, and speed im...[Details]
A transformer is an electrical device that can change the AC voltage while keeping the AC frequency unchanged. In the power transmission and transformation process of the power system, the transfor...[Details]
Integrated technical exchanges
京公网安备 11010802033920号
EEWORLD
