14-354W00-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 14-354W00-20

14-354W00-20: DescriptionIC u0026 Component Sockets DIP TO SOWIC ADAPT 354W00 SERIES; CategoryThe connector socket; File Size343KB，1 Pages; ManufacturerAries Electronics

Download Datasheet Parametric Compare View All

14-354W00-20 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	14-354W00-20	-	-	View	Buy Now

14-354W00-20 Overview

IC u0026 Component Sockets DIP TO SOWIC ADAPT 354W00 SERIES

14-354W00-20 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Device slot type	IC SOCKET
Type of equipment used	DIP16-SOWIC16
Shell material	NYLON46
JESD-609 code	e0
Manufacturer's serial number	354W00
Number of contacts	14
Base Number Matches	1

Preview

Download Datasheet

View All

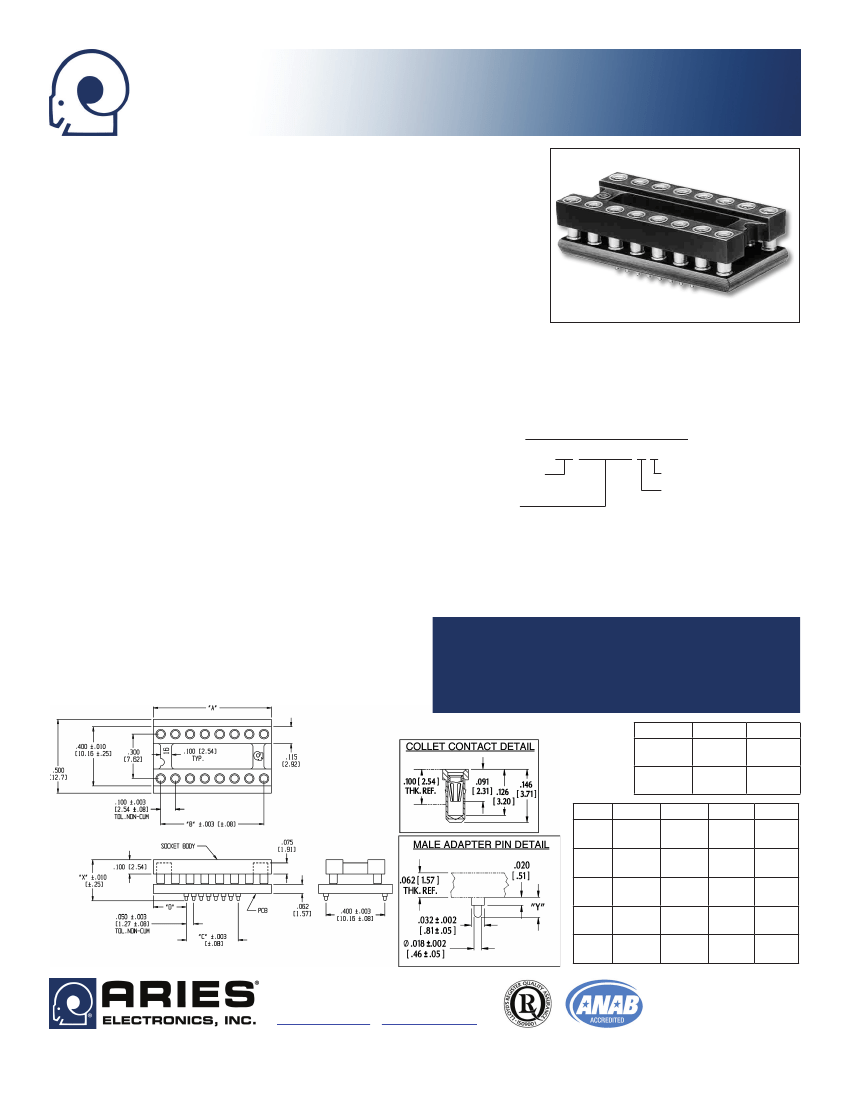

Series 354W00 DIP-to-SOWIC Adapter

FEATURES

• Convenient, cost-effective means of converting DIP-style packaging to SOWIC

PC board layouts.

GENERAL SPECIFICATIONS

• SOCKET BODY: black, UL 94V-0 glass-filled 4/6 Nylon 170°C continuous use

temp.

• PCB: FR-4, 0.062 [1.58] thick

• MALE ADAPTER PIN: Brass 360 1/2-hard per UNS C36000, ASTM-B16-85

• MALE ADAPTER PIN PLATING: 200µ [5.08µ] Sn/Pb 90/10 MIL-P-81728 over

100µ [2.54µ] Ni per QQ-N-290

• COLLET CONTACT PIN BODY: Brass 360 1/2-hard per UNS C36000, ASTM

CUSTOMIZATION:

In addition to the standard products shown

B16/B16M

on this page, Aries specializes in custom design and production.

• COLLET PIN PLATING: 10µ [0.25µ] Au per MIL-G-45204 over 100µ [2.54µ] Ni

Special materials, platings, sizes, and configurations can be

furnished, depending on the quantity.

NOTE:

Aries reserves the

per QQ-N-290

right to change product general specifications without notice.

• 4-FINGER COLLET CONTACT: BeCu per UNS C17200, ASTM B194-08

• CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ

[1.27µ] Ni per QQ-N-290

ORDERING INFORMATION

• CONTACT CURRENT RATING: 3 amps

XX-354W00-X 0

• OPERATING TEMPERATURE: 221°F [105°C]

Sn-plating

• INSERTION FORCE: 180g/pin, based on a 0.018 [0.46] dia. test lead

No. of Pins

Adapter Pin Option

14, 16, 20, 24

• WITHDRAWAL FORCE: 90g/pin, based on a 0.018 [0.46] dia. test

(see Suffix Table)

Series

lead

1 = Short Adapter Pin

• NORMAL FORCE: 140g/pin, based on a 0.018 [0.46] dia. test lead

2 = Long Adapter Pin

• SOCKET ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] in dia., 0.100-

0.125 [2.54-3.18] long

MOUNTING CONSIDERATIONS

• SUGGESTED

PCB HOLE SIZE: 0.028 ±0.002 [0.71 ±0.05] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

P/N Suffix

-10

-20

# Pins

Bristol, PA 19007-6810 USA

TEL (215) 781-9956 • FAX (215) 781-9845

WWW.ARIESELEC.COM • INFO@ARIESELEC.COM

0.700

[17.78]

0.800

[20.32]

0.900

[22.86]

1.000

[25.40]

1.200

[30.48]

0.600

[15.24]

0.700

[17.78]

0.800

[20.32]

0.900

[22.86]

1.100

[27.94]

Dim. X

0.265

[6.73]

0.325

[8.26]

0.300

[7.62]

0.350

[8.89]

0.400

[10.16]

0.450

[11.43]

0.550

[13.91]

Dim. Y

0.050

[1.27]

0.110

[2.79]

0.200

[5.08]

0.225

[5.72]

0.250

[6.35]

0.275

[6.99]

0.325

[8.26]

PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED

18073

Rev. 1.2

14-354W00-20 Related Products

	14-354W00-20	24-354W00-10	14-354W00-10	16-354W00-10	24-354W00-20
Description	IC u0026 Component Sockets DIP TO SOWIC ADAPT 354W00 SERIES	IC u0026 Component Sockets DIP TO SOWIC ADAPT 354W00 SERIES		IC u0026 Component Sockets DIP TO SOWIC ADAPT 354W00 SERIES	IC u0026 Component Sockets DIP TO SOWIC ADAPT 354W00 SERIES
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL	TIN LEAD (200) OVER NICKEL
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP16-SOWIC16	DIP24-SOWIC24	DIP16-SOWIC16	DIP16-SOWIC16	DIP24-SOWIC24
Shell material	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46
JESD-609 code	e0	e0	e0	e0	e0
Number of contacts	14	24	14	16	24
Base Number Matches	1	1	1	1	1
