Preview

374857: DescriptionReal Time Clock Low-V SPI/3-Wire With Trickle Charger; CategoryThe connector The connector; File Size46KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

374857 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	374857	-	-	View	Buy Now

374857 Overview

Real Time Clock Low-V SPI/3-Wire With Trickle Charger

374857 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.437 inch
subject depth	0.457 inch
body length	1.565 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYAMIDE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
Base Number Matches	1

Preview

Download Datasheet

View All

Anforderungsstufe

class

32,1

-0,2

Datum

date

Stecklänge

mating length

6,4

-0,1

max.11,6

5,2

-0,1

2,5

±0,2

XXXXXXX

2,9

-0,3

2,54

9x2,54=22,86

39,76

-0,2

E =

early mate, late break

/ voreilend

29,3

2,8

a10

+0,1

+0,2

S = standard

1

-0,1

a1

L = late mate, early break / nacheilend

max.11,1

6

8,7

+0,1

c10

34,76

c1

THR =

through hole reflow

Bauart 4 / t

ype 4

Anforderungsstufe 2 = 400 Steckzyklen

/ performance class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

2,5

-0,2

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Bestückungsplan /

contact layout

10 9 8 7 6 5 4 3 2 1

S S S S S S S S S S

a

b

c

Leiterplatten-Lochbild /

PCB drillhole pattern

1

±0,1

2,8

0,3

+0,1

alle Löcher

0,05

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

all holes

10 9 8 7 6 5 4 3 2 1

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

2x 2,54 =5,08

2,54

9x 2,54 =22,86

34,76

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

a

Index

24.10.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

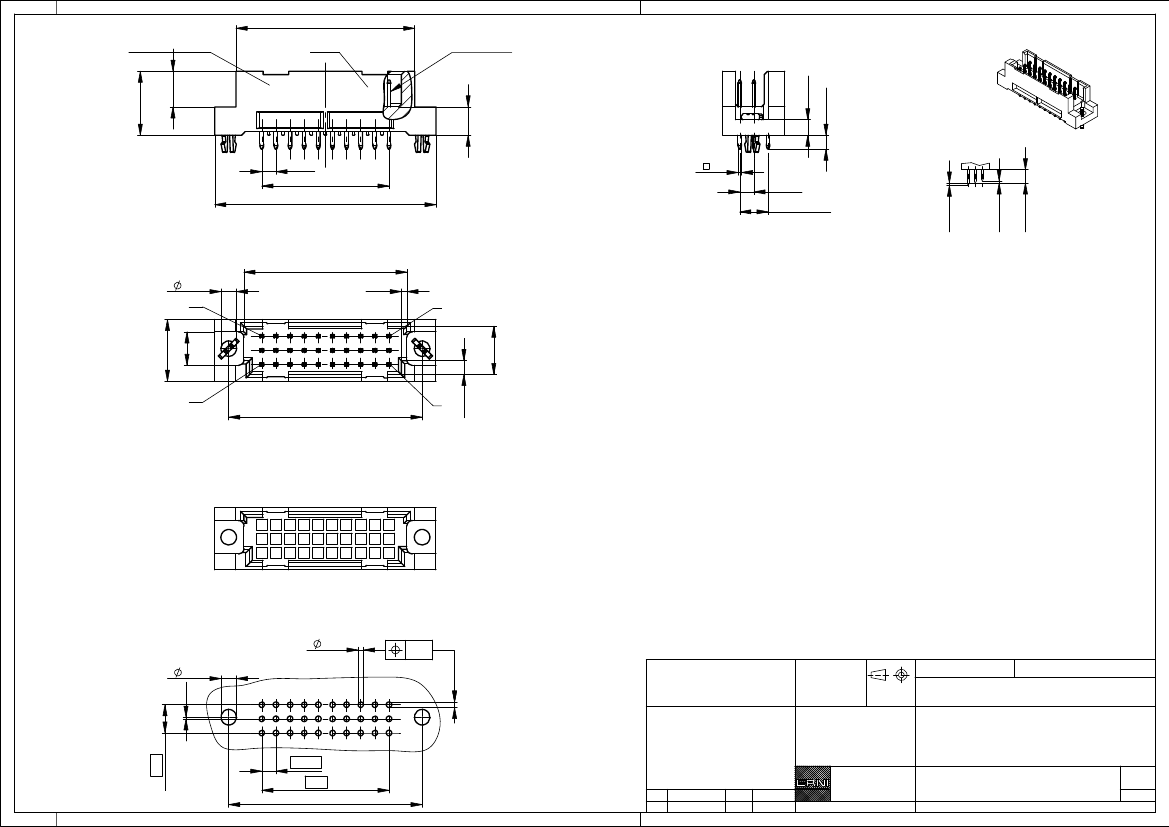

Messerleiste R/3, 30 THR+Clip

Male Con. R/3, 30 THR+Clip

www.ERNI.com

Class

374857

STVR/3

4,8

±0,2

0,8

±0,1

0,8

±0,1

ERNI

RC 2

a b c

Stecklänge / mating length

ESL

0,6

2,54

2x2,54=5,08

I

A3
