39-30-3057 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-30-3057

39-30-3057: DescriptionHeaders u0026 Wire Housings 4 CKT R/A HEADER; CategoryThe connector The connector; File Size33KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39-30-3057 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-30-3057	-	-	View	Buy Now

39-30-3057 Overview

Headers u0026 Wire Housings 4 CKT R/A HEADER

39-30-3057 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Headers & Wire Housings 5 CKT R/A HEADER
Other features	MINI-FIT JR
Board mount options	SPLIT BOARD LOCK
body length	0.874 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	HOUSING SIDE
Rated current (signal)	8 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYAMIDE
Terminal length	0.14 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-2
Evacuation force-minimum value	3.1136 N
Base Number Matches	1

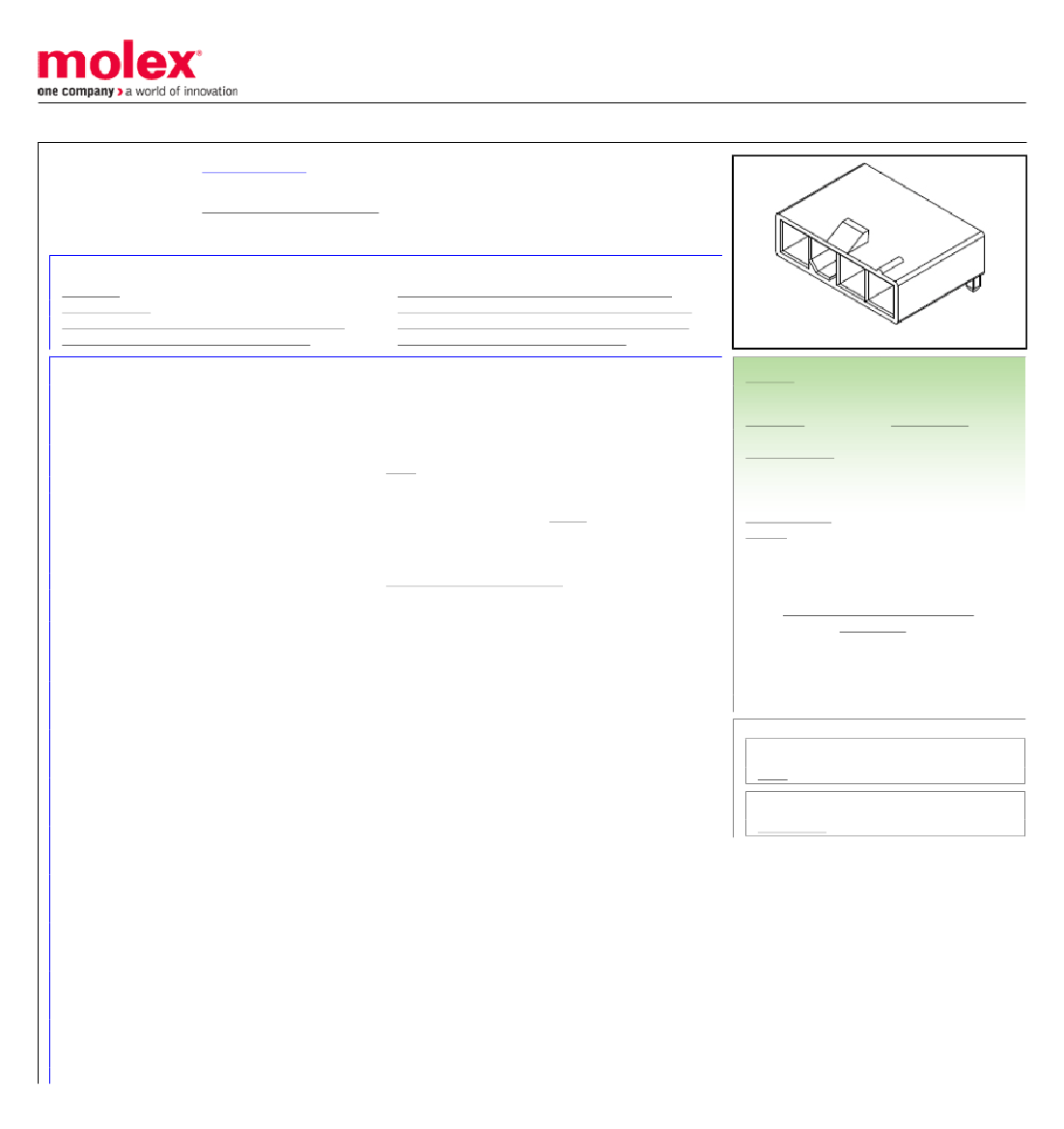

Preview

Download Datasheet

View All

This document was generated on 12/11/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039303057

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Header, Single Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 5

Circuits, PA Polyamide Nylon 6/6, 94V-2, (Au) Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-45750-001-001 (PDF)

Product Specification PS-5556-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Product Specification TS-5556-002-001 (PDF)

Application Specification AS-5557-001-001 (PDF)

Packaging Specification PK-5569-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

PCB Headers

5569

Power, Wire-to-Board

Current = 13A max. per circuit when header is mated

to a receptacle loaded with 45750 Mini-Fit Plus HCS

Crimp Terminal Crimped to 16 AWG wire., See Molex

Product specification PS-5556-001 for additional current

de-rating information.

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

800754380843

Natural

94V-2

None

Yes

Brass

Gold

Matte Tin

Nylon

1.778/g

Right Angle

Yes

1.78mm

Bag

4.20mm

0.762µm

2.540µm

Yes

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Search Parts in this Series

5569 Series

Mates With

39-01-4050 Receptacle
