803-43-002-20-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 803-43-002-20-001000

803-43-002-20-001000: DescriptionHeaders u0026 Wire Housings; CategoryThe connector The connector; File Size552KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

803-43-002-20-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	803-43-002-20-001000	-	-	View	Buy Now

803-43-002-20-001000 Overview

Headers u0026 Wire Housings

803-43-002-20-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	TIN (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	803
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2

Preview

Download Datasheet

View All

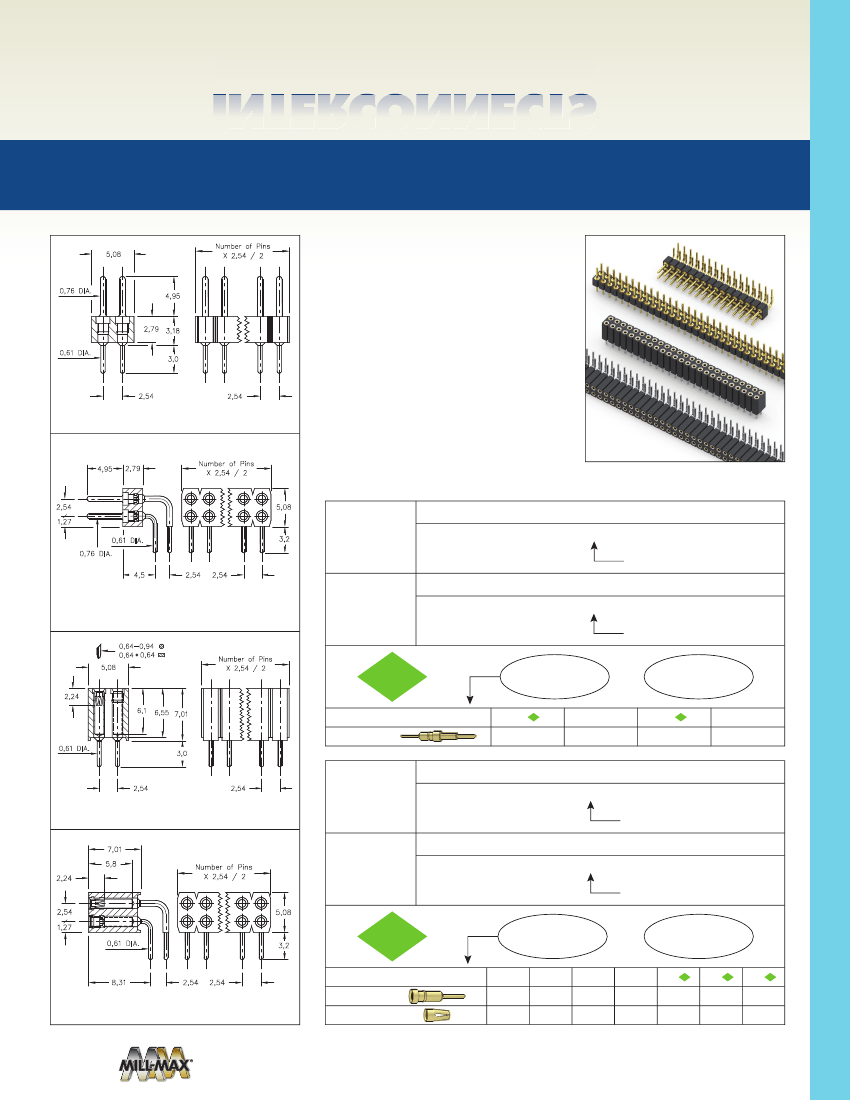

INTERCONNECTS

SERIES 802 & 803 • 2,54 GRID (0,76 DIA. PINS), STRAIGHT &

RIGHT ANGLE HEADERS AND SOCKETS • DOUBLE ROW STRIPS

Number of Pins

X 2,54 / 2

5,08

•

Pin interconnects available with straight MM

#7007 or right angle MM #5005/5107 solder

tails. See page 215 for details

0,76 DIA.

4,95

•

Sockets are available with straight MM #1304

or right angle MM #1305/1306 soldertails. See

pages 177 and 179 for details

2,79

0,61 DIA.

3,18

3,0

•

MM #1304, #1305 and #1306 receptacles use

2,54

FIG. 1

4,95

2,79

Number of Pins

X 2,54 / 2

Hi-Rel, 6- nger BeCu #47 contact rated at 4.5

amps. Receptacles accept 0,76 diameter and

0,64 square pins. See page 256 for details

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

ORDERING INFORMATION

5,08

2,54

1,27

0,61 DIA.

0,76 DIA.

4,5

2,54

Series 802...10-001

Straight Pin Header

04-64

3,2

FIG. 1

802 XX 0_ _ 10 001000

Specify number of pins

Series 802...20-001

Right Angle Pin Header

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

0,64-0,94

0,64

5,08

Number of Pins

X 2,54 / 2

FIG. 2

RoHS - 2

802 XX 0_ _ 20 001000

Specify number of pins

XX=Plating Code

See Below

0,25µm Au

2011/65/EU

2,24

6,1

6,55 7,01

SPECIFY PLATING CODE XX=

Pin Plating

5,08µm Sn/Pb

5,08µm Sn

0,61 DIA.

3,0

Series 803...10-001

2,54

Straight Socket

004-100

FIG. 3

7,01

5,8

2,24

Number of Pins

X 2,54 / 2

FIG. 3

803 XX _ _ _ 10 001000

Specify number of pins

Series 803...20-001

Right Angle Socket

002-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

2,54

1,27

0,61 DIA.

3,2

5,08

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

8,31

2,54

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

Au Flash

5,08µm Sn/Pb 5,08µm Sn/Pb 5,08µm Sn/Pb

5,08µm Sn 5,08µm Sn 5,08µm Sn

FIG. 4

0,25µm Au 0,76µm Au

2,54µm Sn/Pb

0,25µm Au 0,76µm Au

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 55 | INTERCONNECTS

FIG. 4

803 XX _ _ _ 20 001000

803-43-002-20-001000 Related Products

	803-43-002-20-001000	BLU1206ER-1241-CB25	802-10-020-10-001000
Description	Headers u0026 Wire Housings	Res,SMT,Thin Film,1.24K Ohms,150WV,.25% +/-Tol,25ppm TC,1206 Case	Headers u0026 Wire Housings
Reach Compliance Code	compliant	compliant	compliant
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Maker	Mill-Max	-	Mill-Max
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)	-	NOT SPECIFIED
Contact point gender	FEMALE	-	MALE
Contact material	NOT SPECIFIED	-	BRASS
DIN compliance	NO	-	NO
Filter function	NO	-	NO
IEC compliance	NO	-	NO
MIL compliance	NO	-	NO
Manufacturer's serial number	803	-	802-10-020-10-001000
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO
Installation method	RIGHT ANGLE	-	STRAIGHT
Installation type	BOARD	-	BOARD
Number of rows loaded	2	-	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	2.54 mm	-	2.54 mm
Termination type	SOLDER	-	SOLDER
Total number of contacts	2	-	20
