Datasheet> All Categories > The connector> The connector> M80-5520822

Preview

M80-5520822: DescriptionHeaders u0026 Wire Housings DATAMATE M DIL HORIA SMT NO JS; CategoryThe connector The connector; File Size200KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

M80-5520822 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-5520822	-	-	View	Buy Now

M80-5520822 Overview

Headers u0026 Wire Housings DATAMATE M DIL HORIA SMT NO JS

M80-5520822 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.238 inch
subject depth	0.398 inch
body length	0.709 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	M80-552
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.4892 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

M80-5520822 Related Products

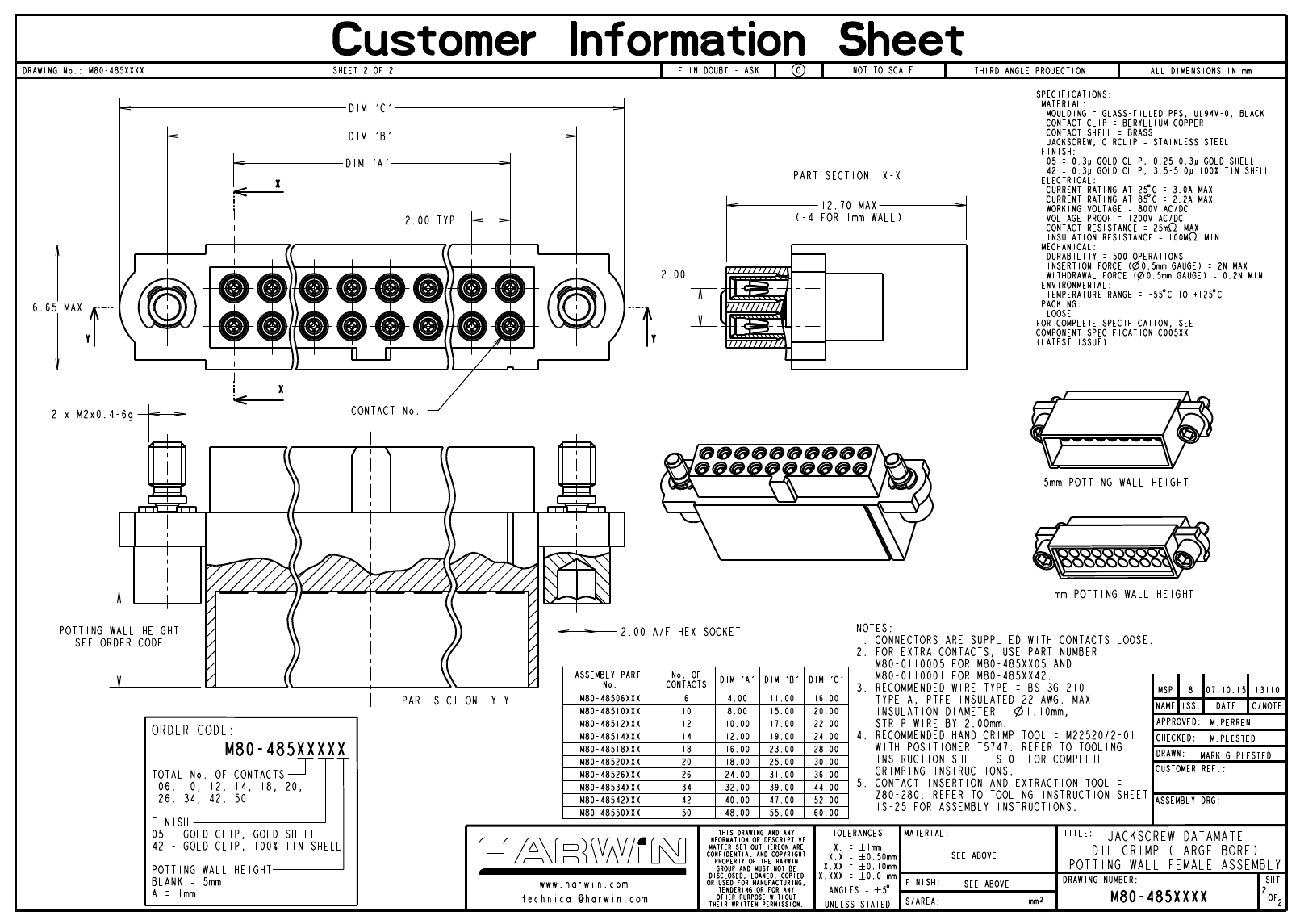

	M80-5520822	M80-4852005	M80-4852605
Description	Headers u0026 Wire Housings DATAMATE M DIL HORIA SMT NO JS		Pin u0026 Socket Connectors 2 CIRCUIT PLUG
Is it lead-free?	Contains lead	Lead free	Lead free
Is it Rohs certified?	incompatible	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
body width	0.238 inch	0.262 inch	0.262 inch
body length	0.709 inch	1.181 inch	1.417 inch
Body/casing type	RECEPTACLE	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin/Lead (Sn/Pb)	Gold (Au)	Gold (Au)
Contact point gender	MALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO
Durability	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0	e4	e4
MIL compliance	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO
Installation option 1	LOCKING	M2X0.4	M2X0.4
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW
Installation type	BOARD	CABLE	CABLE
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	12u inch	12u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	SURFACE MOUNT	CRIMP	CRIMP
Total number of contacts	8	20	26
UL Flammability Code	94V-0	94V-0	94V-0
Maker	-	Harwin	Harwin
package instruction	-	LEAD FREE	LEAD FREE
Other features	-	COMPATIBLE CONTACT: M80-0110005	COMPATIBLE CONTACT: M80-0110005
Contactor design	-	LOOSE	LOOSE
Maximum wire diameter	-	22 AWG	22 AWG
Minimum wire diameter	-	22 AWG	22 AWG
