1-1823174-5

Description
Combination Line Connector
CategoryThe connector    The connector
File Size703KB，1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

1-1823174-5 Overview

Combination Line Connector

1-1823174-5 Parametric

Parameter NameAttribute value
Objectid7284804650
Reach Compliance Codeunknown
ECCN codeEAR99
Samacsys Description2POS,1.5MM SFC,REC HSG ASSY,SLD
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2020-10-10 19:58:25
body width1.53 inch
subject depth0.77 inch
body length0.7 inch
Body/casing typeRECEPTACLE
Connector typeCOMBINATION LINE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedNOT APPLICABLE
Contact materialNOT SPECIFIED
DIN complianceNO
Electromagnetic interference shieldingNO
empty shellYES
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Power Connector Ratings115/230VAC
Mixed contactsNO
Installation typeCABLE
Number of connectorsONE
Number of ports1
Number of rows loaded1
OptionsGENERAL PURPOSE
Panel mountingNO
polarization keyPOLARIZED
GuidelineUSCAR
Terminal pitch3.33 mm
Total number of contacts1

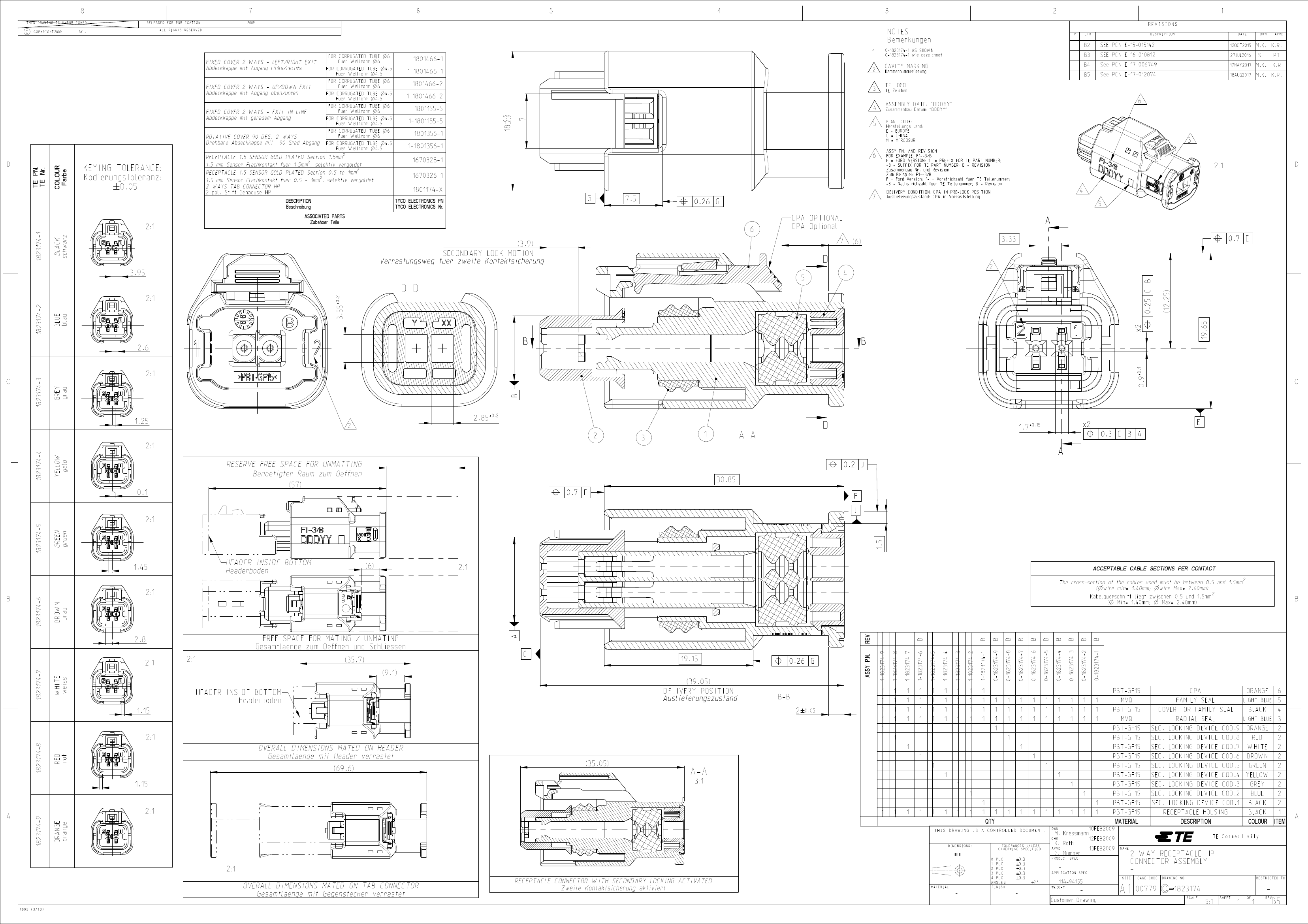

Preview

Download Datasheet
8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
7
2009
6
5
4
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
2009
NOTES
Bemerkungen
FIXED COVER 2 WAYS - LEFT/RIGHT EXIT
Abdeckkappe mit Abgang links/rechts
FIXED COVER 2 WAYS - UP/DOWN EXIT
Abdeckkappe mit Abgang oben/unten
FIXED COVER 2 WAYS - EXIT IN LINE
Abdeckkappe mit geradem Abgang
FOR CORRUGATED TUBE n 6
Fuer Wellrohr n 6
1801466-1
1-1801466-1
1801466-2
1-1801466-2
1801155-5
1-1801155-5
1801356-1
1-1801356-1
1670328-1
1670326-1
1801174-X
TYCO ELECTRONICS PN
TYCO ELECTRONICS Nr.
1
2
3
4
0-1823174-1 AS SHOWN
0-1823174-1 wie gezeichnet
B2
B3
B4
B5
SEE PCN E-15-015142
SEE PCN E-16-010812
See PCN E-17-006749
See PCN E-17-012074
12OCT2015
27JUL2016
17MAY2017
18AUG2017
M.K. K.R.
SH
PT
M.K. K.R
M.K. K.R.
FOR CORRUGATED TUBE n 4.5
Fuer Wellrohr n 4.5
FOR CORRUGATED TUBE n 6
Fuer Wellrohr n 6
CAVITY MARKING
TE LOGO
Kammernummerierung
FOR CORRUGATED TUBE n 4.5
Fuer Wellrohr n 4.5
FOR CORRUGATED TUBE n 6
Fuer Wellrohr n 6
TE Zeichen
FOR CORRUGATED TUBE n 4.5
Fuer Wellrohr n 4.5
FOR CORRUGATED TUBE n 6
Fuer Wellrohr n 6
Fuer Wellrohr
2
18
+0.5
-0.2
Zusammenbau Datum: "DDDYY"
PLANT CODE:
Herstellungs Land:
E = EUROPE
C = CHINA
M = MERCOSUR
ASSEMBLY DATE: "DDDYY"
6
7
5
ROTATIVE COVER 90 DEG. 2 WAYS
Drehbare Abdeckkappe mit 90 Grad Abgang
FOR CORRUGATED TUBE
n 4.5
n 4.5
3
TE PN.
TE Nr.
COLOUR
Farbe
D
KEYING TOLERANCE:
Kodierungstoleranz:
# 0.05
RECEPTACLE 1.5 SENSOR GOLD PLATED Section 1.5mm
2
1.5 mm Sensor Flachkontakt fuer 1.5mm
, selektiv vergoldet
2
6
RECEPTACLE 1.5 SENSOR GOLD PLATED Section 0.5 to 1mm
2
1.5 mm Sensor Flachkontakt fuer 0.5 - 1mm
, selektiv vergoldet
2 WAYS TAB CONNECTOR HP
2 pol. Stift Gehaeuse HP
DESCRIPTION
Beschreibung
ASSY PN. AND REVISION
FOR EXAMPLE: F1--3/B
F = FORD VERSION; 1- = PREFIX FOR TE PART NUMBER;
-3 = SUFFIX FOR TE PART NUMBER; B = REVISION
Zusammenbau Nr. und Revision
Zum Beispiel: F1--3/B
F = Ford Version; 1- = Vorstrichzahl fuer TE Teilenummer;
-3 = Nachstrichzahl fuer TE Teilenummer; B = Revision
DELIVERY CONDITION: CPA IN PRE-LOCK POSITION
Auslieferungszustand: CPA in Vorraststellung
2:1
4
5
D
G
7.5
0.26 G
6
CPA OPTIONAL
CPA Optional
7
7
1823174-1
BLACK
schwarz
2:1
ASSOCIATED PARTS
Zubehoer Teile
1823174-2
BLUE
blau
+0.2
3.55
2:1
(
12.25
)
D-D
0.25 C B
3.95
(3.9)
SECONDARY LOCK MOTION
Verrastungsweg fuer zweite Kontaktsicherung
5
()
6
2
3.33
0.7 E
4
2.6
2:1
GREY
grau
C
1823174-3
0.9
+0.1
19.65
x2
C
1.25
2:1
YELLOW
gelb
2
+0.2
2.85
B
2
3
1
A-A
0.2 J
30.85
+0.15
1.7
x2
0.3 C B A
E
1823174-4
RESERVE FREE SPACE FOR UNMATTING
Benoetigter Raum zum Oeffnen
0.1
2:1
( )
57
0.7 F
F
J
1823174-5
GREEN
gruen
1.45
2:1
BROWN
braun
HEADER INSIDE BOTTOM
Headerboden
()
6
2:1
1.5
ACCEPTABLE CABLE SECTIONS PER CONTACT
The cross-section of the cables used must be between 0.5 and 1.5mm
( n wire min= 1.40mm; n wire Max= 2.40mm)
Kabelquerschnitt liegt zwischen 0,5 und 1,5mm
( n Min= 1,40mm; n Max= 2,40mm)
2
2
1823174-6
B
B
2.8
2:1
WHITE
weiss
1-1823174-9
1-1823174-8
1-1823174-7
1-1823174-6
1-1823174-5
1-1823174-4
1-1823174-3
1-1823174-2
1-1823174-1
0-1823174-9
0-1823174-8
0-1823174-7
0-1823174-6
0-1823174-5
0-1823174-4
0-1823174-3
0-1823174-2
2:1
(
35.7
)
( )
9.1
19.15
(39.05)
DELIVERY POSITION
Auslieferungszustand
0.26 G
1823174-7
ASSY P.N.
C
1.15
2:1
RED
rot
HEADER INSIDE BOTTOM
Headerboden
B-B
2
0.05
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0-1823174-1
FREE SPACE FOR MATING / UNMATING
Gesamtlaenge zum Oeffnen und Schliessen
A
REV
B
B
B
B
B
B
B
B
B
B
B
PBT-GF15
PBT-GF15
PBT-GF15
PBT-GF15
PBT-GF15
MVQ
MVQ
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
COVER FOR FAMILY SEAL
RADIAL SEAL
FAMILY SEAL
CPA
LIGHT BLUE
LIGHT BLUE
ORANGE
BLACK
6
5
4
3
1823174-8
OVERALL DIMENSIONS MATED ON HEADER
Gesamtlaenge mit Header verrastet
(
69.6)
1
SEC. LOCKING DEVICE COD.9 ORANGE
SEC. LOCKING DEVICE COD.8
SEC. LOCKING DEVICE COD.6
SEC. LOCKING DEVICE COD.5
SEC. LOCKING DEVICE COD.3
SEC. LOCKING DEVICE COD.2
SEC. LOCKING DEVICE COD.1
RECEPTACLE HOUSING
DESCRIPTION
SEC. LOCKING DEVICE COD.7
WHITE
BROWN
GREEN
GREY
BLUE
RED
2
2
2
2
2
2
2
2
1
2
1
(35.05)
1
1
1.15
2:1
ORANGE
orange
A-A
3:1
1
1
1
1
PBT-GF15
1
PBT-GF15
1
PBT-GF15
1
1
PBT-GF15
1
PBT-GF15
PBT-GF15
MATERIAL
1
SEC. LOCKING DEVICE COD.4 YELLOW
1
1
1823174-9
A
1
1
1
1
1
1
1
1
1
QTY
1
1
1
1
1
DWN
1
1
1
PBT-GF15
BLACK
BLACK
COLOUR
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
mm
2:1
OVERALL DIMENSIONS MATED ON TAB CONNECTOR
Gesamtlaenge mit Gegenstecker verrastet
4805 (3/13)
RECEPTACLE CONNECTOR WITH SECONDARY LOCKING ACTIVATED
Zweite Kontaktsicherung aktiviert
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
0.3
0.3
0.3
0.3
0.3
10FEB2009
M. Kressmann
CHK
12FEB2009
K. Roth
APVD
13FEB2009
G. Mumper
PRODUCT SPEC
APPLICATION SPEC
ITEM
A
TE Connectivity
NAME
-
2°
-
-
-
-
WEIGHT
114-94155
-
Customer Drawing
A1
SIZE
2 WAY RECEPTACLE HP
CONNECTOR ASSEMBLY
-
CAGE CODE
DRAWING NO
RESTRICTED TO
00779
1823174
SCALE
5:1
SHEET
1
OF
1
REV
-
B5

1-1823174-5 Related Products

1-1823174-5 1823174-8 1823174-4 1823174-6 1823174-7 1823174-9 0-1823174-5
Description Combination Line Connector Combination Line Connector Combination Line Connector Combination Line Connector Combination Line Connector Combination Line Connector Combination Line Connector
Objectid 7284804650 145069990942 145069990938 145069990936 145069990943 145069990941 7284804608
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
body width 1.53 inch 0.709 inch 0.709 inch 0.709 inch 0.709 inch 0.709 inch 0.709 inch
subject depth 0.77 inch 1.537 inch 1.537 inch 1.537 inch 1.537 inch 1.537 inch 1.537 inch
body length 0.7 inch 0.774 inch 0.774 inch 0.774 inch 0.774 inch 0.774 inch 0.774 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR COMBINATION LINE CONNECTOR
empty shell YES NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO
insulator material GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mixed contacts NO NO NO NO NO NO NO
Installation type CABLE CABLE CABLE CABLE CABLE CABLE CABLE
Number of rows loaded 1 1 1 1 1 1 1
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Total number of contacts 1 2 2 2 2 2 2
Other features - POALRIZED POALRIZED POALRIZED POALRIZED POALRIZED POALRIZED
Contact point gender - FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact style - SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Maximum operating temperature - 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature - -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C

Recommended Resources

Amplified circuit diagram for precision instruments

One-way operation energy consumption braking circuit 2

High frequency signal generator circuit

Inductive proximity switch circuit

Sensor constant current power supply circuit

Microwave anti-theft alarm

Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. JANTX1N5521B-1
  2. IPA60R160P6
  3. HDM12-F2T1N
  4. DT101F08KSM-A
  5. A10405RNMCQ
  6. CHP0805L2701GNT131
  7. SIT9025AAU72D28SG150.000000D
  8. CNC14AGF10NF20%25V
  9. MMSZ5226BS_R1_00001
  10. 1A3_R2_10001
  11. A1501WRA-S-10P-OR
  12. A2541WR-2x25P-C351E351-G50

Popular Articles

  1. ZDS2022 Oscilloscope 100 Practical Special 29: How to measure the time between two signals
  2. Take you to learn more about autonomous driving sensors
  3. Cinda Electronics: Morgan Stanley's one-sided view is not afraid of market noise and is firmly optimistic about semiconductors
  4. Huawei nova9 released, Hongmeng imaging flagship, supports binocular stereo vision
  5. Tiny4412 bare metal program code relocation first experience
  6. Apple releases three new short videos showing off the iPhone 13 Pro’s video shooting capabilities
  7. Demystifying the RF Signal Chain—Part 2: Basic Building Blocks
  8. Zhirong Technology's power management chip leads the technological wave
  9. Tektronix's award-winning 5 Series oscilloscopes are now ready for upgrade
  10. Precautions for selecting and using pressure gauges

Technical ResourceMore

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2227  1243  972  2193  572  45  26  20  12  19
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
