56F427-001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 56F427-001

56F427-001: DescriptionD-Sub Standard Connectors 25P DSUB PCB PLUG; CategoryThe connector; File Size439KB，5 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

56F427-001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	56F427-001	-	-	View	Buy Now

56F427-001 Overview

D-Sub Standard Connectors 25P DSUB PCB PLUG

56F427-001 Parametric

Parameter Name	Attribute value
Product Category	D-Sub Standard Connectors
Manufacturer	API Technologies
RoHS	Details
Number of Positions	25 Position
Contact Gender	Pin (Male)
Termination Style	Through Hole
Mounting Angle	Right
Shell Size	3 (B)
Contact Plating	Gold
Current Rating	5 A
Gender	Male
Shell Material	Steel
Shell Plating	Tin
Factory Pack Quantity	500
Type	Plug

Preview

Download Datasheet

View All

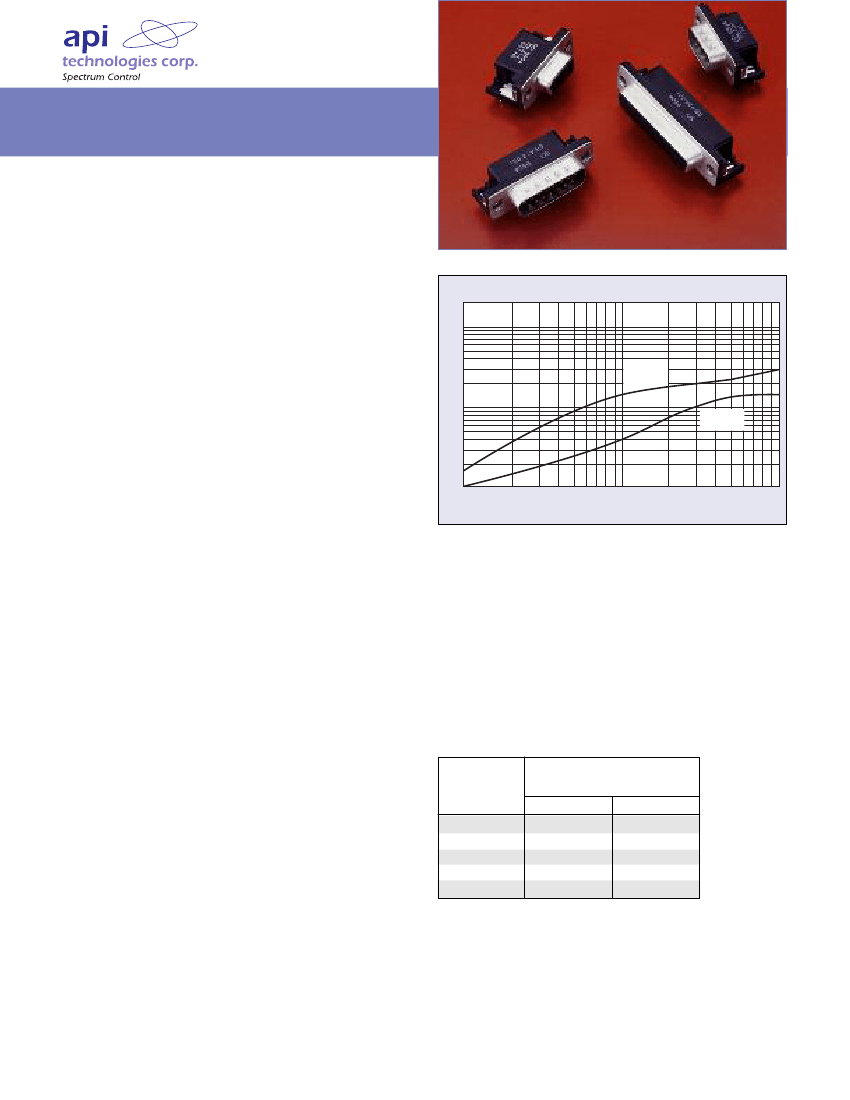

Series F Ferrite Filtered

Connectors

The Series F filtered D-subminiature connectors

incorporate a solid slab of ferrite material as the filtering

element. This rugged one-piece design provides a

com-pact connector that is a drop-in replacement for

standard connectors. The ferrite material has been

chosen for optimum filtering performance in the 10

to 300 MHz range.

Impedance (ohms)

100

Series F Applications

Personal computers, microcomputer-applied products

and peripheral/terminal equipment

Eliminates common-mode noise along data lines in

data communication terminals and digital equipment

Right

Angle

Features

Vertical

Angle

Low cost, high performance ferrite filter

No distortion of wave forms

Replaces individual ferrite bead filters, saving cost

and space

Provides both pin to ground and pin to pin filtering

Effective in helping meet requirements of FCC, VDE,

EN55022 and Japan’s VCCI

Short, space saving .318" footprint

Interchangeable with standard

D-subminiature connectors

Can be installed directly over PCB trace pattern

with no shorting

4–40 UNC locking insert eliminates loose hardware

Metal shielding front shell

Gold plated contacts

RoHS compliant versions available

(replace 56- with 56F)

Frequency (MHz)

100

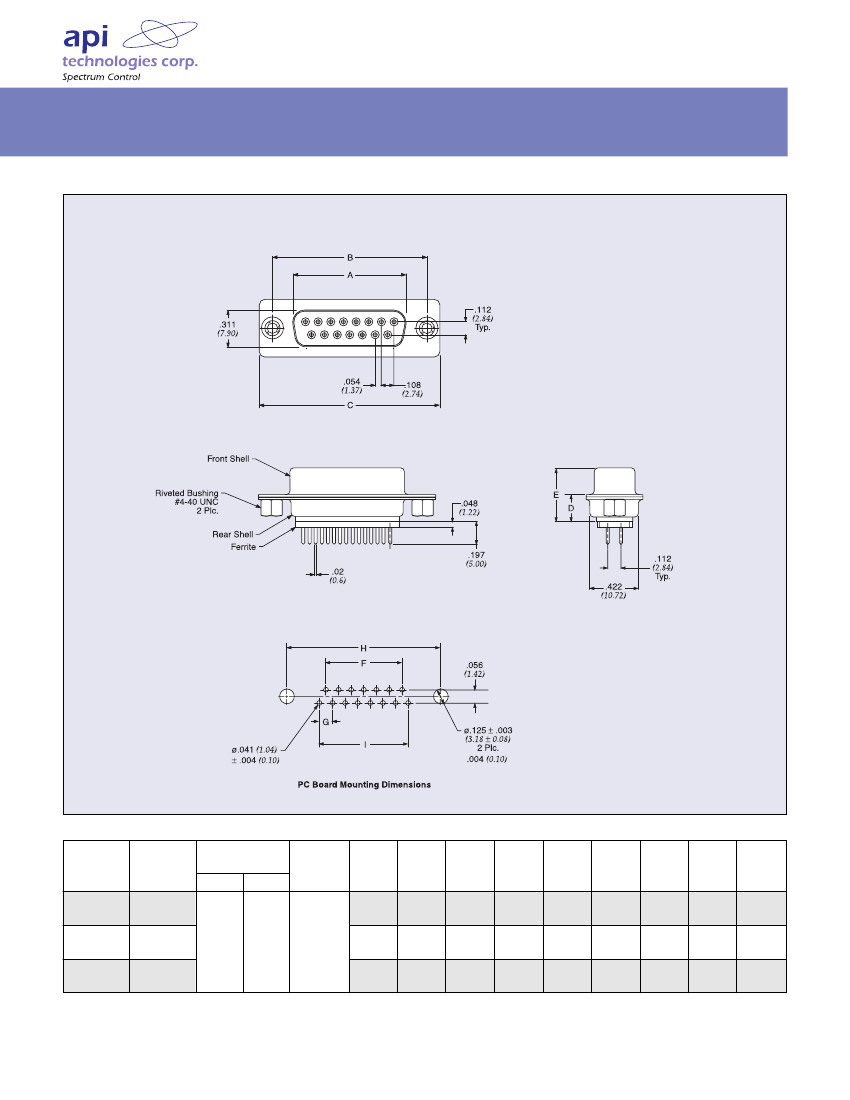

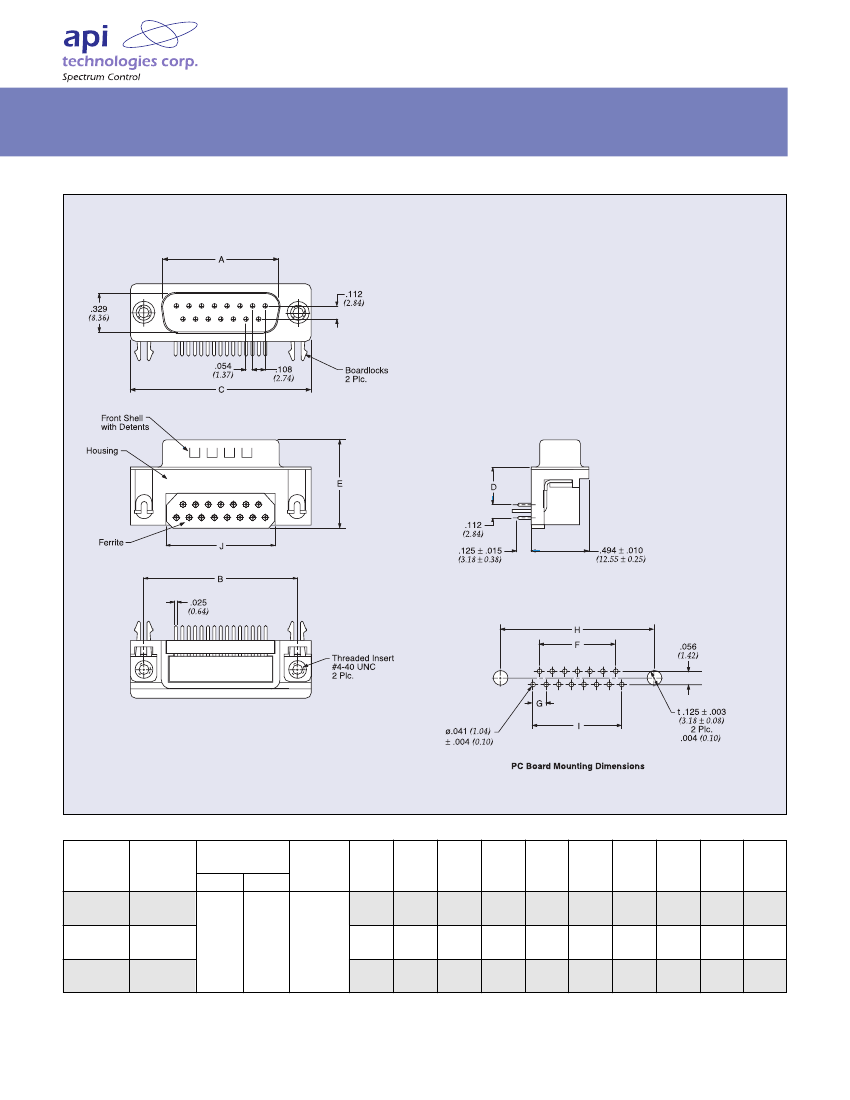

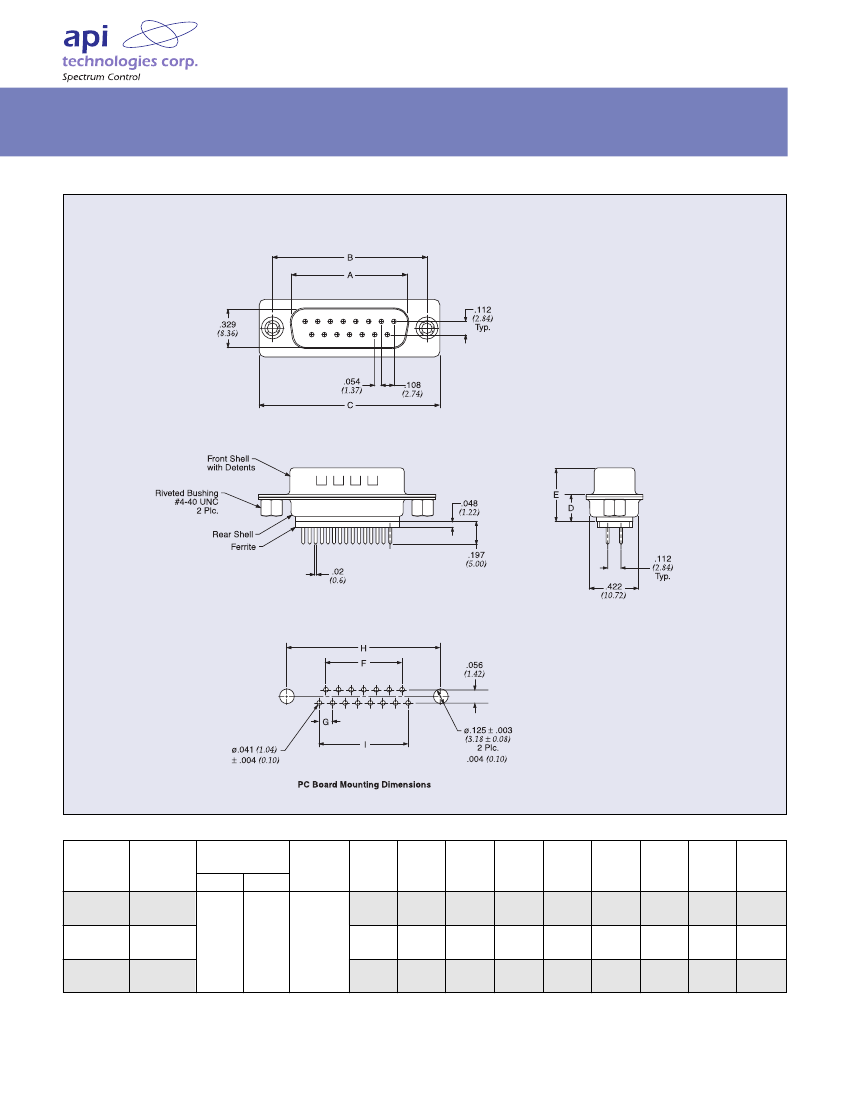

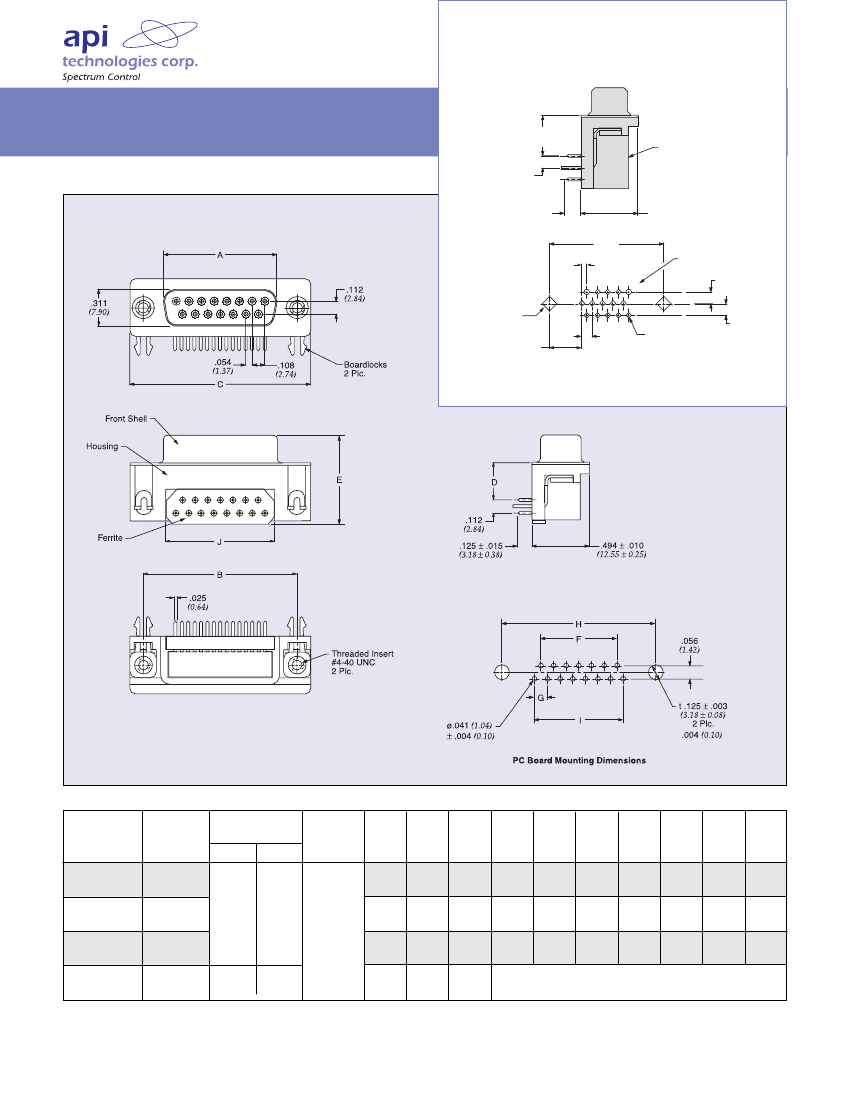

Mechanical Specifications

Front Shell.

. . . . . . . Steel (Tin plated)

Housing

. . . . . . . . . UL 94V-0 Rated thermoplastic, black

Contacts

. . . . . . . . . Phosphor bronze (sockets)

. . . . . . . . . . . . . . . .

or brass (pins)

Contact

Plating

. . . . . . . . . . Gold Flash (<10µ in.) over nickel

Operating

Temperature.

. . . . . . –40°C to +105°C

Electrical Specifications

Frequency

(MHz)

100

Right Angle

Impedance

(Ohms)

Vertical

Frequency

Range

. . . . . . . . . . . 10 – 300 MHz

Current

Rating

. . . . . . . . . . . 5 Amps

Dielectric

Withstand Voltage

. . 1000 VAC for one minute

Insulation

Resistance

. . . . . . . . 1000 megohms Min. @ 500VDC

API TECHNOLOGIES

• 8061 Avonia Rd. • Fairview, PA 16415 • Ph: 814-474-1571 • Fax: 814-474-3110 • eis.apitech.com

API TECHNOLOGIES’ SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

FC3

56F427-001 Related Products

	56F427-001	56F404-001	56F403-001	56-403-001	56-407-001	56-412-001	56F402-001	56-417-001	56-422-001	56-414-001-HD
Description	D-Sub Standard Connectors 25P DSUB PCB PLUG	EMI Gaskets, Sheets u0026 Absorbers BMI-S-230 Frame 1.5" x 2"	D-Sub Standard Connectors 09P VMNT SKT 310PF	D-Sub Standard Connectors 09P VMNT SKT 310PF	D-Sub Standard Connectors 09P V/MNT EMI/RFI	D-Sub Standard Connectors 15 PIN MALE	D-Sub Standard Connectors 9P SOCKET ZINC	D-Sub Standard Connectors 15P V/MNT EMI/RFI	D-Sub Standard Connectors 25 PIN MALE	D-Sub Standard Connectors 15 PIN HD FEMALE
Reach Compliance Code	-	compliant	-	compliant	compliant	-	compliant	compliant	-	compliant
ECCN code	-	EAR99	-	EAR99	EAR99	-	EAR99	EAR99	-	EAR99
Body/casing type	-	RECEPTACLE	-	SOCKET	PLUG	-	PLUG	PLUG	-	RECEPTACLE
Connector type	-	OTHER D TYPE CONNECTOR	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	-	GOLD FLASH OVER NICKEL (100)	-	GOLD FLASH OVER NICKEL (100)	GOLD FLASH OVER NICKEL (100)	-	GOLD FLASH OVER NICKEL (100)	GOLD FLASH OVER NICKEL (100)	-	GOLD FLASH OVER NICKEL (100)
Contact point gender	-	FEMALE	-	FEMALE	MALE	-	MALE	MALE	-	FEMALE
DIN compliance	-	NO	-	NO	NO	-	NO	NO	-	NO
empty shell	-	NO	-	NO	NO	-	NO	NO	-	NO
Filter function	-	NO	-	NO	NO	-	NO	NO	-	NO
IEC compliance	-	NO	-	NO	NO	-	NO	NO	-	NO
insulator material	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	-	NO	-	NO	NO	-	NO	NO	-	NO
Mixed contacts	-	NO	-	NO	NO	-	NO	NO	-	NO
Installation type	-	BOARD	-	BOARD	BOARD	-	BOARD	BOARD	-	BOARD
Options	-	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Shell surface	-	TIN	-	TIN	TIN	-	TIN	TIN	-	TIN
Shell material	-	STEEL	-	STEEL	STEEL	-	CARBON STEEL	CARBON STEEL	-	CARBON STEEL
Housing size	-	1/E	-	1/E	1/E	-	1/E	2/A	-	2/A
Termination type	-	SOLDER	-	SOLDER	SOLDER	-	SOLDER	SOLDER	-	SOLDER
Total number of contacts	-	9	-	9	9	-	9	15	-	15
UL Flammability Code	-	94V-0	-	94V-0	94V-0	-	94V-0	94V-0	-	94V-0
Base Number Matches	-	1	-	1	1	-	1	1	-	1
