The AmphenolAlden Products Company
Industrial Ethernet Family of Products
Ethernet Migrates Out of the
Office Environment to the
Factory Floor and Beyond
From the factory automation
floor to the commercial airplane
floor, Ethernet is the network
communication protocol of
choice. Ethernet is the most
widely accepted international
networking standard used
today for its high speed, relia-
bility, wide spread acceptance
and cost. More and more
Ethernet finds
protection to secure critical
data transmition and collection
from exposure to dust, noise,
vibration, temperature
extremes, chemical exposure,
weather, debris, wash-downs
and moisture.
The Amphenol Alden Products
Company offers a wide variety
of harsh environment physical
layer solutions for the varied
challenging Ethernet applica-
tions utilizing off the shelf com-
ponents to maintain the cost
effecticiency of the Ethernet
protocol. The Pulse-Plus,
D-coded M12 quick
in these environments are
grossly obsolete. Threaded or
bayonet type couplers do not
provide visual and audible con-
firmation for positive mating
inherent in the Pulse-Lok coupler.
In these pages you will find a
broad offering of
Harsh
applications
into non-office,
harsh environments.
Currently most global Fieldbus
Networks have incorporated an
Ethernet protocol into their com-
munication topology. This
Ethernet layer is a compliment
to the existing network. The
addition of Ethernet ports on
Factory Automation devices
such as PLC’s, I/O’s, HMI’s,
Switches, Hubs, Routers,
Machine Controllers, etc.,
demand rugged interconnect
solutions.
Harsh Environment Ethernet
leverages existing Ethernet
data communication standards
while providing the required
mechanical and environmental
couple system,
and the Pulse-Net, RJ45 IP65 &
IP67 based system, protect criti-
cal data communication against
temperature and moisture
extremes, dust, vibration, EMI
noise and chemical exposure.
Both product families incorpo-
rate the Pulse-Lok quick couple
technology, a unique auto-latch
coupler that makes mating as
easy as push and click. Other
lack luster connector latching
mechanisms used extensively
Environment Ethernet Solutions
from Amphenol Alden including:
1. Pulse Plus 4-Pin D-Coded
Quick Couple Industrial Ether-
net Receptacle & Plug Kits
2. Pulse Net RJ45 Receptacle
& Plug Kits
3. Pulse Net RJ45 Cable
Assemblies
4. Pulse Net RJ45 Accessories
5. Application & Assembly
Information
IF you do not see the solution
you need, call (508) 427-7000
for technical assistance.

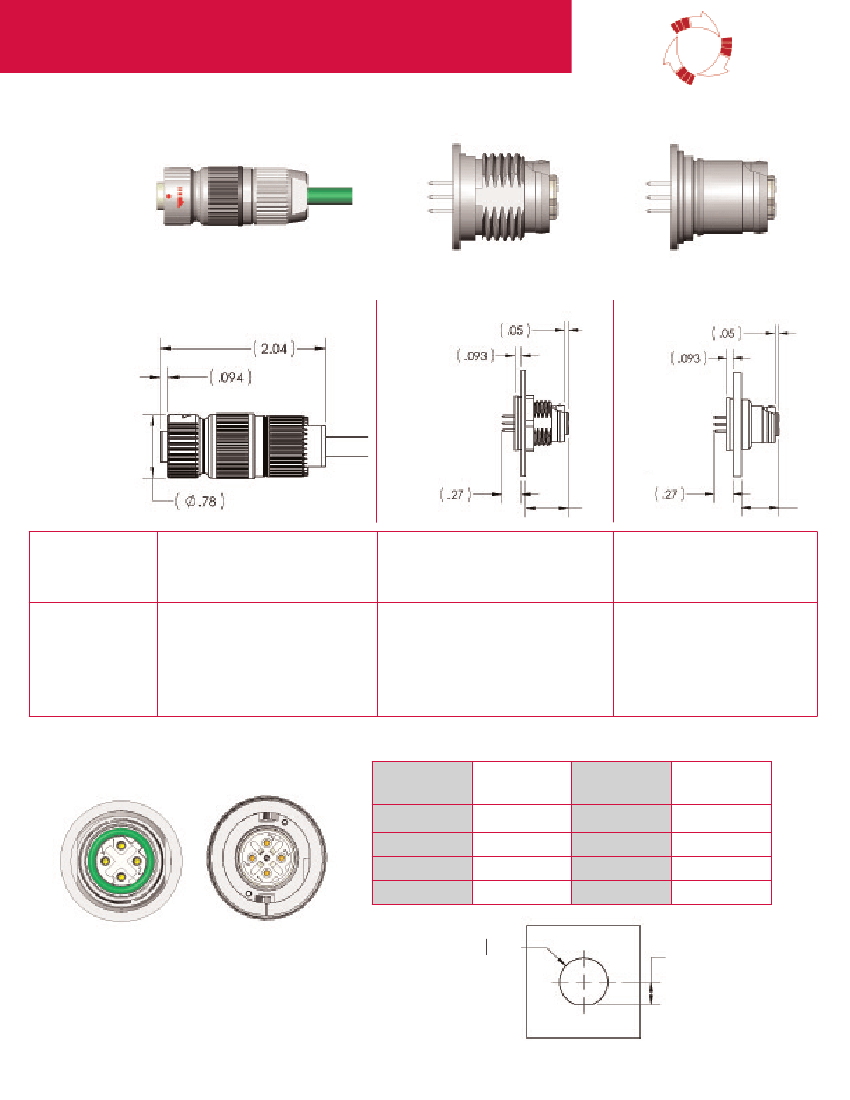

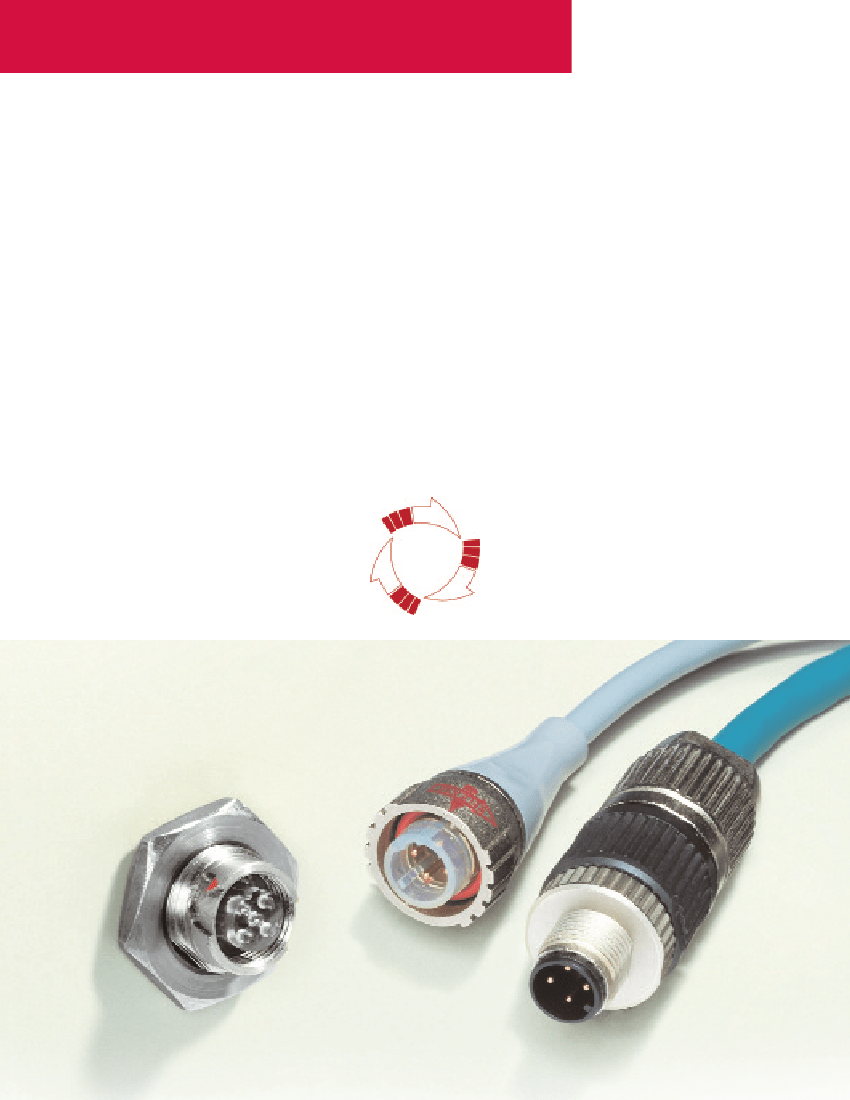

Amphenol Alden Pulse-Plus 4-Pin D-coded Pin/Socket
Industrial Ethernet
Connectors with Limited
Space Requirements
Eliminate Threading
in a Snap
Time is money. Whether you
are changing over your line,
performing routine mainte-
nance, or installing thousands
of Ethernet connections, untold
hours and dollars are lost daily
due to the inefficient, time con-
suming and frustrating design
of threaded connectors. Our
Pulse-Plus product family offers
an automatic, thread less alter-
native to the traditional thread-
ed M12 connector, while main-
taining backwards compatibility.
Product Features:
• Easy to Use
• Pulse-Lok Quick Coupler
• Positive Mating Confirmation
• Visual. Audible & Tactile
Mating Confirmation
• Reduce Installation Fatigue
• Reduce Installation Time & Money
• IP65 & IP67
• IEC 61-76-2-101 D-Coded
Industrial Ethernet Key Config-
uration approved by ODVA
Ethernet/IP, IAONA, & ProfiNet
• Backwards Compatible to
standard M12 Plugs or Pulse
Plus Plugs
Mechanical:
• 4 Contacts
• Insert Key Code: D-Code per
IEC 61076-2-101
Material:
• Housing: Zamac
• Insert: Nylon
• Contact: Copper Alloy & Brass
• Contact Plating: Gold over Nickel
• O-Ring/Interfacial Seal:
Silicon/Viton
• Wire / Contact Size: 22/24
AWG Stranded; 24 AWG Solid
Environmental:
• IP65 & IP67
• Temperature Range: -25C to
+85C(-13F to 185F)
Electrical:
• TIA/EIA Category 5e
• Operating Current: 4 AMP
• Operating Voltage: 250 V
Pulse Plus Eliminates Threading in a Snap!

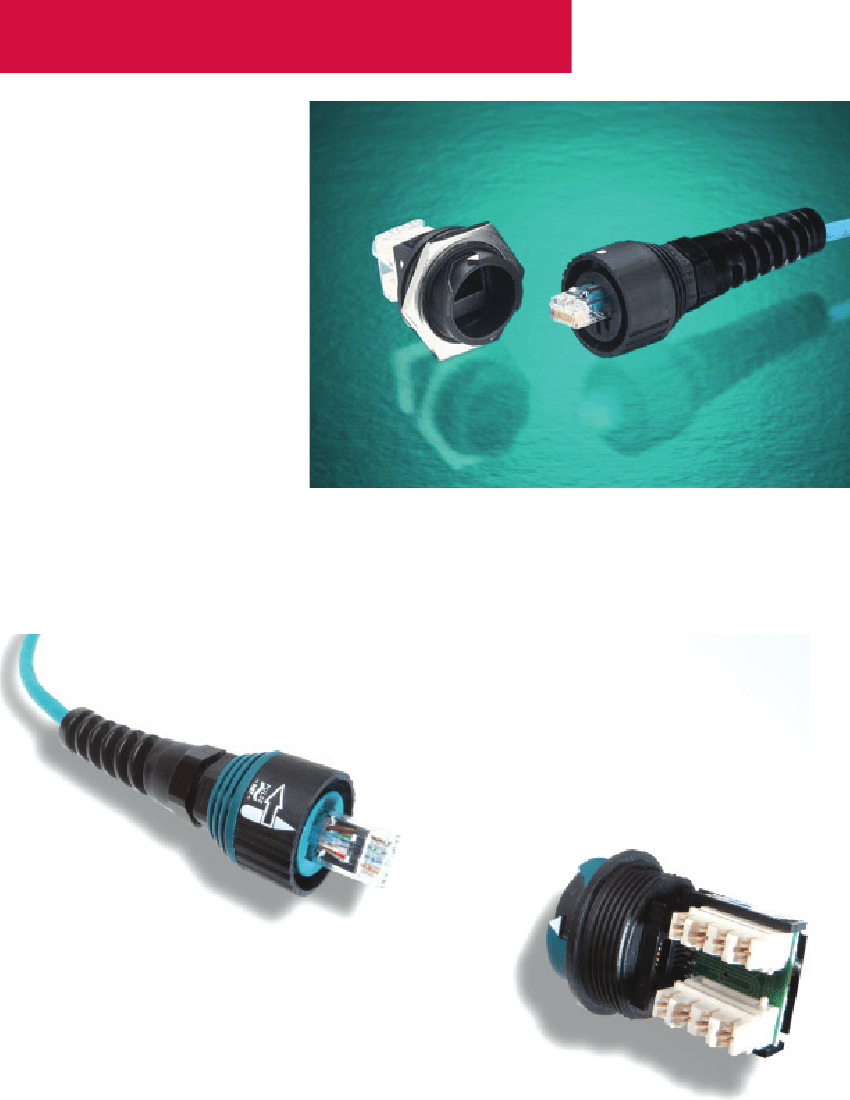

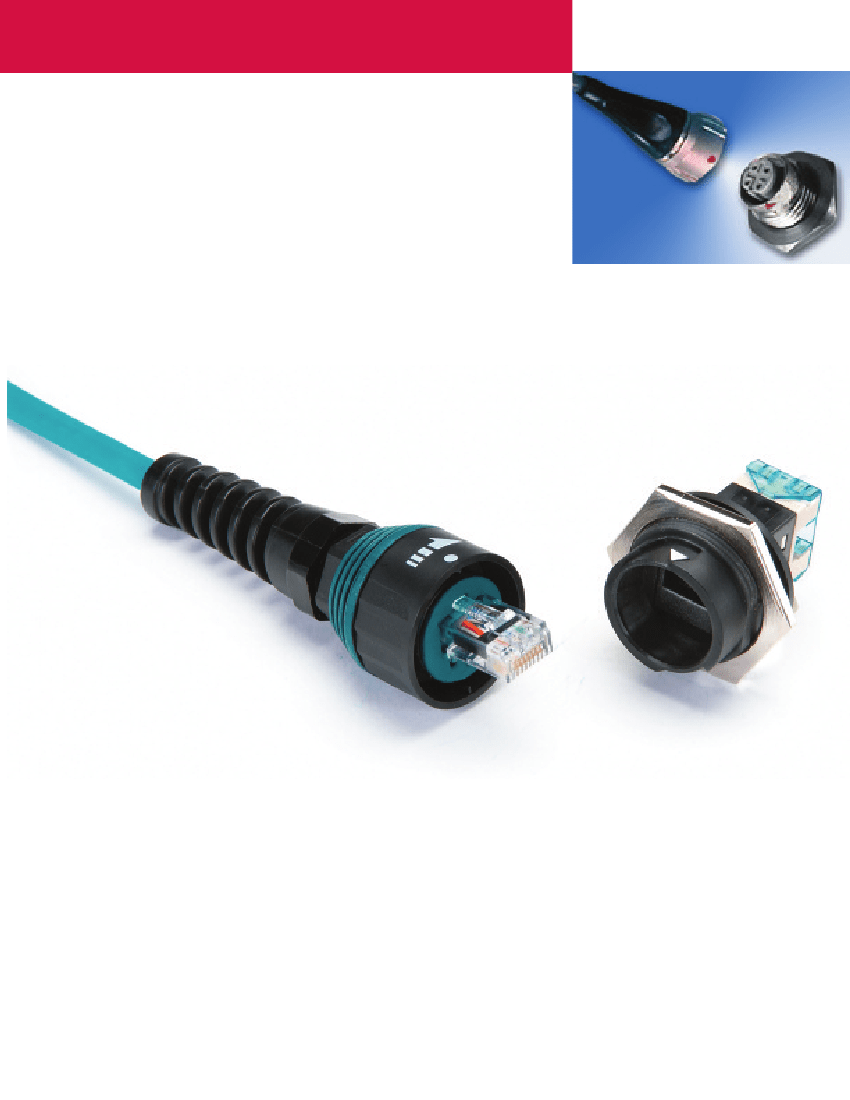

Amphenol Alden Pulse-Net PL-1300 Product Series
Industrial RJ45 Ethernet Connectors
Amphenol Alden Products’ Pulse
Net is the connector of choice to
protect critical data transmis-
sions and collection. Standard
jack and plug Category 5e and
Category 6 components are
packaged in a cost effective,
harsh environment interconnect
system that provides audible,
tactile, and visual mating confir-
mation with mechanical cable
strain relief plug protection.
Sealing caps are also available
to maintain IP ratings in a non-
mated application. Receptacle
and Plug Kits are packaged indi-
vidual or bulk.
Easy to Use
• Pulse-Lok®, Quick-Lok Mating
Action
• Positive Mating Feedback
Confirms Continuity
Performance Engineered for
Harsh Environments
• Blind Mate with Polarized Key
• Environmentally Sealed to IP-67
• Stands up to Mechanical Stress
• Optional EMI/RFI Shielding
Modular Design
• Accepts a Variety of Standard
RJ-45 Components
• Compatible with a Variety of
Standard Cable Types
• Cable Assemblies Available in
Standard and Custom Lengths
For product specifications please visit
www.aldenproducts.com/1300.pdf.
For complete assembly instructions please visit
www.aldenproducts.com
