39-00-0282-Mouser-Reel datasheet, PDF

Datasheet> All Categories > The connector> 39-00-0282-Mouser-Reel

39-00-0282-Mouser-Reel: CategoryThe connector; File Size35KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39-00-0282-Mouser-Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-00-0282-Mouser-Reel	-	-	View	Buy Now

39-00-0282-Mouser-Reel Parametric

Parameter Name	Attribute value
Product Category	Pin & Socket Connectors
Manufacturer	Molex
RoHS	Details
Product	Contacts
Number of Positions	-
Number of Rows	-
Contact Gender	Socket (Female)
Pitch	-
Termination Style	Crimp
Mounting Style	-
Housing Material	-
Contact Material	Brass
Contact Plating	Tin
Voltage Rating	-
Current Rating	5 A
Accessory Type	-
Packaging	Reel
Flammability Rating	-
Housing Gender	-
Mating Post Length	-
Mounting Angle	-
Factory Pack Quantity	1000
Termination Post Length	-
Wire Gauge Range	24 AWG to 18 AWG

Preview

Download Datasheet

View All

This document was generated on 08/19/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

39-00-0282

Active

Standard .093" Pin and Socket Connectors

2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1189,

Female, with Tin (Sn) over Copper Plated Brass Contact, 14-20 AWG, Reel, with

Dimple

Documents:

Drawing (PDF)

Product Specification PS-1189-007 (PDF)

Product Specification PS-1189-008 (PDF)

RoHS Certificate of Compliance (PDF)

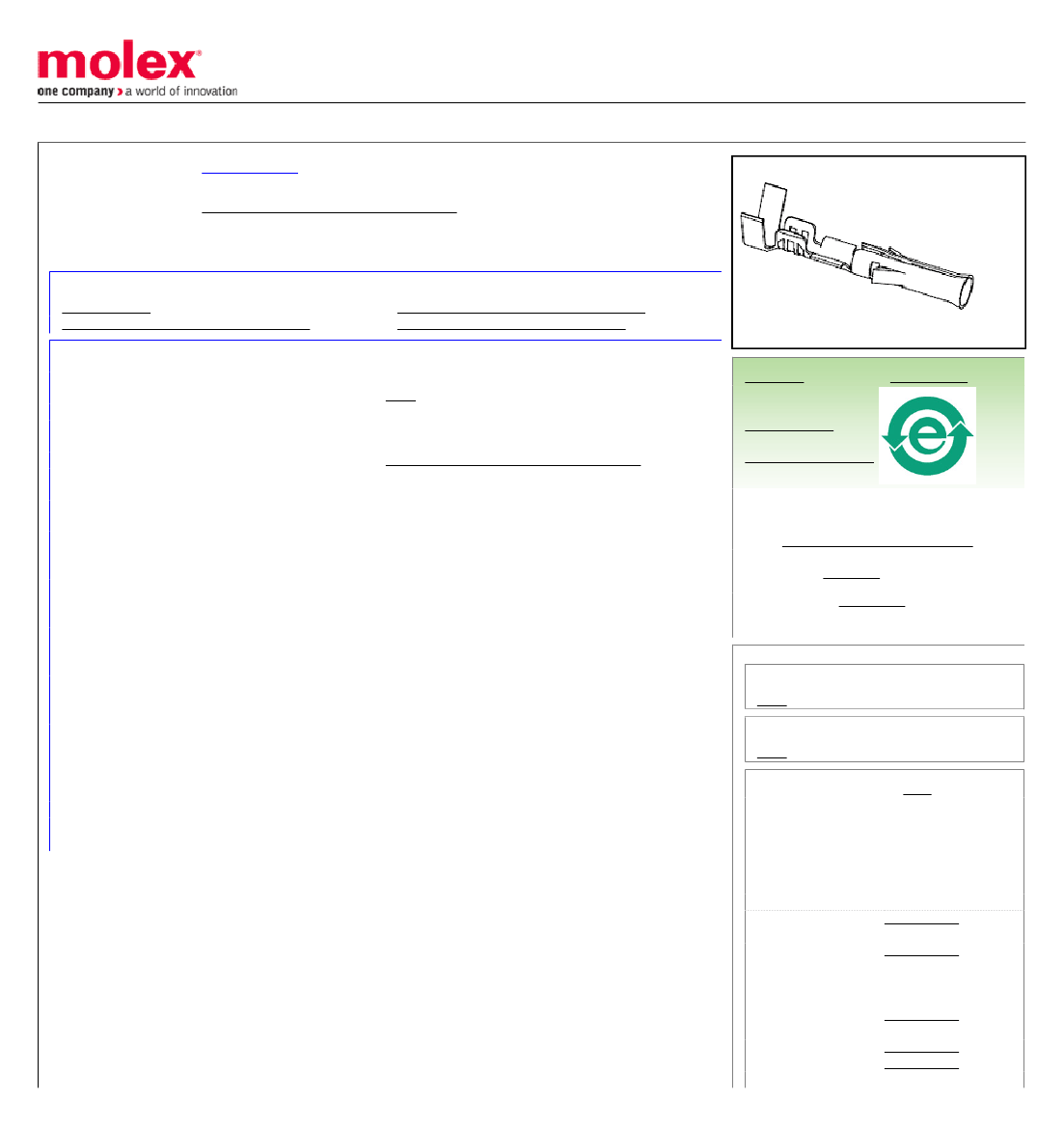

image - Reference only

Series

General

Product Family

Series

Application

Comments

Crimp Quality Equipment

Overview

Product Name

UPC

Crimp Terminals

1189

Power

with Dimple

Yes

Standard .093" Pin and Socket Connectors

Standard .093"

800753584822

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Female

Brass

Tin

339.000/mg

Reel

0.889µm

Crimp or Compression

1.60-4.10mm

14, 16, 18, 20

N/A

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

1189Series

Use With

3191 Receptacle

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Mini-Mac™

0638927300

Applicator

Extractor Tool

0638240200

for .093 and

HCS-125 Product

Series

Mini-Mac™

0638927100

Applicator

Extraction Tool

0011030006

Terminator Die

0011402001

Japan

Material Info

Old Part Number

1189T

Reference - Drawing Numbers

Crimp Specification

Product Specification

Sales Drawing

CS-1189_1190

PS-1189-007, PS-1189-008

SD-1189-002

39-00-0282-Mouser-Reel Related Products

	39-00-0282-Mouser-Reel	39-00-0282
Description		Automotive Connectors TAB 1.2X0.6 CB CONTACT SWS
