39516-1004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 39516-1004

39516-1004: CategoryThe connector terminals; File Size27KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39516-1004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39516-1004	-	-	View	Buy Now

39516-1004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

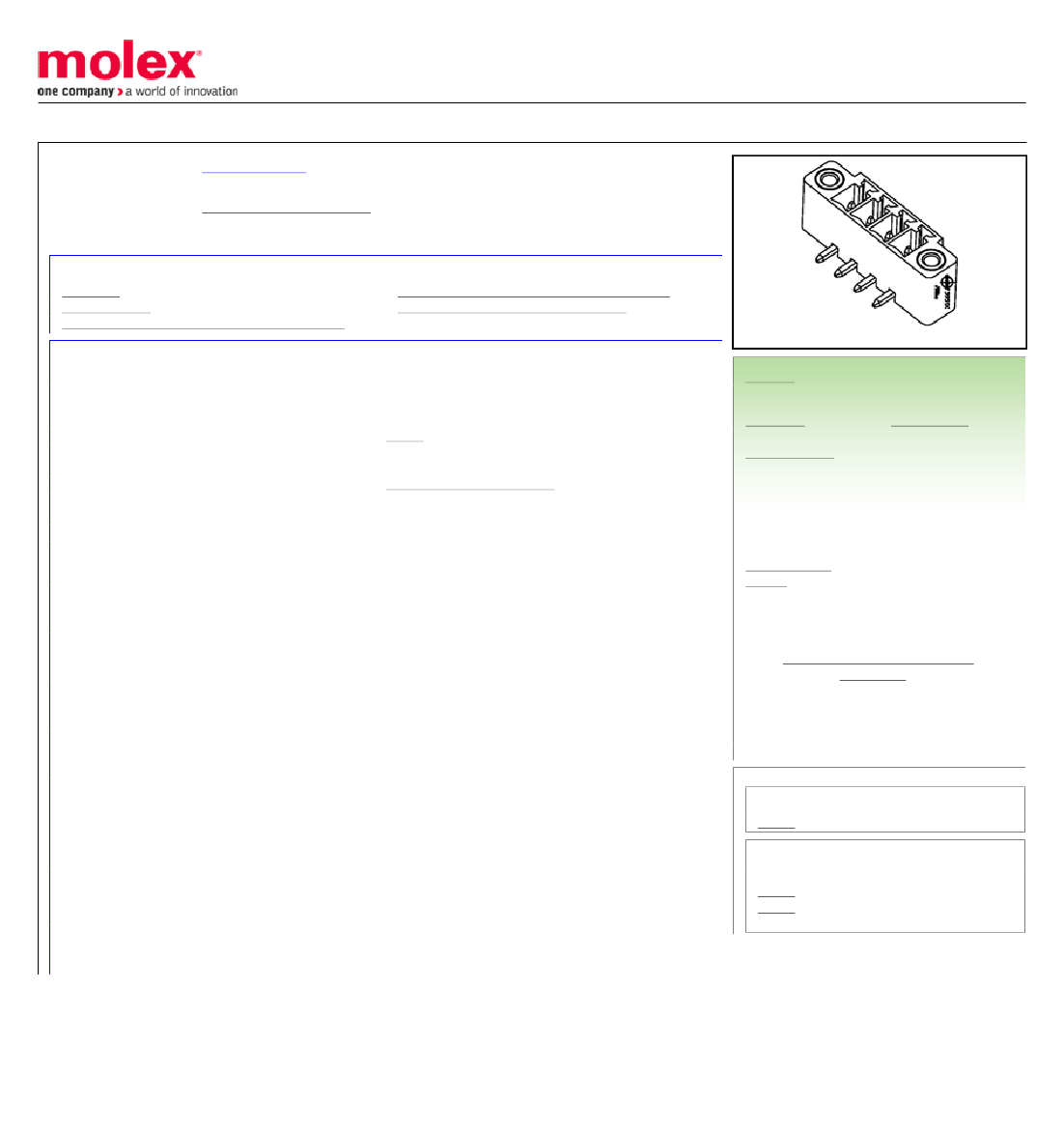

This document was generated on 10/27/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0395161004

Active

Eurostyle™ Terminal Blocks

3.81mm Pitch Eurostyle Horizontal PCB Header, with Threaded Retention Inserts, 4

Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-39500-001-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Component Type

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length

PCB Thickness - Recommended

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Wire Size AWG

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification PK-39516-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E48521

Terminal Blocks

39516

N/A

PCB Header

Eurostyle™ Terminal Blocks

ESE, Eurostyle Pluggable

Euro Block

822350442398

N/A

Yes

Horizontal

3.50mm

2.50mm

3.81mm

Yes

Fully

-40°C to +105°C

N/A

8.0A

300V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Contained Per -

ED/30/2017 (7 July

2017)

2,4-Di-tert-butyl-6-(5-

chlorobenzotriazol-2-

yl)p

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

39516 Series

Mates With

Most 3.81mm Pitch Industry Standard Plugs,

39517 Vertical Plug with Retention Screws,

39514 Horizontal Plug with Retention

Screws

PK-39516-001

PS-39500-001-001

SD-39501-002, SD-39516-001

This document was generated on 10/27/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
