10mm iDea Series Panels on Demand
The
iDea Series LED System
offers a variety of quick convenient solutions
for designing, installing, and modifying LED systems in field. Simply cut
LED flex strips to length, add connectors, lay the LEDs along an aluminum
channel, and snap your choice of covers in to place. Creating custom LED
fixtures has never been easier than with the innovative iDea Series LED
system from Inspired LED.
Product Features:
CSA listed, sleek, lightweight design
Compatible with range of flexible LED colors & brightness levels
Simple connectors allow flex to be cut & built to custom lengths
Frosted white or clear lens covers
Clip, screw, or adhesive mounting options
Can be weatherproofed in-field with addition of GE Lifetime Rated Silicone
To be installed in accordance with NEC, using Class 2 power supply only

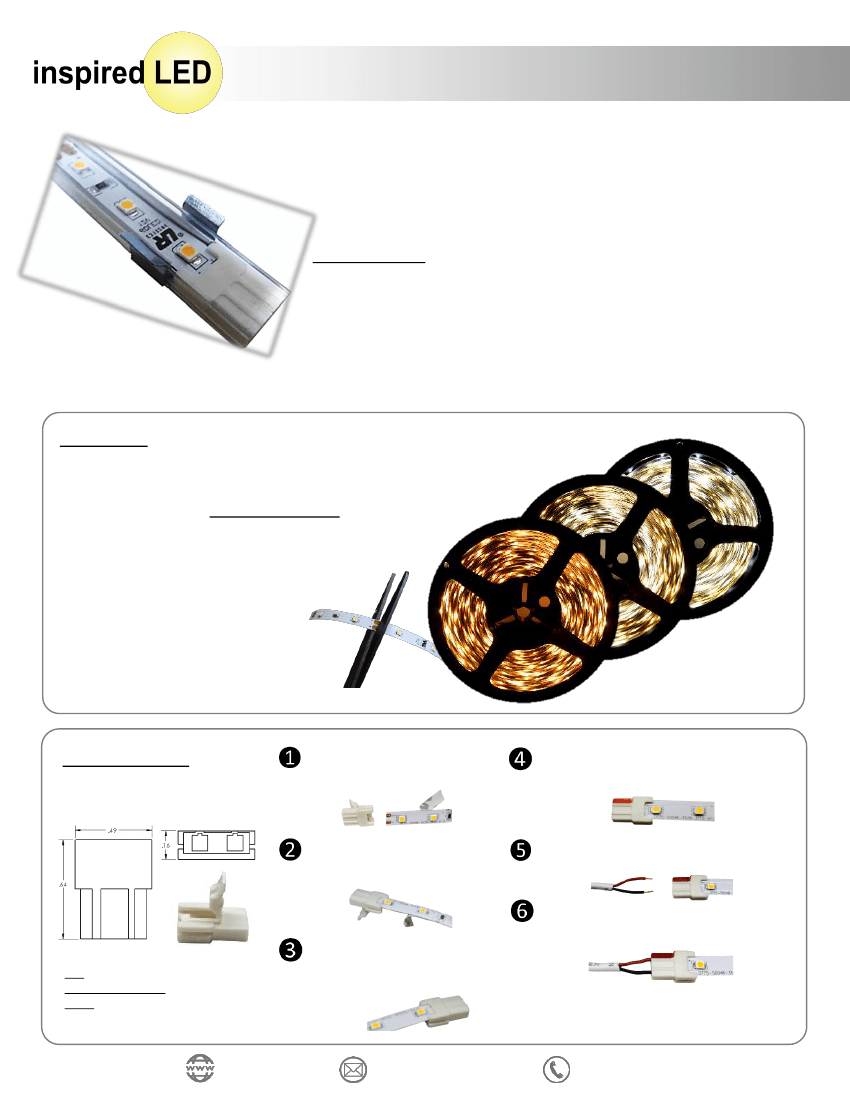

Step 1: Cut
Select Inspired LED flex strips in the
brightness level and color of your choosing,
then cut to length on
copper solder pads!
Mega Bright (240 ohm) 24V-MB240-XX
best for subtle accent or task lighting
Mega Bright (100 ohm) 24V-MB100-XX
best value accent or task lighting
Mega Bright (75 ohm) 24V-MB75-XX
the very brightest task light
Step 2: Connect
Attach iDea series
end-
connectors
to connect to wire
Open connector locking cap and peel
adhesive liner from flexible LED strip.
Identify polarity on LED strip. Polarity is marked
throughout the length of the flexible LED stip. Use
a red sharpie to mark polarity on connector.
Insert flexible LED strip into LED input
channel of connector.
Strip 18-22AWG cable and match polarity between
LED connector and cable.
Size: 0.49” x 0.64” x 0.18”
Screw Terminal Size: Fits 18-22 AWG
SKU#:
3636 (single) 3683 (bag of 25)
Compatible with Inspired LED 24V
Flex Only
Close locking cap until the snap of the
connector is heard. The snapping sound
indicates the locking cap has been properly
terminated.
Poke cable leads into wire holes of connector
making sure the positive polarity matches the
positive input hole of connector.
NOTE:
Connectors are not assigned polarity. Polarity must be defined
by user. Look throughout the length of the strip to identify polarity, it
may not be indicated exactly at each cut point. Check termination by
tugging on the cable leads and LED flex to insure tight connections.
Cable should be difficult to remove when properly terminated.
inspiredled.com
orders@inspiredled.com
(480) 941-4286

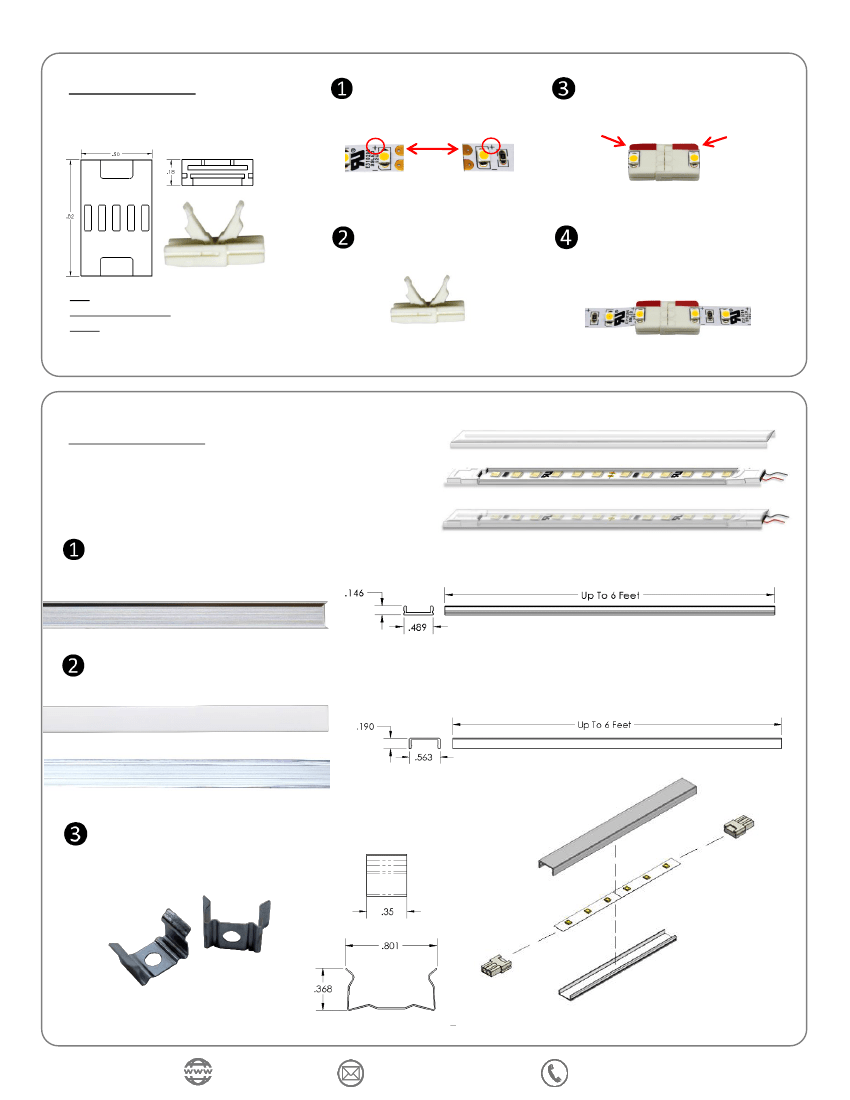

Step 2: Connect (Part II)
Attach iDea series
flex-extenders
to connect LED flex strips end to
end
To connect LED flex strips end-to-
end, begin by matching polarity
between joining LED strips
Assign polarity on flex-extender
using a red pen
Open locking caps on each side
of flex-extender
Insert LED flex into either side of flex-
extender, matching polarity, then
firmly snap each end shut, using pliers
if needed
Size: 0.82” x 0.5” x 0.18”
Screw Terminal Size: Fits 18-22 AWG
SKU#:
3637 (single) 3684 (bag of 5)
Compatible with Inspired LED 24V
Flex Only
Step 3: Panelize
Create an on-demand fixture in just minutes
using aluminum extrusion and snap-on lenses
Aluminum Channel (6’):
3606
Lay flex along aluminum channel with end
connectors hanging over edge & cut to length
Polycarbonate Covers (6’):
3633
Snap cover over aluminum & end
connectors, cut to length
White
3633-W
Clear
3633-C
Mounting Clips/Screws (10/bag):
3687
Screw into desired location, then secure iDea
series panel in place
inspiredled.com
orders@inspiredled.com
(480) 941-4286
