503308-1210

CategoryThe connector    The connector
File Size26KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

503308-1210 Online Shopping

Suppliers Part Number Price MOQ In stock
503308-1210 - - View Buy Now

503308-1210 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionROHS AND REACH COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSLIMSTACK
body width0.066 inch
subject depth0.023 inch
body length0.152 inch
Body/casing typePLUG
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGold (Au)
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance80 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage125VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.016 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)0.3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.4 mm
Termination typeSURFACE MOUNT
Total number of contacts12
Base Number Matches1

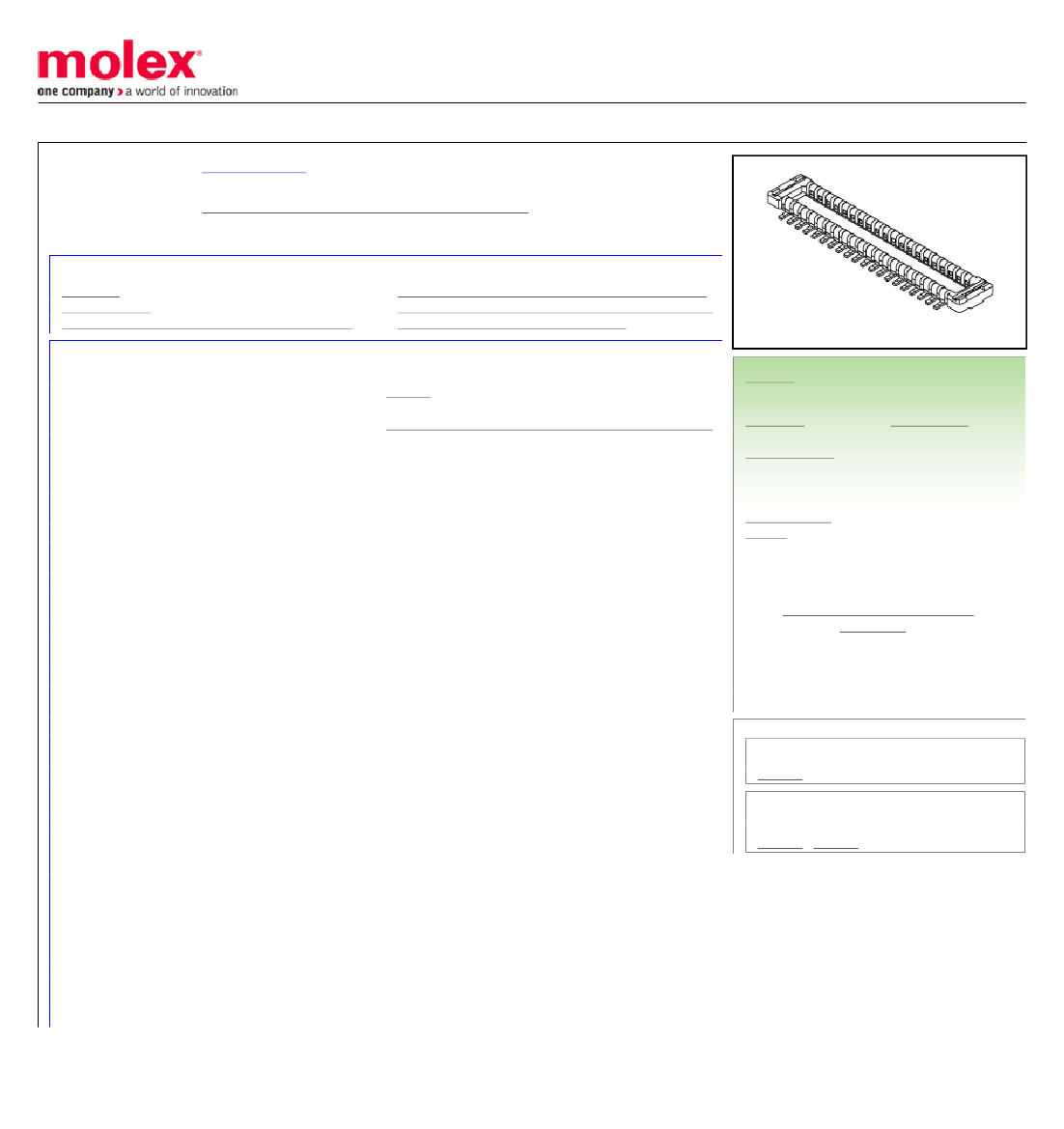

This document was generated on 10/23/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5033081210
Active
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
0.40mm Pitch SlimStack™ Board-to-Board, Plug, Surface Mount, Dual Row, Vertical
Stacking, 0.70mm Stacking Height, 12 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-503304-001-001 (PDF)
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Application Specification AS-503304-001-001 (PDF)
Packaging Specification SPK-503308-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
PCB Headers
503308
Board-to-Board, Signal
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
SlimStack
883906714086
No
12
12
Black
30
No
0.70mm
Copper Alloy
Gold
Gold
5.918/mg
2
Vertical
No
Yes
Embossed Tape on Reel
0.40mm
No
No
No
-40°C to +85°C
Surface Mount
0.3A
50V AC/DC
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
503308 Series
Mates With
SlimStack™ Board-to-Board Receptacle
503304 , 503489
AS-503304-001-001
SPK-503308-001-001
PS-503304-001-001
SD-503308-001, SD-503308-002
This document was generated on 10/23/2017
