The staggered lead structure simplifies PCB mounting and provides
a low profile height of 0.9 mm and a 2.77 mm mounting width depth.
mm
.77
2
51 p
os.）
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Fig 1.

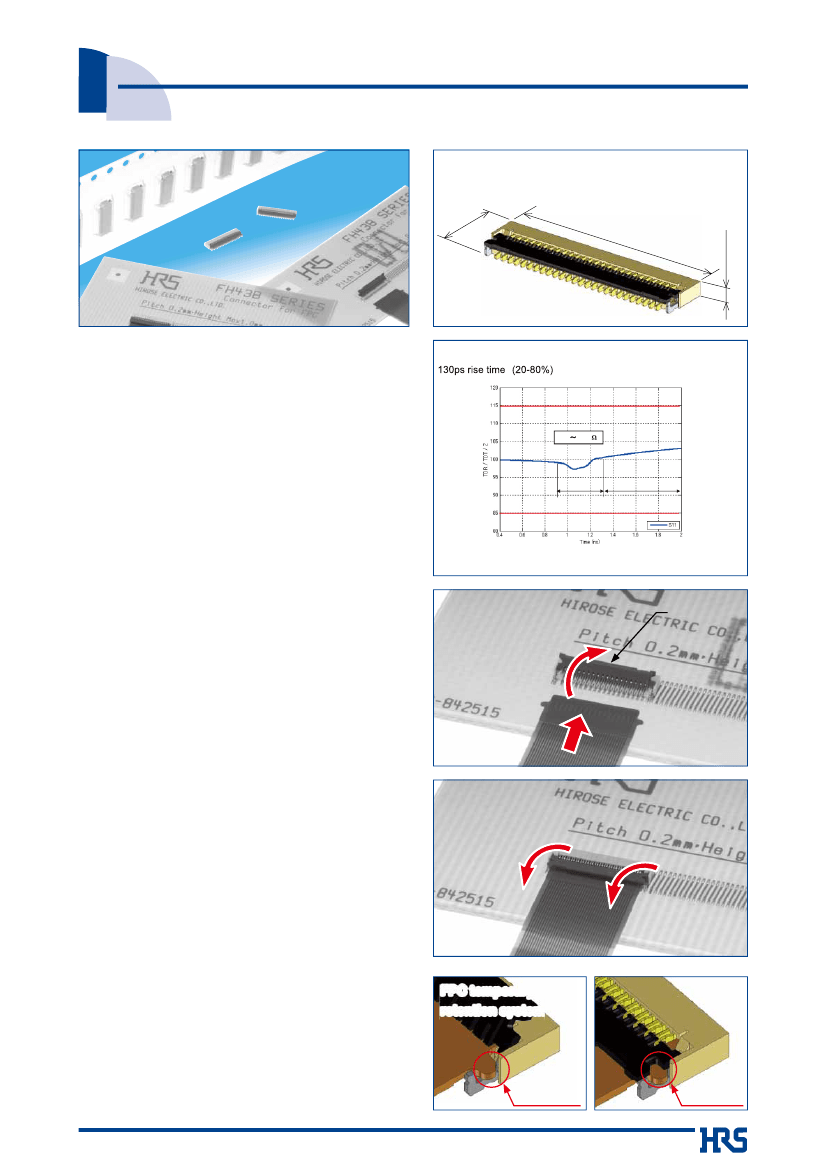

■Features
1. 0.2 mm pitch low profile bottom contact
FPC connector
Maximizes space with contact pitch of 0.2 mm, a mated
height of 0.9 mm, and mounted depth of 2.77 mm.
*45%
reduction in occupied PCB area
*55%
reduction in weight
(Compared to our 0.3 mm pitch FH26 Series 51 position connector)
FH43B differential impedance
Spec MAX : 115ohm
97.2
100.6
2. Easy PCB mounting
The PCB leads use 0.4 mm pitch and are staggered
which simplifies the PCB mounting process.
Connector
FPC
Spec MIN : 85ohm
3. Supports high-speed transmissions
By utilizing differential pairs of identical contacts
(even
-
even contact or odd - odd contacts) these
connectors are able to provide superb transmission
characteristics and supports eDP (ver. 1.3), MIPI
(D-PHY), HDMI (ver 1.3), and USB (3.0) standards.
impedance@200ps rise time(10-90%)
FPC
insertion
Actuator open
4. Molded structure aids PCB layout
The bottom of this connector is enclosed by a fully
molded structure that protects the contacts and removes
any restrictions from PCB patterning and layout design.
5. Rotating one-touch ZIF mechanism
The one-touch rotating ZIF mechanism is easier to
operate and works with a light force, and a clear tactile
click is delivered upon the successful completion of the
mating process.
FPC
6. Easy FPC insertion
The FPC aligning mechanism holds onto the FPC
prior to locking the actuator.
With actuator locked
7. Insertion check window
There is a cutout on the actuator that allows you to
visually inspect the FPC to make sure that it is locked
into place, preventing incorrect insertion of the FPC.
8. Accepts standard 0.2 mm thick FPC
This connector accepts standard 0.2 mm thick FPC.
(A stiffener with adequate strength will prevent FPC
deformation and ease insertion and mating.)
9. Halogen-free available (FH43BW Series)
The connector does not use chlorine and bromine
exceeding standard limits. (FH43BW Series)
*Defined
in accordance with IEC61249-2-21
Br 900ppm or lower, Cl 900ppm or lower, Br + Cl
1,500ppm or lower
FPC temporary
retention system
10.Available for 500 pieces packaging
Although the normal product is 5,000 pieces per reel,
500 winds per reel is also available.
(Emboss reel external diameter is
Ø180mm.)
FPC temporary
retention system
visual check area
to confirm mating
0.9mm
11.8
mm（
2014.3w
1
FH43B Series●0.2 mm Pitch, 0.9 mm Height FPC Connectors
■Product
Specifications
Current DC 0.2 A
Rating (Note 1)
Rating
Operating
-55 to +85℃ (Note 2)
Temperature Range
Storage Temperature
Range
-10 to +50℃ (Note 3)
Relative humidity 90% max
(should be no condensation)
Voltage
Operating
AC 30 Vrms
Rating
Humidity Range
Relative humidity 90% max Storing Humidity
(should be no condensation) Range
Recommended FPC spec
Items
1. Insulation Resistance
2. Withstanding Voltage
50 Mø Min
t
＝
0.2 ±0.02 Gold plating
Specifications
100 V DC
90 V AC for 1 Min
1 mA
10 cycles
Frequency 10 to 55Hz, Half amplitude 0.75 mm
for 10 cycles in 3 axial directions
Acceleration: 981 m/s , Retention time: 6 ms, Semi-
sinusoidal 3 times in 3 both axial directions
96 hours at 40ç and humidity of 90 to 95%
Temperature: -55
→
+15 to +35
→
+85
→
+15 to +35ç
Time:
30
→
2 to 3
→
30
→
2 to 3 minutes
5 cycles
1) Reflow: Peak TMP 250ç MAX, reflow TMP over 230ç within 60 seconds
2) Manual soldering: 350 ±10ç for 5 seconds
2
Conditions
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3. Contact Resistance
4. Durability
No flashover or breakdown
100 mø Max.
*Excluding FPC conductor resistance
Contact Resistance: 100 mø Max
No damage, cracks and looseness of parts
No electrical discontinuity of 1µ or longer
Contact Resistance: 100 mø Max
No damage, cracks and looseness of parts
No electric discontinuity of 1µ or longer
Contact Resistance: 100 mø Max
No damage, cracks and looseness of parts
Contact Resistance: 100 mø Max
Insulation Resistance: 50 Mø Min
No damage, cracks and looseness of parts
Contact Resistance: 100 mø Max
Insulation Resistance: 50 Mø Min
No damage, cracks and looseness of parts
No deformation of case of excessive
looseness of the terminal
5. Vibration
6. Shock
7. Humidity
(Steady State)
8. Temperature Cycle
9. Resistance to
soldering heat
(Note 1) When electrifying rated current to all contacts, use 70% of rated current.
(Note 2) Includes temperature rise caused by current flow.
(Note 3) The term “storage” refers to the long-term storage condition of unused products before PCB mounting.
For no-electrification state after PCB mounting, the operating temperature and humidity are applied.
■Materials
Product
Insulator
Contacts
Metal fittings
Materials
LCP
PA
Phosphor bronze
Color/Finish
Beige
FH43B Series: Deep brown
FH43BW Series: Black
Gold plating
Pure tin reflow plating
Remarks
UL94V-0
UL94HB
―
―
■Product
Number Structure
Refer to this page when determining product specifications by model types. Please place orders with part numbers listed in this catalog. The characteristics and
specifications of the product described in this catalog are reference values. Please make sure to check the latest delivery specifications at the time of product use.
FH 43B W − 51S − 0.2 SHW (10)
❶
❷
❸
❹
❺
❻
❼
❶
Series Name: FH
❷
Series No.: 43B
❸
Blank: Standard
W: Halogen-free product
❹
No. of Contacts: 21~71
❺
Contact Pitch: 0.2 mm
❻
Terminal Type
SHW ... SMT horizontal staggered row mounting type
❼
Specifications
(10):Nickel barrier gold plating, 5,000
pieces per reel
(99):Nickel barrier gold plating 500
pieces per reel
2
FH43B Series●0.2 mm Pitch, 0.9 mm Height FPC Connectors

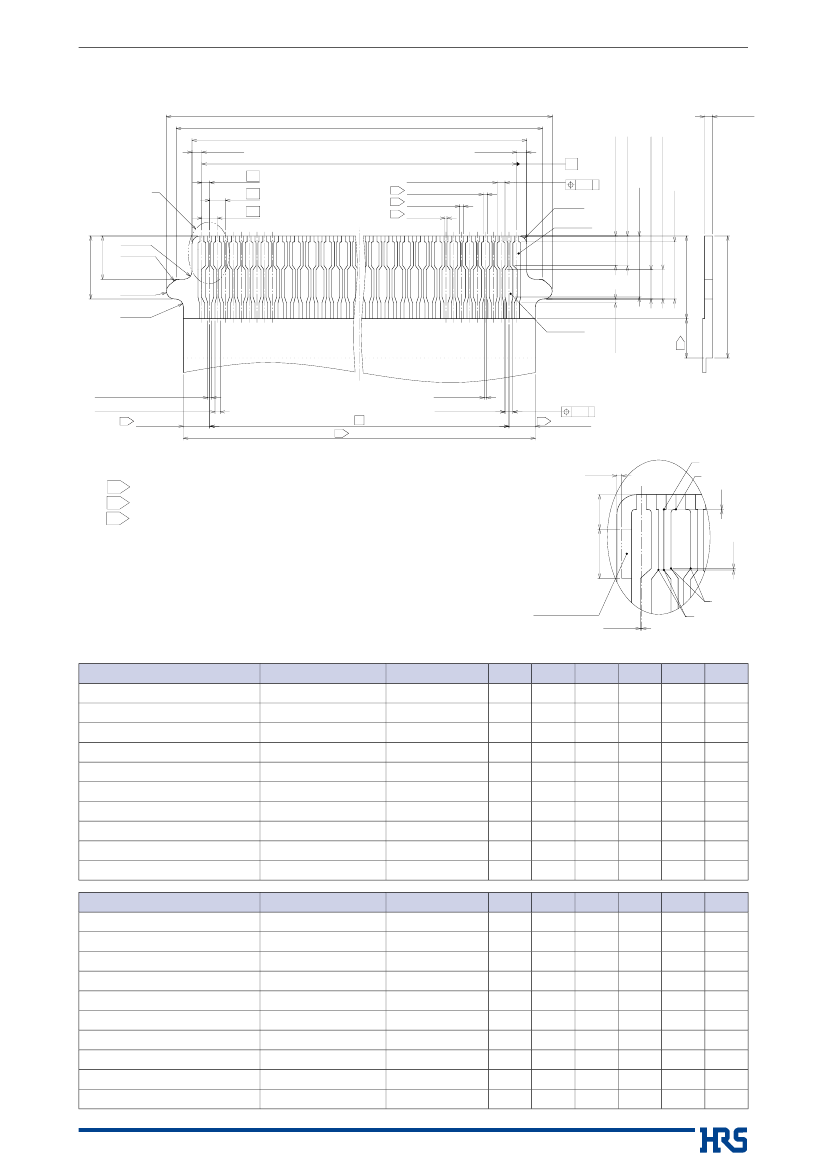

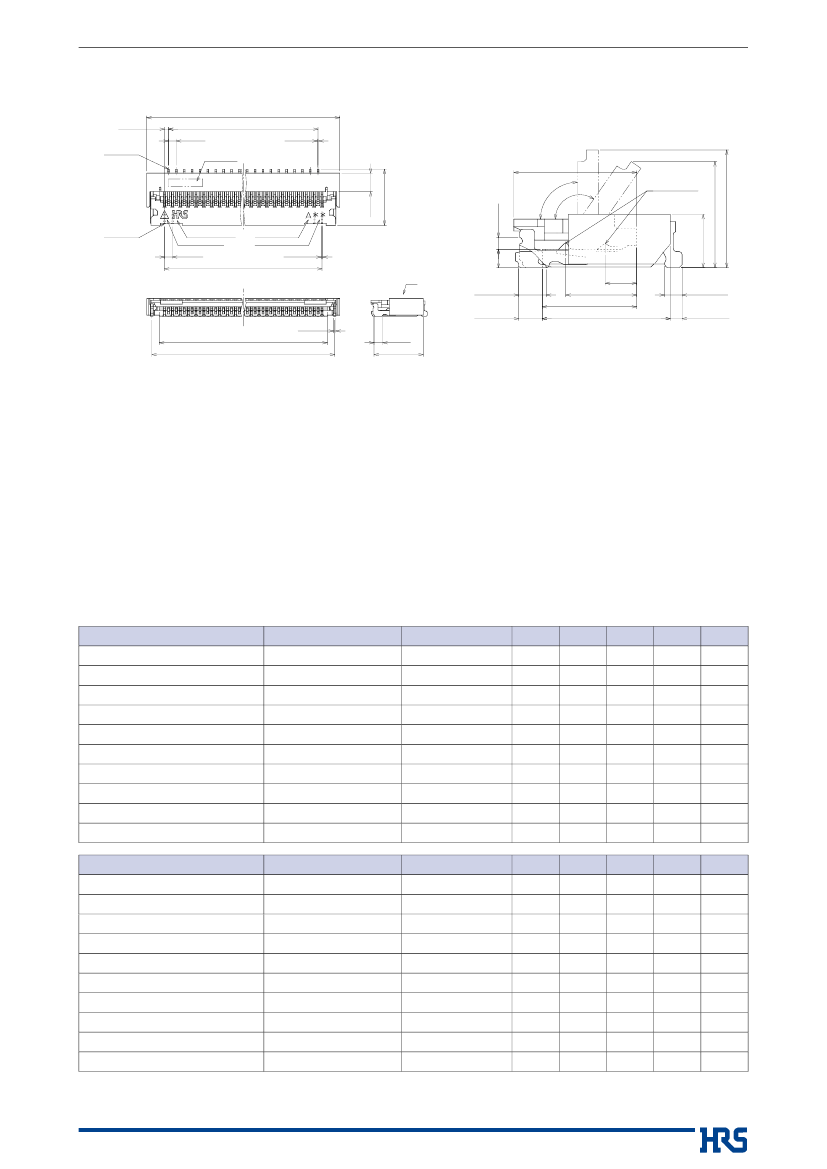

■Connector
Dimensions
0.2±0.1
Contact No.2
0.4±0.1
Ａ±0.15
Ｂ±0.1
(0.08)
Lot No.
(0.95)
(2.85)
P Enlarged figure
(2.08)
(9
(1
0°)
25
°)
Contact point
0.9±0.1
(1.75)
(2)
(0.53)
(1.2)
(1.6)
2.17±0.15
0.3±0.1
0.2±0.15
Contact No.1
Ｃ±0.1
Ｐ
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.47±0.1
0.4±0.15
(Ｄ)
Ｅ±0.1
(0.12)
(0.45)
(2.5)
Note 1: The dimensions in parentheses are for reference.
2: Lead coplanarity including reinforced metal fittings shall be 0.1 mm MAX.
3: To be delivered with tape and reel packages. See attached packaging specifications for details.
4: Note that preventive hole for sink mark or slit could be added for improvement.
5: The quality remains good, even with the dark spots, which could occasionally occur on molded plastic.
6: The color of the plating may change after the reflow process, but it will not negatively affect the performance of these
connectors.
(0.31)
0.4±0.1
Polarization mark
HRS mark
Cavity No.
No. of contacts
(0.08)
FPC：t0.2
Unit: mm
Product No.
FH43B-21S-0.2SHW(**)
FH43B-25S-0.2SHW(**)
FH43B-29S-0.2SHW(**)
FH43B-31S-0.2SHW(**)
FH43B-35S-0.2SHW(**)
FH43B-41S-0.2SHW(**)
FH43B-45S-0.2SHW(**)
FH43B-51S-0.2SHW(**)
FH43B-61S-0.2SHW(**)
FH43B-71S-0.2SHW(**)
Product No.
FH43BW-21S-0.2SHW(**)
FH43BW-25S-0.2SHW(**)
FH43BW-29S-0.2SHW(**)
FH43BW-31S-0.2SHW(**)
FH43BW-35S-0.2SHW(**)
FH43BW-41S-0.2SHW(**)
FH43BW-45S-0.2SHW(**)
FH43BW-51S-0.2SHW(**)
FH43BW-61S-0.2SHW(**)
FH43BW-71S-0.2SHW(**)
HRS No.
CL580-2810-0-**
CL580-2804-8-**
CL580-2811-3-**
CL580-2808-9-**
CL580-2803-5-**
CL580-2809-1-**
CL580-2812-6-**
CL580-2806-3-**
CL580-2805-0-**
CL580-2807-6-**
HRS No.
CL580-2822-0-**
-
-
CL580-2820-4-**
CL580-2821-7-**
CL580-2813-9-**
CL580-2815-4-**
CL580-2814-1-**
CL580-2816-7-**
CL580-2819-5-**
No. of Contacts
21
25
29
31
35
41
45
51
61
71
No. of Contacts
21
25
29
31
35
41
45
51
61
71
A
5.8
6.6
7.4
7.8
8.6
9.8
10.6
11.8
13.8
15.8
A
5.8
6.6
7.4
7.8
8.6
9.8
10.6
11.8
13.8
15.8
B
3.6
4.4
5.2
5.6
6.4
7.6
8.4
9.6
11.6
13.6
B
3.6
4.4
5.2
5.6
6.4
7.6
8.4
9.6
11.6
13.6
C
4
4.8
5.6
6
6.8
8
8.8
10
12
14
C
4
4.8
5.6
6
6.8
8
8.8
10
12
14
D
4.53
5.33
6.13
6.53
7.33
8.53
9.33
10.53
12.53
14.53
D
4.53
5.33
6.13
6.53
7.33
8.53
9.33
10.53
12.53
14.53
E
5.29
6.09
6.89
7.29
8.09
9.29
10.09
11.29
13.29
15.29
E
5.29
6.09
6.89
7.29
8.09
9.29
10.09
11.29
13.29
15.29
(Note 1)This product is packaged on tape and reel and is only sold in full reel quantities of either 5,000 or 500 piece reels.
Please place orders by full reel quantities.
3
FH43B Series●0.2 mm Pitch, 0.9 mm Height FPC Connectors

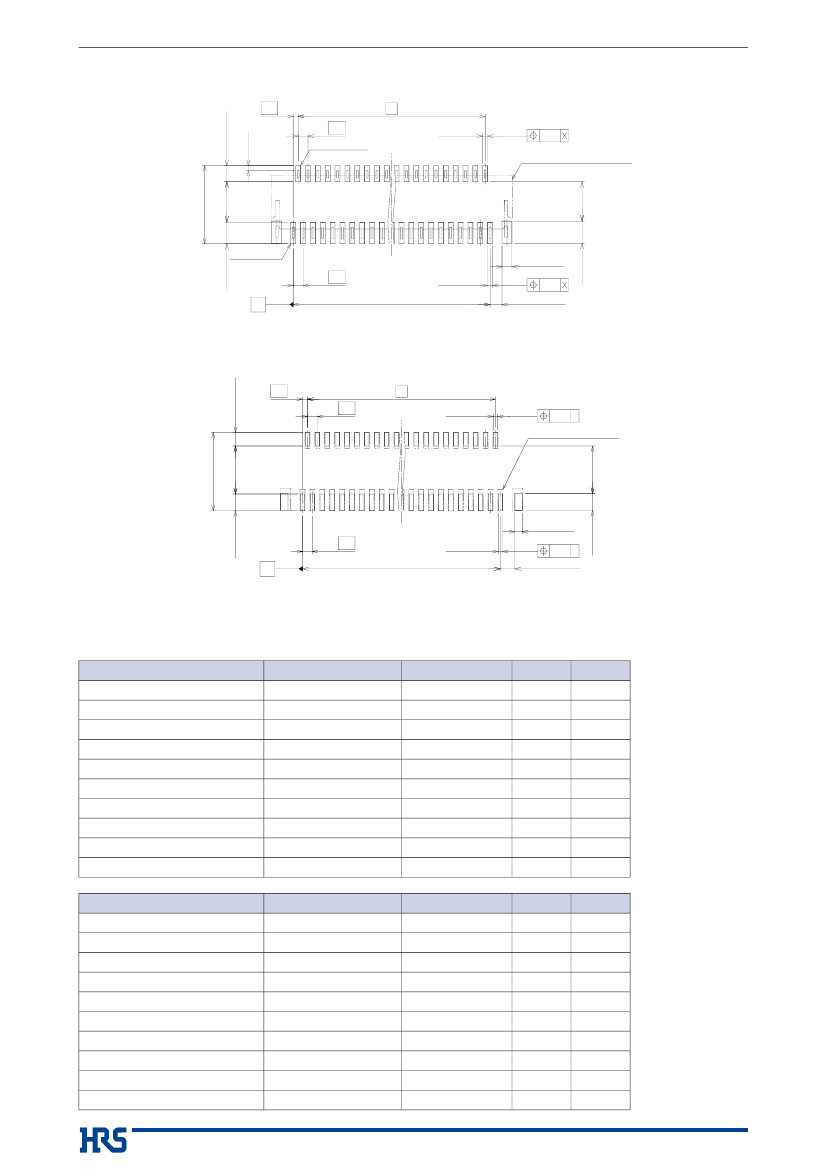

BRecommended
PCB Mounting Pattern
0.65±0.03
0.2
(0.2)
0.4
Contact No.2
Ｂ
0.2±0.02
(n-1)/2×
0.04
Connector Image (Mounting Section)
1.65±0.05
3.17±0.05
0.87±0.03
Contact No.1
0.4
0.2±0.02
Ｃ±0.04
0.4±0.05
(n+1)/2×
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Ｘ
0.04
0.485±0.05
BRecommended
Stencil Pattern
0.55±0.03
(Recommended stencil thickness: t= 0.1)
0.2
0.4
Ｂ
0.18±0.01
(n-1)/2×
0.04
Y
(PCB mounting pattern image)
0.9±0.03
1.6±0.05
3.17±0.05
1.94±0.05
0.68±0.03
0.3±0.03
0.4
0.18±0.01
Ｃ±0.04
(n+1)/2×
Ｙ
Note 7: 'n' is the number of contacts.
0.04
Y
0.585±0.05
Product No.
FH43B-21S-0.2SHW(**)
FH43B-25S-0.2SHW(**)
FH43B-29S-0.2SHW(**)
FH43B-31S-0.2SHW(**)
FH43B-35S-0.2SHW(**)
FH43B-41S-0.2SHW(**)
FH43B-45S-0.2SHW(**)
FH43B-51S-0.2SHW(**)
FH43B-61S-0.2SHW(**)
FH43B-71S-0.2SHW(**)
Product No.
FH43BW-21S-0.2SHW(**)
FH43BW-25S-0.2SHW(**)
FH43BW-29S-0.2SHW(**)
FH43BW-31S-0.2SHW(**)
FH43BW-35S-0.2SHW(**)
FH43BW-41S-0.2SHW(**)
FH43BW-45S-0.2SHW(**)
FH43BW-51S-0.2SHW(**)
FH43BW-61S-0.2SHW(**)
FH43BW-71S-0.2SHW(**)
HRS No.
CL580-2810-0-**
CL580-2804-8-**
CL580-2811-3-**
CL580-2808-9-**
CL580-2803-5-**
CL580-2809-1-**
CL580-2812-6-**
CL580-2806-3-**
CL580-2805-0-**
CL580-2807-6-**
HRS No.
CL580-2822-0-**
-
-
CL580-2820-4-**
CL580-2821-7-**
CL580-2813-9-**
CL580-2815-4-**
CL580-2814-1-**
CL580-2816-7-**
CL580-2819-5-**
No. of Contacts
21
25
29
31
35
41
45
51
61
71
No. of Contacts
21
25
29
31
35
41
45
51
61
71
B
3.6
4.4
5.2
5.6
6.4
7.6
8.4
9.6
11.6
13.6
B
3.6
4.4
5.2
5.6
6.4
7.6
8.4
9.6
11.6
13.6
0.68±0.03
1.92±0.05
Unit: mm
C
4
4.8
5.6
6
6.8
8
8.8
10
12
14
C
4
4.8
5.6
6
6.8
8
8.8
10
12
14
4
FH43B Series●0.2 mm Pitch, 0.9 mm Height FPC Connectors
BRecommended
FPC Pattern
0.25±0.05
Ｃ±0.02
0.2
Ｒ
0.4
0.4
1.6±0.05
1.1±0.05
R0.2MAX
R0.2±0.1
2.1±0.3
3.1±0.3(Stiffener)
Ｕ
Ｖ
Ｔ
Ｓ
0.01±0.02
0.2
＋0.03
−0.02
8
0.1±0.03
8
0.1±0.03
8
0.055±0.02
0.25±0.05
0.75±0.1(Odd pattern)
0.76±0.1(Even pattern)
1.55±0.15
0.74±0.1(Even pattern)
0.75±0.1(Odd pattern)
1.45±0.1
Ａ±0.1
(Ｆ)
Ｇ±0.05
0.2±0.02
Ｚ
(n+1)/2×
0.04
Z
R0.2MAX
Contact No.1
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
R0.2±0.1
R0.2MAX
10
Ｑ
Contact No.2
0.1±0.15
(0.10:Even pattern)
(0.13:Odd pattern)
9
0.055±0.02
0.2
＋0.03
−0.02
Ｂ
9
Ｈ±0.05
9
(n-1)/2×
0.67±0.05
0.04
Z
0.67±0.05
R Enlarged figure
(0.05)
Note 8
9
10
: Shows recommended demension when lead for plating is required.
: Indicated tolerance is applicable to the exposed conductor.
京公网安备 11010802033920号
EEWORLD
