39-30-2052

Description
Digital to Analog Converters - DAC Sngl 12B NV DAC
CategoryThe connector    The connector
File Size27KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39-30-2052 Online Shopping

Suppliers Part Number Price MOQ In stock
39-30-2052 - - View Buy Now

39-30-2052 Overview

Digital to Analog Converters - DAC Sngl 12B NV DAC

39-30-2052 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time5 weeks
Other featuresMINI-FIT JR.
Board mount optionsCOMPLIANT BOARDLOCK
body width0.213 inch
subject depth0.504 inch
body length0.874 inch
Body/casing typePLUG
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedTin (Sn) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Durability30 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
maximum insertion force6.672 N
Insulation resistance1000000000 Ω
insulator materialNYLON
JESD-609 codee3
MIL complianceNO
Plug contact pitch0.165 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1POLARIZED LCK
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness30u inch
polarization keyHOUSING SIDE
Rated current (signal)8 A
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell materialPOLYAMIDE66
Terminal length0.138 inch
Terminal pitch4.191 mm
Termination typeSOLDER
Total number of contacts5
UL Flammability Code94V-0
Evacuation force-minimum value3.1136 N
Base Number Matches1

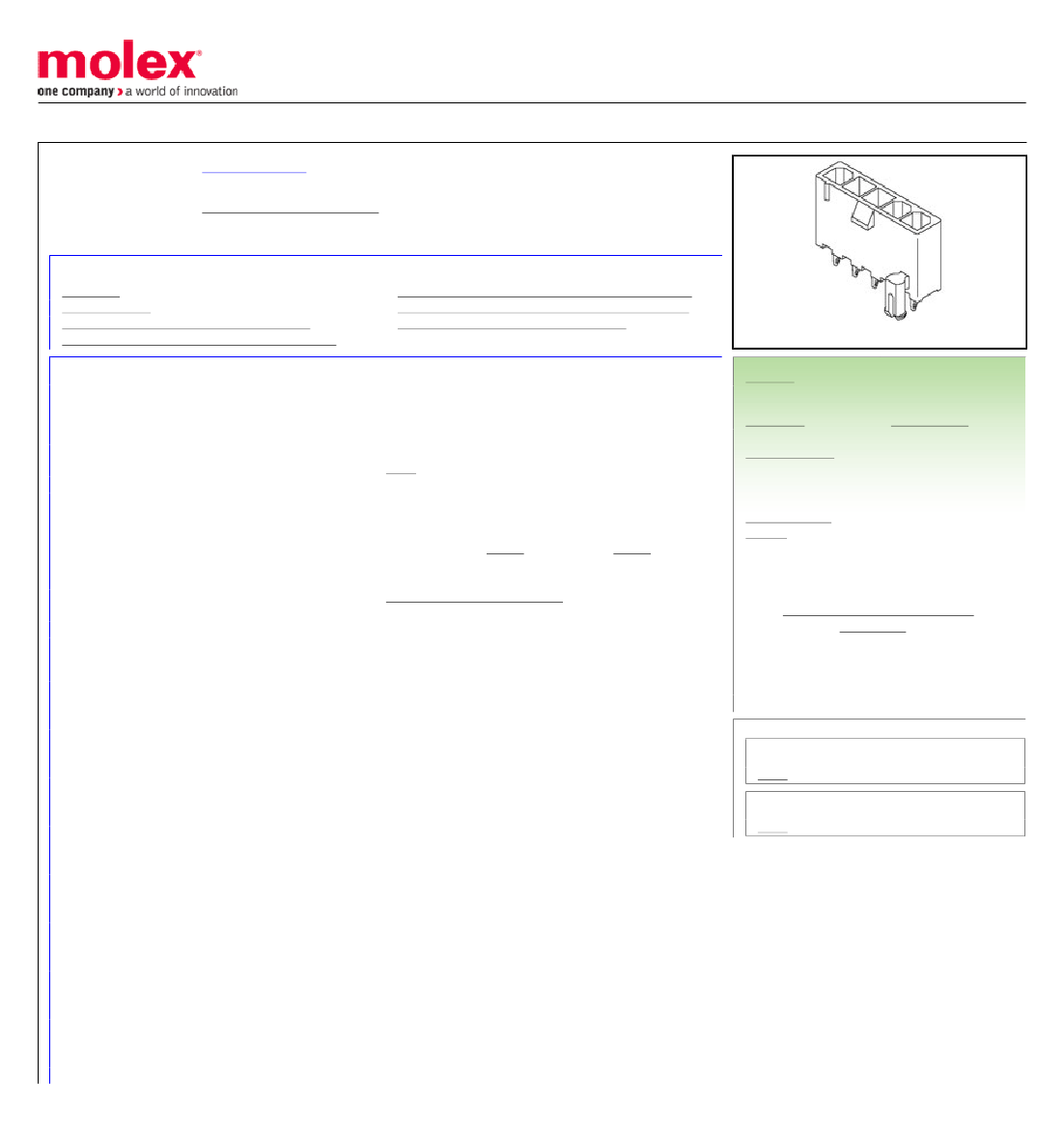

This document was generated on 12/11/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0039302052
Active
Mini-Fit Jr. Power Connectors
Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Single Row, 5 Circuits, with Snap-in Plastic
Peg PCB Lock, Gold, Natural
Documents:
3D Model
Drawing (PDF)
Product Specification PS-5556-001 (PDF)
Product Specification TS-5556-002-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Application Specification AS-5557-001-001 (PDF)
Packaging Specification PK-5566-002-000 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
LR19980
E29179
PCB Headers
5566
Power, Wire-to-Board
The 5566 header should be used with standard Mini-Fit
female terminals. If increased amperage of up to 13A
per circuit is needed, please consider using the Mini-Fit
Plus HCS family 45750 terminals with 46014 headers; .
See Molex Product specification for current de-rating
information.
Mini-Fit Jr. Power Connectors
Mini-Fit Jr.
800754380188
No
5
5
Natural
30
No
94V-0
No
No
None
Yes
Brass
Gold
Matte Tin
Nylon
1.261/g
1
Vertical
3.50mm
Yes
Yes
1.60mm
Tray
4.20mm
4.20mm
0.762µm
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Search Parts in this Series
5566 Series
Mates With
5557 Mini-Fit Jr. Receptacle Housing
