807DCR2R3S4EK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 807DCR2R3S4EK

807DCR2R3S4EK: DescriptionSupercapacitors / Ultracapacitors 800F 2.3V +50% / -20% tol.; CategoryPassive components; File Size257KB，2 Pages; ManufacturerCornell Dubilier

Download Datasheet Parametric Compare View All

807DCR2R3S4EK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	807DCR2R3S4EK	-	-	View	Buy Now

807DCR2R3S4EK Overview

Supercapacitors / Ultracapacitors 800F 2.3V +50% / -20% tol.

807DCR2R3S4EK Parametric

Parameter Name	Attribute value
Product Category	Supercapacitors / Ultracapacitors
Manufacturer	Cornell Dubilier
RoHS	Details
Termination Style	Snap In
Capacitance	800 F
Tolerance	- 20 %, + 50 %
ESR	15 mOhms
Length	70 mm
Diameter	35 mm
Packaging	Bulk
Lead Spacing	10 mm
Maximum Operating Temperature	+ 70 C
Minimum Operating Temperature	- 25 C
Product	Supercapacitors
Factory Pack Quantity	40
Voltage Rating DC	2.3 VDC

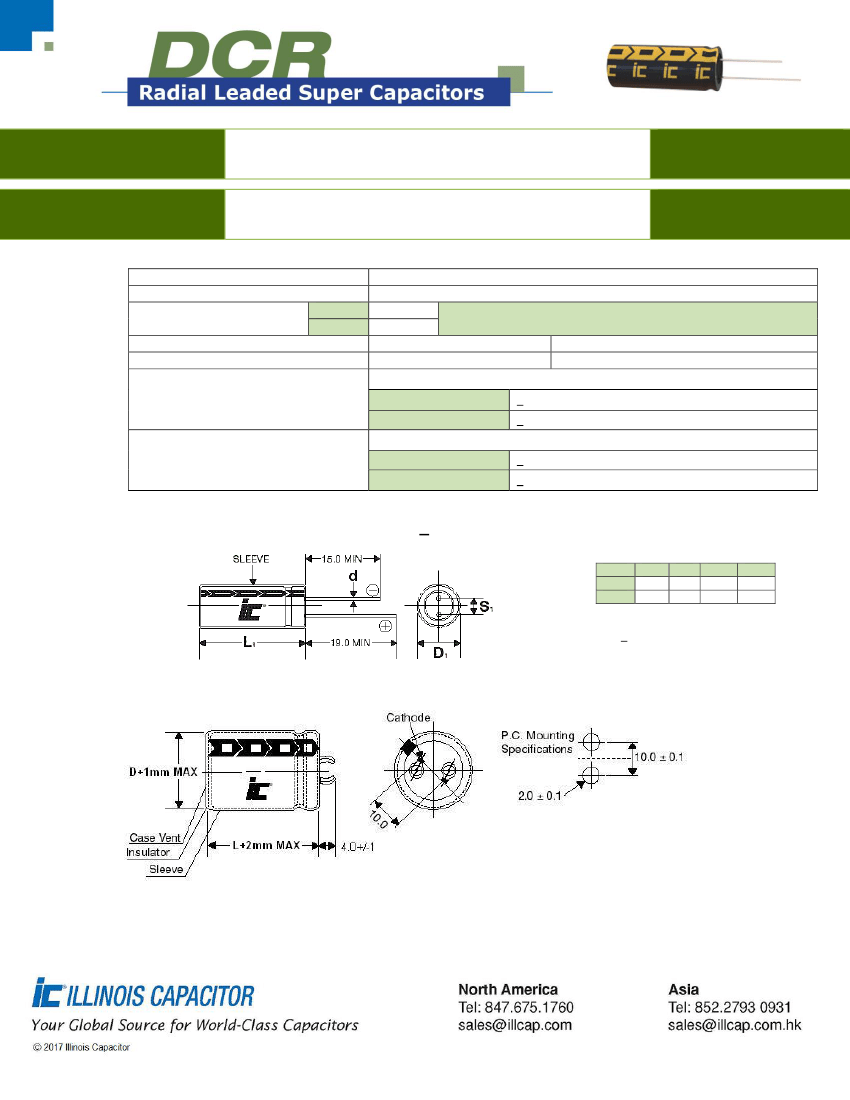

Preview

Download Datasheet

View All

FEATURES

APPLICATIONS

Very fast charge/discharge

–

High power density

–

IEC 62391

compliant

–

Circuit board mountable

Battery backup/ alternative

–

Pulse power

–

Energy harvesting

–

LED Displays

–

Mechanical actuators

–

Audio systems

Operating Temperature Range

Capacitance Tolerance

WVDC

Surge Voltage

SVDC

Maximum Current

Leakage Current

Endurance

Life Cycles

( 25°C) 1 cycle= Charge to WVDC for 20s,

constant voltage charging for 10s, discharge

to ½ WVDC for 20s, rest for 10 s

-25°C to +70°C

-20%/+50% @ 20°C

2.3

2.5

See standard part listing

1 second discharge to ½ WVDC

See standard part listing

72 hours,25°C

1000 hours at rated voltage and 70°C

Capacitance Change

ESR

+30% of initially measured values

<200% of initially specified values

25,000 cycles

Capacitance Change

ESR

+30% of initially measured values

<200% of initially specified values

Diameters: <22 mm

5.0

0.6

=L+1.5mm

=D+05mm

=S+0.5mm

7.5

0.8

7.5

0.8

1.0

Diameters: >22mm

Feb-17
