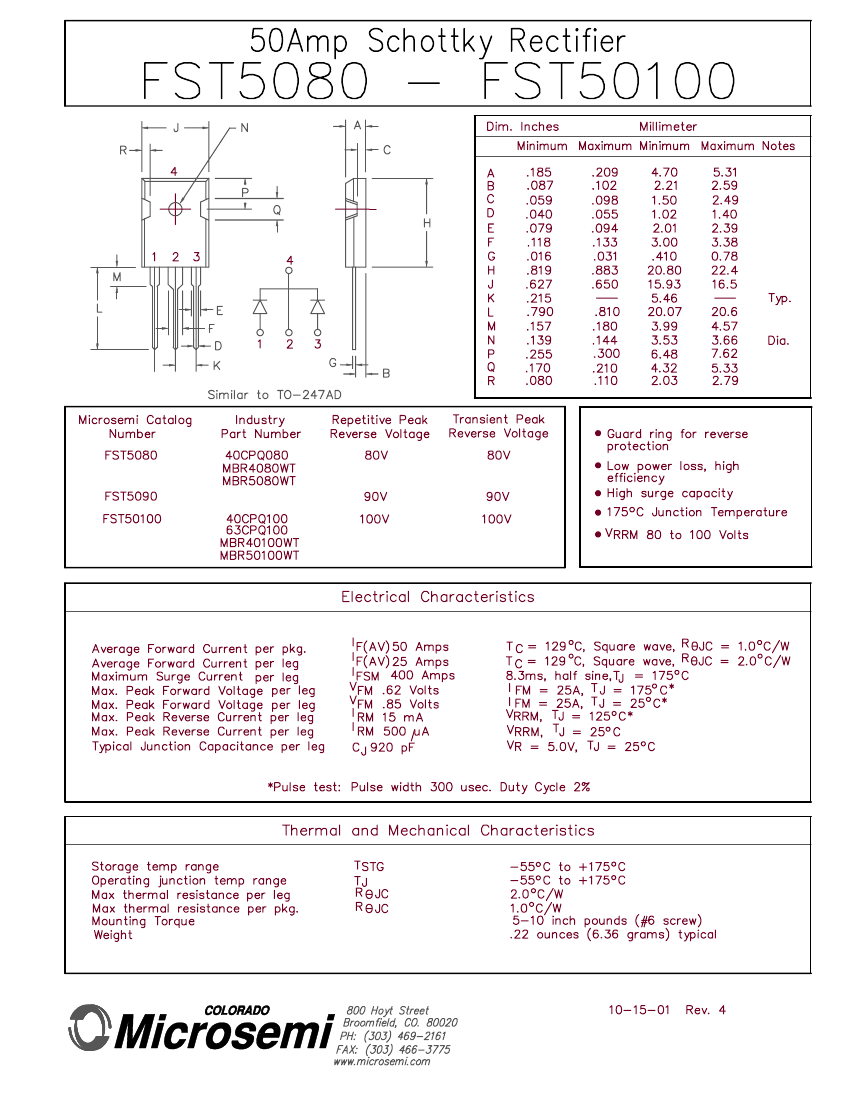

FST5090 datasheet, PDF - EEWORLD Datasheet

FST5090: Description50 A, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size138KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

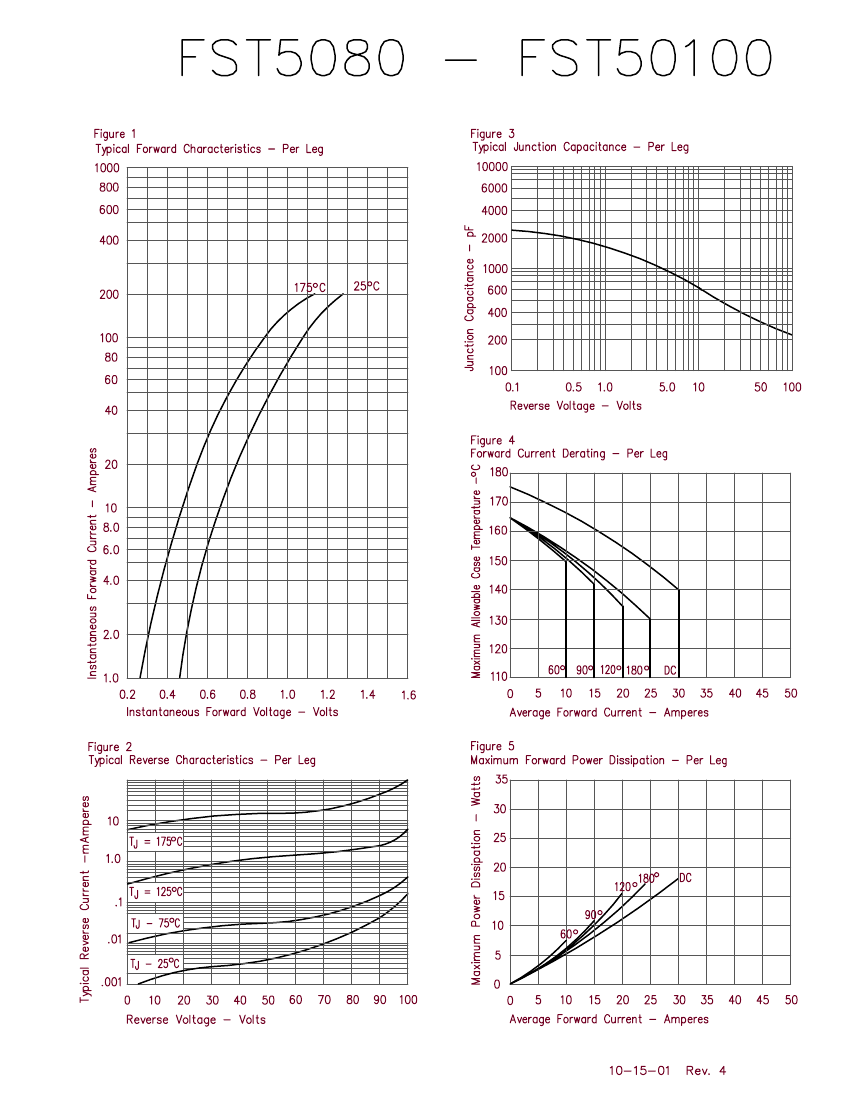

FST5090 Overview

50 A, SILICON, RECTIFIER DIODE

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TO-247AD
package instruction	R-PSFM-T3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-247AD
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	400 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Maximum output current	25 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	90 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

	FST5090	FST50100	FST5080
Description	50 A, SILICON, RECTIFIER DIODE	50 A, SILICON, RECTIFIER DIODE	50 A, SILICON, RECTIFIER DIODE
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	TO-247AD	TO-247AD	TO-247AD
package instruction	R-PSFM-T3	SIMILAR TO TO-247AD, 3 PIN	SIMILAR TO TO-247AD, 3 PIN
Contacts	3	3	3
Reach Compliance Code	compli	unknow	unknow
ECCN code	EAR99	EAR99	EAR99
Other features	LOW POWER LOSS	LOW POWER LOSS	LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-247AD	TO-247AD	TO-247AD
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	400 A	400 A	400 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output current	25 A	25 A	25 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	90 V	100 V	80 V
surface mount	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE
Maker	-	Microsemi	Microsemi
