UHV1E101MED1TA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UHV1E101MED1TA

UHV1E101MED1TA: DescriptionAluminum Electrolytic Capacitors - Leaded 100UF 25V; CategoryPassive components; File Size318KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

UHV1E101MED1TA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UHV1E101MED1TA	-	-	View	Buy Now

UHV1E101MED1TA Overview

Aluminum Electrolytic Capacitors - Leaded 100UF 25V

UHV1E101MED1TA Parametric

Parameter Name	Attribute value
Product Category	Aluminum Electrolytic Capacitors - Leaded
Manufacturer	Nichicon
Termination Style	Radial
Capacitance	100 uF
Voltage Rating DC	25 VDC
Tolerance	20 %
Diameter	6.3 mm
Length	11 mm
Product	Low Impedance Electrolytic Capacitors

Preview

Download Datasheet

View All

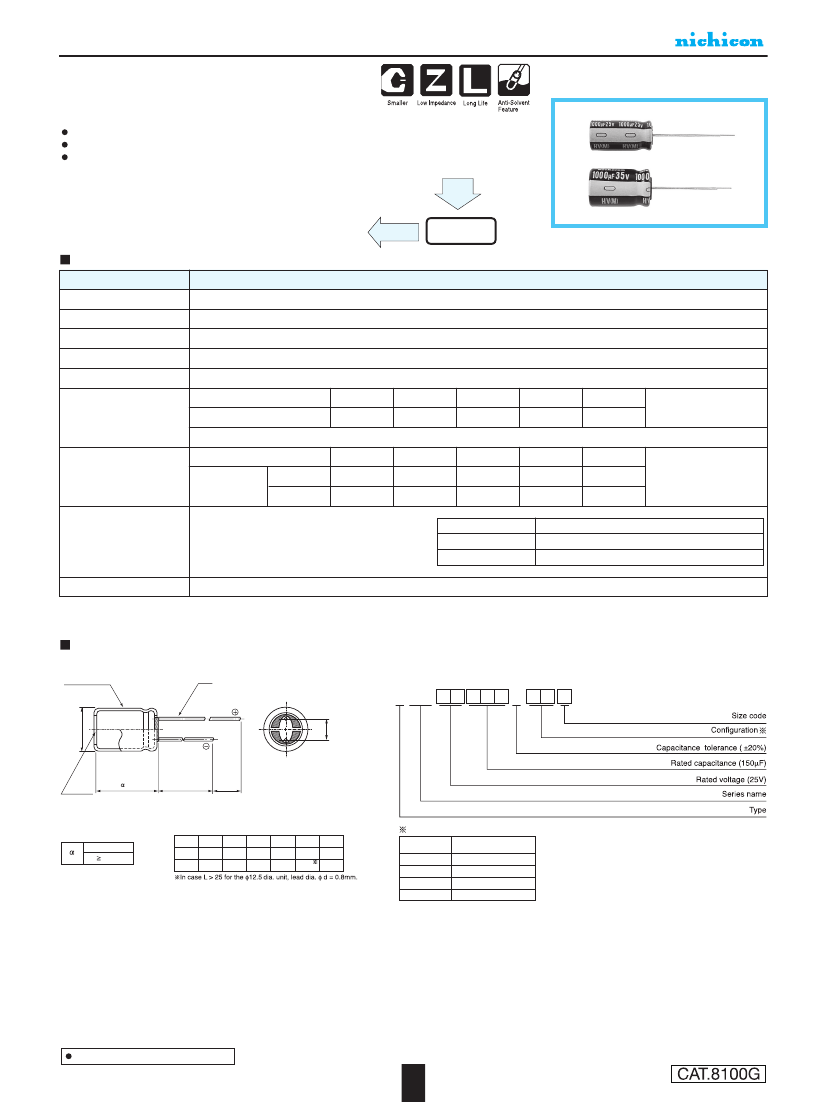

ALUMINUM ELECTROLYTIC CAPACITORS

UHV

High Ripple Low Impedance

Approved by Reliability Center for Electronic

Component, Japan-Certification No. RCJ-03-23C

Lower impedance at high frequency range.

Smaller case size and high ripple current.

Compliant to the RoHS directive (2011/65/EU).

UHD

Smaller

UHW

Long Life

UHV

Performance Characteristics

Specifications

ltem

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

–40 to +105˚C

6.3 to 35V

47 to 8200µF

± 20% at 120Hz, 20˚C

After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01CV or 3 (µA), whichever is greater.

Rated voltage (V)

6.3

0.21

0.18

0.15

0.13

0.11

120Hz 20˚C

Tangent of loss angle (tan

δ)

tan

(MAX.)

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Rated voltage (V)

Stability at Low Temperature

6.3

Capacitance change

tan

Leakage current

120Hz

Impedance ratio

ZT / Z20 (MAX.)

Z–25˚C / Z+20˚C

Z–40˚C / Z+20˚C

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20˚C after D.C. bias plus

rated ripple current is applied for 6000 hours (5000

hours for

φD=5

and 6.3) at 105˚C, the peak voltage

shall not exceed the rated voltage.

Printed with white color letter on black sleeve.

Within ± 25% of the initial capacitance value (6.3V 10V : ± 30%)

200% or less than the initial specified value

Less than or equal to the initial specified value

Marking

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 25V 150

10 11

U HV 1 E 1 5 1 M E D

φD

0.5 MAX.

±0.5

L+

MAX.

Pressure

relief vent

(φ6.3up)

MIN

(mm)

(L < 20) 1.5

(L 20) 2.0

Configuration

6.3

8 · 10

12.5 · 16

Pb-free leadwire

Pb-free PET sleeve

2.0

0.5

6.3

2.5

0.5

3.5

0.6

5.0

0.6

12.5

5.0

0.6

7.5

0.8

•

Please refer to page 20 about the end seal configuration.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

214
