Wide Operating Temperature (-40ºC to +85ºC) standard
±28 ppm Max. All inclusive Stability (including Aging) over 10-years
Available Frequency range from 24.576MHz to 160.000MHz
9.2 x 14.8mm RoHS Compliant SMT package
ESD Sensitive
Pb
RoHS Compliant
APPLICATIONS:
14.3 x 8.7 x 5.5mm
• Satellite Modem Communication Systems
• COTS - Military communications
• Avionics
• Low Phase Noise Signal Sources
• High Definition TV
• Test & Measurement
• Ultra Low Jitter RF Communication Circuitry
STANDARD SPECIFICATIONS
Parameters
RF Output Frequency Range
Standard Available Frequencies
Supply Voltage (Vdd)
24.576MHz ~ 99.999MHz
Current
Drain
100MHz ~ 149.999MHz
150.00MHz
Waveform
Output Load
V
OH
V
OL
Symmetry
Rise & Fall Times
Operating Temperature Range
Frequency Stability
Over (-40º C to +85ºC)
ALL effects, including Aging
Storage Temperature Range
First Year
Aging
5-Years
10-Years
-40
±12.00
±18.00
±28.00
+90
±2.00
±5.00
±7.00
-90
-120
-145
-165
-166
-166
< 100
-82
-115
-140
-160
-165
-165
125
ppm
ppm
ºC
ppm
ppm
ppm
Vdd=3.3V
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Femto
Seconds
0.125 ps Max.
ABRACON IS
Minimum
24.576
Typical
Maximum
160.000
Units
Notes
Custom
frequencies
available upon
request
24.576, 49.152, 50.00, 80.00, 81.92,
92.16, 96.00, 98.304, 100.00, 104.00,
106.25, 120.00, 122.88, 125.00, 150.00,
155.520, 156.250, & 160.000
3.135
3.300
3.465
25.00
35.00
40.00
LVCMOS
15
0.9*Vdd
0 .1*Vdd
45
-40
50
55
3.0
+85
MHz
Volts
mA
pF
Volts
%
ns
ºC
Relative to
measured
frequency @ 25ºC
Phase Noise (50MHz Carrier)
@ 10
@ 100
@ 1,000
@ 10,000
@ 100,000
Hz offset
Hz offset
Hz offset
Hz offset
Hz offset
Note #1 & #2
@ 1,000,000 Hz offset
rms Jitter (12kHz ~ 20MHz BW)
ABRACON IS
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
www.abracon.com
REVISED:
11.01.2018
ISO9001-2015
CERTIFIED
Ultra Low Phase Noise XO / VCXO
ABLNO
Parameters
ESD Sensitive
Pb
RoHS Compliant
14.3 x 8.7 x 5.5mm
Minimum
Typical
-88
-118
-141
-160
-161
-165
< 50
Maximum
-82
-115
-138
-155
-160
-160
100
Units
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Femto
Seconds
Notes
Vdd=3.3V
Note #1 & #2
Phase Noise (100MHz Carrier)
@ 10
@ 100
@ 1,000
@ 10,000
@ 100,000
Hz offset
Hz offset
Hz offset
Hz offset
Hz offset
@ 1,000,000 Hz offset
rms Jitter (12kHz ~ 20MHz BW)
0.10 ps Max.
Phase Noise (156.25MHz
Carrier)
@ 10
@ 100
@ 1,000
@ 10,000
@ 100,000
Hz offset
Hz offset
Hz offset
Hz offset
Hz offset
-75
-110
-140
-155
-161
-165
< 50
-70
-105
-135
-150
-160
-160
100
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Femto
Seconds
Vdd=3.3V
Note #1 & #2
@ 1,000,000 Hz offset
rms Jitter (12kHz ~ 20MHz BW)
Electrical Frequency Adjustment
Control Voltage Range (Vc)
Frequency Pull Range
Frequency Pull Slope
Control Voltage Port Impedance
Control Port Linearity
10
0.0
±28.00
0.10 ps Max.
1.65
3.30
±55.00
Volts
ppm
k
Referenced to the
carrier
Positive
±10
%
Note #1:
Note #2:
Maximum Phase Noise is verified on 100% of the parts at 25ºC ± 3ºC.
The above specified Phase Noise & Jitter is with the oscillator device configured as a VCXO. In
XO configuration, the Phase Noise will be slightly better at each offset between 10Hz and 10 kHz,
by approximately -3dB to -5dB.
ABRACON IS
LLC
CE RTIFIED
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
ABRACON IS
REVISED:
11.01.2018
ISO9001-2015
CERTIFIED
Ultra Low Phase Noise XO / VCXO
ABLNO
ESD Sensitive
Pb
RoHS Compliant
14.3 x 8.7 x 5.5mm

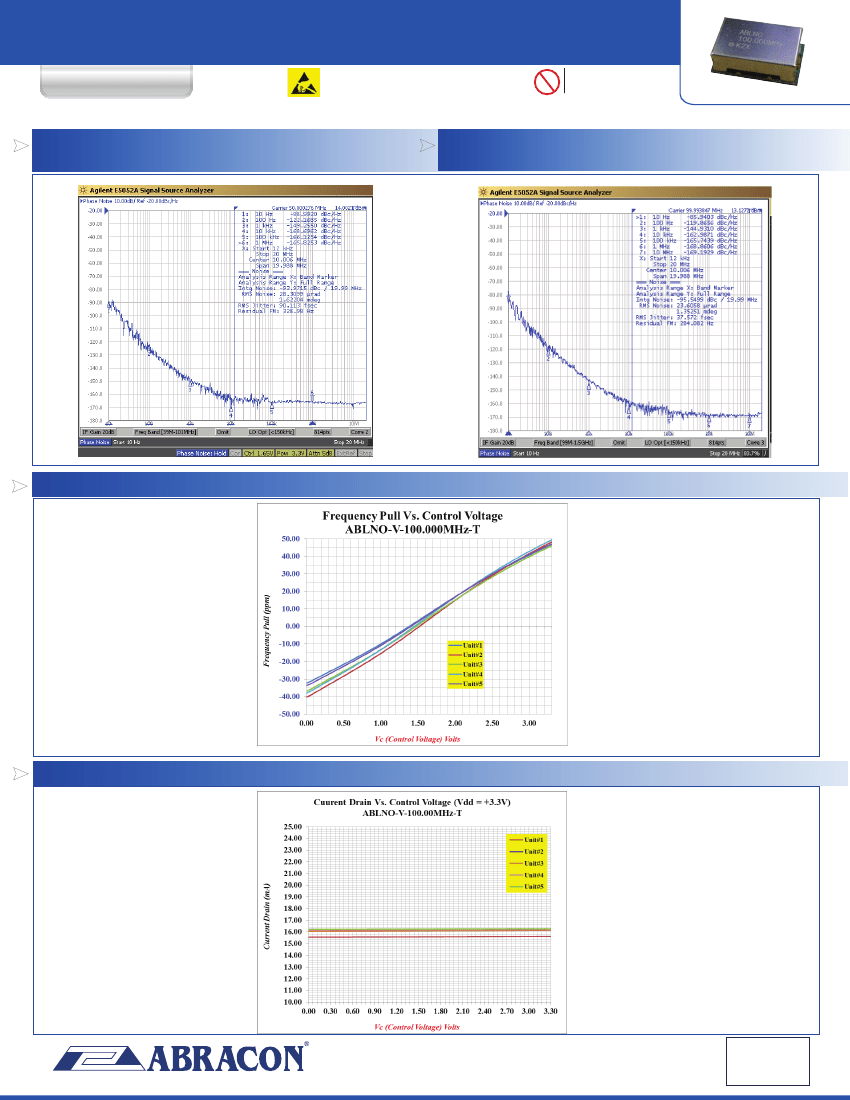

TYPICAL PHASE NOISE PERFORMANCE
@ 50.00 MHZ CARRIER
TYPICAL PHASE NOISE PERFORMANCE
@ 100.00 MHZ CARRIER
FREQUENCY PULL VERSUS CONTROL VOLTAGE (REFERENCED TO 100.000MHZ)
CURRENT DRAIN VERSUS CONTROL VOLTAGE @ VDD =+3.3V
LLC
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
ABRACON IS
REVISED:
11.01.2018
ISO9001-2015
CERTIFIED
Ultra Low Phase Noise XO / VCXO
ABLNO
ESD Sensitive
Pb
RoHS Compliant
14.3 x 8.7 x 5.5mm
| | | | | | | | | | | | | | |
FREQUENCY STABILITY VS. TEMPERATURE @ VDD = +3.3V
(REFERENCED TO MEASURED FREQUENCY @ 25ºC
)
PART IDENTIFICATION:
ABLNO -
Frequency (MHz) –
Fixed Clock Vs. VCXO Option
Blank
V
OUTLINE DIMENSIONS:
Fixed Clock Oscillator
VCXO (±28 ppm min. Pull)
Tape & Reel Options
Blank
< 250 units on cut tape
T2
250 units per reel
T
1,000 units per reel
Recommended Land Pattern
Pin #
1
2
3
4
Functionality
Voltage Control (Vc) for VCXO
No Connect (N/C) for XO
Ground
RF Output
Vdd
Dimensions: mm
5101 Hidden Creek Ln Spicewood TX 78669
Phone: 512-371-6159 | Fax: 512-351-8858
For terms and conditions of sales, please visit:
ABRACON IS
LLC
REVISED:
11.01.2018
ISO9001-2015
CERTIFIED
Ultra Low Phase Noise XO / VCXO
ABLNO

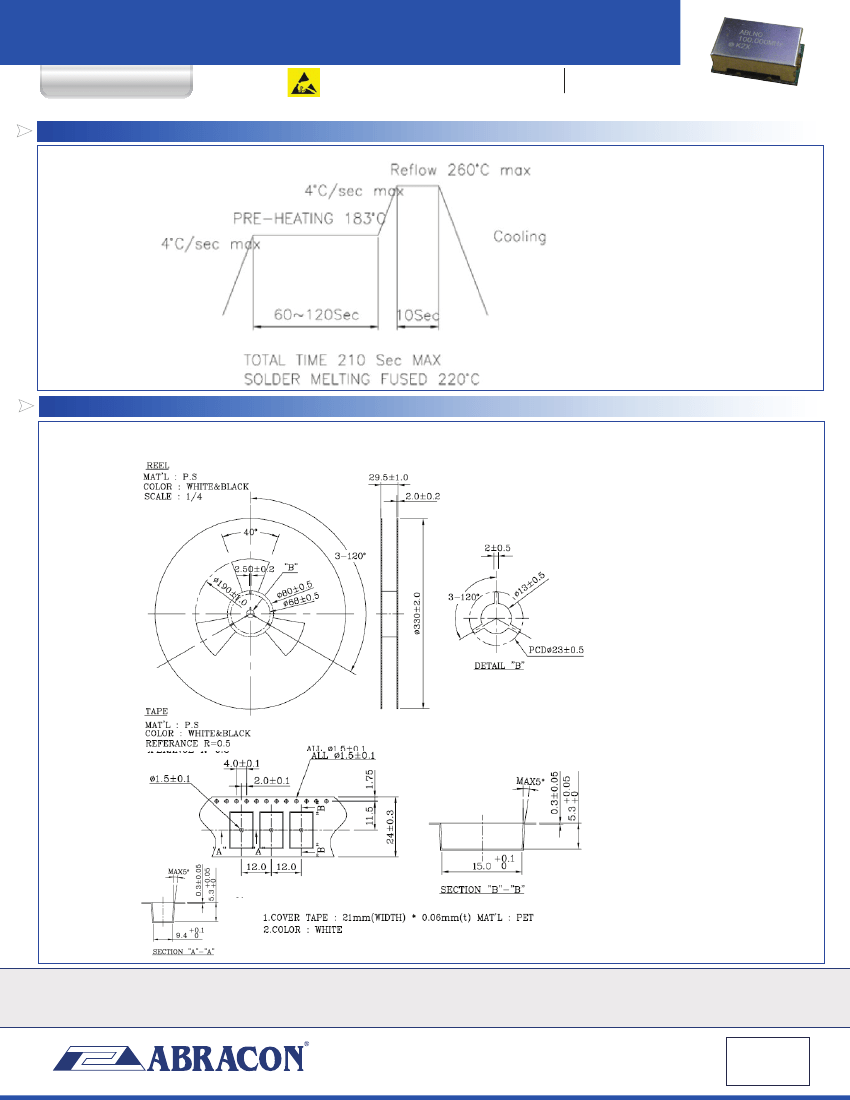

REFLOW PROFILE:
ESD Sensitive
Pb
RoHS Compliant
14.3 x 8.7 x 5.5mm
TAPE & REEL:
(1,000) units per reel standard, (250) units per reel available (option # T2)
ATTENTION:
Abracon LLC’s products are COTS – Commercial-O -The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability
where component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment,
written consent and authorization from Abracon LLC is required. Please contact Abracon LLC for more information.
