SDR0602-221KL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SDR0602-221KL

SDR0602-221KL: DescriptionFixed Inductors 220uH 10% SMD 0602; CategoryPassive components inductor; File Size486KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance; Related ProductsFound1parts with similar functions to SDR0602-221KL

Download Datasheet Parametric Compare View All

SDR0602-221KL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SDR0602-221KL	-	-	View	Buy Now

SDR0602-221KL Overview

Fixed Inductors 220uH 10% SMD 0602

SDR0602-221KL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	2320
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2320
structure	Unshielded
core material	FERRITE
DC Resistance	2.5 Ω
Nominal inductance(L)	220 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Manufacturer's serial number	SDR0602
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	2.2 mm
Package length	5.8 mm
Package form	SMT
Package width	5 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	55
Maximum rated current	0.2 A
self resonant frequency	5 MHz
series	SDR0602
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.796 MHz
Tolerance	10%

Preview

Download Datasheet

View All

Features

Available in E12 series

Unit height of 2.2 mm

Current up to 1.5 A

High Q level

RoHS compliant*

The SDR0602 Series is obsolete and

not recommended for new designs.

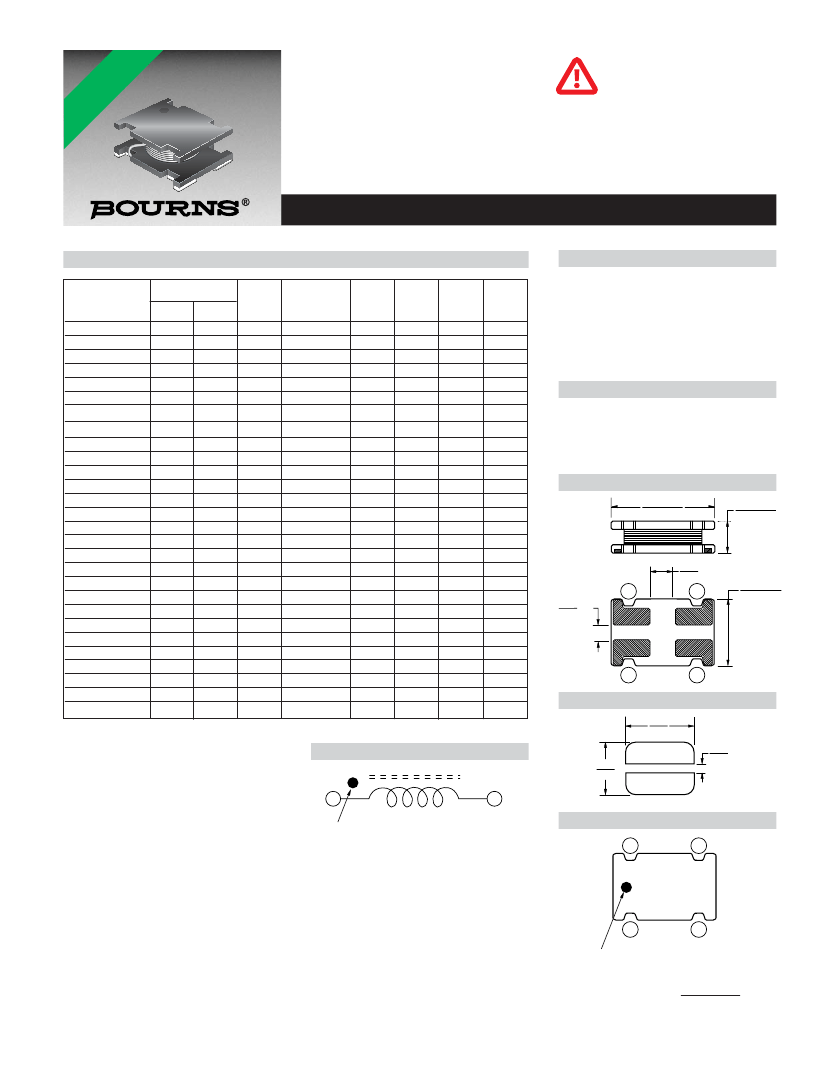

SDR0602 Series - SMD High Power Inductor

Electrical Specifications

Inductance 1kHz

Bourns Part No.

(µH)

Tol. %

Test

Frequency

(MHz)

SRF

Min.

(MHz)

RDC

Max.

Ω

(Ω)

I rms

Max.

(A)

I sat

Typ.

(A)

Ref.

SDR0602-2R7ML

SDR0602-3R9ML

SDR0602-4R7ML

SDR0602-5R6ML

SDR0602-6R8ML

SDR0602-8R2ML

SDR0602-100ML

SDR0602-120ML

SDR0602-150ML

SDR0602-180ML

SDR0602-220ML

SDR0602-270ML

SDR0602-330KL

SDR0602-390KL

SDR0602-470KL

SDR0602-560KL

SDR0602-680KL

SDR0602-820KL

SDR0602-101KL

SDR0602-121KL

SDR0602-151KL

SDR0602-181KL

SDR0602-221KL

SDR0602-271KL

SDR0602-331KL

SDR0602-391KL

SDR0602-471KL

SDR0602-561KL

2.7

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

560

7.96

2.52

0.796

0.12

0.13

0.15

0.17

0.18

0.20

0.24

0.26

0.28

0.30

0.40

0.45

0.50

0.65

0.68

0.78

0.85

1.30

1.52

1.65

2.00

2.30

2.50

2.85

3.80

4.20

5.00

6.20

1.50

1.40

1.30

1.20

1.15

1.10

1.00

0.90

0.80

0.75

0.70

0.65

0.60

0.55

0.50

0.45

0.40

0.35

0.32

0.30

0.26

0.23

0.20

0.18

0.16

0.15

0.14

0.12

2.10

1.90

1.80

1.60

1.55

1.43

1.32

1.17

1.10

1.07

0.90

0.83

0.73

0.68

0.62

0.57

0.52

0.46

0.42

0.38

0.24

0.32

0.29

0.26

0.22

0.20

0.18

0.14

General Specifications

Test Voltage ....................................1 Volt

Reflow Soldering .....260 ˚C, 50 sec max.

Operating Temperature ..-40 °C to +125 °C

(Temperature rise included)

Storage Temperature..-40 °C to +125 °C

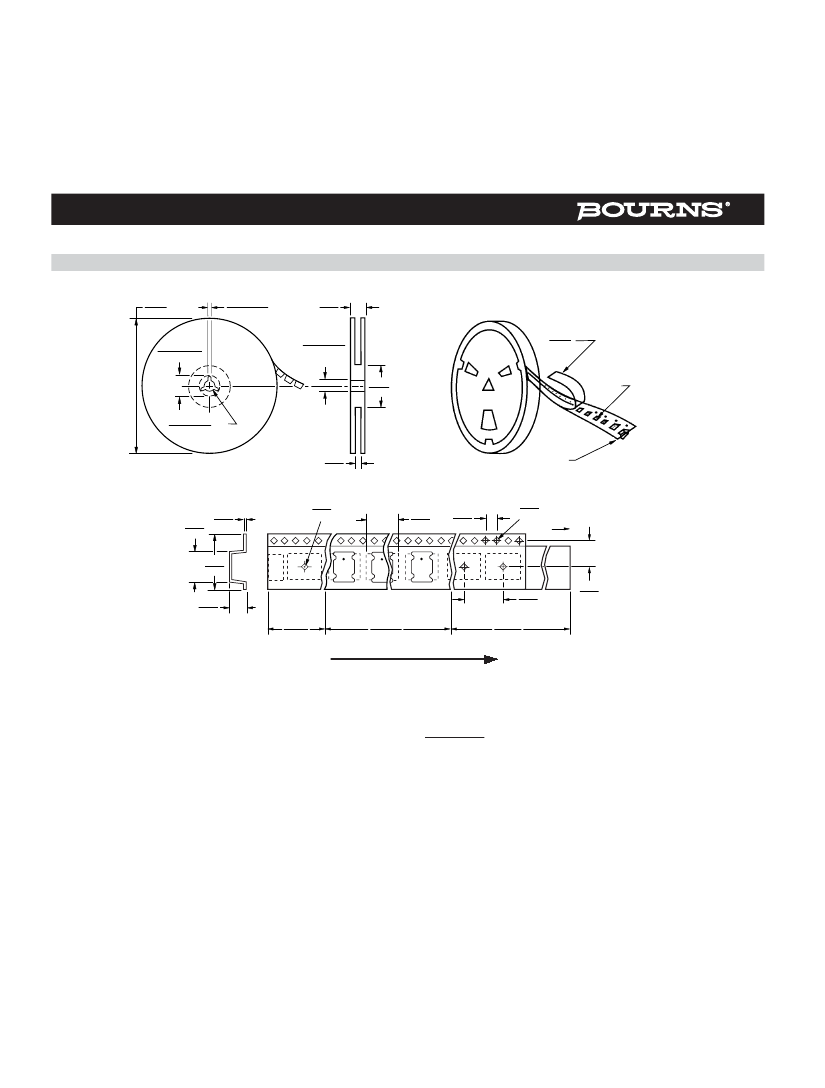

Packaging.....................800 pcs. per reel

Resistance to Soldering Heat

..................................260 °C for 5 sec.

Materials

Core Material ..........................Ferrite DQ

Wire ............................Enameled Copper

Terminal.....................................Ag/Ni/Sn

Rated Current...Ind. drop 10 % typ. at Isat

Temperature Rise...40 ˚C max at rated Irms

Product Dimensions

5.8

0.2

(.229

.008)

2.2

0.2

(.087

.008)

± 20

± 10

±10

± 10

1.4

TYP.

(.055)

1.4

TYP.

(.055)

5.0

0.2

(.196

.008)

Recommended Layout

6.0

(.236)

Electrical Schematic

5.2

(.204)

1.5

(.059)

Winding Start

Typical Part Marking

470

Marking dot between terminal 1 and 4

DIMENSIONS:

(INCHES)

*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
