TD04-1205ALF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> TD04-1205ALF

TD04-1205ALF: DescriptionAudio Transformers / Signal Transformers T1/E1 ISO MOD THT 6Pin 1CT:1CT 1Ch; CategoryPassive components; File Size348KB，2 Pages; ManufacturerHALO Electronics

Download Datasheet Parametric Compare View All

TD04-1205ALF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TD04-1205ALF	-	-	View	Buy Now

TD04-1205ALF Overview

Audio Transformers / Signal Transformers T1/E1 ISO MOD THT 6Pin 1CT:1CT 1Ch

TD04-1205ALF Parametric

Parameter Name	Attribute value
Product Category	Audio Transformers / Signal Transformers
Manufacturer	HALO Electronics
RoHS	Details
Termination Style	Through Hole
Inductance	1.2 mH
Isolation Voltage	1.5 kV
Minimum Operating Temperature	0 C
Maximum Operating Temperature	+ 70 C
Number of Channels	Single
Product	WAN
Type	Module
Application	T1/E1 Line Interface
Package / Case	DIP-6
Length	12.7 mm
Width	8.89 mm
Height	6.35 mm
Packaging	Tube
Maximum DC Resistance	0.7 Ohms
Primary Resistance	0.7 Ohms
Shielding	Shielded
Factory Pack Quantity	50

Preview

Download Datasheet

View All

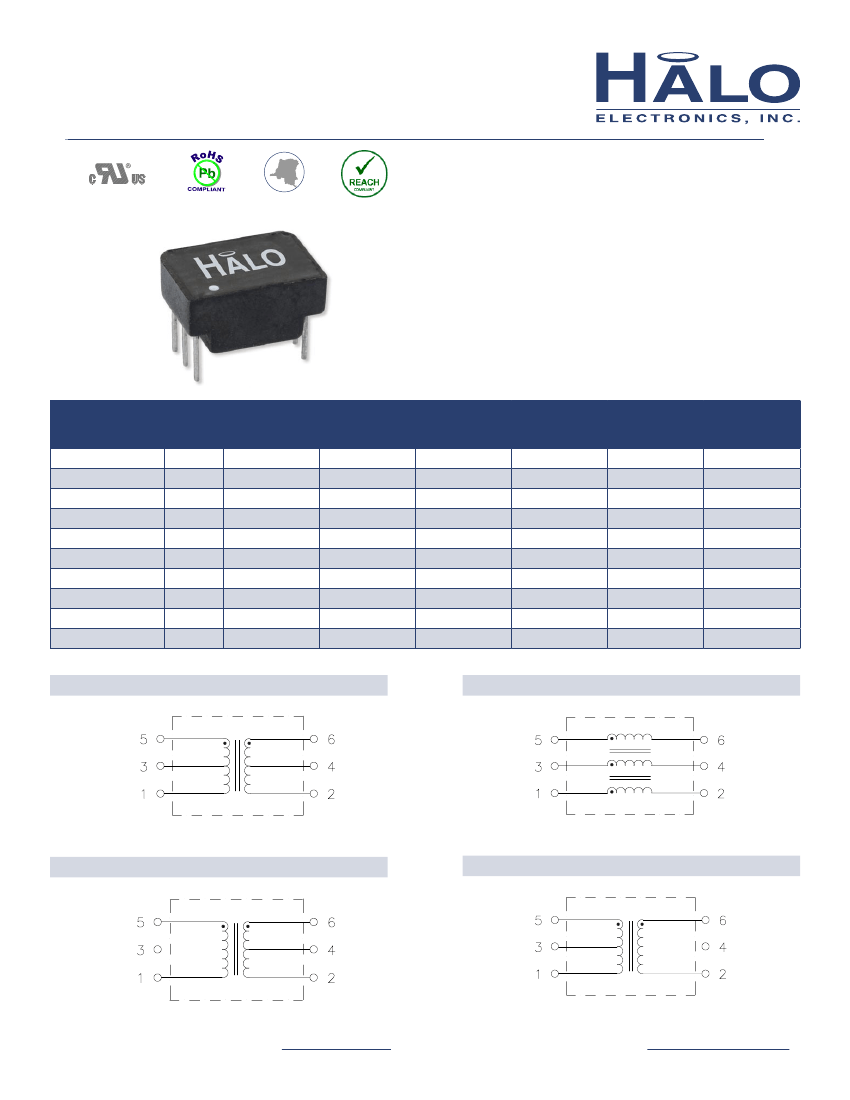

T1/E1 Line Interface Modules

DIL Package

Conflict

FREE

Product Features:

Standard series of 6 pin DIL Line Interface Modules

to meet the isolation and impedance matching

requirements for T1, E1, CEPT and PRI ISDN

applications.

Isolation modules are available for all popular

LIU’s.

1,500 Vrms hi-pot

Operating Temperature Range is 0 to 70°C

Part Number

TD02-1205ALF

TD04-1205ALF

TD08-1205ALF

TD10-1205ALF

TD15-1205ALF

TD37-1205ALF

TD38-1505ALF

TD70-1205ALF

TD71-1205ALF

TD72-1205ALF

Schem

Turns Ratio

PRI/SEC

1CT:1

1CT:1CT

1CT:2CT

1:1:1

1:2CT

1:1.14CT

1:1.15CT

1:1.36CT

1:2.3CT

1CT:3CT

OCL

(mH min)

1.2

1.5

1.2

Pri/Sec

Cw/w

(pF max)

Pri/Sec

(µH max)

0.50

0.80

0.50

DCR

Pri

(Ω max)

0.70

Primary

Pins

1-5

1-2

2-6

1-5

2-6

1-5

Schematic A

Schematic B

Schematic C

Schematic D

For additional information contact your

local representative,

or HALO’s support staff at (650) 903-3800 or

info@haloelectronics.com

TD04-1205ALF Related Products

	TD04-1205ALF	TD08-1205ALF	TD70-1205ALF	TD02-1205ALF	TD71-1205ALF	TD37-1205ALF	TD72-1205ALF
Description	Audio Transformers / Signal Transformers T1/E1 ISO MOD THT 6Pin 1CT:1CT 1Ch		Audio Transformers / Signal Transformers T1/E1 ISO MOD THT 6Pin 1:1.36CT 1Ch	Audio Transformers / Signal Transformers T1/E1 ISO MOD THT 6P Single Ch StdTemp	Audio Transformers / Signal Transformers T1/E1 ISO MOD THT 6Pin 1CT:2.3CT 1Ch	Audio Transformers / Signal Transformers T1/E1 ISO MOD THT 6Pin 1:1.14CT 1Ch	LDO Voltage Regulators 400 mA LDO REG
Product Category	Audio Transformers / Signal Transformers	Audio Transformers / Signal Transformers	-	Audio Transformers / Signal Transformers	Audio Transformers / Signal Transformers	Audio Transformers / Signal Transformers	Audio Transformers / Signal Transformers
Manufacturer	HALO Electronics	HALO Electronics	-	HALO Electronics	HALO Electronics	HALO Electronics	HALO Electronics
RoHS	Details	Details	-	Details	Details	Details	Details
Termination Style	Through Hole	Through Hole	-	Through Hole	Through Hole	Through Hole	Through Hole
Inductance	1.2 mH	1.2 mH	-	1.2 mH	1.2 mH	1.2 mH	1.2 mH
Isolation Voltage	1.5 kV	1.5 kV	-	1.5 kV	1.5 kV	1.5 kV	1.5 kV
Minimum Operating Temperature	0 C	0 C	-	0 C	0 C	0 C	0 C
Maximum Operating Temperature	+ 70 C	+ 70 C	-	+ 70 C	+ 70 C	+ 70 C	+ 70 C
Number of Channels	Single	Single	-	Single	Single	Single	Single
Product	WAN	WAN	-	WAN	WAN	WAN	WAN
Type	Module	Module	-	Module	Module	Module	Module
Application	T1/E1 Line Interface	T1/E1 Line Interface	-	T1/E1 Line Interface	T1/E1 Line Interface	T1/E1 Line Interface	T1/E1 Line Interface
Package / Case	DIP-6	DIP-6	-	DIP-6	DIP-6	DIP-6	DIP-6
Length	12.7 mm	12.7 mm	-	12.7 mm	12.7 mm	12.7 mm	12.7 mm
Width	8.89 mm	8.89 mm	-	8.89 mm	8.89 mm	8.89 mm	8.89 mm
Height	6.35 mm	6.35 mm	-	6.35 mm	6.35 mm	6.35 mm	6.35 mm
Packaging	Tube	Tube	-	Tube	Tube	Tube	Tube
Maximum DC Resistance	0.7 Ohms	0.7 Ohms	-	0.7 Ohms	0.7 Ohms	0.7 Ohms	0.7 Ohms
Primary Resistance	0.7 Ohms	0.7 Ohms	-	0.7 Ohms	0.7 Ohms	-	0.7 Ohms
Shielding	Shielded	Shielded	-	Shielded	Shielded	Shielded	Shielded
Factory Pack Quantity	50	50	-	50	50	50	50
