517D338M035FR6AE3 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 517D338M035FR6AE3

517D338M035FR6AE3: DescriptionAluminum Electrolytic Capacitors - Leaded 3300uF 35V 18x35.5 105 C Rad; CategoryPassive components capacitor; File Size116KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

517D338M035FR6AE3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	517D338M035FR6AE3	-	-	View	Buy Now

517D338M035FR6AE3 Overview

Aluminum Electrolytic Capacitors - Leaded 3300uF 35V 18x35.5 105 C Rad

517D338M035FR6AE3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	3300 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	18 mm
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	3.465 mA
length	35.5 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	1660 mA
surface mount	NO
Delta tangent	0.13
Terminal surface	Matte Tin (Sn)
Terminal pitch	7.5 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

Not for New Designs

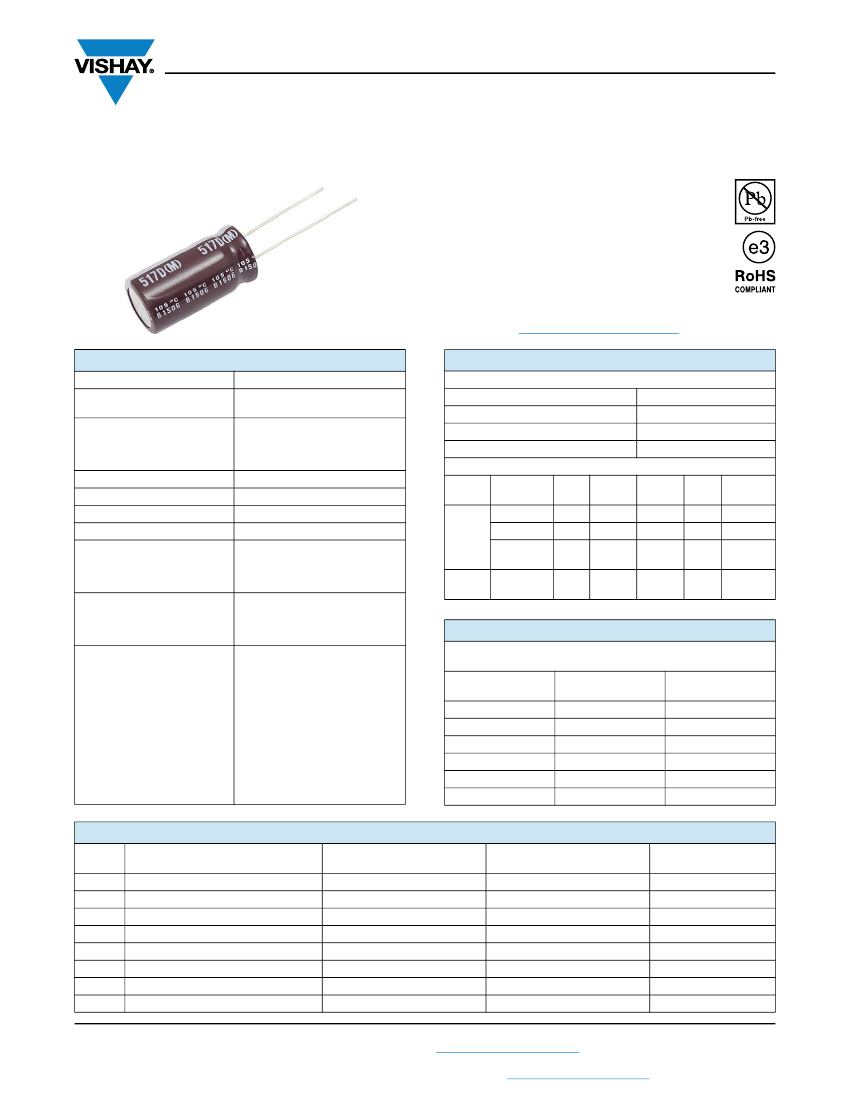

517D

www.vishay.com

Vishay Sprague

Aluminum Capacitors

+105 °C, General Purpose Miniature, Radial Lead

FEATURES

• High CV per case size

• Low cost

• Solvent resistant construction

(through 100 WV

)

• Life test to 2000 h at +105 °C

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

QUICK REFERENCE DATA

DESCRIPTION

Nominal case size

Ø D x L in mm

Operating temperature

Rated capacitance range, C

Tolerance on C

Rated voltage range, U

Termination

Life validation test at 105 °C

VALUE

0.197" x 0.433" [5.0 x 11.0]

to 0.709" x 1.575" [18.0 x 40.0]

-55 °C to +105 °C

(6.3 WV

to 100 WV

)

-40 °C to +105 °C

(160 WV

to 250 WV

)

0.47 μF to 15 000 μF

± 20 %

6.3 WV

to 250 WV

2 radial leads

2000 h:

CAP ± 20 % from

initial measurement.

DF 2 x initial specified limit.

DCL

≤

initial specified limit.

1000 h:

CAP ± 20 % from initial

measurement.

DF 2 x initial specified limit.

DCL

≤

initial specified limit.

Rated voltage for 1 min for

6.3 WV

to 100 WV

units:

I < 0.03 CV or 4 μA

(whichever is greater).

Rated voltage for 2 min for

6.3 WV

to 100 WV

units:

I < 0.04 CV or 3 μA

(whichever is greater).

Rated voltage for 1 min for

160 WV

to 250 WV

units:

I < 0.1 CV + 40 μA and CV > 1000;

I < 0.04 CV + 100 μA

and CV > 1000

RIPPLE CURRENT MULTIPLIERS

TEMPERATURE

AMBIENT TEMPERATURE

+70 °C

+85 °C

+105 °C

FREQUENCY (Hz)

CAP. (μF)

0 to 47

6.3 to

100

100 to 470

50 to

0.75

0.80

100 to

120

300 to

400

1.35

1.23

1.10

1.25

1 kHz

≥

10 kHz

1.57

1.34

1.13

1.40

2.00

1.50

1.15

1.60

MULTIPLIERS

1.78

1.4

1.0

1000 to

0.85

22 000 000

160 to

0.47 to 100 0.80

250

Shelf life at 105 °C

LOW TEMPERATURE PERFORMANCE

MAXIMUM IMPEDANCE RATIO Z

(T)

(+20 °C)

MAXIMUM AT 120 Hz

RATED VOLTAGE

(WV

)

6.3

10.0

16.0

25.0 to 100.0

160.0 to 200.0

250.0

Z - 25 °C / Z + 20 °C Z - 40 °C / Z + 20 °C

4.0

3.0

2.0

4.0

8.0

6.0

4.0

3.0

4.0

6.0

DC leakage current

DIMENSIONS

in inches [millimeters]

CASE

CODE

NOMINAL CASE SIZE

DxL

0.197 x 0.433 [5.0 x 11.0]

0.248 x 0.433 [6.3 x 11.0]

0.315 x 0.453 [8.0 x 11.5]

0.394 x 0.492 [10.0 x 12.5]

0.394 x 0.630 [10.0 x 16.0]

0.394 x 0.787 [10.0 x 20.0]

0.492 x 0.787 [12.5 x 20.0]

0.492 x 0.984 [12.5 x 25.0]

LEAD SPACING

0.079 [2.0]

0.098 [2.5]

0.138 [3.5]

0.197 [5.0]

NOMINAL LEAD DIAMETER

0.020 [0.50]

0.024 [0.60]

TYPICAL WEIGHT

(g)

0.44

0.63

1.03

1.53

1.86

2.48

3.98

5.27

Revision: 04-May-2018

Document Number: 42053

For technical questions, contact:

aluminumcaps4@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
