51939-189LF

Description
Board Connector, 27 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Plug, LEAD FREE
CategoryThe connector    The connector
File Size258KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

51939-189LF Online Shopping

Suppliers Part Number Price MOQ In stock
51939-189LF - - View Buy Now

51939-189LF Overview

Board Connector, 27 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Plug, LEAD FREE

51939-189LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
package instructionLEAD FREE
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time6 weeks
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Board mount optionsHOLE .086-.098
body width0.574 inch
subject depth0.93 inch
body length2.2 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact arrangementS24P3
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedNOT APPLICABLE
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts27
UL Flammability Code94V-0
Evacuation force-minimum value.1668 N

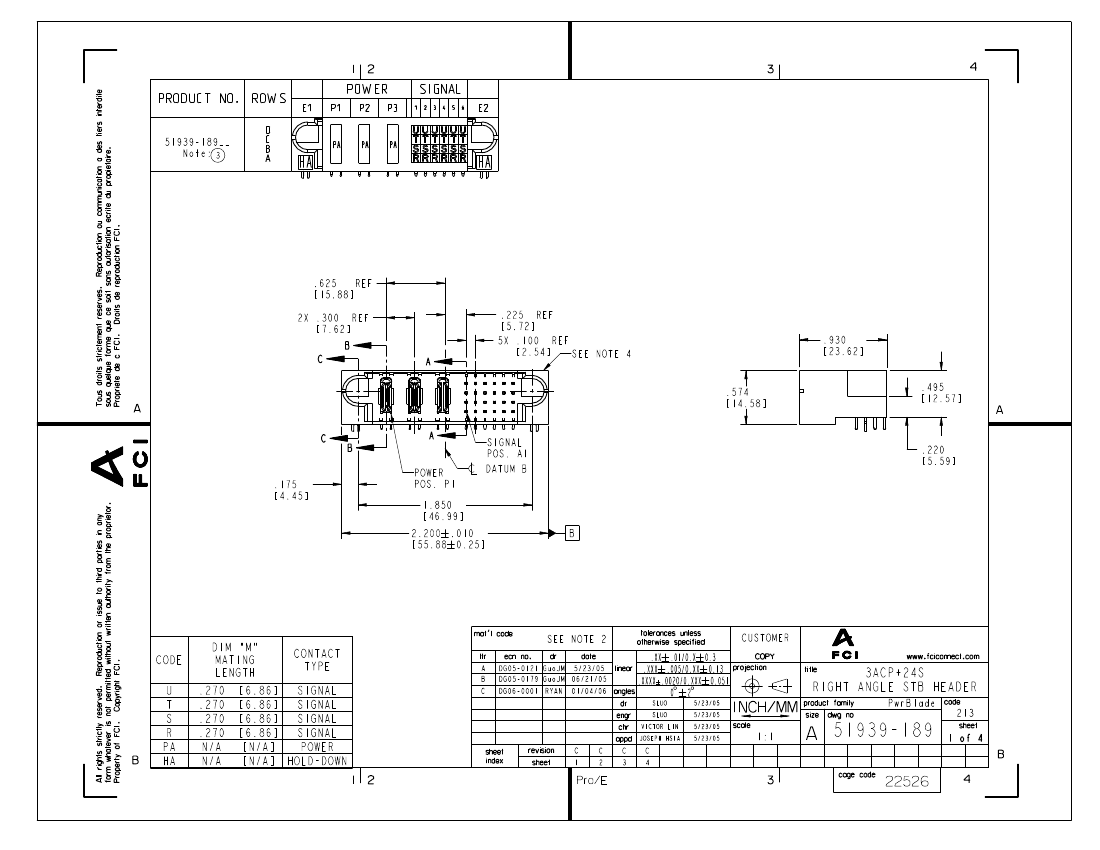

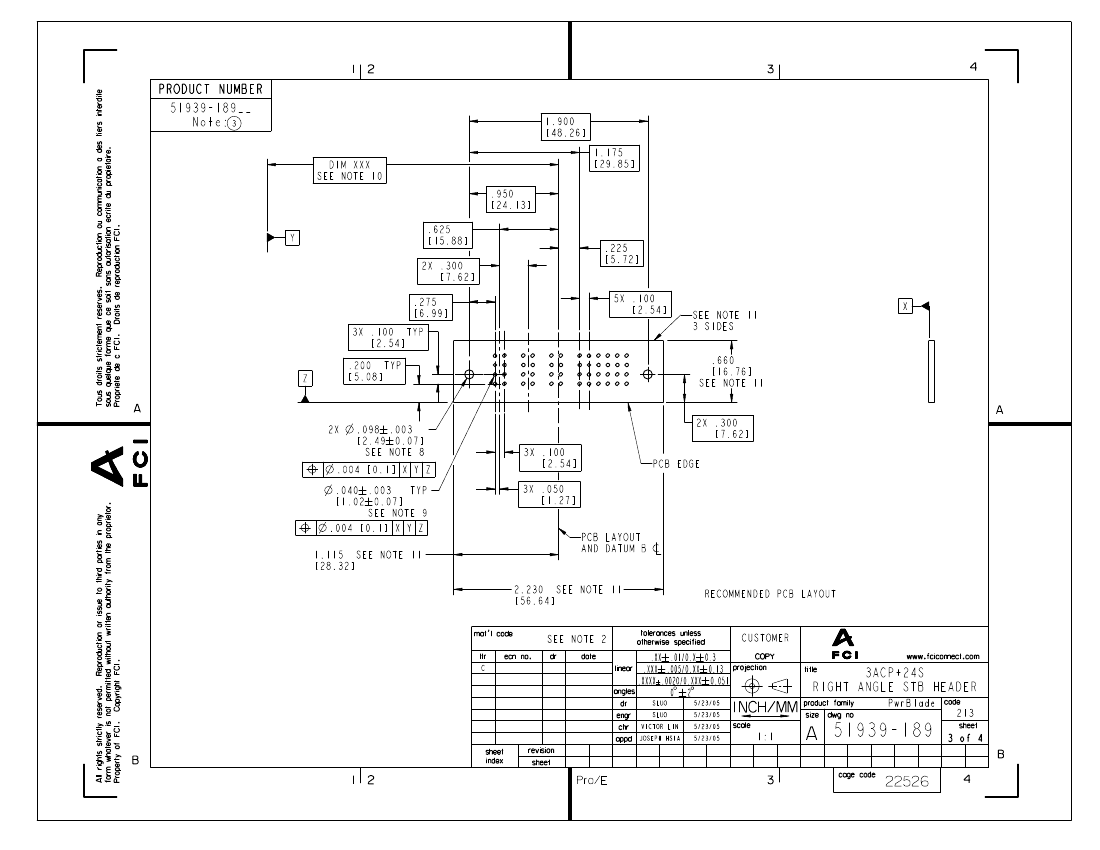

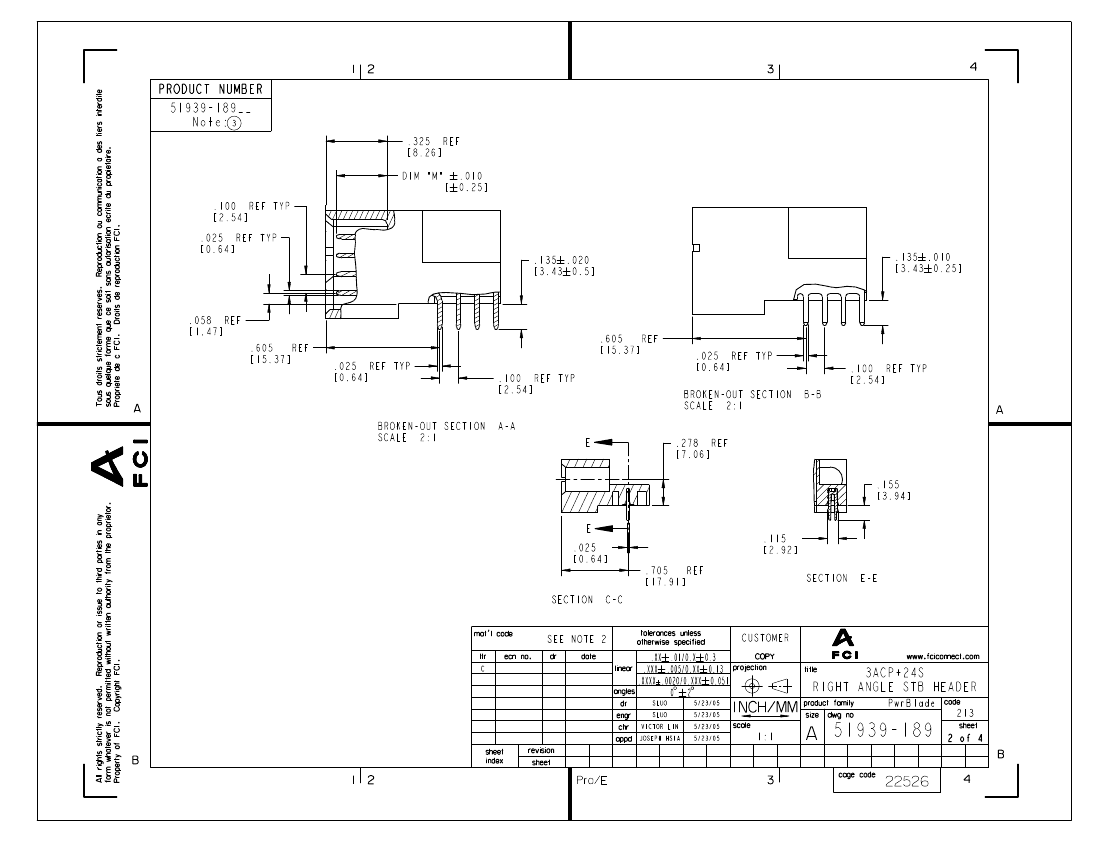

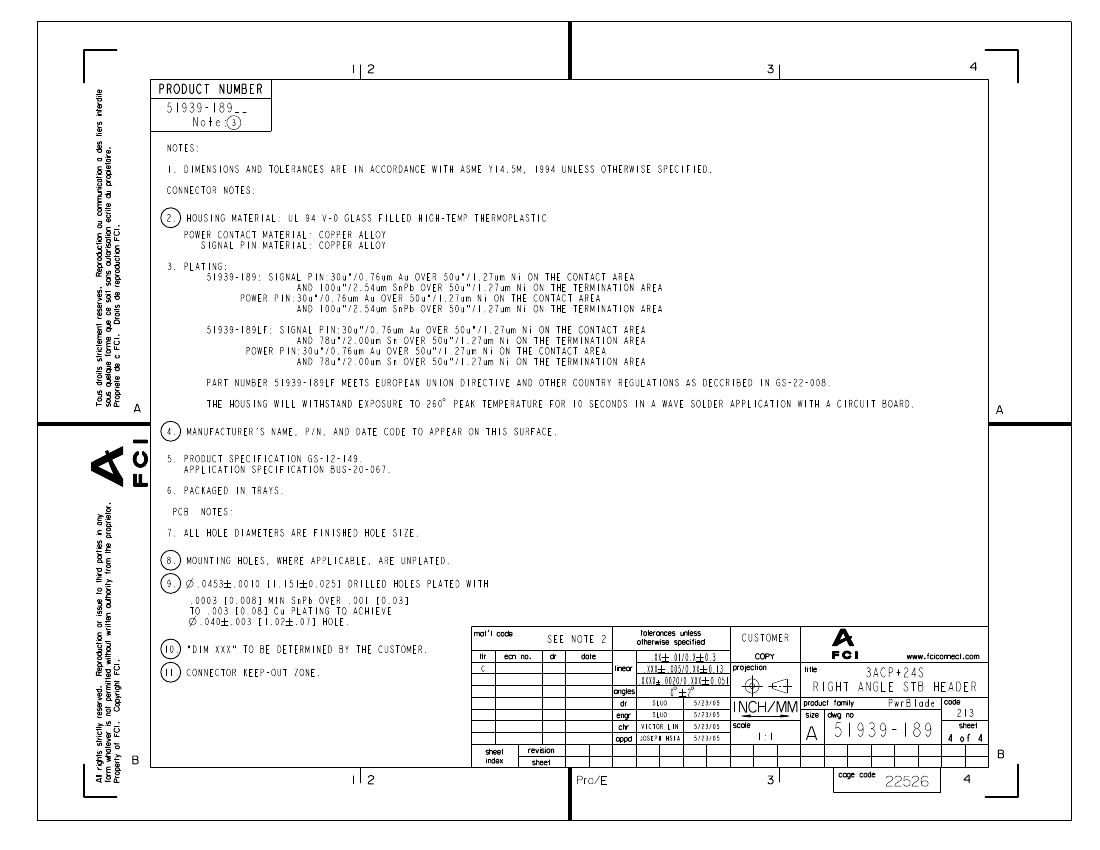

PDM: Rev:C
STATUS:
Released
Printed: Dec 21, 2010
.

51939-189LF Related Products

51939-189LF 51939-189
Description Board Connector, 27 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Plug, LEAD FREE Board Connector, 27 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal, Locking, Plug
Is it Rohs certified? conform to incompatible
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Board mount options HOLE .086-.098 HOLE .086-.098
body width 0.574 inch 0.574 inch
subject depth 0.93 inch 0.93 inch
body length 2.2 inch 2.2 inch
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S24P3 S24P3
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated NOT APPLICABLE TIN/LEAD OVER NICKEL
Contact point gender MALE MALE
Contact material NOT SPECIFIED NOT SPECIFIED
Contact resistance 20 mΩ 20 mΩ
Contact style HYBRID HYBRID
DIN compliance NO NO
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force .973 N .973 N
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
MIL compliance NO NO
Mixed contacts YES YES
Installation option 1 LOCKING LOCKING
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
Number of connectors ONE ONE
Number of rows loaded 4 4
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
Plating thickness 30u inch 30u inch
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 27 27
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .1668 N .1668 N
