Part Number

Search

51940-329

Description
Board Connector, 31 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Guide Pin, Receptacle
CategoryThe connector    The connector
File Size235KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

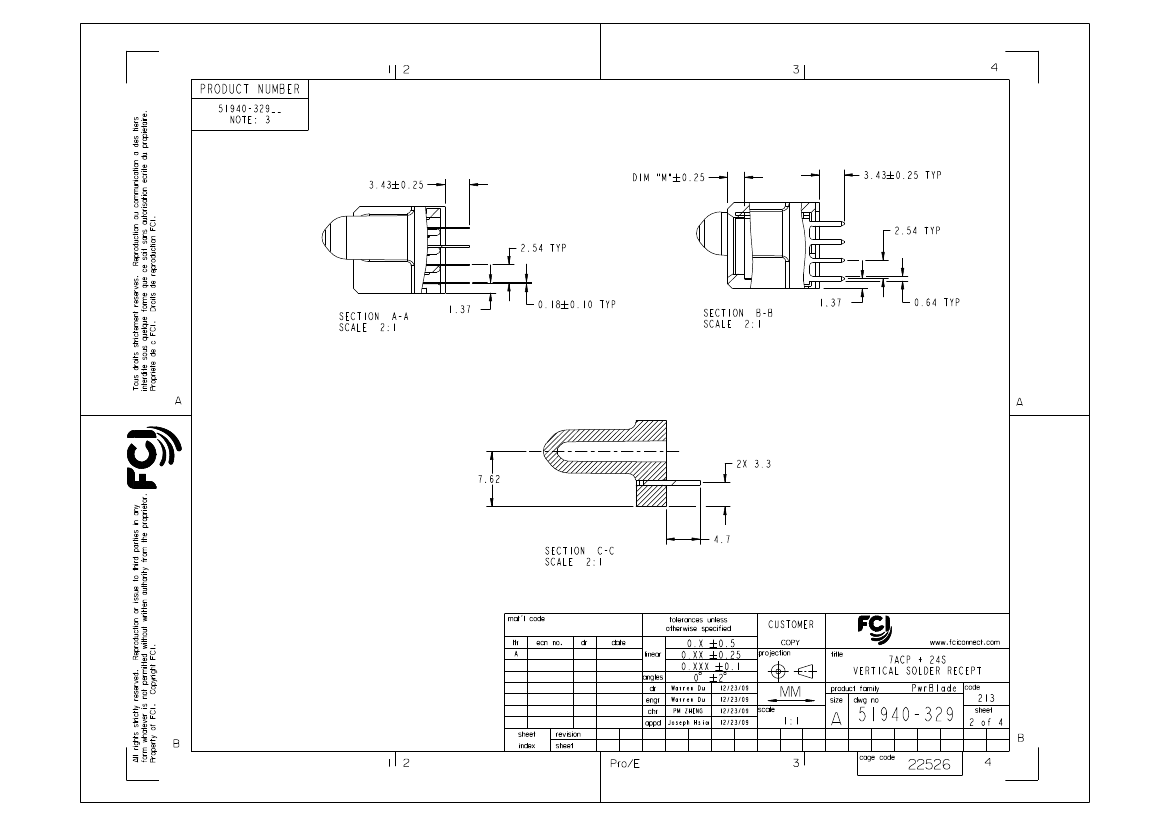

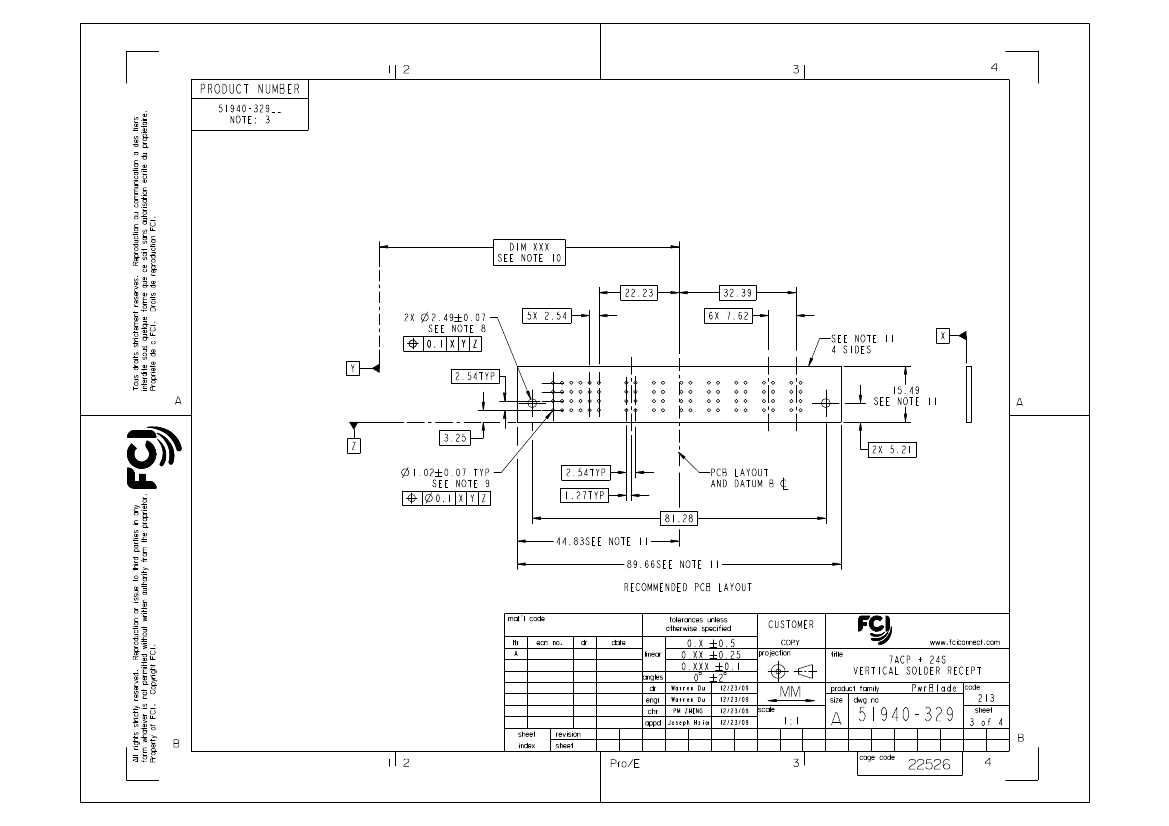

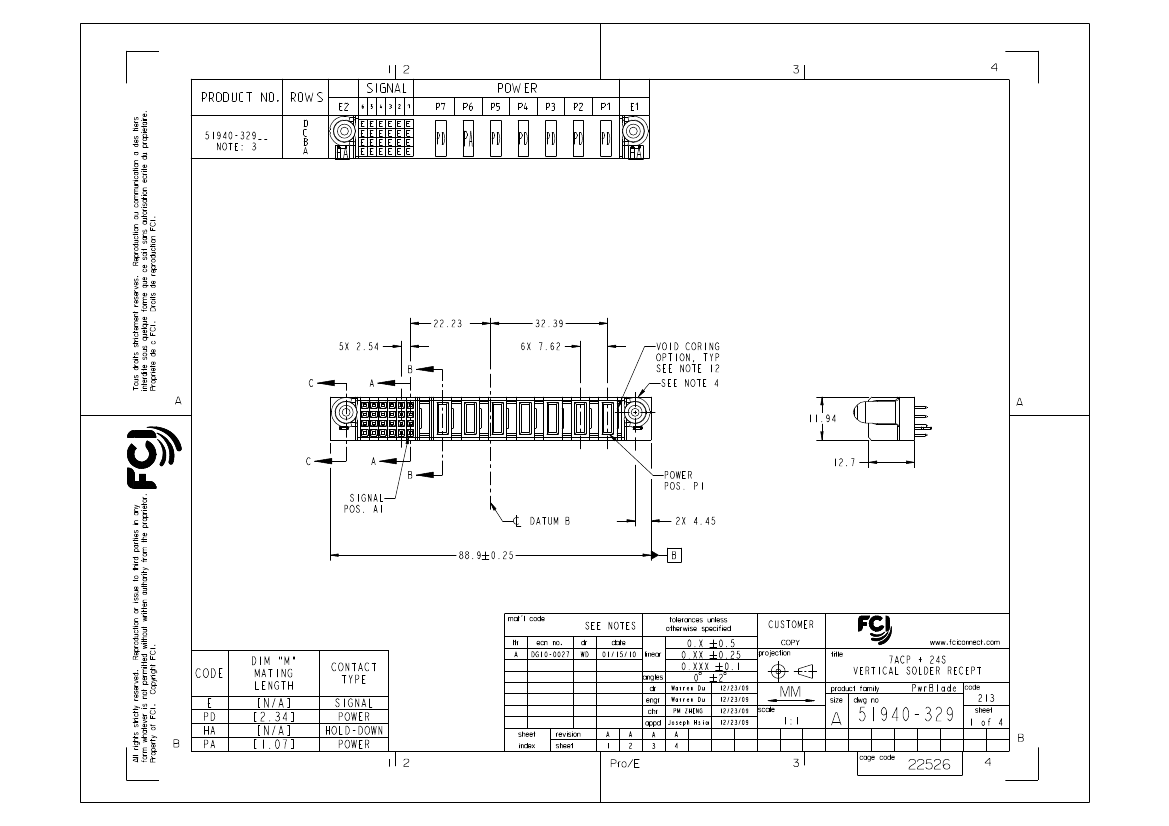

51940-329 Overview

Board Connector, 31 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Guide Pin, Receptacle

51940-329 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresTERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Board mount optionsHOLE .086-.098
body width0.47 inch
subject depth0.5 inch
body length3.5 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS24P7
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact resistance20 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance500000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
MIL complianceNO
Manufacturer's serial number51940
Mixed contactsYES
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.135 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts31
UL Flammability Code94V-0
Evacuation force-minimum value.1668 N

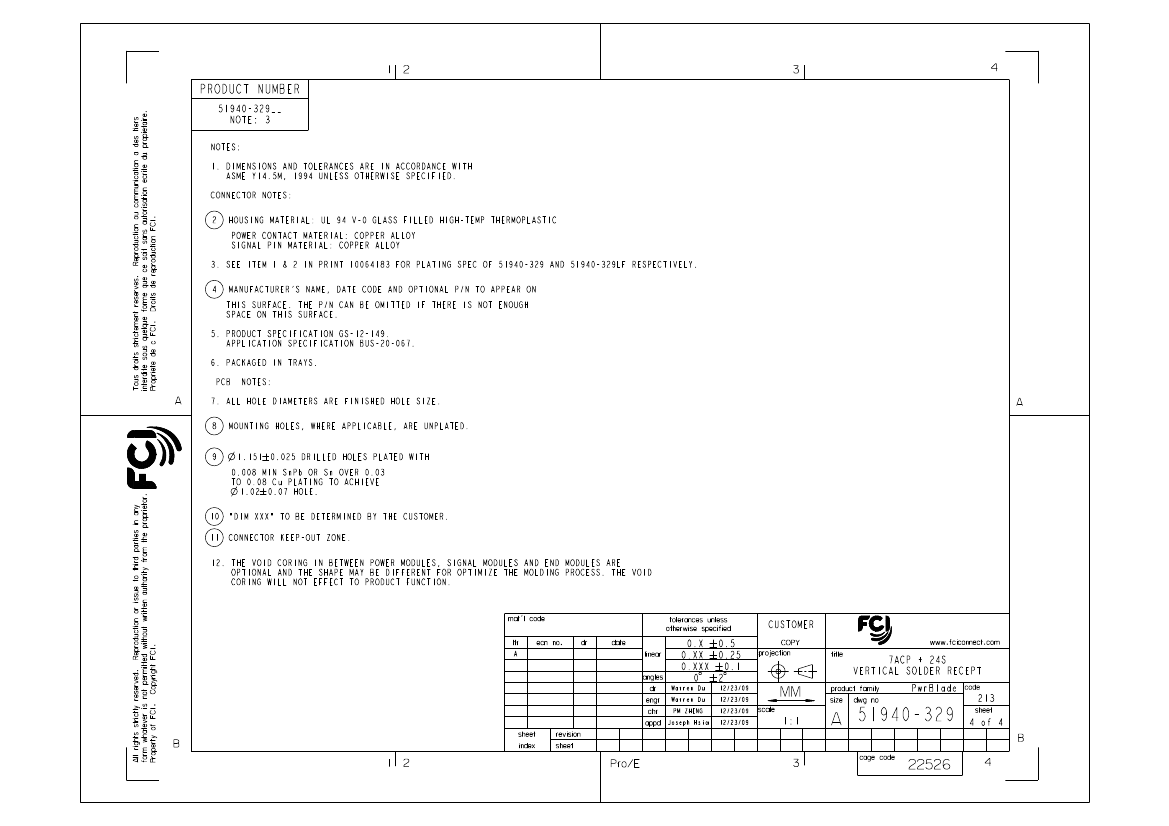

PDM: Rev:A
STATUS:
Released
Printed: Dec 20, 2010
.

51940-329 Related Products

51940-329 51940-329LF
Description Board Connector, 31 Contact(s), 4 Row(s), Female, Straight, Solder Terminal, Guide Pin, Receptacle PWRBLADE VERT LF REC
Maker Amphenol Amphenol
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Other features TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
Board mount options HOLE .086-.098 HOLE .086-.098
body width 0.47 inch 0.47 inch
subject depth 0.5 inch 0.5 inch
body length 3.5 inch 3.5 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact arrangement S24P7 S24P7
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated TIN/LEAD OVER NICKEL Tin (Sn) - with Nickel (Ni) barrier
Contact point gender FEMALE FEMALE
Contact material COPPER ALLOY NOT SPECIFIED
Contact resistance 20 mΩ 20 mΩ
Contact style HYBRID HYBRID
DIN compliance NO NO
Dielectric withstand voltage 2500VDC V 2500VDC V
Durability 200 Cycles 200 Cycles
Filter function NO NO
IEC compliance NO NO
maximum insertion force .973 N .973 N
Insulation resistance 500000000 Ω 500000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED THERMOPLASTIC
MIL compliance NO NO
Mixed contacts YES YES
Installation option 1 GUIDE PIN GUIDE PIN
Installation option 2 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
Number of rows loaded 4 4
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal length 0.135 inch 0.135 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 31 31
UL Flammability Code 94V-0 94V-0
Evacuation force-minimum value .1668 N .1668 N
