MITSUBISHI (OPTICAL DEVICES)
TENTATIVE
FU-68SDF-V802MxxxB
1.58
µm
(L-Band) DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL
(WAVELENGTH SELECTED, BIAS CIRCUIT INTEGRATED, DIGITAL APPLICATION)

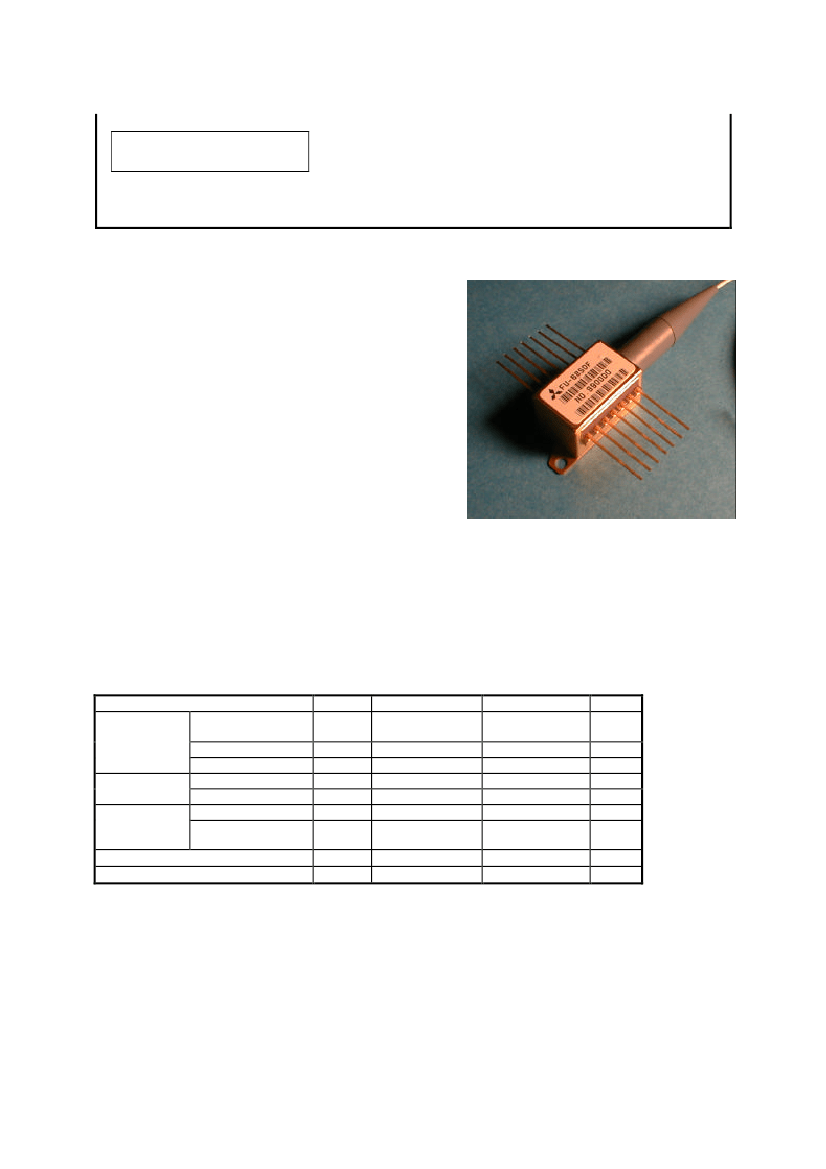

DESCRIPTION
Module type FU-68SDF-V802MxxB is a 1.58µm
(L-Band) DFB-LD module with single-mode optical
fiber.
This module is suitable to a directly modulated light
source for use in 2.5Gb/s digital optical
communication systems.
This module is prepared to expand the wavelength
channels into L-Band for Dense-WDM transmission.
FEATURES
l
Multi quantum wells (MQW) DFB Laser Diode
module
l
Input impedance is 25Ω
l
Emission wavelength is in 1.58µm band
l
High-speed response
l
Built-in optical isolator
l
Built-in thermal electric cooler
l
Butterfly package
l
With photodiode for optical output monitor
APPLICATION
High speed transmission systems (~2.5Gb/s)
Dense-WDM systems
OPTION
l
Wavelength option:
1565nm~1625nm are available
ABSOLUTE MAXIMUM RATINGS
(Tld=Tset)
Parameter
Symbol
Conditions
Rating
Unit
Laser diode
Optical output
Pf
CW
6
mW
power
Forward current
If
CW
150
mA
Reverse voltage
Vrl
-
2
V
Photodiode
Reverse voltage
Vrd
-
20
V
Forward current
Ifd
-
2
mA
Thermo-
Cooler current
Ipe
-
1.3
A
electric cooler Cooler voltage
Vpe
-
3.1
V
(Note)
Operating case temperature
Tc
-
-20 ~ 70
°
C
Storage temperature
Tstg
-
-40 ~ 85
°
C
Note) Even if the thermo-electric cooler (TEC) is operated within the rated conditions, uncontrolled current
loading or operation without heatsink may easily damage the module by exceeding the storage
temperature range. Thermistor resistance should be properly monitored by the feedback circuit during TEC
operation to avoid the catastrophic damage.
MITSUBISHI (OPTICAL DEVICES)
TENTATIVE
FU-68SDF-V802MxxxB
1.58
µm
(L-Band) DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL
(WAVELENGTH SELECTED, BIAS CIRCUIT INTEGRATED, DIGITAL APPLICATION)
ELECTRICAL/OPTICAL CHARACTERISTICS
(Tld=Tset, Tc=25° unless otherwise noted)
C
Parameter
Symbol
Test Conditions
Limits
Min.
Typ.
Threshold current
Ith
CW
-
10
Optical output power
Pth
CW, If=Ith
-
-
at threshold current
Operating current
Iop
CW, Pf=2mW
-
40
Operating voltage
Vop
CW, Pf=2mW
-
1.3
Input impedance
Zin
Pf=2mW
-
25
(Note 1)
(Note 2)
Light-emission central
λ
c
wavelength
-1
-
Central wavelength drift with
∆λ
c/∆Tc Tc=-20~70°
C
case temp.
Laser operating temperature
Tset
-
20
-
Spectral width
(Note 1), -20dB
-
0.2
∆λ
Side mode suppression ratio
Sr
(Note 1)
33
40
-10
Dispersion penalty
Pp
(Note 1), at 10 BER,
-
-
+1800ps/nm
Cutoff frequency
fc
Pf=2mW
3.5
-
(-1.5dB optical)
Rise and fall time
tr, tf
(Note 1)
-
-
(10~90%)
Relative intensity noise
Nr
CW, Pf=2mW,
-
-155
0.5~3GHz
Tracking error
Er
-
-
Tc=-20~70°
C,
(Note 3)
APC, ATC
Differential efficiency
CW, Pf=2mW
0.057
0.07
η
Linearity
∆η
Unit
Max.
25
100
65
1.8
-
mA
µW
mA
V
Ω
nm
pm/°
C
°C
nm
dB
dB
GHz
psec
dB/Hz
dB
mW/
mA
%
mA
dB
µA
pF
0
35
0.4
-
2
-
150
-145
0.5
0.15
CW, Pf=0.2~2.4mW,
-20
-
20
(Note 4)
Monitor current
Imon
CW, Pf=2mW, Vrd=5V
0.1
-
2
Optical isolation
Iso
Tc=25°C
35
-
-
23
-
-
Tc=-20~70°
C
Dark current (PD)
Id
-
-
0.1
Vrd=5V, Tc=-20~70°
C
Capacitance (PD)
Ct
Vrd=5V, f=1MHz
-
-
10
23
Note 1) 2.48832Gb/s NRZ, 2 -1, Pf_ave=1mW, Extinction ratio 10dB, optical return loss of the connectors
should be greater than 40dB in order to ensure the specified performance.
Note 2) See Table 1.
Note 3) Er=max|10×log(Pf / Pf@25°C)|
Note 4) Variation of the differential efficiency from the straight line between 0.2mW and 2mW.
MITSUBISHI (OPTICAL DEVICES)
TENTATIVE
FU-68SDF-V802MxxxB
1.58
µm
(L-Band) DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL
(WAVELENGTH SELECTED, BIAS CIRCUIT INTEGRATED, DIGITAL APPLICATION)
THERMAL CHARACTERISTICS
(Tld=Tset, Tc=-20~70°C)
Parameter
Symbol
Test Conditions
Thermistor resistance
B constant of Rth
Cooling capacity
Cooler current
Cooler voltage
Rth
B
∆T
Ipe
Vpe
Tld=25°
C
-
Pf=2mW, Tc=70°
C
Pf=2mW, Tc=70° Tld=Tset
C,
Pf=2mW, Tc=70° Tld=Tset
C,
Min.
9.5
-
50
-
-
Limits
Typ.
10
3950
-
0.6
1.2
Unit
Max.
10.5
-
-
1
2
kΩ
K
°
C
A
V
FIBER PIGTAIL SPECIFICATIONS
Parameter
Type
Mode field diameter
Cladding diameter
Secondary coating outer diameter
Connector
Optical return loss of connector
Limits
SM
9.5+/-1
125+/-2
0.9+/-0.1
FC/PC
40 (min)
Unit
-
µm
µm
mm
-
dB
DOCUMENTATION
(Tld=Tset)
•
Fiber output power vs. Laser forward current at Tld=Tset and Tc=-20,25,70°
C
•
BER curves at 2.48832Gb/s modulation
•
Threshold current (Ith)
•
Laser forward current (Iop) at Pf=2mW
•
Laser forward voltage (Vop) at Pf=2mW
•
Laser operating temperature (Tset) at
λ
c (Note 5)
•
Monitor current (Imon) at Pf=2mW
•
Thermistor resistance (Rth)
•
Cooler current (Ipe) at Pf=2mW and Tc=70°C
•
Cooler voltage (Vpe) at Pf=2mW and Tc=70°C
Note 5) Tset is attached as a reference data. Rth should be used in order to tune the wavelength to the specified
value accurately.
MITSUBISHI (OPTICAL DEVICES)
TENTATIVE
FU-68SDF-V802MxxxB
1.58
µm
(L-Band) DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL
(WAVELENGTH SELECTED, BIAS CIRCUIT INTEGRATED, DIGITAL APPLICATION)
Table 1.
Type number
Type number
λ
(nm)
c
FU-68SDF-V802M103B
1567.13 FU-68SDF-V802M139B
FU-68SDF-V802M104B
1567.54 FU-68SDF-V802M140B
FU-68SDF-V802M105B
1567.95 FU-68SDF-V802M141B
FU-68SDF-V802M106B
1568.36 FU-68SDF-V802M142B
FU-68SDF-V802M107B
1568.77 FU-68SDF-V802M143B
FU-68SDF-V802M108B
1569.18 FU-68SDF-V802M144B
FU-68SDF-V802M109B
1569.59 FU-68SDF-V802M145B
FU-68SDF-V802M110B
1570.01 FU-68SDF-V802M146B
FU-68SDF-V802M111B
1570.42 FU-68SDF-V802M147B
FU-68SDF-V802M112B
1570.83 FU-68SDF-V802M148B
FU-68SDF-V802M113B
1571.24 FU-68SDF-V802M149B
FU-68SDF-V802M114B
1571.65 FU-68SDF-V802M150B
FU-68SDF-V802M115B
1572.06 FU-68SDF-V802M151B
FU-68SDF-V802M116B
1572.48 FU-68SDF-V802M152B
FU-68SDF-V802M117B
1572.89 FU-68SDF-V802M153B
FU-68SDF-V802M118B
1573.30 FU-68SDF-V802M154B
FU-68SDF-V802M119B
1573.71 FU-68SDF-V802M155B
FU-68SDF-V802M120B
1574.13 FU-68SDF-V802M156B
FU-68SDF-V802M121B
1574.54 FU-68SDF-V802M157B
FU-68SDF-V802M122B
1574.95 FU-68SDF-V802M158B
FU-68SDF-V802M123B
1575.37 FU-68SDF-V802M159B
FU-68SDF-V802M124B
1575.78 FU-68SDF-V802M160B
FU-68SDF-V802M125B
1576.20 FU-68SDF-V802M161B
FU-68SDF-V802M126B
1576.61 FU-68SDF-V802M162B
FU-68SDF-V802M127B
1577.03 FU-68SDF-V802M163B
FU-68SDF-V802M128B
1577.44 FU-68SDF-V802M164B
FU-68SDF-V802M129B
1577.86 FU-68SDF-V802M165B
FU-68SDF-V802M130B
1578.27 FU-68SDF-V802M166B
FU-68SDF-V802M131B
1578.69 FU-68SDF-V802M167B
FU-68SDF-V802M132B
1579.10 FU-68SDF-V802M168B
FU-68SDF-V802M133B
1579.52 FU-68SDF-V802M169B
FU-68SDF-V802M134B
1579.93 FU-68SDF-V802M170B
FU-68SDF-V802M135B
1580.35 FU-68SDF-V802M171B
FU-68SDF-V802M136B
1580.77 FU-68SDF-V802M172B
FU-68SDF-V802M137B
1581.18 FU-68SDF-V802M173B
FU-68SDF-V802M138B
1581.60 FU-68SDF-V802M174B
All wavelengths are referred to vacuum.
Tolerance is
λ
c+/-0.05nm.
λ
(nm)
c
1582.02
1582.44
1582.85
1583.27
1583.69
1584.11
1584.53
1584.95
1585.36
1585.78
1586.20
1586.62
1587.04
1587.46
1587.88
1588.30
1588.73
1589.15
1589.57
1589.99
1590.41
1590.83
1591.26
1591.68
1592.10
1592.52
1592.95
1593.37
1593.79
1594.22
1594.64
1595.06
1595.49
1595.91
1596.34
1596.76
λ
(nm)
c
1597.19
1597.62
1598.04
1598.47
1598.89
1599.32
1599.75
1600.17
1600.60
1601.03
1601.46
1601.88
1602.31
1602.74
1603.17
1603.60
1604.03
1604.46
1604.88
1605.31
1605.74
1606.17
1606.60
1607.04
1607.47
1607.90
1608.33
1608.76
1609.19
1609.62
1610.06
1610.49
1610.92
1611.35
1611.79
Type number
FU-68SDF-V802M175B
FU-68SDF-V802M176B
FU-68SDF-V802M177B
FU-68SDF-V802M178B
FU-68SDF-V802M179B
FU-68SDF-V802M180B
FU-68SDF-V802M181B
FU-68SDF-V802M182B
FU-68SDF-V802M183B
FU-68SDF-V802M184B
FU-68SDF-V802M185B
FU-68SDF-V802M186B
FU-68SDF-V802M187B
FU-68SDF-V802M188B
FU-68SDF-V802M189B
FU-68SDF-V802M190B
FU-68SDF-V802M191B
FU-68SDF-V802M192B
FU-68SDF-V802M193B
FU-68SDF-V802M194B
FU-68SDF-V802M195B
FU-68SDF-V802M196B
FU-68SDF-V802M197B
FU-68SDF-V802M198B
FU-68SDF-V802M199B
FU-68SDF-V802M200B
FU-68SDF-V802M201B
FU-68SDF-V802M202B
FU-68SDF-V802M203B
FU-68SDF-V802M204B
FU-68SDF-V802M205B
FU-68SDF-V802M206B
FU-68SDF-V802M207B
FU-68SDF-V802M208B
FU-68SDF-V802M209B
MITSUBISHI (OPTICAL DEVICES)
TENTATIVE

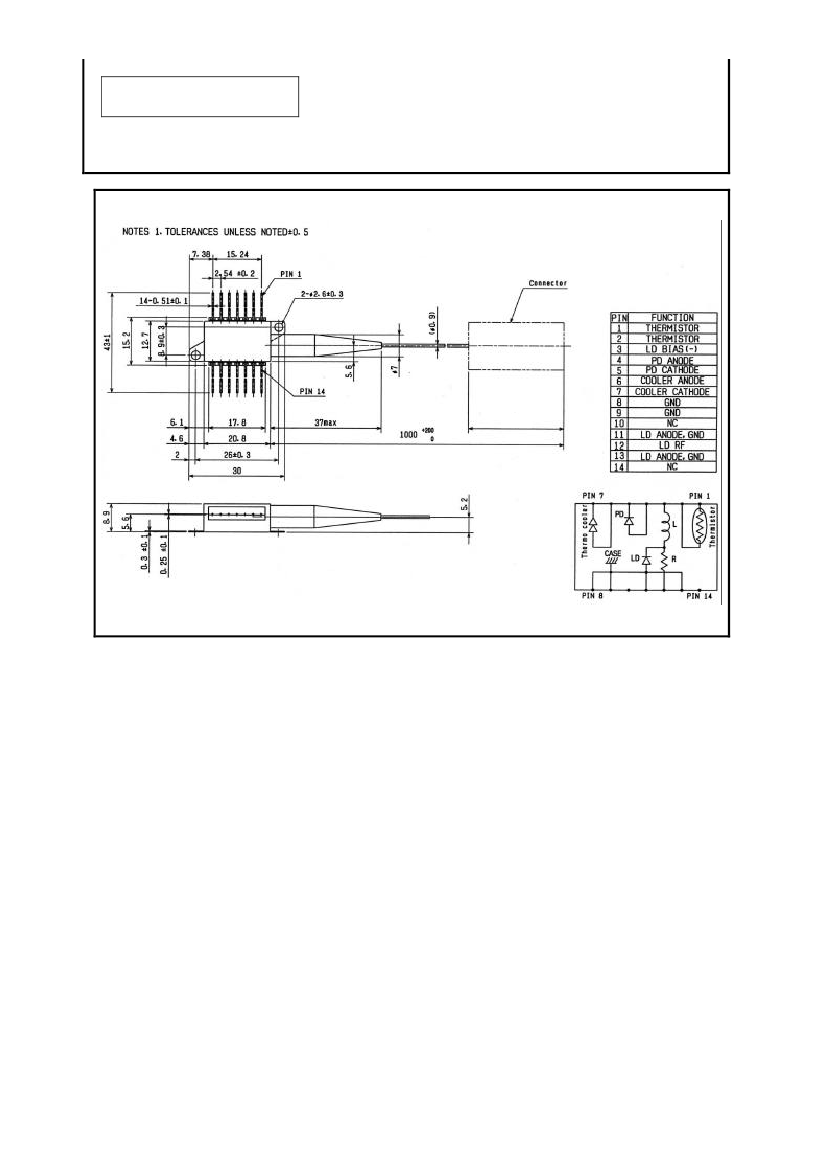

OUTLINE DIAGRAM
FU-68SDF-V802MxxxB
1.58
µm
(L-Band) DFB-LD MODULE WITH SINGLEMODE FIBER PIGTAIL
(WAVELENGTH SELECTED, BIAS CIRCUIT INTEGRATED, DIGITAL APPLICATION)
(Unit : mm)
