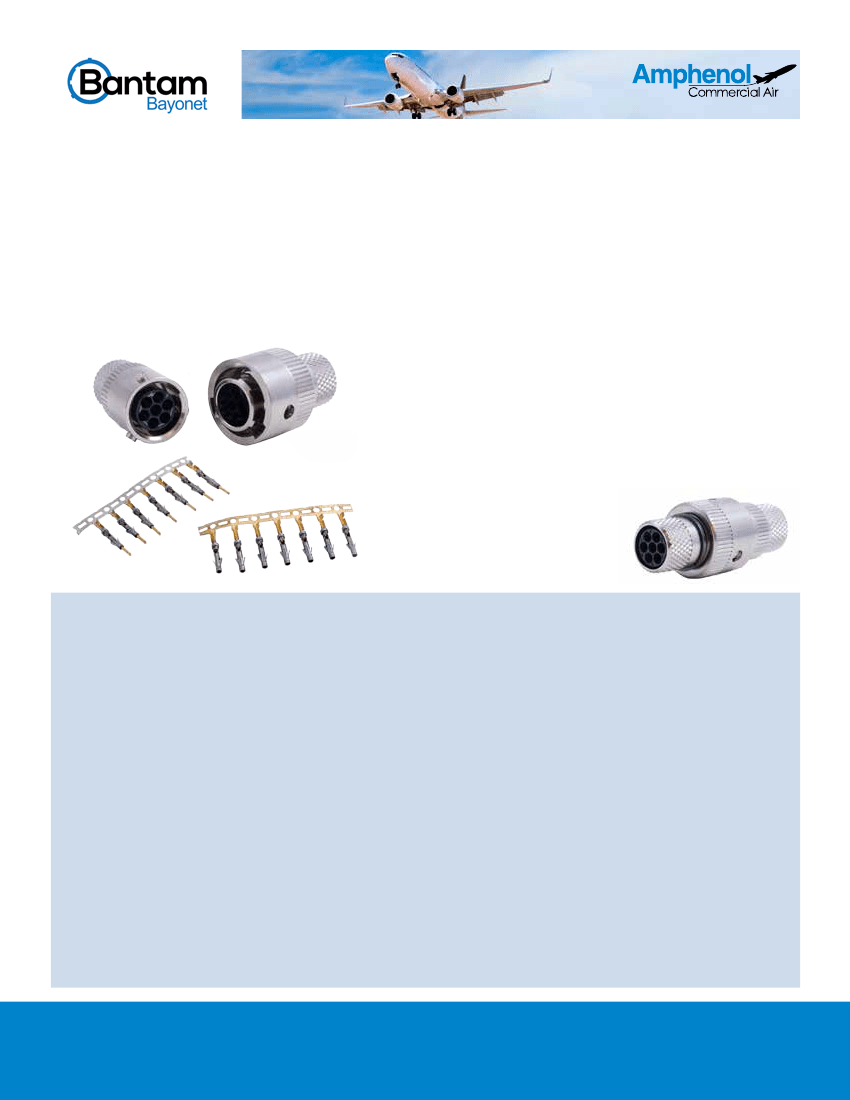

Amphenol’s Bantam Product Series was inspired by the need to replace D-Sub and traditional high cost connectors with a low cost
alternative while maintaining the high performance demanded by today’s flight critical applications
FEATURES:
•
•
•
•
•
•
Low Cost
Simplified Termination with tape and reel contacts
Small Form Factor
Secure Latching
Tool-less & Fast Mate
Lightweight
OVERVIEW
Bantam is a high performance circular connector product range
developed for aerospace applications where electrical performance
must be met with affordability. High mating cycles along with excellent
shell to shell electrical bonding for EMI are the benchmark of rugged
connectors. Bantam provides the solution that meets your budget and
performance goals. Amphenol has filled the gap between the most rug-
gedized military grade connectors and the consumer grade connectors
with Bantam!
Bantam utilizes a robust triple bayonet coupling mechanism along
with an internal EMI ground spring to provide excellent shell to shell
conductivity. Various mounting options are available including in-line
and 2 hole flange mount configurations.
Bantam meets the RoHS and EWIS requirements for the aerospace
cabin environment.
KEY FEATURES AND BENEFITS:
•
•
•
•
•
•
•
High Density
Shell to Shell Shielding
EWIS and RoHS Compliant
Bayonet Coupling provides quick and positive locking
Compact and Lightweight
Quick Termination Process
High Reliability interconnect for demanding applications
APPLICATIONS:
•
•
•
•
•
•
Cabin & Proximity Lighting
Sensors
IFE&C
In-Seat Wiring
In-line Connections
Panel/Equipment Connections
PERFORMANCE:
General Specifications
Available Inserts:
Current:
Class:
Operating Voltage:
Crimp Contact Term:
Shell-to-shell Conductivity:
Operating Termperature:
Mating/unmating cycles:
Keying Options:
7 Pins & 15 Pins;
Size 22D
3 amp @ 26 AWG
5 amp @ 22 AWG
F (AI shell, nickel plated)
500VAC
#22 to #26 AWG
2.5 mW
-55° to 125° C
>500
5 or more
MATERIALS (RoHS COMPLIANT):
• Shell and Coupling Nut: Aluminum Alloy,
Nickel Plated as standard
• Inserts High Performance thermoplastic
• Contacts: Stainless Steel & Copper Alloy, Gold Plated
Jon Prouty
•
Phone: (607) 643 - 1736
•
Email: jprouty@amphenol-aao.com

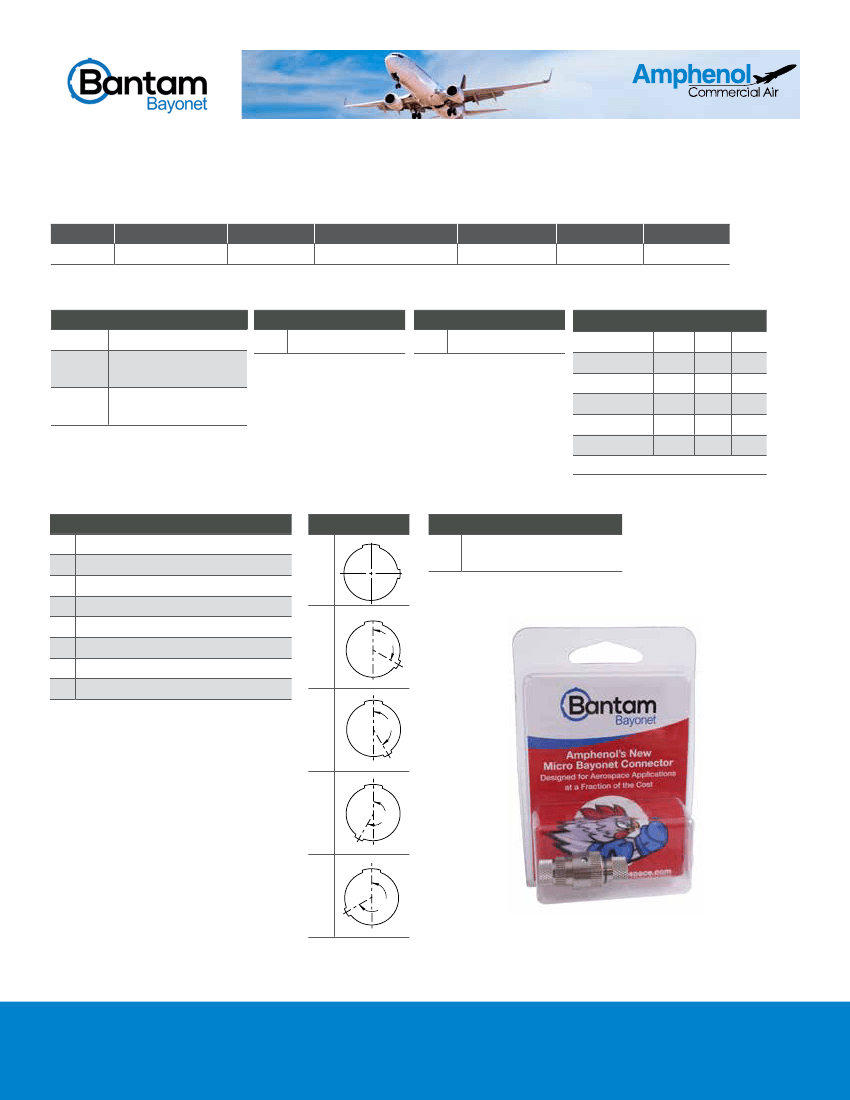

How to Order - BANTAM 1/4 Turn Bayonet Coupling
1.
Series
2.
Shell Plating
3.
Class
4.
Insert Arrangement
5.
Contacts
6.
Keying
7.
Optional Code
BP
N
N-
08-07
P
N
1. SERIES
2. SHELL PLATING
3. CLASS

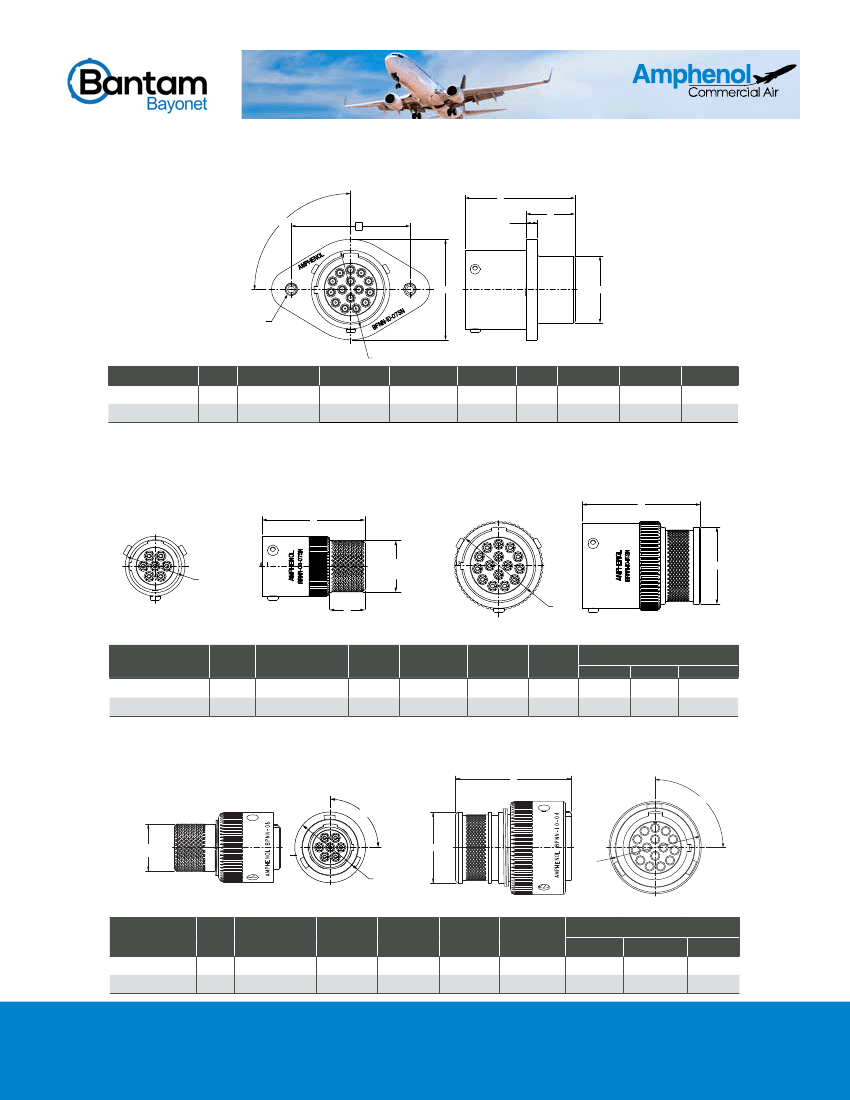

4. INSERT ARRANGEMENTS
BP
BR
BF
Plug, Integral Backshell
In-Line Receptacle,
Integral Backshell
2 Hole Flange
Receptacle
N
Electroless Nickel
N-
Non Environmental
Insert Arrg #22D
08-07
10-15
10-12*
10-04*
10-07*
*Coming soon
#20
#16
7
15
11
4
1
4
3
5. CONTACTS
6. KEYING
7. OPTIONAL CODE
P
S
A
B
C
D
E
F
Pin Crimp (S&F)
Socket Crimp (S&F)
Pin, less contacts
Socket, less contacts
Pin Crimp (machined crimp barrel
Socket Crimp (machined crimp barrel)
Pin PC Tail-Length .150
Socket PC Tail-Length .150
120°
B
N
Shield Termination Micro
Band Included
120°
150°
210°
240°
A
120°
150°
210°
240°
B
150°
210°
240°
120°
150°
C
210°
240°
120°
150°
D
210°
240°
