37204-62A3-004PL

Description
4 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET, ROHS COMPLIANT
CategoryThe connector    The connector
File Size667KB,6 Pages
Manufacturer3M
Websitehttp://3M.com/esd
Environmental Compliance
Download Datasheet Parametric Compare View All

37204-62A3-004PL Online Shopping

Suppliers Part Number Price MOQ In stock
37204-62A3-004PL - - View Buy Now

37204-62A3-004PL Overview

4 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, SOCKET, ROHS COMPLIANT

37204-62A3-004PL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1786849594
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Samacsys Description3M - 37204-62A3-004PL. - WIRE-BOARD CONNECTOR, SOCKET, 4POS, 2MM
Samacsys Manufacturer3M
Samacsys Modified On2018-06-30 06:30:44
YTEOL8.7
Other features3M
Body/casing typeSOCKET
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (8) OVER NICKEL (100)
Contact completed and terminatedGOLD FLASH OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number372
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts4
UL Flammability Code94V-0
3M
Mini-Clamp Socket
2 mm Boardmount, Straight Solder Tails
372 Series

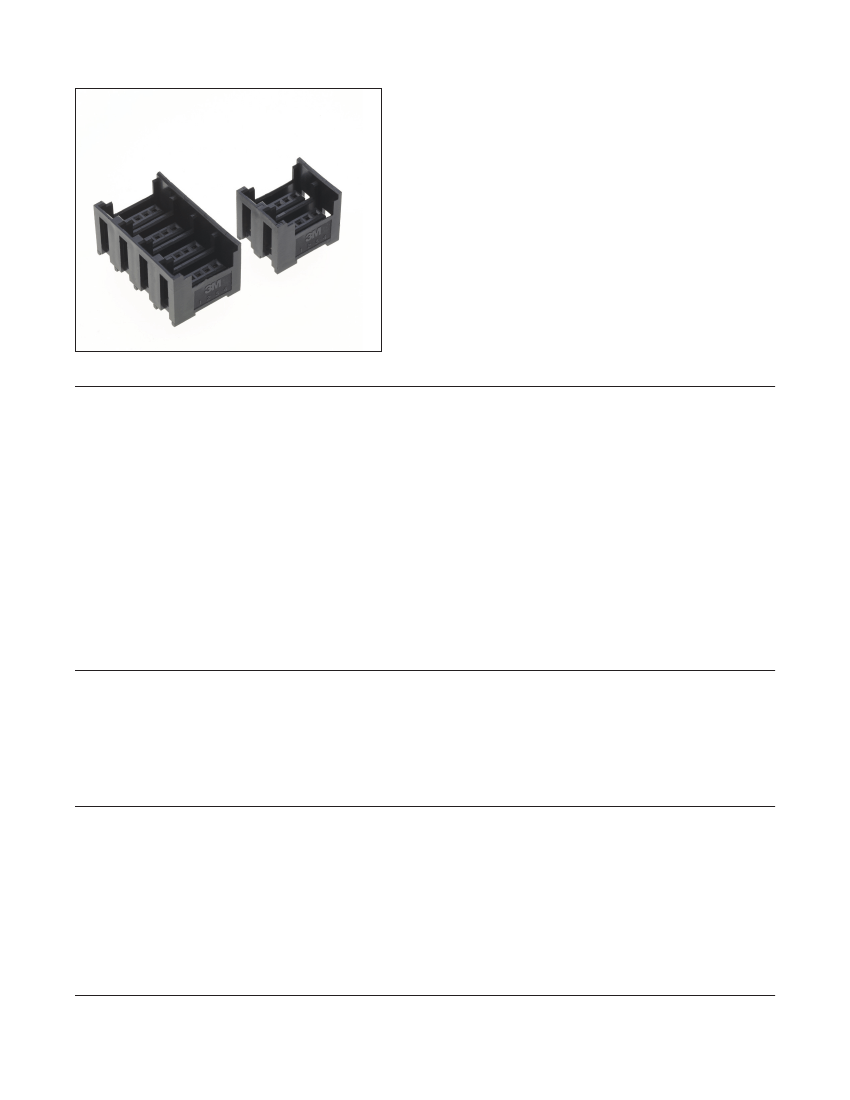

• Compact design saves board space
• High number of mating cycles
• Mating latch features provide a reliable
interconnection in demanding applications
• Enables easy and simple interconnecting of sensors
or other devices

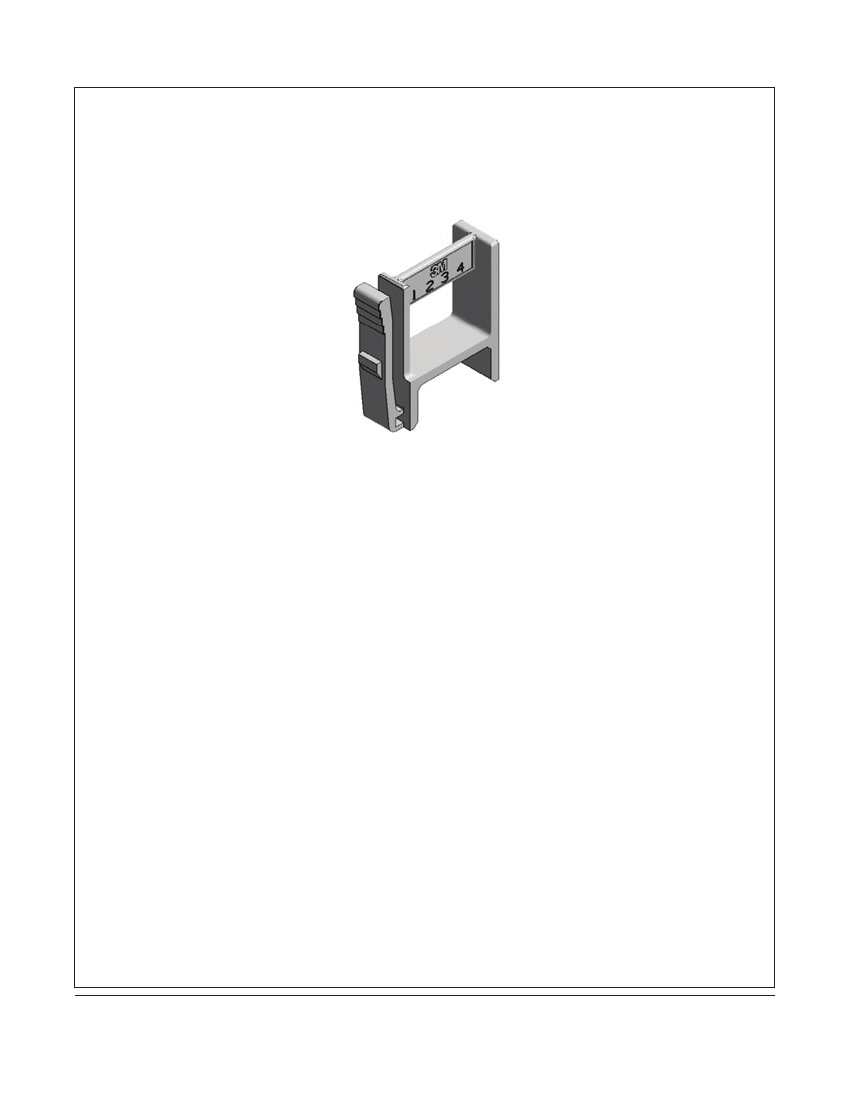

• Dust cap accessory available for use in harsh
environments
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS Compliance” section
of www.3Mconnector.com for compliance
Date Modified: September 3, 2010
TS-2093-E
Sheet 1 of 5

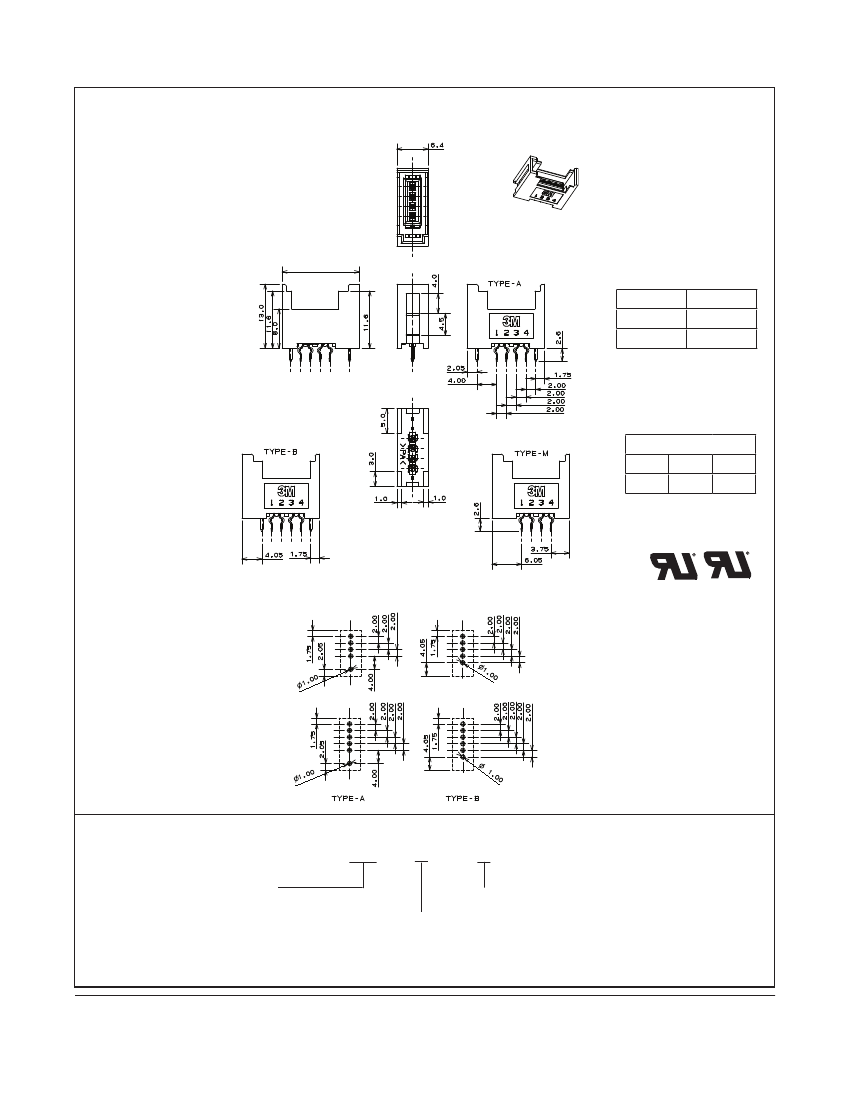

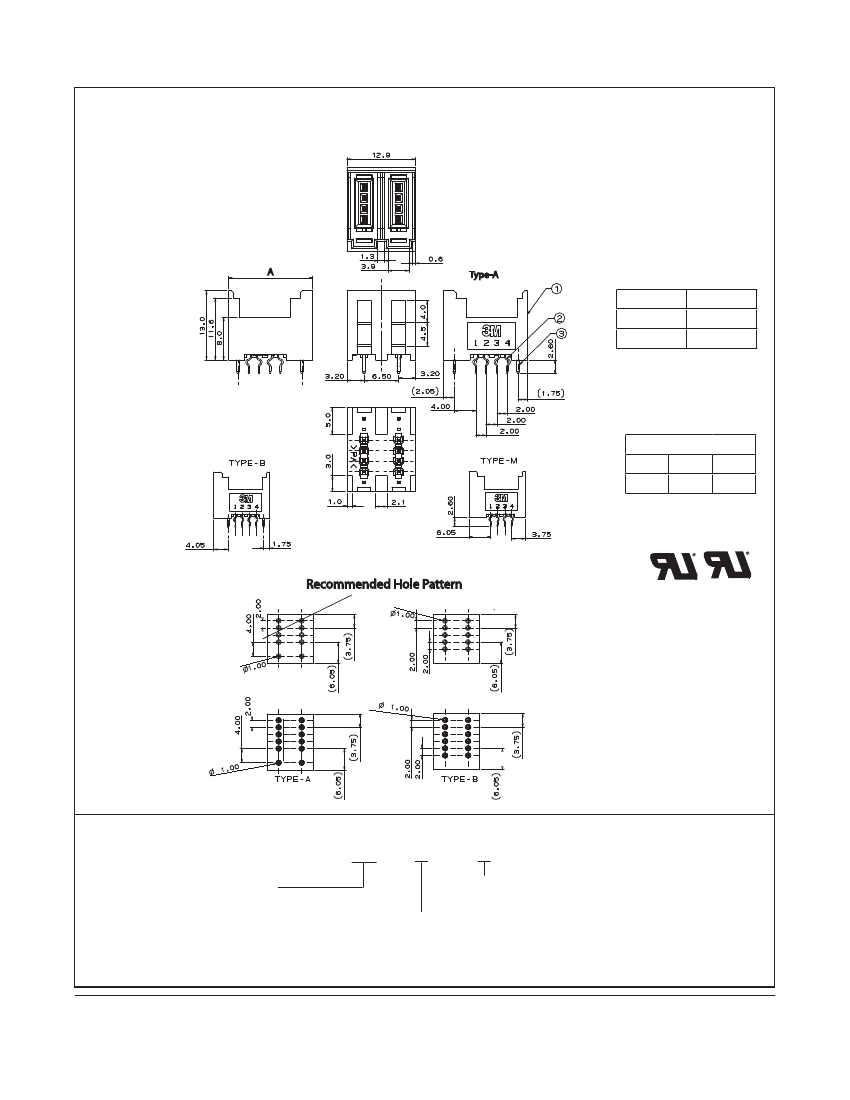

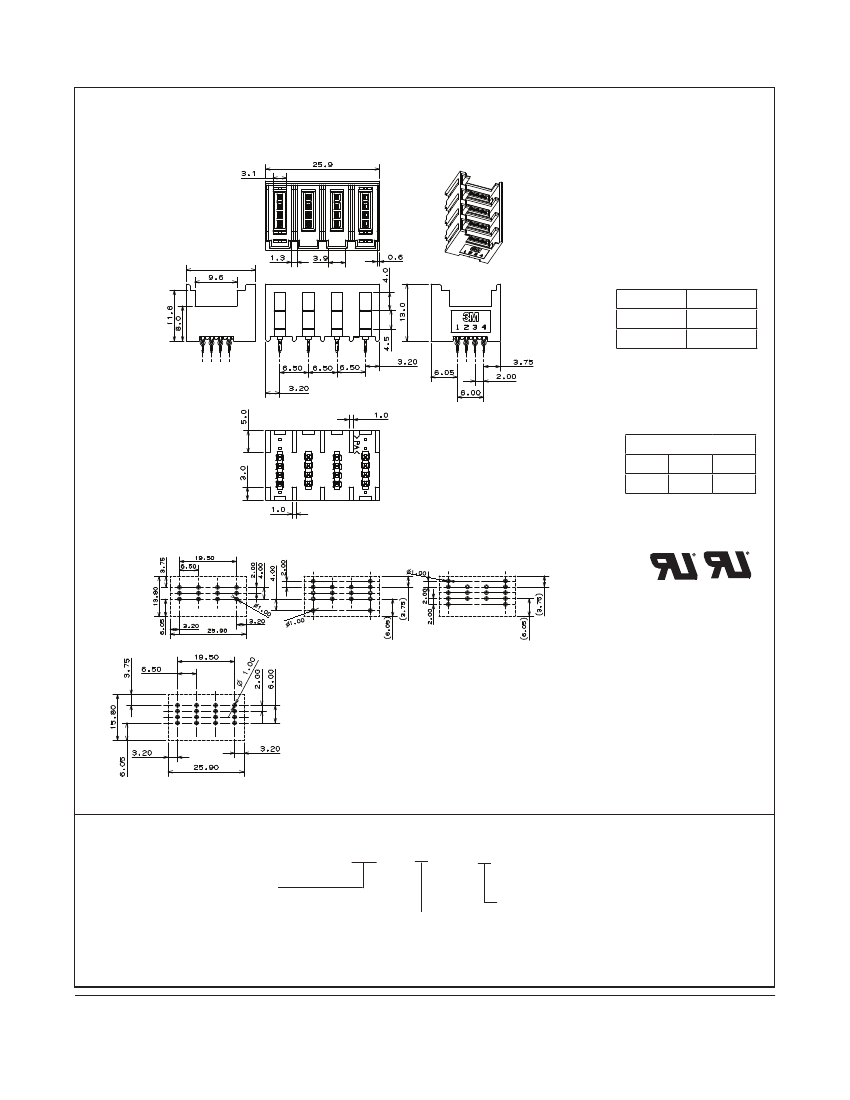

Physical
Insulation:
Material: Nylon
Flammability: UL 94V-0
Color: Black
Contact:
Material: Copper Alloy
Plating:
Underplating: 2.54 µm [100 µ”] minimum Nickel
Wiping Area: 0.2 µm [8 µ”] minimum Gold with Lubricant
Soldertails: Gold Flash
Marking:
3M Logo, Position Indicator, Insulator Material
Mating Compatability:
37103, 37104, 37106, 37108 Series. Must have same number of pins per row.
Electrical
Current Rating:
Voltage Rating:
Insulation Resistance:
Withstanding Voltage:
3.0 Amps
32 Volts
>1 x 10
6
~ at 600 V
DC
1,000 V
RMS
at sea level
Environmental
Temperature Rating:
-20ºC to +85ºC ambient (1.0 A max.)
-20ºC to +75ºC ambient (2.0 A max.)
-20ºC to +60ºC ambient (3.0 A max.)
(Note: UL rating is 65ºC at 3.0A, 32V)
390ºC max. for soldering iron
Process Rating:
260ºC max. for wave solder reflow
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
