PL130-58SC-R

Description
Clock Buffer Translator Buffer, Sine-Wave to CMOS Output
Categorylogic    logic
File Size1MB,4 Pages
ManufacturerMicrochip
Websitehttps://www.microchip.com
Environmental Compliance
Download Datasheet Parametric Compare View All

PL130-58SC-R Online Shopping

Suppliers Part Number Price MOQ In stock
PL130-58SC-R - - View Buy Now

PL130-58SC-R Overview

Clock Buffer Translator Buffer, Sine-Wave to CMOS Output

PL130-58SC-R Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMicrochip
package instructionSOP,
Reach Compliance Codecompliant
Other featuresIT ALSO OPERATES AT 3.3V
seriesPL130
JESD-30 codeR-PDSO-G8
JESD-609 codee3
length4.875 mm
Logic integrated circuit typeLOGIC CIRCUIT
Humidity sensitivity level1
Number of functions1
Number of terminals8
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum seat height1.73 mm
Maximum supply voltage (Vsup)2.625 V
Minimum supply voltage (Vsup)2.375 V
Nominal supply voltage (Vsup)2.5 V
surface mountYES
Temperature levelCOMMERCIAL
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
width3.9 mm
PL130-58
High Speed Translator Buffer to PECL
FEATURES
Input clock frequency ≤266 MHz
JEDEC standard Differential LVPECL output
70mA typical power supply current

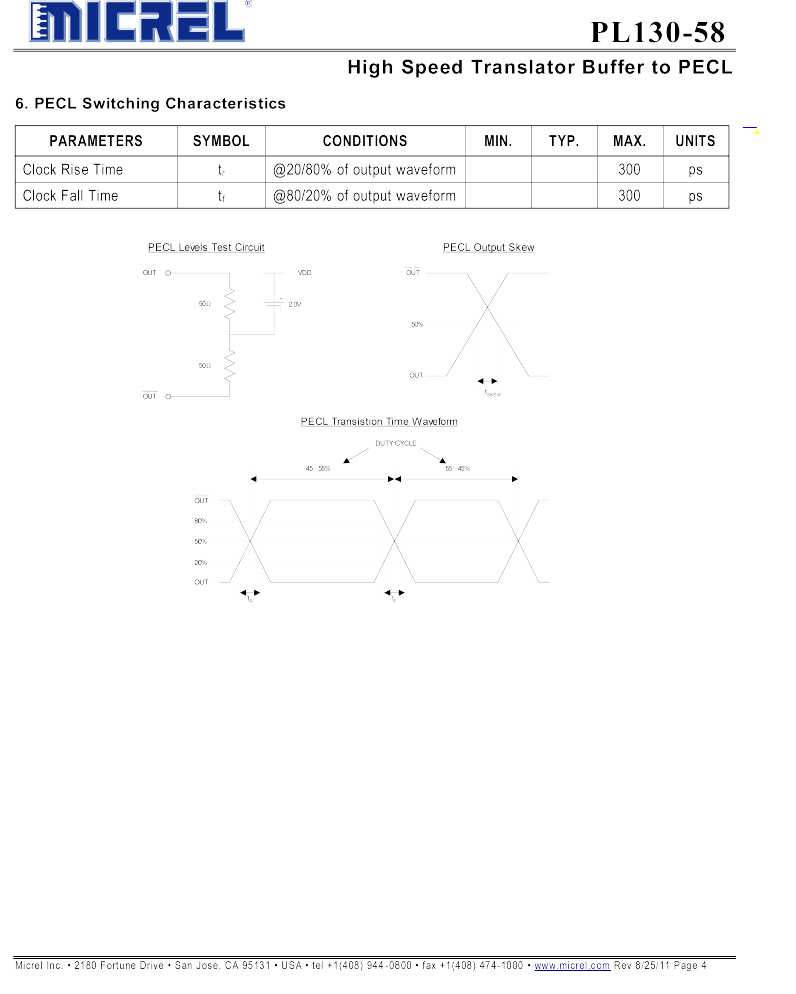

300ps Max. Rise/Fall time
740ps input propagation delay
LVCMOS and LVTTL Input compatible
Single 2.5V ±5% or 3.3V ±10% power supply
with V
EE
=0V
Available in 8 pin SOP Green/RoHS compliant
Package
PIN CONFIGURATION
(TOP VIEW)
DNC
REF-IN
OE
DNC
1
8
VCC
Q
QB
VEE
PL130-58
SOP-8L
2
3
4
7
6
5
DESCRIPTION
The PL130-58 is a low cost, high performance, high
speed, translator buffer that produces a pair of dif-
ferential LVPECL outputs from CMOS input.
Outputs are JEDEC standard LVPECL signals.
The device is targeted for Backplane buffering, data distri-
bution, Fibre Channel and many other applications.
BLOCK DIAGRAM
QB
Input
Q
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1(408) 944 -0800 • fax +1(408) 474-1000 •
www.micrel.com
Rev 8/25/11 Page 1
