BAS-21-E6327 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> BAS-21-E6327

BAS-21-E6327: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 0603 100pF 50volts C0G 5%; Categorysemiconductor Discrete semiconductor; File Size115KB，9 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAS-21-E6327 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAS-21-E6327	-	-	View	Buy Now

BAS-21-E6327 Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 0603 100pF 50volts C0G 5%

BAS-21-E6327 Parametric

Parameter Name	Attribute value
Product Category	Diodes - General Purpose, Power, Switching
Manufacturer	Infineon
RoHS	Details
Product	Switching Diodes
Mounting Style	SMD/SMT
Package / Case	SOT-23-3
Peak Reverse Voltage	250 V
Max Surge Current	4 A
If - Forward Current	250 mA
Configuration	Single
Recovery Time	50 ns
Vf - Forward Voltage	1.25 V
Ir - Reverse Current	100 uA
Minimum Operating Temperature	- 65 C
Maximum Operating Temperature	+ 150 C
Qualification	AECQ1000
Packaging	Cut Tape
Packaging	Reel
Packaging	MouseReel
Height	1 mm
Length	2.9 mm
Pd - Power Dissipation	350 mW
Factory Pack Quantity	3000
Type	Switching Diode
Width	1.3 mm
Unit Weight	0.000282 oz

Preview

Download Datasheet

View All

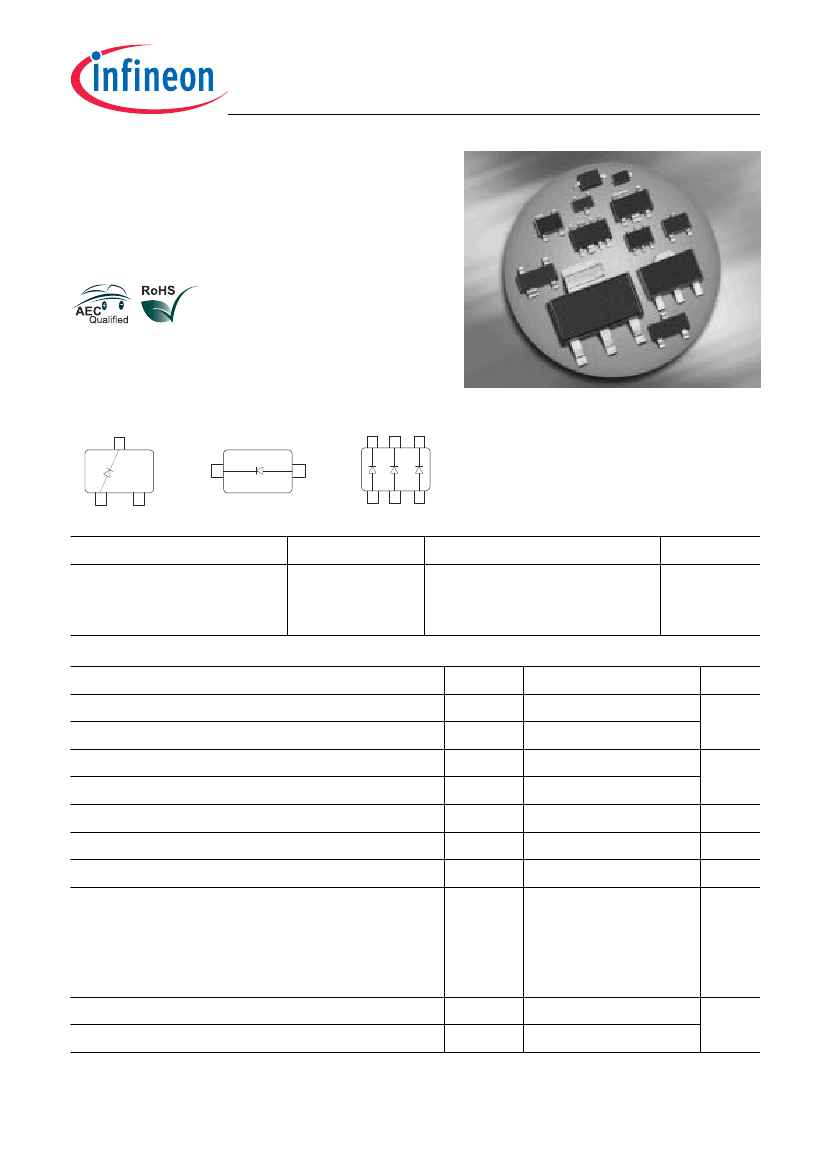

BAS21...

Silicon Switching Diode

•

For high-speed switching applications

•

High breakdown voltage

•

Pb-free (RoHS compliant) package

•

Qualified according AEC Q101

BAS21

BAS21-03W

BAS21U

, !

Type

BAS21

BAS21-03W

BAS21U

Parameter

Diode reverse voltage

Peak reverse voltage

Forward current

Peak forward current

Package

SOT23

SOD323

SC74

Configuration

single

parallel triple

Symbol

FSM

tot

350

250

stg

150

-65 ... 150

Value

200

250

625

Marking

JSs

Unit

Maximum Ratings

= 25°C, unless otherwise specified

Surge forward current,

= 10 µs

Non-repetitive peak surge forward current

Total power dissipation

BAS21,

≤

70°C

BAS21-03W,

≤

124°C

BAS21U,

≤

122°C

Junction temperature

Storage temperature

Pb-containing

°C

package may be available upon special request

2007-04-19
