507-001
split strain-Relief Backshell
for MIL-DTL-81659 Connectors
507-001 B
Basic Part No.
Finish:
B = Cadmium Plate/Olive Drab
M = Electroless Nickel
N = Cadmium Plate/Olive Drab over Nickel Plate
NF = Cadmium Olive Drab over Electroless
Nickel (1000 Hour Salt Spray)

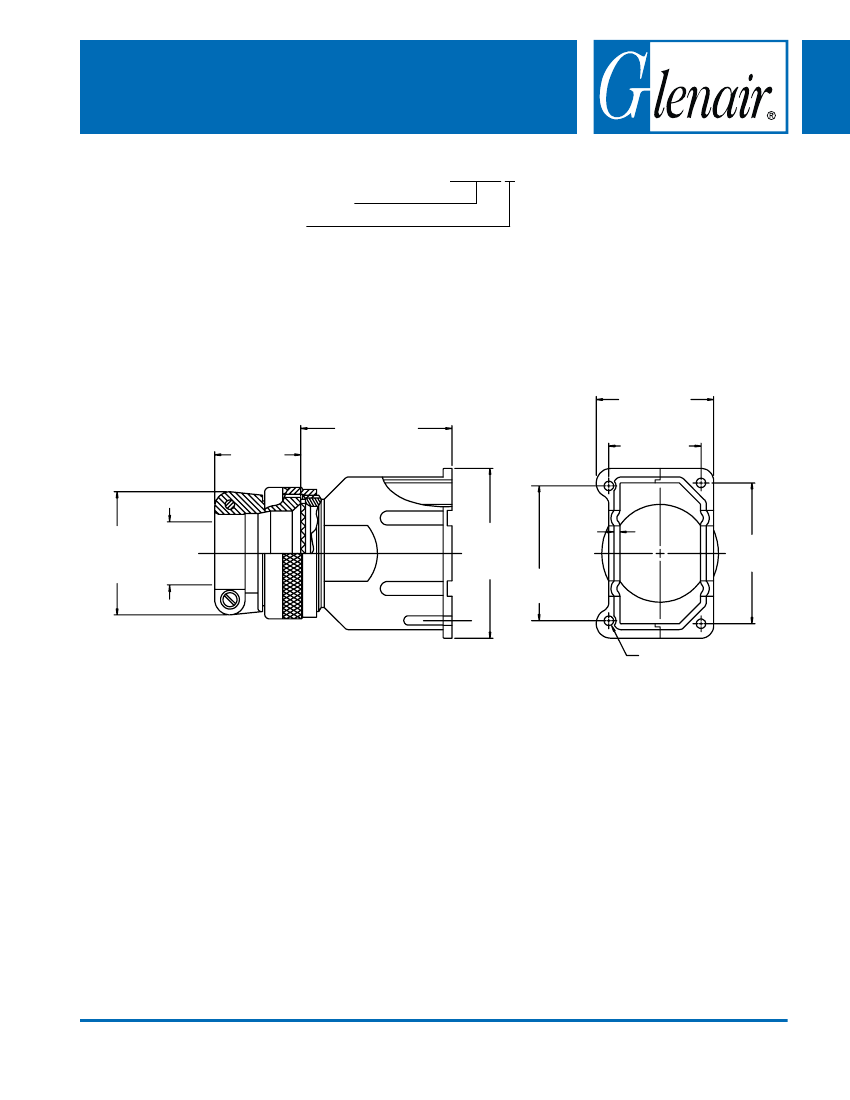

1.105
(28.1)
Ref.
1.602 (40.7)
Max
1.195 (30.4)
Max
.938 (23.8)
1.00
(25.4)
Dia
.750
(19.1)
Max
1.734
(44.0)
Max
1.377
(35.0)
.060
(1.5)
Wall
1.438
(36.5)
Clearance for
#2-56 Screw
(4 Places)
1. Metric dimensions (mm) are indicated in parentheses.
2. Material:
Backshell = Al Alloy/Finish Per Part Number Development
Hardware = SST/Passivate
