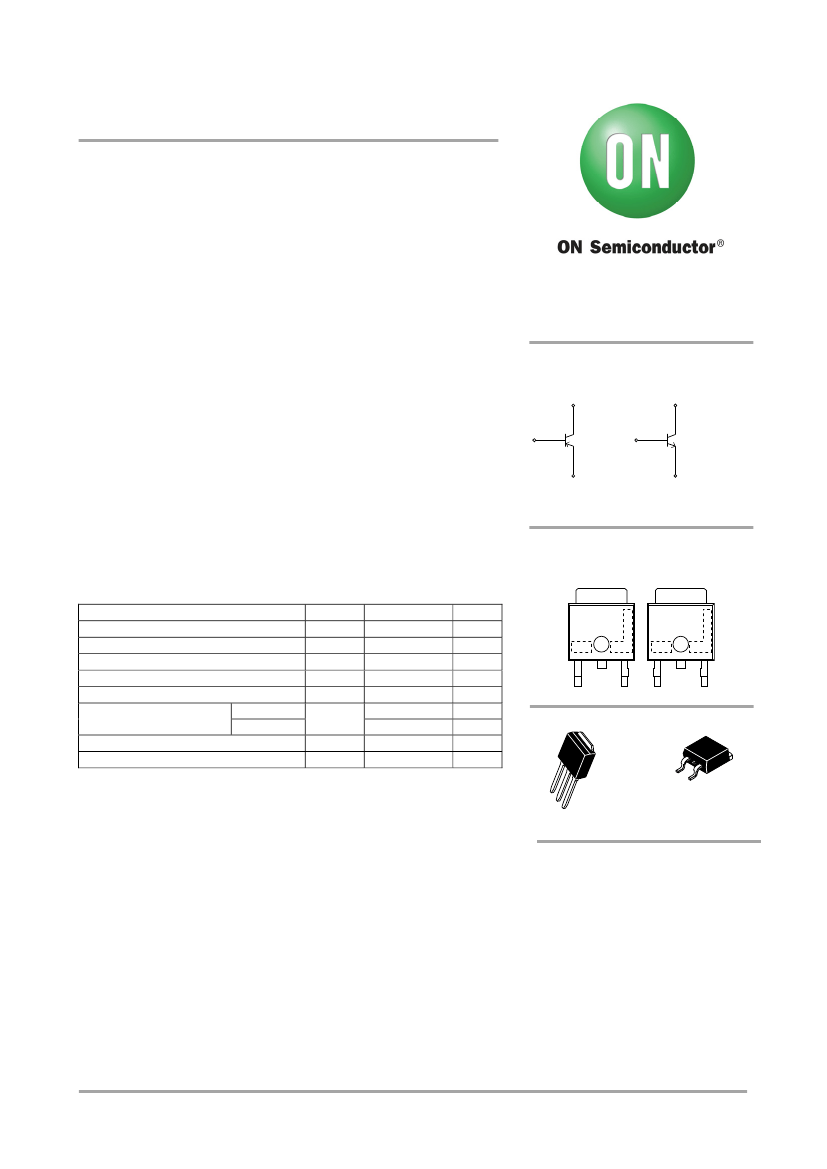

2SB1216, 2SD1816
Bipolar Transistor
(−)100V, (−)4A, Low VCE(sat),
(PNP)NPN Single
www.onsemi.com
Features
•
Low Collector to Emitter Saturation Voltage
•
Small and Slim Package Facilitating Compactness of Sets
•
High fT
•
Good Linearity of hFE
•
Fast Switching Time
1
ELECTRICAL CONNECTION
2,4
2,4
1
1 : Base
2 : Collector
3 : Emitter
4 : Collector
Typical Applications
•
Suitable for Relay Drivers
•
High Speed Inverters
•
Converters
•
Other General High Current Switching Applications
SPECIFICATIONS
( ) : 2SB1216
ABSOLUTE MAXIMUM RATING
at Ta = 25°C
(Note 1)
Value
Unit
(−) 120
V
(−) 100
V
(−) 6
V
(−) 4
A
(−) 8
A
1
W
Collector Dissipation
PC
Tc=25°C
20
W
Junction Temperature
Tj
150
°C
Storage Temperature
Tstg
−55
to +150
°C
Note 1 : Stresses exceeding those listed in the Maximum Ratings table may damage
the device. If any of these limits are exceeded, device functionality should not
be assumed, damage may occur and reliability may be affected.
Parameter
Collector to Base Voltage
Collector to Emitter Voltage
Emitter to Base Voltage
Collector Current
Collector Current (Pulse)
Symbol
VCBO
VCEO
VEBO
IC
ICP
3
2SB1216
3
2SD1816
MARKING
B1216
RANK
LOT No.
D1816
RANK
LOT No.
4
4
1
2
3
1
2
3
IPAK / TP
DPAK / TP-FA
ORDERING INFORMATION
See detailed ordering and shipping
information on page 7 of this data sheet.
©
Semiconductor Components Industries, LLC, 2016
March 2016 - Rev. 2
1
Publication Order Number :
2SB1216_2SD1816/D
2SB1216, 2SD1816
ELECTRICAL CHARACTERISTICS
at Ta
=
25°C
(Note 2)
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Collector to Emitter Saturation
Voltage
Base to Emitter Saturation Voltage
Collector to Base Breakdown
Voltage
Collector to Emitter Breakdown
Voltage
Emitter to Base Breakdown Voltage
Turn-On Time
Storage Time
Symbol
ICBO
IEBO
hFE1
hFE2
fT
Cob
VCE(sat)
VBE(sat)
V(BR)CBO
V(BR)CEO
V(BR)EBO
ton
tstg
Conditions
VCB=(−)100V, IE=0A
VEB=(−)4V, IC=0A
VCE=(−)5V, IC=(−)0.5A
VCE=(−)5V,IC=(−)3A
VCE=(−)10V, IC=(−)0.5A
VCB=(−)10V, f=1MHz
IC=(−)2A, IB=(−)0.2A
IC=(−)2A, IB=(−)0.2A
IC=(−)10μA, IE=0A
IC=(−)1mA, RBE=∞
IE=(−)10μA, IC=0A
See specified Test
Circuit
(−)120
(−)100
(−) 6
100
(800) 900
140*
40
(130) 180
(65) 40
(−200) 150
(−) 0.9
(−500) 400
(−) 1.2
MHz
pF
mV
V
V
V
V
ns
ns
Value
min
typ
max
(−)1
(−)1
400*
Unit
μA
μA
Fall Time
50
tf
ns
Note 2 : Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted.
Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
*:
The 2SB1216/2SD1816 are classified by 0.5A hFE as follows:
Rank
hFE
S
140 to 280
T
200 to 400
Fig.1 Switching Time Test Circuit
www.onsemi.com
2
