BAV-70S-H6727

Description
Diodes - General Purpose, Power, Switching AF DIGITAL TRANSISTOR
Categorysemiconductor    Discrete semiconductor
File Size149KB,12 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

BAV-70S-H6727 Online Shopping

Suppliers Part Number Price MOQ In stock
BAV-70S-H6727 - - View Buy Now

BAV-70S-H6727 Overview

Diodes - General Purpose, Power, Switching AF DIGITAL TRANSISTOR

BAV-70S-H6727 Parametric

Parameter NameAttribute value
Product CategoryDiodes - General Purpose, Power, Switching
ManufacturerInfineon
RoHSDetails
QualificationAECQ1000
PackagingReel
Factory Pack Quantity15000

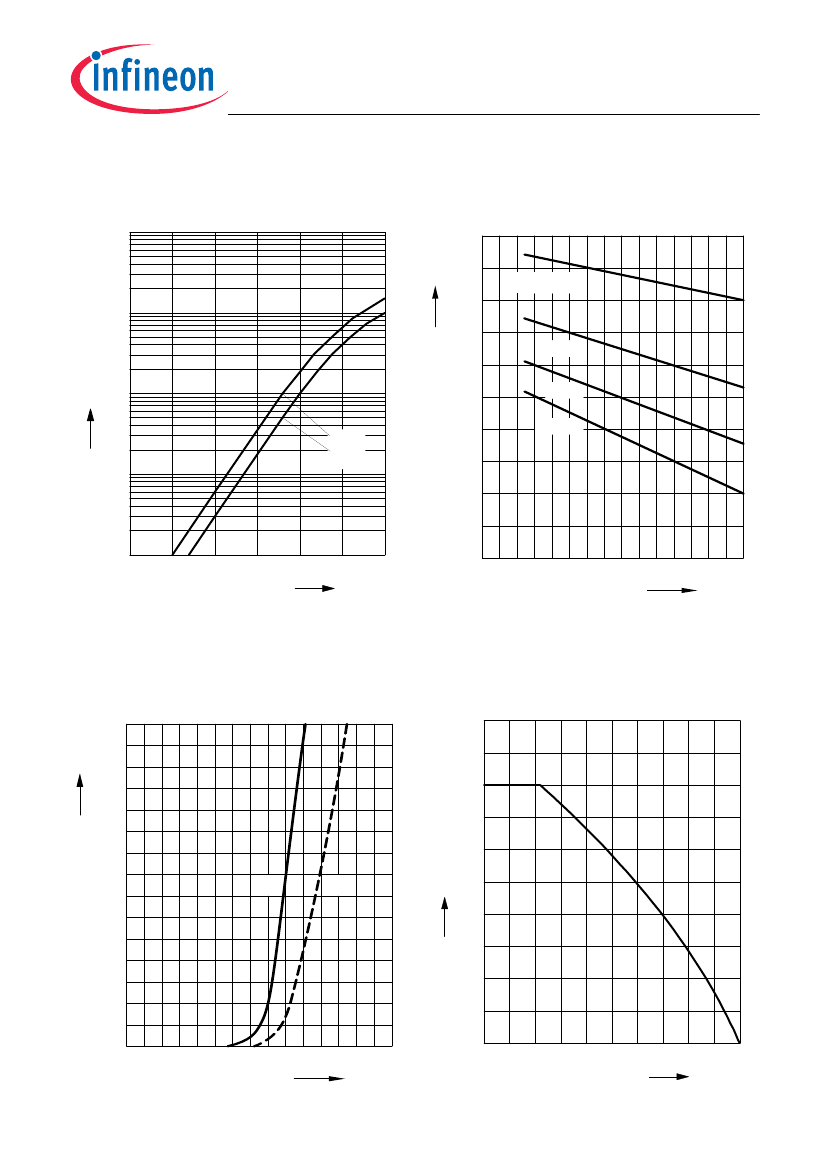

BAV70...
Silicon Switching Diode
For high-speed switching applications
Common cathode configuration
BAV70S / U: For orientation in reel see
package information below
Pb-free (RoHS compliant) package
1)
Qualified according AEC Q101
BAV70
BAV70W
!
BAV70S
BAV70U
$
#
, "
"
, !
,
,
,
,


!
Type
BAV70
BAV70S
BAV70U
BAV70W
1
Pb-containing
Package
SOT23
SOT363
SC74
SOT323
Configuration
common cathode
double common cathode
double common cathode
common cathode
Marking
A4s
A4s
A4s
A4s
package may be available upon special request
1
2007-09-19

BAV-70S-H6727 Related Products

BAV-70S-H6727 BAV-70W-E6327 BAV70WH6433XTMA1 BAV-70W-H6327 BAV-70U-E6327
Description Diodes - General Purpose, Power, Switching AF DIGITAL TRANSISTOR Diodes - General Purpose, Power, Switching AF DIODES Diodes - General Purpose, Power, Switching AF DIGITAL TRANSISTOR ESD Suppressors / TVS Diodes SA5.0A Uni-Directional
Product Category Diodes - General Purpose, Power, Switching Diodes - General Purpose, Power, Switching - Diodes - General Purpose, Power, Switching Diodes - General Purpose, Power, Switching
Manufacturer Infineon Infineon - Infineon Infineon
RoHS Details Details - Details Details
Qualification AECQ1000 - - AEC-Q100 AEC-Q100
Packaging Reel Reel - Reel MouseReel
Factory Pack Quantity 15000 3000 - - 3000
Product - Switching Diodes - Switching Diodes Switching Diodes
Mounting Style - SMD/SMT - SMD/SMT SMD/SMT
Package / Case - SOT-323-3 - SOT-323-3 SC-74-6
Peak Reverse Voltage - 85 V - 85 V 85 V
Max Surge Current - 4.5 A - 4.5 A 4.5 A
If - Forward Current - 0.2 A - 200 mA 200 mA
Configuration - Dual Common Cathode COMMON CATHODE, 2 ELEMENTS Common Cathode Dual Common Cathode
Recovery Time - 4 ns - 4 ns 4 ns
Vf - Forward Voltage - 1.25 V - 1250 mV 1250 mV
Ir - Reverse Current - 0.15 uA - 50 uA 50 uA
Minimum Operating Temperature - - 65 C - - 65 C - 65 C
Maximum Operating Temperature - + 150 C - + 150 C + 150 C
