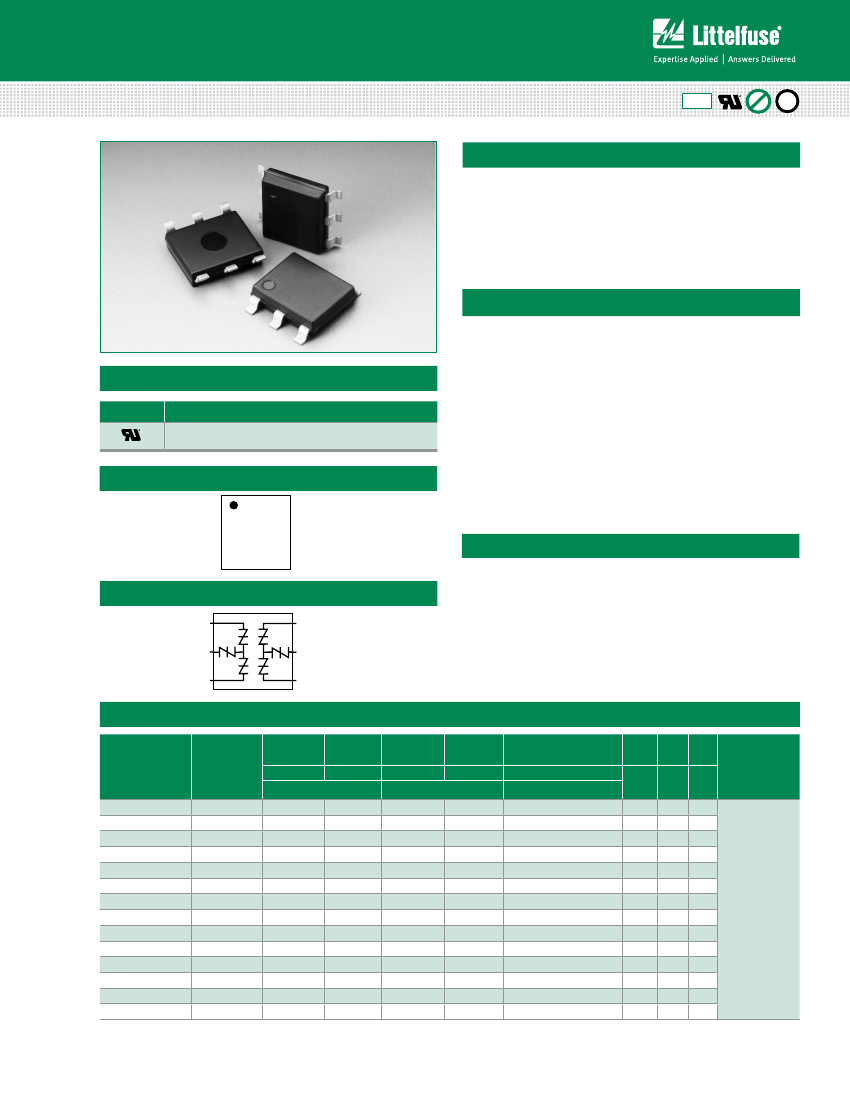

Baseband Protection (Voice-DS1)
SIDACtor
®
Protection Thyristors
SIDACtor
®
Balanced Multiport Series - MS-013
Description
RoHS
Pb
e3
SIDACtor
®
Balanced Multiport Series MS-013 are designed
to protect baseband equipment from overvoltage
transients. The patented “Y” configuration ensures
balanced overvoltage protection that prevents longitudinal
to differential conversions.
The series provides overvoltage protection that prevents
longitudinal to differential conversions.
Features and Benefits
• Low voltage overshoot
• Low on-state voltage
• Does not degrade surge
capability after multiple
surge events within limit.
• Fails short circuit when
surged in excess of
ratings
• Low capacitance
• Replaces six discrete
devices
• Balanced overvoltage
protection
Applicable Global Standards
4
Agency Approvals
Agency
Agency File Number
E133083
Pinout Designation
1
2
3
6
5
• Meets UL/IEC 60950-1
creepage and clearance
• Two-port protection
• Pb-free E3 means 2nd
level interconnect is
Pb-free and the terminal
finish material is tin(Sn)
(IPC/JEDEC J-STD-
609A.01)
• RoHS compliant and
lead-free
Schematic Diagram
1
2
3
6
5
4
• TIA-968-A
• TIA-968-B
• ITU K.20/21/45 Enhanced
Level*
• ITU K.20/21/45 Basic
Level
• GR 1089 Inter-building*
*A/B-rated parts require series resistance
• GR 1089 Intra-building
• IEC 61000-4-5 2nd
edition
• YD/T 1082
• YD/T 993
• YD/T 950
Electrical Characteristics
V
S
V
DRM
V
S
V
DRM
@l
DRM
=5µA @100V/µs @l
DRM
=5µA @100V/µs
V min
V max
V min
V max
Pins 1-2, 3-2, 4-5, 6-5
Pins 1-3, 4-6
Part Number
A2106UA6Lxx
A5030UA6Lxx
A2106UB6Lxx
A5030UB6Lxx
A2106UC6Lxx
A3614UC6Lxx
A5030UC6Lxx
P1556UALxx
P1806UALxx
P2106UALxx
P2356UALxx
P2706UALxx
P3206UALxx
P3406UALxx
Marking
A2106UA6
A5030UA6
A2106UB6
A5030UB6
A2106UC6
A3614UC6
A5030UC6
P1556UA
P1806UA
P2106UA
P2356UA
P2706UA
P3206UA
P3406UA
V
T
@I
T
=2.2 A
V max
Pins 1-2, 3-2, 4-5, 6-5
I
H
mA
min
I
S
mA
max
I
T
A
max
Capacitance
170
400
170
400
170
333
400
130
150
170
200
230
270
300
250
550
250
550
250
427
550
180
210
250
270
300
350
400
50
270
50
270
50
116
270
130
150
170
200
230
270
300
80
340
80
340
80
154
340
180
210
250
270
300
350
400
8
8
8
8
8
8
8
8
8
8
8
8
8
8
120 800 2.2
150 800 2.2
120 800 2.2
150 800 2.2
120 800 2.2
150 800 2.2
See
150 800 2.2
Capacitance
150 800 2.2
Values Table
150 800 2.2
150 800 2.2
150 800 2.2
150 800 2.2
150 800 2.2
150 800 2.2
Table continues on next page.
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 02/23/17
SIDACtor
®
Protection Thyristors
Baseband Protection (Voice-DS1)
Electrical Characteristics
(continued)
V
S
V
DRM
V
S
V
DRM
@l
DRM
=5µA @100V/µs @l
DRM
=5µA @100V/µs
V min
V max
V min
V max
Pins 1-2, 3-2, 4-5, 6-5
Pins 1-3, 4-6
Part Number
Marking
V
T
@I
T
=2.2 A
V max
Pins 1-2, 3-2, 4-5, 6-5
I
H
mA
min
I
S
mA
max
I
T
A
max
Capacitance
P5106UALxx
P1556UBLxx
P1806UBLxx
P2106UBLxx
P2356UBLxx
P2706UBLxx
P3206UBLxx
P3406UBLxx
P5106UBLxx
P1556UCLxx
P1806UCLxx
P2106UCLxx
P2356UCLxx
P2706UCLxx
P3206UCLxx
P3406UCLxx
P5106UCLxx
P5106UA
P1556UB
P1806UB
P2106UB
P2356UB
P2706UB
P3206UB
P3406UB
P5106UB
P1556UC
P1806UC
P2106UC
P2356UC
P2706UC
P3206UC
P3406UC
P5106UC
420
130
150
170
200
230
270
300
420
130
150
170
200
230
270
300
420
600
180
210
250
270
300
350
400
600
180
210
250
270
300
350
400
600
420
130
150
170
200
230
270
300
420
130
150
170
200
230
270
300
420
600
180
210
250
270
300
350
400
600
180
210
250
270
300
350
400
600
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
150
800
800
800
800
800
800
800
800
800
800
800
800
800
800
800
800
800
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
See
Capacitance
Values Table
Notes:
- Absolute maximum ratings measured at T
A
= 25ºC (unless otherwise noted).
- Components are bi-directional (some are asymmetrical).
- XX = Part Number Suffix: ‘TP’ (Tube Pack) or ‘RP’ (Reel Pack).
Surge Ratings
I
PP
Series
0.2/310
1
0.5/700
2
A min
A
B
C
Notes:
1 Current waveform in µs
2 Voltage waveform in µs
2/10
1
2/10
2
A min
150
250
500
8/20
1
1.2/50
2
A min
150
250
400
10/160
1
10/160
2
A min
90
150
200
10/560
1
10/560
2
A min
50
100
150
5/320
1
9/720
2
A min
75
100
200
10/360
1
10/360
2
A min
75
125
175
10/1000
1
10/1000
2
A min
45
80
100
5/310
1
10/700
2
A min
75
100
200
I
TSM
50/60 Hz
A min
20
25
30
di/dt
A/µs max
500
500
500
20
25
50
- Peak pulse current rating (I
PP
) is repetitive and guaranteed for the life of the product that remains in thermal equilibrium.
- I
PP
ratings applicable over temperature range of -40 to +85ºC
- The component must initially be in thermal equilibrium with -40°C < T
J
< +150°C
Thermal Considerations
Package
Modified MS-013
6
5
1
2
3
4
Symbol
T
J
T
S
R
0JA
Parameter
Operating Junction Temperature Range
Storage Temperature Range
Thermal Resistance: Junction to Ambient
Value
-40 to +150
-65 to +150
60
Unit
°C
°C
°C/W
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 02/23/17
Baseband Protection (Voice-DS1)
SIDACtor
®
Protection Thyristors
Capacitance Values
pF
Pin 1-2 / 3-2 (4-5 / 6-5)
Tip-Ground, Ring-Ground
MIN
20
15
20
15
20
25
25
20
20
15
15
15
15
15
10
20
20
15
15
15
15
15
10
30
30
30
25
25
20
20
20
MAX
60
35
60
35
70
40
40
45
40
35
35
35
30
30
20
45
40
35
35
35
30
30
20
55
50
45
40
40
35
35
30
pF
Pin 1-3 (4-6)
Tip-Ring
MIN
10
10
10
10
10
25
20
10
10
10
10
10
10
10
5
10
10
10
10
10
10
10
5
20
15
15
15
15
15
15
10
MAX
30
45
30
45
45
35
35
30
30
25
25
25
20
20
15
30
30
25
25
25
20
20
15
35
35
30
30
30
25
25
20
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Part Number
A2106UA6Lxx
A5030UA6Lxx
A2106UB6Lxx
A5030UB6Lxx
A2106UC6Lxx
A3614UC6Lxx
A5030UC6Lxx
P1556UALxx
P1806UALxx
P2106UALxx
P2356UALxx
P2706UALxx
P3206UALxx
P3406UALxx
P5106UALxx
P1556UBLxx
P1806UBLxx
P2106UBLxx
P2356UBLxx
P2706UBLxx
P3206UBLxx
P3406UBLxx
P5106UBLxx
P1556UCLxx
P1806UCLxx
P2106UCLxx
P2356UCLxx
P2706UCLxx
P3206UCLxx
P3406UCLxx
P5106UCLxx
Pre Heat
- Temperature Max (T
s(max)
)
- Time (Min to Max) (t
s
)
Pb-Free assembly
(see Fig. 1)
+150°C
+200°C
60-180 secs.
3°C/sec. Max.
3°C/sec. Max.
+217°C
60-150 secs.
+260(+0/-5)°C
30 secs. Max.
6°C/sec. Max.
8 min. Max.
+260°C
Average ramp up rate (Liquidus Temp (T
L
)
to peak)
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Temperature (t
L
)
Peak Temp (T
P
)
Time within 5°C of actual Peak Temp (t
p
)
Ramp-down Rate
Time 25°C to Peak Temp (T
P
)
Do not exceed
Figure 1
T
P
Ramp-up
t
P
Critical Zone
T
L
to T
P
T
L
Temperature
T
S(max)
T
S(min)
Preheat
t
L
Ramp-down
t
S
25
time to peak temperature
(t 25ºC to peak)
Time
Environmental Specifications
High Temp Voltage
Blocking
80% Rated V
DRM
(V
AC
Peak ) +125°C or +150°C,
504 or 1008 hrs. MIL
-STD-750 (Method 1040)
JEDEC, JESD22-A-101
-65°C to +150°C, 15 min. dwell, 10 up to 100
cycles. MIL
-STD-750 (Method 1051) EIA/JEDEC,
JESD22-A104
52 V
DC
(+85°C) 85%RH, 504 up to 1008 hrs. EIA/
JEDEC, JESD22-A-101
+150°C 1008 hrs. MIL-STD-750 (Method 1031)
JEDEC, JESD22-A-101
-65°C, 1008 hrs.
0°C to +100°C, 5 min. dwell, 10 sec. transfer,
10 cycles. MIL
-STD-750 (Method 1056) JEDEC,
JESD22-A-106
+121°C, 100%RH, 2atm, 24 up to 168 hrs. EIA/
JEDEC, JESD22-A-102
+260°C, 30 secs. MIL
-STD-750 (Method 2031)
85%RH, +85°C, 168 hrs., 3 reflow cycles
(+260°C Peak). JEDEC-J-STD-020, Level 1
Note: Off-state capacitance (C
O
) is measured at 1 MHz with a 2 V bias.
Physical Specifications
Lead Material
Terminal Finish
Body Material
Copper Alloy
100% Matte-Tin Plated
UL Recognized epoxy meeting
flammability classification V-0
Temp Cycling
Biased Temp &
Humidity
High Temp Storage
Low Temp Storage
Thermal Shock
Autoclave (Pressure
Cooker Test)
Resistance to Solder
Heat
Moisture Sensitivity
Level
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 02/23/17
SIDACtor
®
Protection Thyristors
Baseband Protection (Voice-DS1)
V-I Characteristics
+I
t
r
x t
d
Pulse Waveform
t
r
= rise time to peak value
t
d
= decay time to half value
I
PP
– Peak Pulse Current – %I
PP
I
T
I
S
I
H
I
DRM
V
T
V
DRM
V
S
100
Peak
Value
Waveform = t
r
x t
d
-V
+V
50
Half Value
0
0
t
r
t
d
t – Time (µs)
-I
Normalized V
S
Change vs. Junction Temperature
Normalized DC Holding Current vs. Case Temperature
2.0
Percent of V
S
Change – %
I
H
(T
C
= 25ºC)
14
12
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
-40
-20
0
20
40
60
80
100 120 140 160
8
6
4
2
0
-4
-6
-8
-40 -20
0
20 40 60 80 100 120 140 160
I
H
10
25 °C
25°C
Ratio of
Junction Temperature (T
J
) – °C
Case Temperature (T
C
) - ºC
MS-013 Part Marking Drawing_2009-03-05.eps

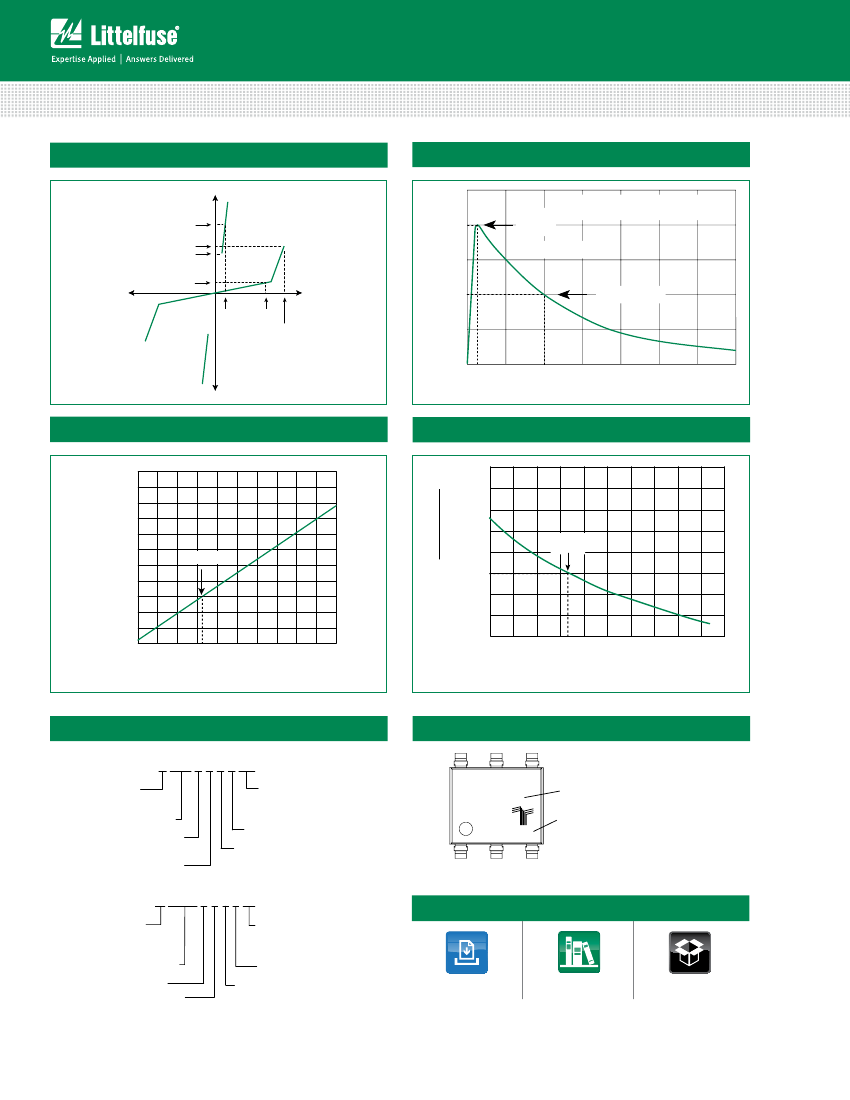

SIDACtor Balanced Multiport MS-013 Part Numbering
For pg. 179
Part Numbering
Part Marking
P xxx 6 U x L xx
TYPE
P: SIDACtor
MEDIAN VOLTAGE
CONSTRUCTION
VARIABLE
PACKAGE TYPE
PACKING OPTIONS
RP: Reel Pack
TP: Tube Pack
RoHS COMPLIANT
I
PP
RATING
XXXXXXX
XXXXX
Part Marking Code
(Refer to Electrical Characteristics Table)
Date Code
A xxxxU x 6 L xx
TYPE
A: Asymmetrical
SIDACtor
Additional Information
PACKING OPTIONS
RP: Reel Pack
TP: Tube Pack
RoHS COMPLIANT
MEDIAN VOLTAGE
PACKAGE TYPE
I
PP
RATING
CONSTRUCTION VARIABLE
Datasheet
Resources
Samples
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 02/23/17
Baseband Protection (Voice-DS1)
SIDACtor
®
Protection Thyristors

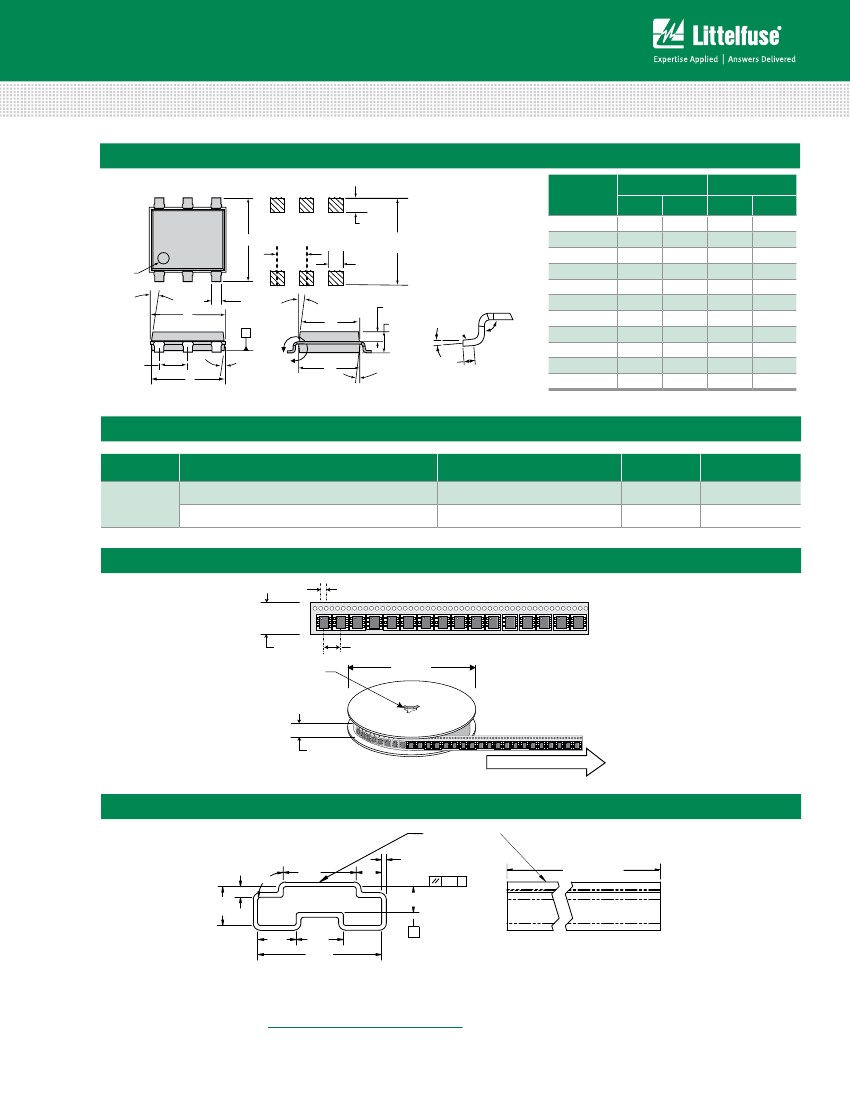

Dimensions — MS-013
Dimensions
Pad Outline
C
0.138
(3.50)
E
0.059
(1.50)
0.065
(1.65)
0.460
(11.68)
Dimension are in inches
(and millimeters).
Inches
Min
0.360
0.352
0.400
0.043
0.047
0.293
0.289
0.089
0.041
0.020
0.133
Max
0.364
0.356
0.412
0.045
0.055
0.297
0.293
0.093
0.049
0.143
Millimeters
Min
9.14
8.94
10.16
1.09
1.19
7
.44
7
.34
2.26
1.04
0.51
3.38
Max
9.25
9.04
10.46
1.13
1.40
7
.54
7
.44
2.36
1.24
3.63
7º TYP
A
D
7º TYP
G
A
J
H
Burr Side
96º
4º
Mold Split
Line
BSC*
B
7º TYP
A
F
7º TYP
MIN Length
of Flat
K
Detail A
A
B
C
D
E
F
G
H
J
K
BSC*
* BSC =
Basic Spacing
between
Centers
Packing Options
Package Type
Description
Modified MS-013 6-pin Tape and Reel Pack
Modified MS-013 6-pin Tube Pack
Quantity
Added Suffix
Industry Standard
U
1500
500 (50 per tube)
RP
TP
EIA-481-D
N/A
Tape and Reel Specification — MS-013
.157
(4.0)
.630
(16.0)
.512 (13.0) Arbor
Hole Dia.
.472
(12.0)
12.99
(330)
Dimensions are in inches
(and millimeters)
0.700
(17.8)
Direction of Feed
Tube Pack Specification — MS-013
Message Location
.020 ± .005 WALL TYP.
(0.51 ± 0.13)
.108
(2.74)
.110
(2.79)
.045
(1.14)
90˚
.165
(4.19)
.310
(7.87)
6
Interior of the Tube
.005 A
20.000 ± .030
(508.00 ± 0.76)
.150
(3.81)
.225
(5.72)
.525
(13.34)
A
Dimensions are in inches
(and millimeters)
Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and
test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications.
Read complete Disclaimer Notice at
www.littelfuse.com/disclaimer-electronics.
© 2017 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 02/23/17
京公网安备 11010802033920号
EEWORLD
