2514-2-00-50-00-00-07-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 2514-2-00-50-00-00-07-0

2514-2-00-50-00-00-07-0: DescriptionCircuit Board Hardware - PCB 300u ELECTRO-SOLDER; CategoryThe connector terminals; File Size231KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

2514-2-00-50-00-00-07-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2514-2-00-50-00-00-07-0	-	-	View	Buy Now

2514-2-00-50-00-00-07-0 Overview

Circuit Board Hardware - PCB 300u ELECTRO-SOLDER

2514-2-00-50-00-00-07-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	2514
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

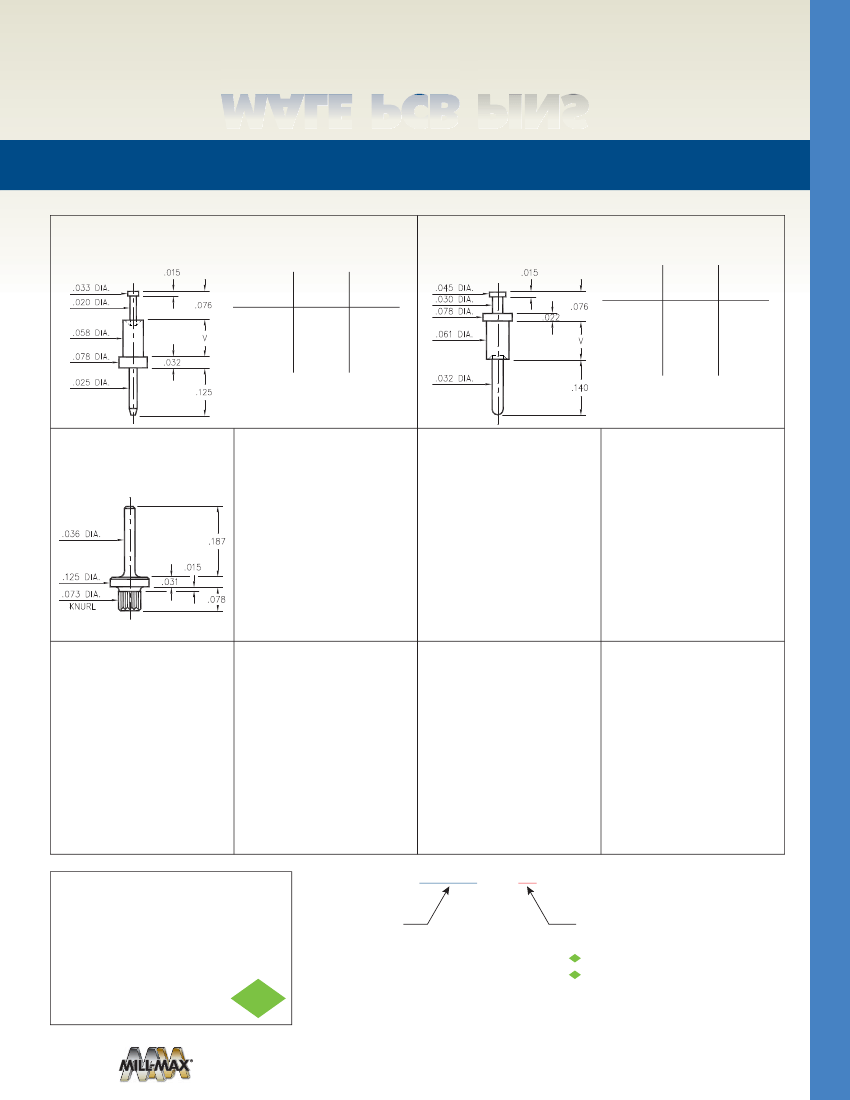

Preview

Download Datasheet

View All

MALE PCB

PINS

SOLDER TERMINALS PIN TYPE

2318

2318-X-00-XX-00-00-07-0

Swage mount in .062 hole

2309

2309-X-00-XX-00-00-07-0

Swage mount in .064 hole

Basic Part

Number

Board

Thickness

Length

Basic Part

Number

Board

Thickness

Length

2318-1

2318-2

2318-3

.031

.062

.094

.051

.082

.113

2309-1

2309-2

2309-3

2309-4

.031

.062

.094

.125

.054

.084

.115

.147

2514

2514-2-00-XX-00-00-07-0

Press-fit in .070 mounting hole

SPECIFICATIONS:

Pin Material:

Brass Alloy 360, 1/2 Hard

( Swage pins are annealed )

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

RoHS - 2

2011/65/EU

ORDER CODE: XXXX - X - 00 -

- 00 - 00 - 07 - 0

BASIC PART #

SPECIFY PIN FINISH:

200

”

TIN/LEAD OVER NICKEL

200

”

TIN OVER NICKEL (RoHS)

300

”

SILVER OVER COPPER (RoHS)

300

”

ELECTRO-SOLDER

(60/40 SnPb)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 245 | MALE PCB PINS
