Product data sheet
Characteristics

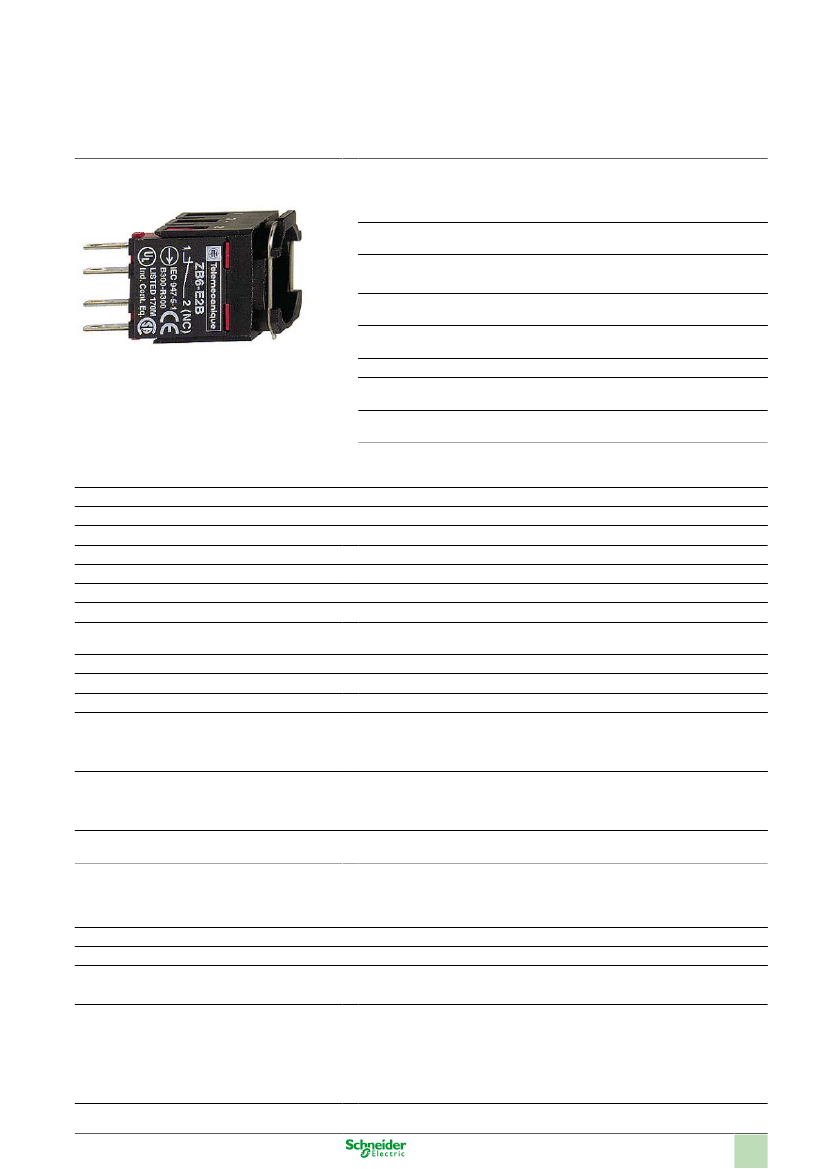

ZB6Z4B
single contact block with body/fixing collar 2NC
faston connector
Main
Range of product
Product or component
type
Device short name
Fixing collar material
Sale per indivisible
quantity
Contacts type and com-
position
Contacts operation
Connections - terminals
[Us] rated supply volt-
age
Harmony XB6
Complete body for push-buttons or selector switches
ZB6
Plastic
1
2 NC
Slow-break
Faston connector(2.8 x 0.5 mm)
Faston connector
<= 250 V
Complementary
CAD overall width
CAD overall height
CAD overall depth
Terminals description ISO n°1
Product weight
Contacts usage
Positive opening
Operating travel
Operating force
Contacts material
Short circuit protection
[Ie] rated operational current
18 mm
18 mm
40 mm
(11-12)NC
0.006 kg
Standard
With positive opening conforming to EN/IEC 60947-5-1 appendix K
4.3 mm (total travel)
1 mm (NC changing electrical state)
2.5 N (NC changing electrical state)
Silver alloy (Ag/Ni)
6 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
0.22 A at 125 V, DC-13, R300
0.1 A at 250 V, DC-13, R300
1.5 A at 240 V, AC-15, B300
3 A at 120 V, AC-15, B300
1000000 cycles, DC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN/IEC 60947-5-1 appendix C
Λ = 10exp(-8) at 5 V, 1 mA with confidence level of 90 % conforming to IEC
60947-5-4
Electrical durability
Electrical reliability IEC 60947-5-4
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
Standards
TC
-40...70 °C
-25...70 °C
Class II conforming to IEC 61140
IP65 conforming to IEC 60529
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-5
JIS C 4520
JIS C 852
UL 508
CSA C22.2 No 14
Dec 24, 2017
1
