8827-0-15-01-16-27-04-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 8827-0-15-01-16-27-04-0

Preview

8827-0-15-01-16-27-04-0: DescriptionCircuit Board Hardware - PCB; CategoryThe connector terminals; File Size595KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

8827-0-15-01-16-27-04-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8827-0-15-01-16-27-04-0	-	-	View	Buy Now

8827-0-15-01-16-27-04-0 Overview

Circuit Board Hardware - PCB

8827-0-15-01-16-27-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

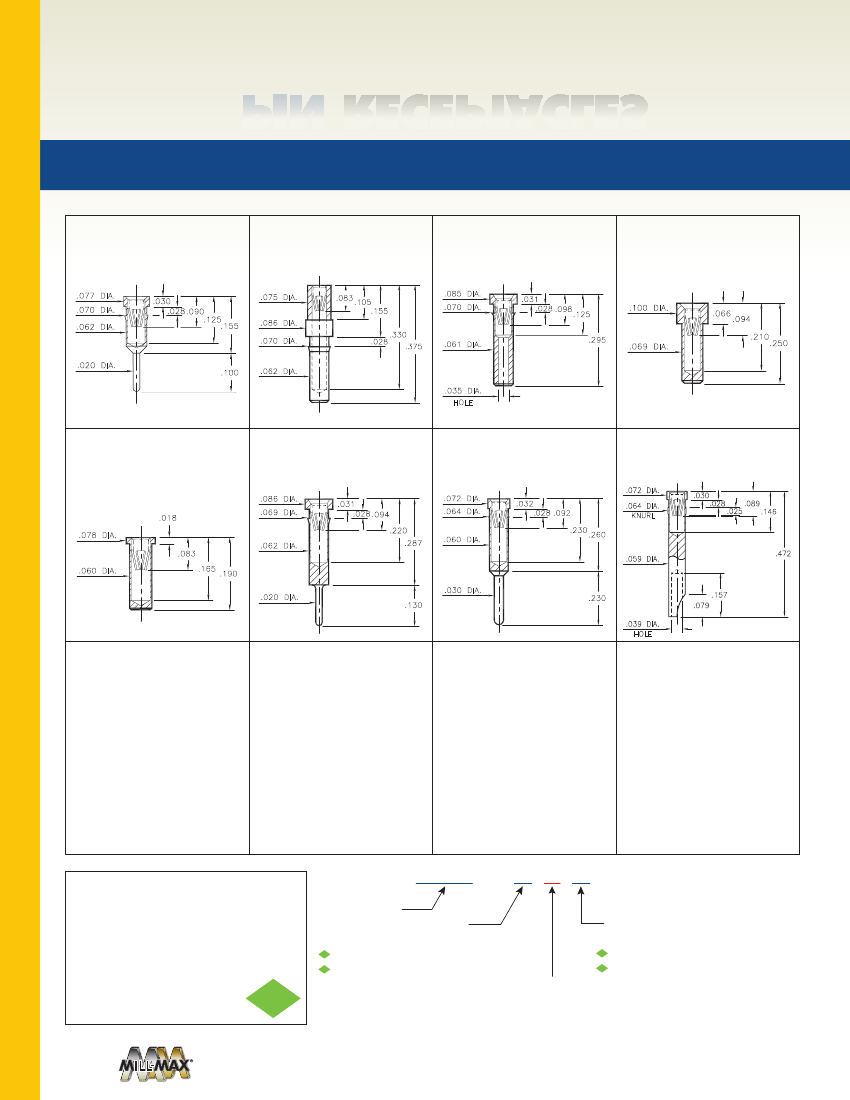

RECEPTACLES

FOR .022” - .034” DIAMETER PINS AND .025” SQUARE PINS

9808

.077 DIA.

.070 DIA.

.062 DIA.

9808-0-15-XX-16-XX-04-0

Press-fit in .067 mounting hole

9101

.075 DIA.

.086 DIA.

.070 DIA.

9101-0-15-XX-16-XX-10-0

Press-fit in .067 mounting hole

5650

.085 DIA.

.070 DIA.

5650-0-19-XX-16-XX-10-0

Press-fit in .067 mounting hole

8679

8679-0-15-XX-16-XX-10-0

Solder mount in .071 min. mounting hole

.030

.028 .090

.125

.155

.083

.105

.155

.330

.375

.031

.028 .098

.125

.295

.100 DIA.

.066

.094

.210

.250

.028

.061 DIA.

.069 DIA.

.020 DIA.

.100

.062 DIA.

.035 DIA.

HOLE

6021

6021-0-15-XX-16-XX-10-0

.018

.078 DIA.

.083

.060 DIA.

1873

.086 DIA.

.069 DIA.

Solder mount in .062 min. mounting hole

Also available on 24mm wide carrier tape:

1,500 parts per 13” reel

Order as: 6021-0-57-XX-16-XX-10-0

1873-0-15-XX-16-XX-04-0

Press-fit in .066 mounting hole

.031

.028 .094

.220

.062 DIA.

.287

8827

.072 DIA.

.064 DIA.

8827-0-15-XX-16-XX-04-0

Press-fit in .061 mounting hole

.032

.028 .092

.230

.060 DIA.

.260

5070

.072 DIA.

.064 DIA.

KNURL

5070-0-18-XX-16-XX-10-0

Press-fit in .061 mounting hole

.030

.028

.089

.025

.146

.059 DIA.

.472

.165

.190

.020 DIA.

.030 DIA.

.230

.157

.079

.039 DIA.

HOLE

.130

PAGE 176 | PIN RECEPTACLES

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

2011/65/EU

ORDER CODE: XXXX - X - XX - XX -

16

- XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

15

10

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

27

30

μ”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

RoHS - 2

SELECT CONTACT:

#16

CONTACT (DATA ON PAGE 256)

(For alternate contact choices, see group D on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
