831708A20 Overview

Basic / Snap Action Switches SNSW 0.1A SLDR NONE

831708A20 Parametric

Parameter Name	Attribute value
Product Category	Basic / Snap Action Switches
Manufacturer	Crouzet
Illuminated	Non-Illuminated
Factory Pack Quantity	1

Preview

Download Datasheet

View All

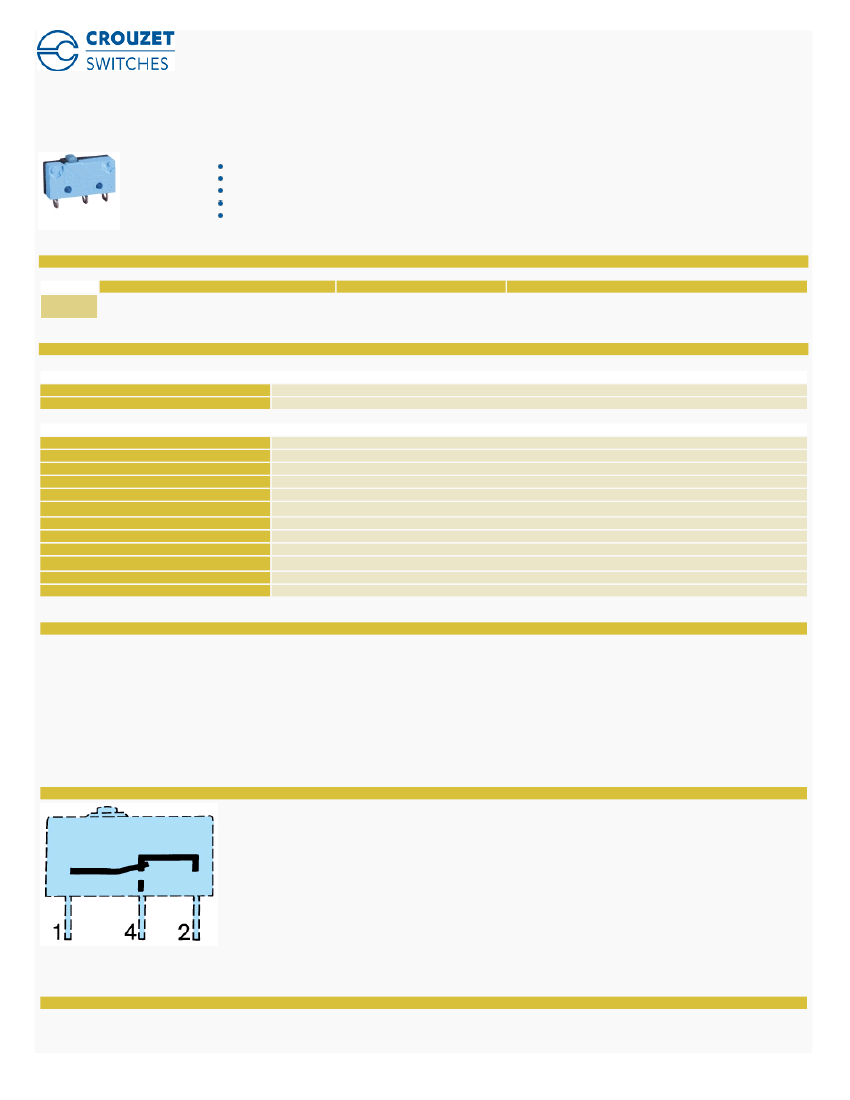

02/11/2015

www.crouzet.com

V4 83170 Dual-current 831708 Part number made to order

Nominal ratings 0.1 A to 10 A / 250 VAC

Minimum rating 1 mA / 4 VDC

Operating temperature up to +125 °C

Conforming to standards EN 61058 and UL 1054

Choice of actuators with 2 possible fixing positions

Part numbers

Type

MADE TO

ORDER

Dual-current 831708

Function

I (changeover)

Connections

X1S - X2 - X2S - X3 - X3S

Specifications

Electrical characteristics

Rating nominal / 250 VAC (A)

Rating thermal / 250 VAC (A)

0,1

Mechanical characteristics

Maximum operating force (N)

Min. Release force (N)

Maximum total travel force (N)

Max. permitted overtravel force (N)

Maximum rest position (mm)

Operating position (mm)

Max. differential travel mm

Min. overtravel (mm)

Ambient operating temperature (°C)

Mechanical life (operations)

Contact gap (mm)

Weight (g)

1,5

0,3

1,8

9,2

8,4

±0,3

0,15

0,5

-20 →+125

0,4

1,7

Additional specifications

Components

Material

- Case : polyester UL 94 VO

- Button : Glass-filled polyamide

- Contacts : AgNi, gold-plated AgNi (dual-current)

- Terminals : cupro-nickel (except W7A5 in brass)

Levers

- Flat : stainless steel

- Roller : stainless steel, polyamide roller

Approvals

NF - UL - cUL

Principles

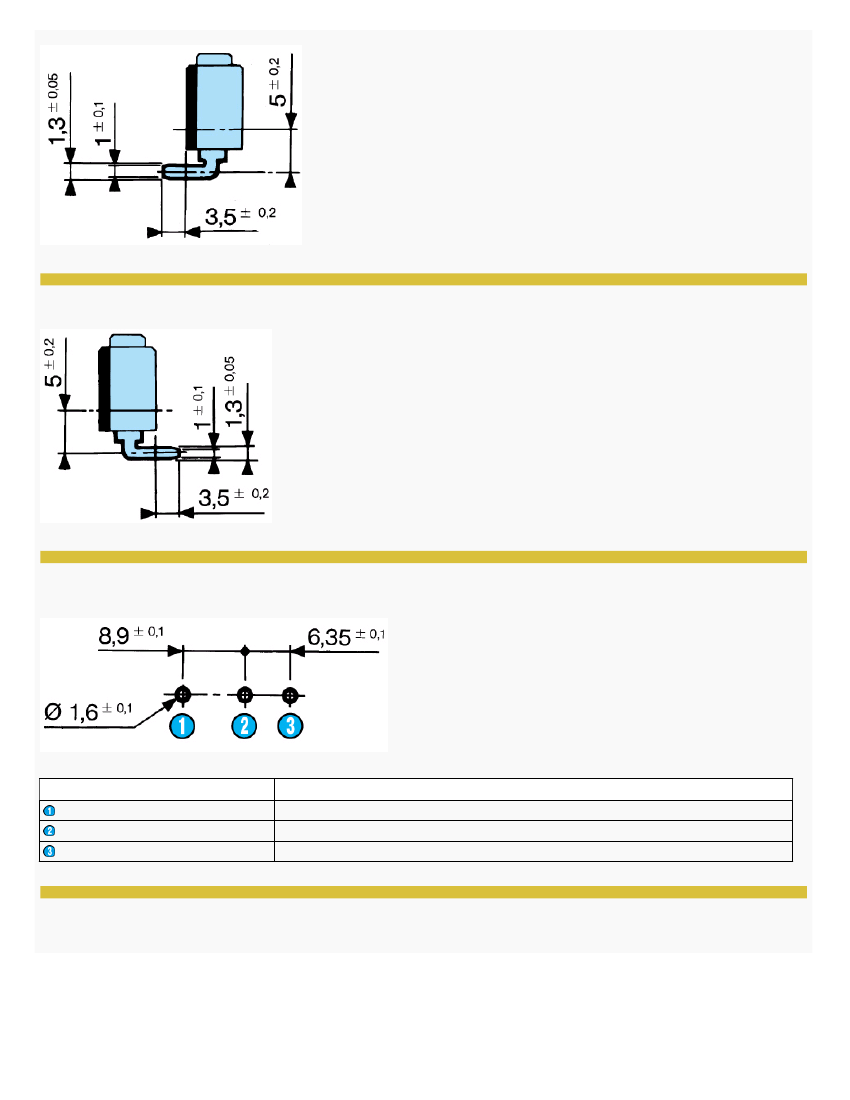

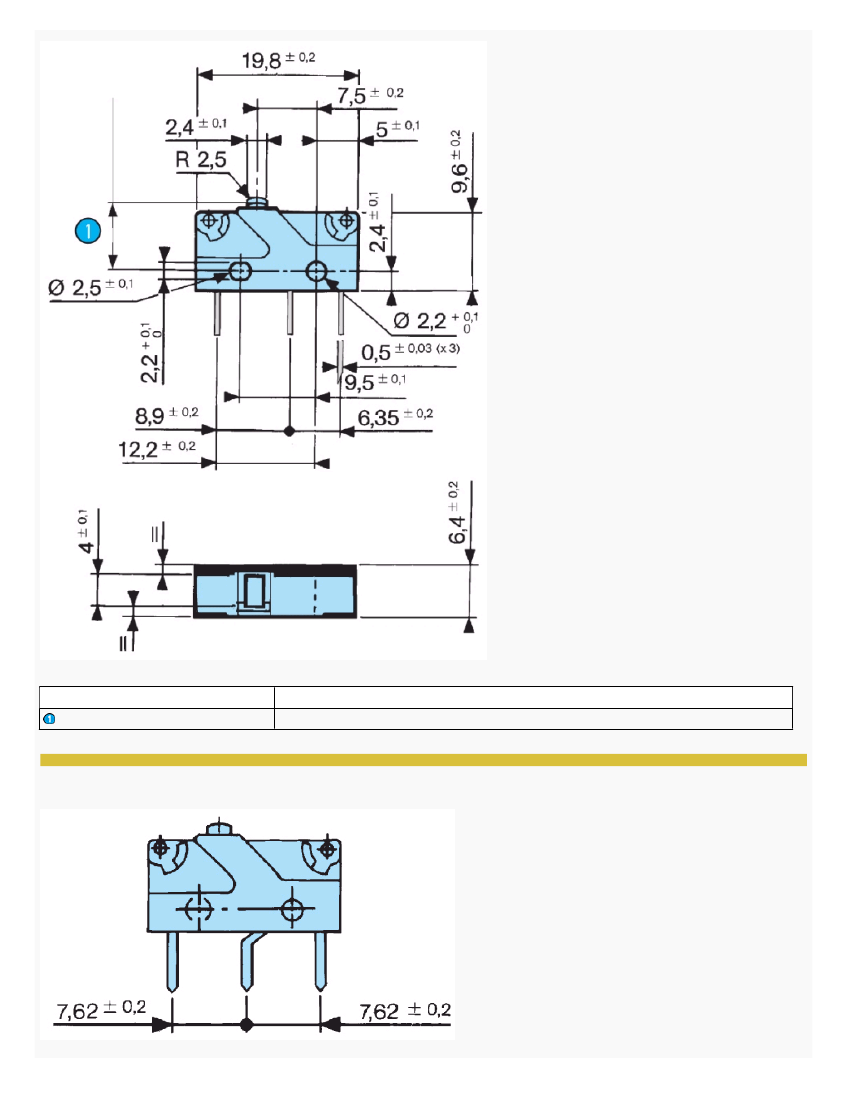

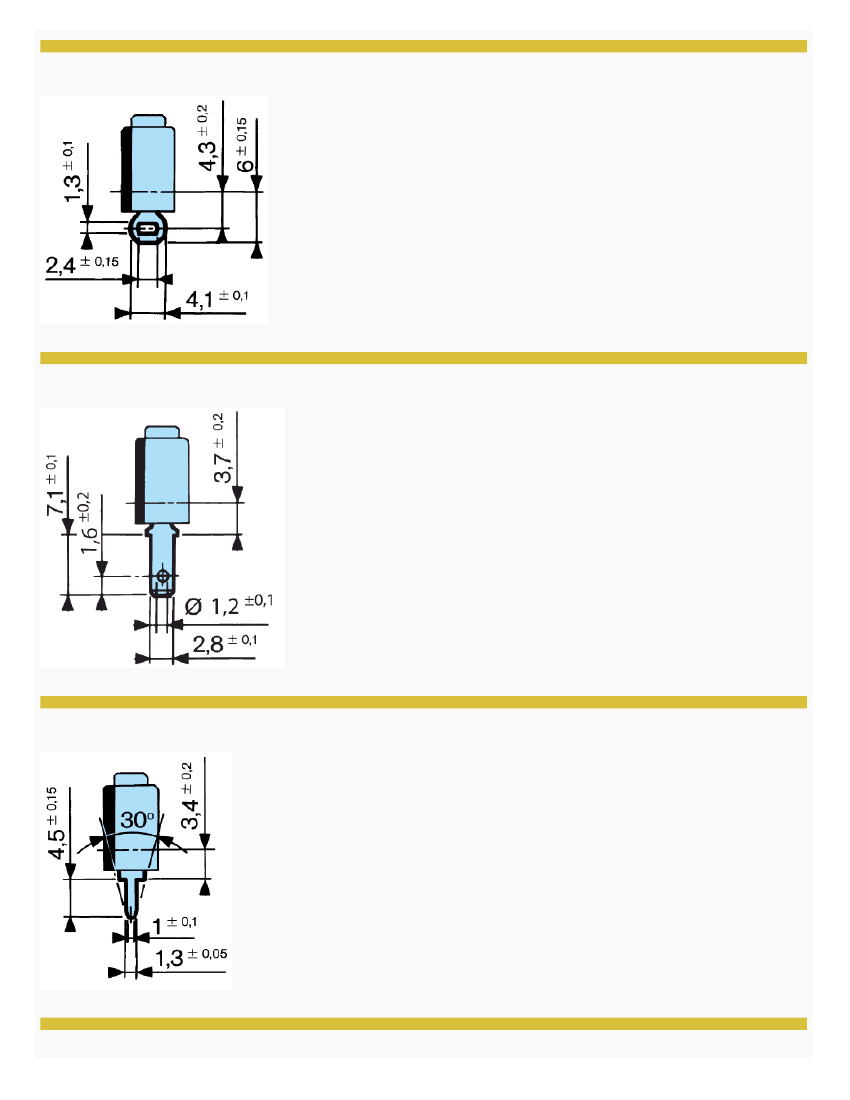

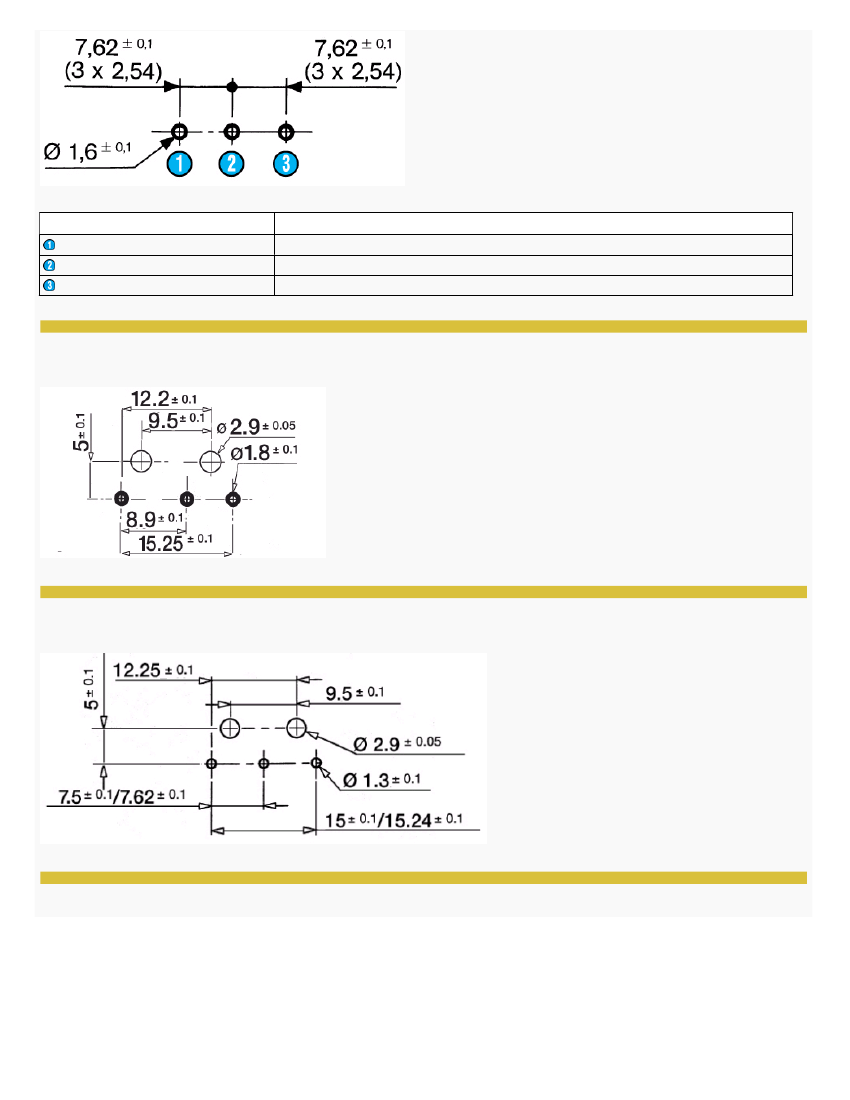

Dimensions (mm)

Product

83170

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
