02/11/2015
www.crouzet.com
30 and 40 W - 10 Nm - Right-angle gearbox 801410 SNi10 Part number 80141001
With or without integrated control electronics
Output perpendicular to motor
Ideal for short reduction ratios
Ideal for very compact applications
Silent operation
Non-reversible movement at high ratios
Part numbers
Type
80141001
801410
SNi10
With built-in electronic
control
SNi10
Without built-in control, with Hall effect
sensors
-
Ratios
(i)
5
Output speed (rpm) 24 V
DC
440
Available torque
(Nm)
0,36
Efficiency
(%)
-
Specifications
General characteristics
Motor
Gearbox
Nominal motor power at 24 V (W)
Max. torque (Nm)
Axial load dynamic (N)
Radial load dynamic (N)
Temperature rise at 50 % cycle (°C)
Weight (g)
Protection index
80140004
81041
32
10
10
15
45
1500
IP54

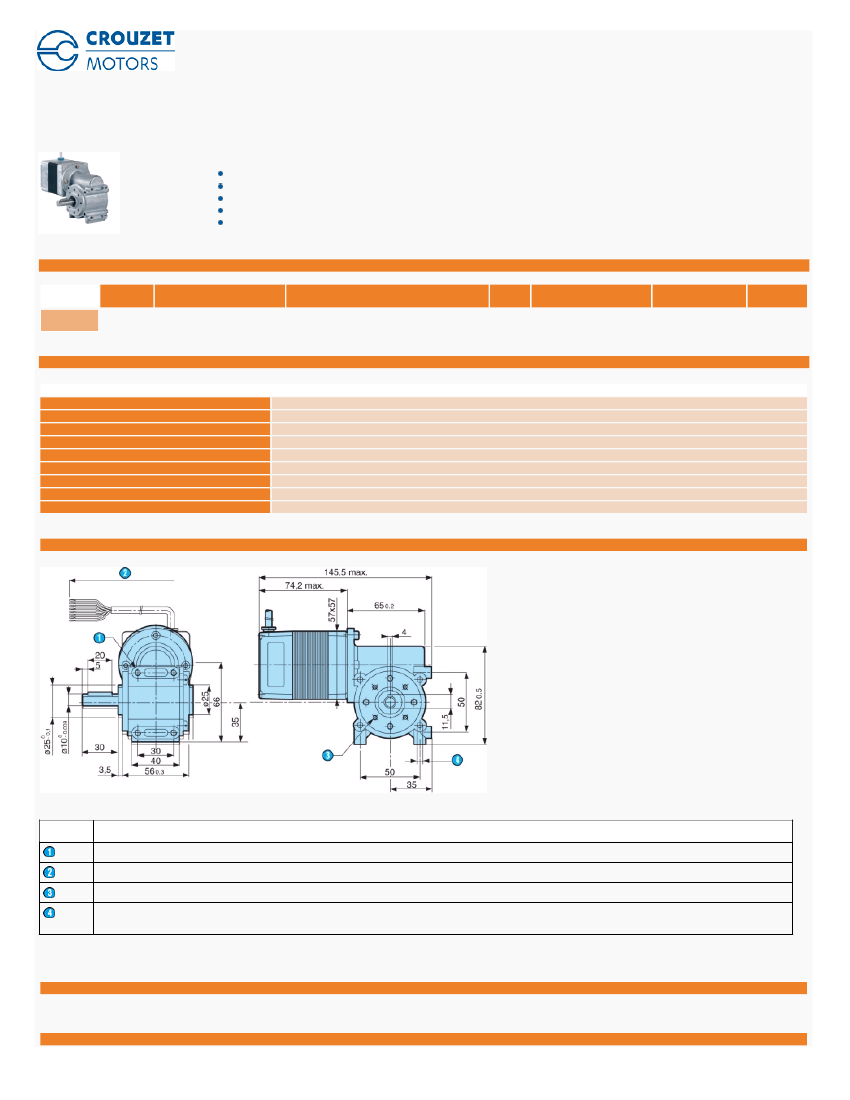

Dimensions (mm)
801410 with SNi10
N
o
Legend
4 x M5 depth 8 mm (on rectangle 30x50)
Length of cable 400 ± 10 mm
4 x M4 over Ø 36 depth 8 mm
4 x M5 over depth 8 mm (on rectangle 30x50)
The left-hand and right-hand sides of the gearbox are identical
Precautions for use
The limits and precautions for use described in the 80140 brushless motor section must be observed.
Product adaptations
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
Other powers (60 W - 95 W)
Dimensions of gearbox shaft
Without cable but with connector integrated in motor
Cable length, with or without connector
Other reduction ratios
Mechanical holding brake
www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
