Device connector, front mounting - RF-16S2N8AAK00 - 1613799
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Device connector, front mounting, angled fixed, Screw locking, M23, Number of positions: 16, Type of contact:
Socket, Crimp connection, Axial O-ring, 4x Ø3.2, shielded: yes, Flange dimensions: 28 mm x 28 mm

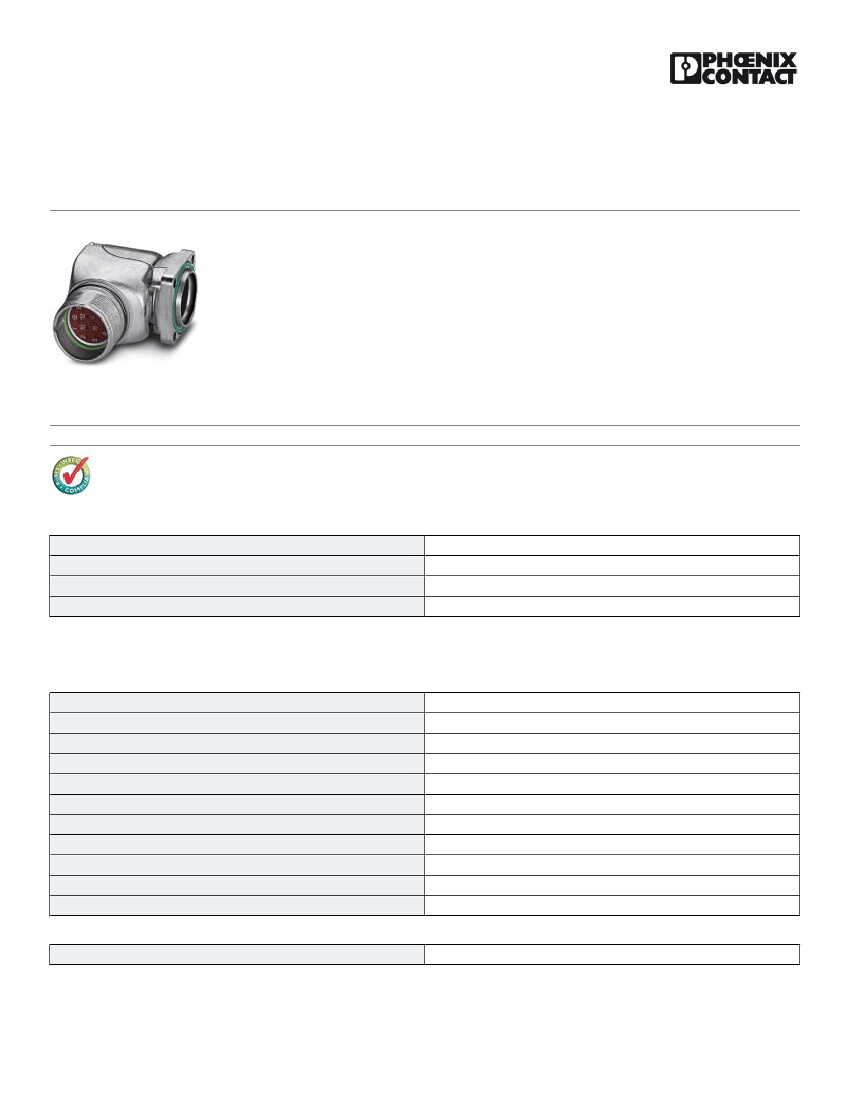

The figure shows the 12-pos. product
version with standard contact
chamber numbering
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
122.3 g
85366990
Germany
Technical data
General
Note
Type of locking
Direction of rotation of contact chamber numbering
Coding
Contact connection method
Type of contacts
Number of positions
Contact diameter of power contacts
Nominal current per power contact at 25°C
Pg housing screw connection
Mounting type
Order information: Order crimp contacts Ø 1 mm separately
Screw locking
Counter direction
N
Crimp connection
Socket
16
1 mm
8A
none
4x Ø3.2
Ambient conditions
Ambient temperature
-20 °C ... 125 °C
04/20/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/1613799
Device connector, front mounting - RF-16S2N8AAK00 - 1613799
Technical data
Ambient conditions
Degree of protection
IP67
Material
Housing material
Insulator material
Gasket and O-ring material
Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
PA 66
FPM
Specifications according to DIN EN 61984:2001
Installation height max.
Nominal / operating voltage of power contacts
Rated surge voltage of power contacts
Overvoltage category of power contacts
Degree of pollution of power contacts
Overvoltage category of signal contacts
Degree of pollution of signal contacts
2000 m
100 V
1.5 kV
III
3
III
3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27143424
27143424
27143424
27440209
27440102
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC001121
EC002635
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201404
43201404
04/20/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/1613799
Device connector, front mounting - RF-16S2N8AAK00 - 1613799
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26
1A
125 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
26
1A
125 V
EAC
cULus Recognized

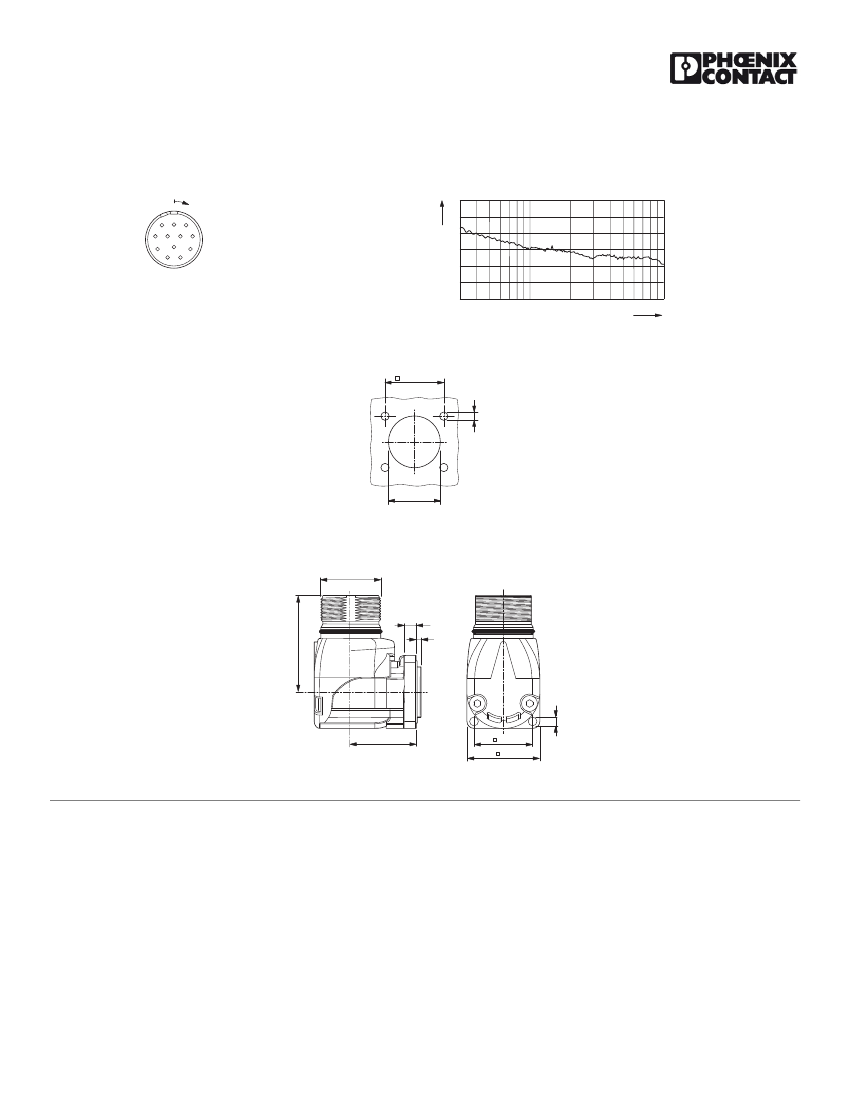

Drawings
04/20/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/1613799
Device connector, front mounting - RF-16S2N8AAK00 - 1613799
Schematic diagram
S N
8
7
6
5
9
12 10
11
4
1
2
3
Diagram
Attenuation [dB]
120
100
80
60
40
20
0
30
100
1000
Frequency [MHz]
Dimensional drawing
22,6±0,1
Ø20+0,1
Dimensional drawing
M23x1
4,5
37
1,85
4xM3
25,4
22,6
28
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
Ø 4x3,2
04/20/2016 Page 4 / 4
