502611-3021 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 502611-3021

502611-3021: DescriptionFFC u0026 FPC Connectors 0.5 FPC EASYON BTM CONT RA 30CKT ZIF; CategoryThe connector The connector; File Size32KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

502611-3021 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	502611-3021	-	-	View	Buy Now

502611-3021 Overview

FFC u0026 FPC Connectors 0.5 FPC EASYON BTM CONT RA 30CKT ZIF

502611-3021 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Samacsys Description	CONNECTOR, FPC, RCPT, 30POS, 1ROW
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

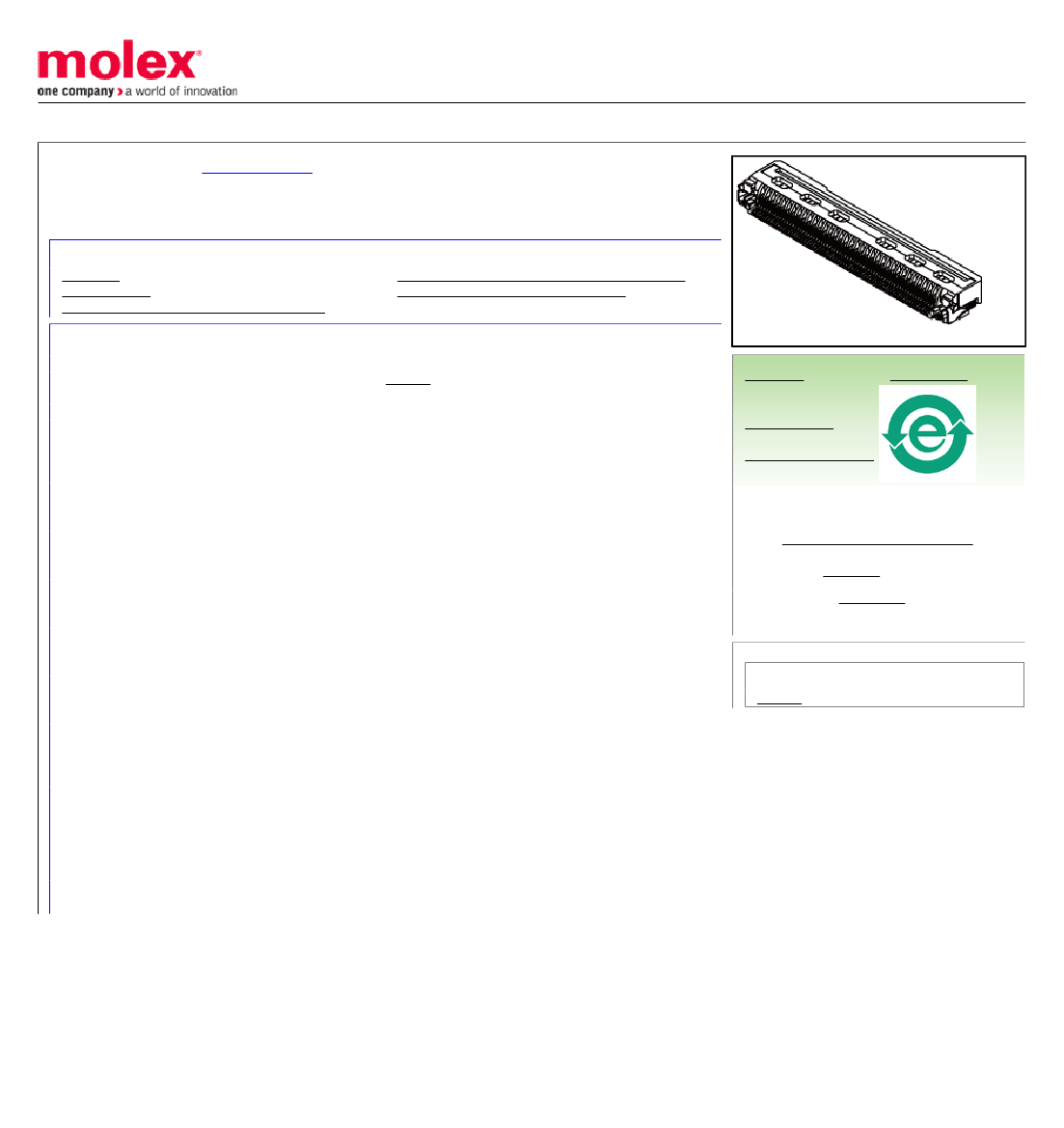

This document was generated on 02/04/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

502611-3021

Active

0.50mm Pitch Easy-On™ Type FPC Connector, Right Angle, SMT, Bottom Contact,

3.90mm Mated Height, 30 Circuits, with Dust Cover, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-502611-002 (PDF)

Packaging Specification SPK-502611-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

FFC/FPC Connectors

502611

Easy-On™

884982016682

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

General

Product Family

Series

Product Name

UPC

Physical

Circuits (Loaded)

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height

Material - Metal

Material - Plating Mating

Net Weight

Number of Rows

Orientation

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Bottom

90° Angle

3.90mm

Copper Alloy

Gold

640.560/mg

Right Angle

Yes

Embossed Tape on Reel

0.50mm

Yes

-10C to +100C

Surface Mount

FPC only

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

502611Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.3A

100V

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

SPK-502611-001

PS-502611-002, RPS-502611-003, RPS-502611-006

SD-502611-003, SD-502611-004

This document was generated on 02/04/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
