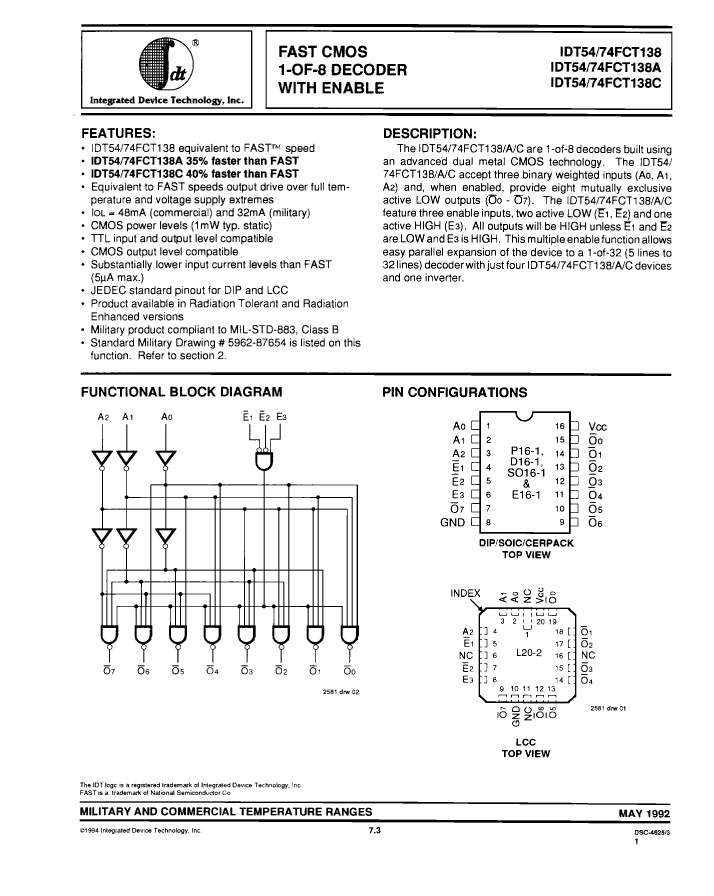

5962-8765402EA: DescriptionCDIP-16, Tube; Categorylogic logic; File Size149KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-8765402EA Overview

CDIP-16, Tube

5962-8765402EA Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	CDIP
package instruction	0.300 INCH, CERDIP-16
Contacts	16
Manufacturer packaging code	CD16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	3 ENABLE INPUTS
series	FCT
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	20.066 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
Humidity sensitivity level	1
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	240

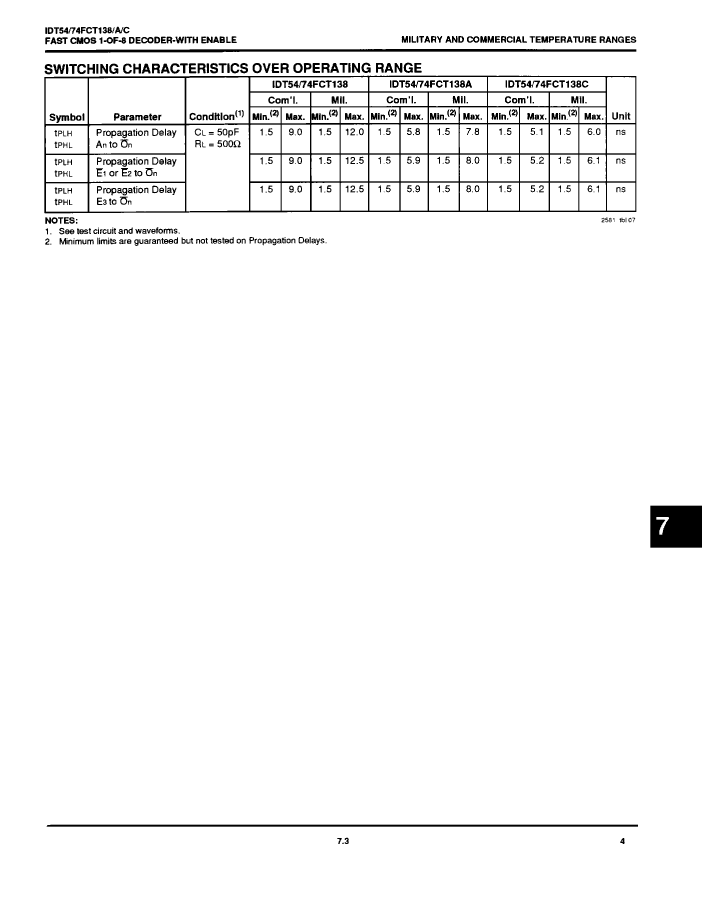

propagation delay (tpd)	7.8 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

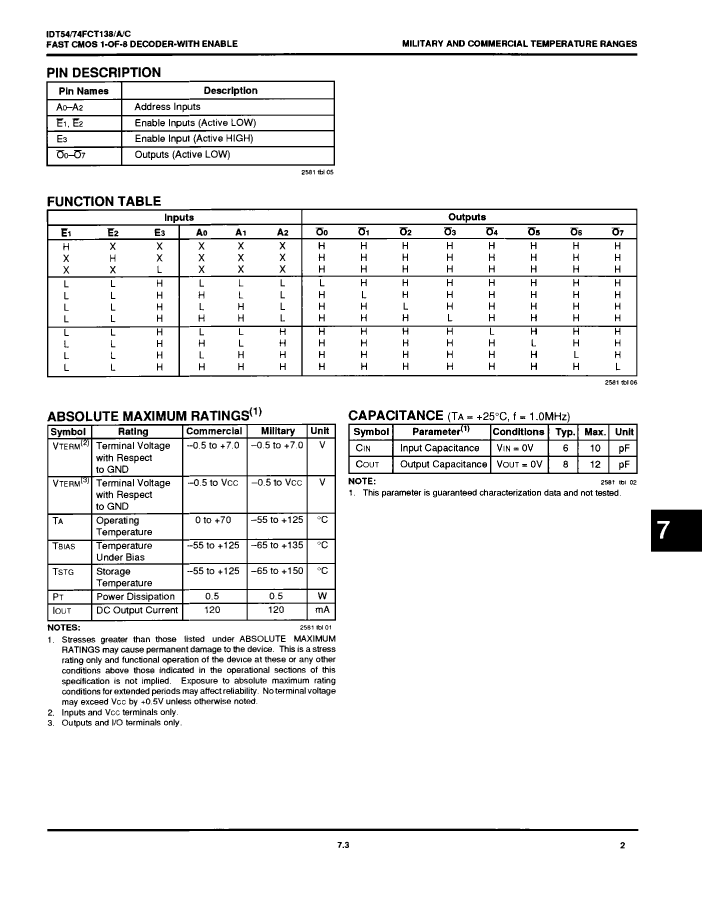

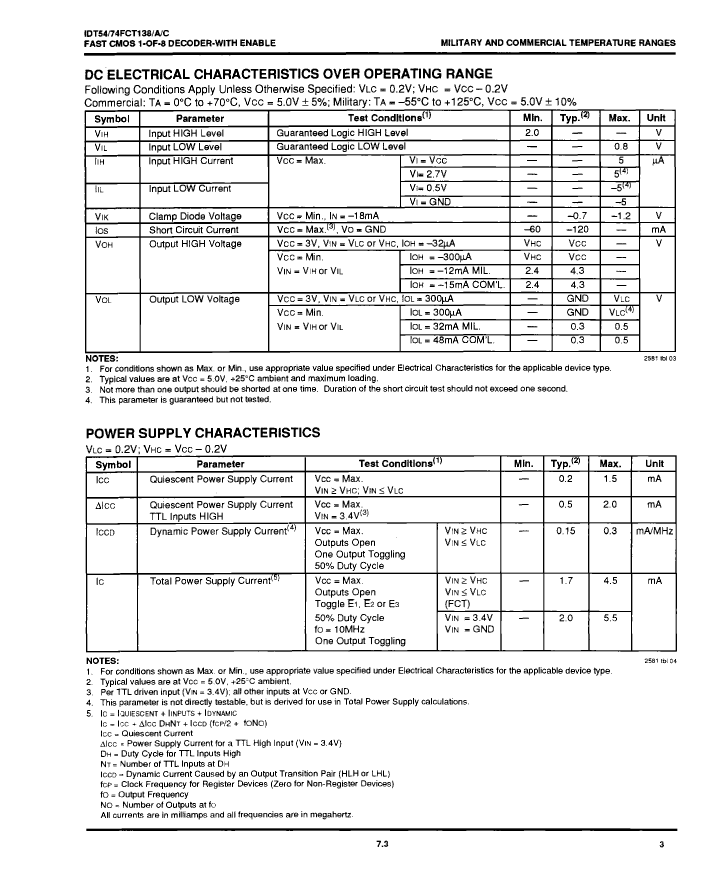

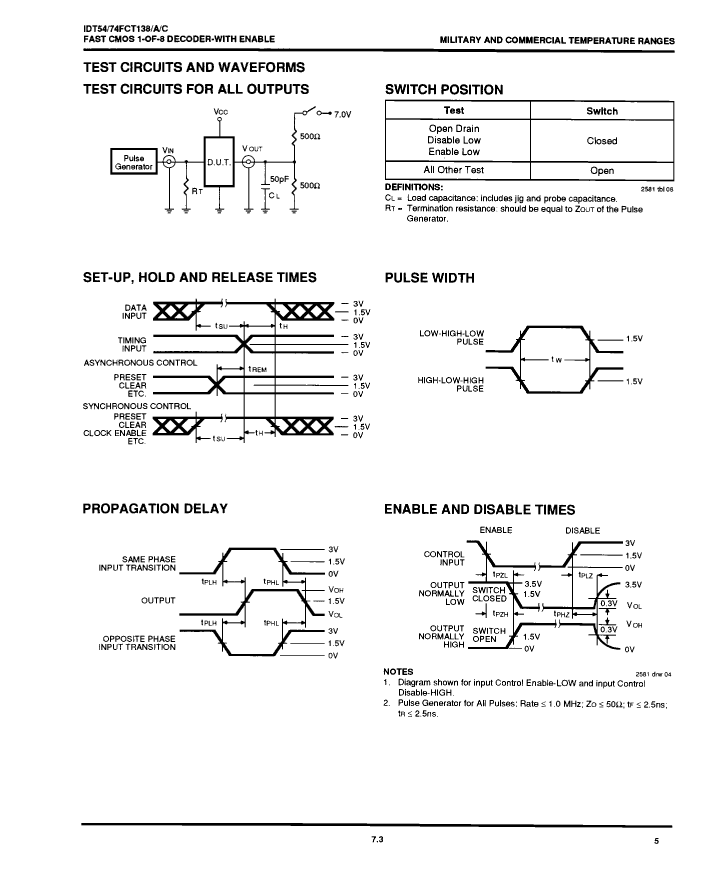

Preview

Download Datasheet

View All

5962-8765402EA Related Products

	5962-8765402EA	5962-87654022A	5962-8765401FA	5962-8765402FA	5962-87654012A	5962-8765401EA
Description	CDIP-16, Tube	LCC-20, Tube	CPACK-16, Tube	CPACK-16, Tube	LCC-20, Tube	CDIP-16, Tube
Brand Name	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology	Integrated Device Technology
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	CDIP	LCC	CPACK	CPACK	LCC	CDIP
package instruction	0.300 INCH, CERDIP-16	QCCN,	DFP, FL16,.3	DFP,	QCCN, LCC20,.35SQ	DIP, DIP16,.3
Contacts	16	20	16	16	20	16
Manufacturer packaging code	CD16	LC20	CP16	CP16	LC20	CD16
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS	3 ENABLE INPUTS
series	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDIP-T16	S-CQCC-N20	R-CDFP-F16	R-CDFP-F16	S-CQCC-N20	R-GDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0
length	20.066 mm	8.89 mm	10.16 mm	10.16 mm	8.89 mm	20.066 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
Humidity sensitivity level	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1
Number of terminals	16	20	16	16	20	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCN	DFP	DFP	QCCN	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	FLATPACK	FLATPACK	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	240	240	260	260	240	240
propagation delay (tpd)	7.8 ns	7.8 ns	12 ns	7.8 ns	12 ns	12 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	2.54 mm	2.159 mm	2.159 mm	2.54 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	FLAT	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	8.89 mm	6.731 mm	6.731 mm	8.89 mm	7.62 mm
Base Number Matches	1	1	1	1	1	1
