LCMAX150-8
NOTES:
A
1. Material: High conductivity seamless copper tube.
2. Plating: Parts are annealed and tin plated.
3. WireType: Class 5 and 6 Flexible Stranded Copper Conductor
per DIN VDE 0295, IEC 60228, and HD 383.
4. UL Listed & CSA Certified Wire Connectors for applications up to 35kv,
when crimped per instruction sheet included with Panduit packaging.
Consult cable manufacturer for voltage stress relief instructions
with applications greater than 2000 volts.
b
n
m (ref)
Beveled wire
entry
A
f
5. UL & CSA Temperature Rating: 90°C
A
Wire inspection
window
a
LISTED
Wire Connector CERTIFIED
i
t
o
CORP.
UNLESS OTHERWISE SPECIFIED
DIMENSIONAL TOLERANCES ARE:
(.X)
(.XXX)
(.XX)
ANGLES
TINLEY PARK, ILLINOIS
2

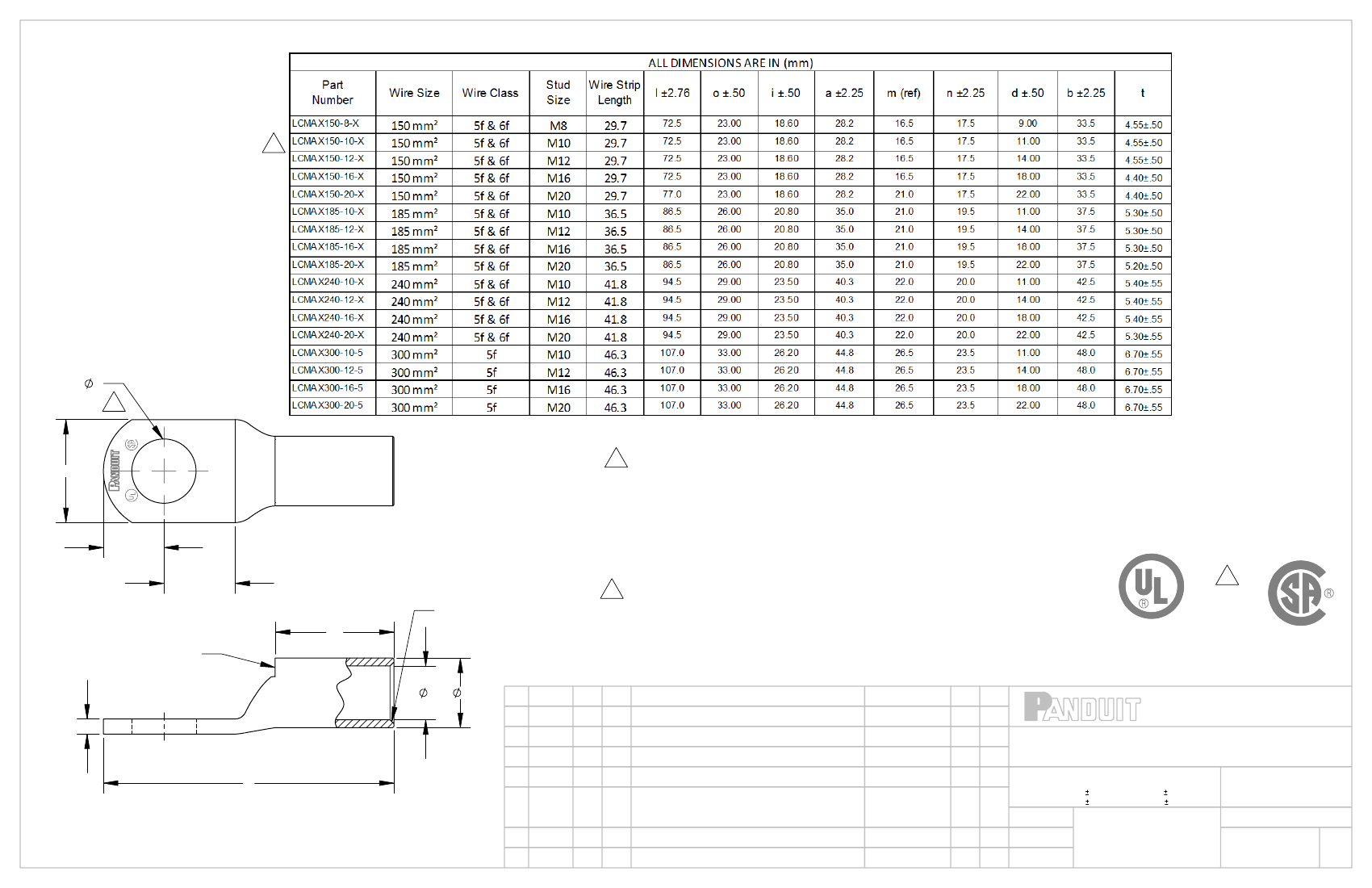

METRIC FLEX LUGS - LCMAX SERIES 150 - 300mm
CUSTOMER DRAWING
l
01
00
REV
11/12
5/11
DATE
JHNU TLCO
A. ADDED: LCMAX150-10-X THRU LCMAX300-20-5 P/N'S,
ANNEALING TO NOTE 2, NOTE 5, UL & CSA LOGOS.
10N014BH-NC
UNLESS OTHERWISE SPECIFIED,
ALL DIMENSIONS ARE GIVEN IN
INCHES, THIRD ANGLE PROJECTION
RGB RGB
DRAWN BY
DATE
TLCO
5/11
MAT'L:
SCALE
NONE
DWG
SIZE
TLCO TLCO
DRAWING RELEASED
DESCRIPTION
ECN
-R
SUP
DRAWING NO / CAD FILE
BY
CHK
CHK'D
TLCO
10N014BH-NC
