311-039
Non Environmental Lamp-Base Thread EMI Adapter
with Strain Relief and Optional Shrink Boot
Self-Locking - Rotatable Coupling - Split Shell
311
CONNECTOR
DESIGNATORS

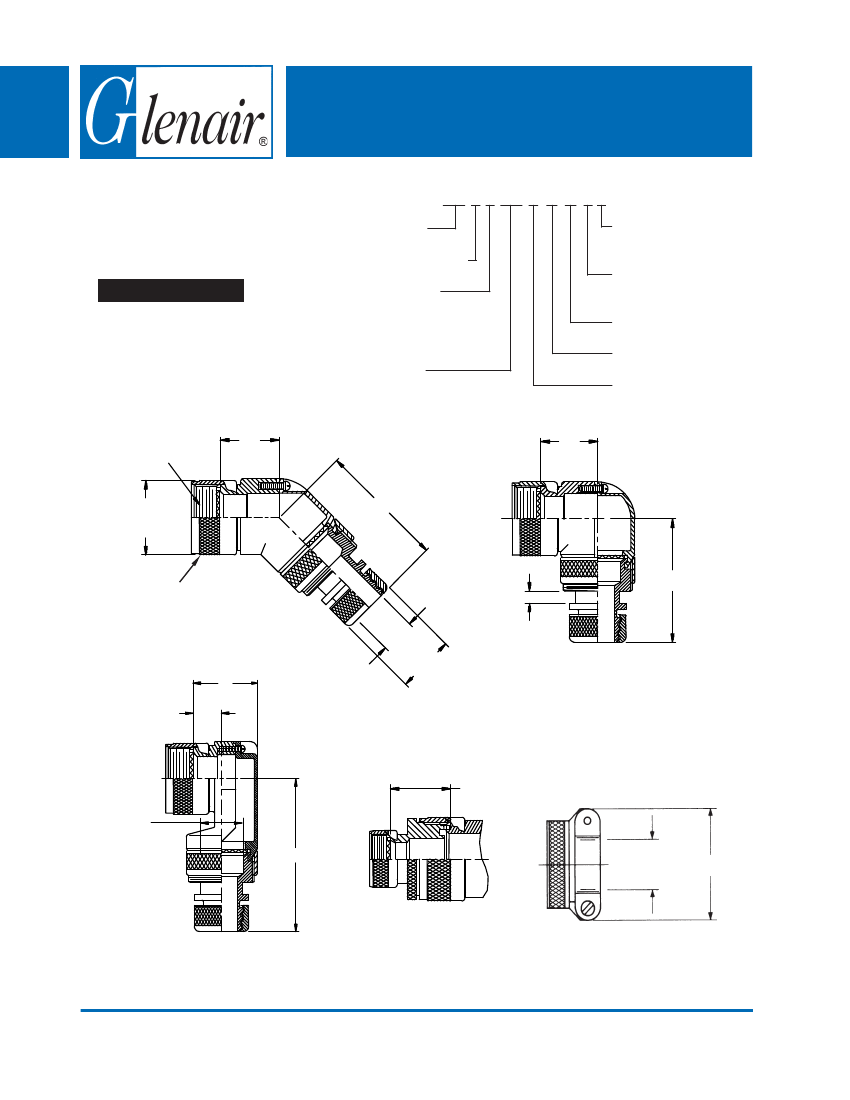

311 F C 039 M 16 03 E T
Product Series
Connector Designator
Angle and Profile
C = Ultra-Low Split 90°
D = Split 90°
F = Split 45°
Basic Part No.
Finish (Table II)
E = Strain Relief
(Omit for nut)
Cable Entry (Table V)
Shell Size (Table I)
Shrink Boot (Table V -
Omit for none)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
A Thread
(Table I)
F
(Table III)
H
(Table III)
E
(Table I)
G (Table III)
Anti-Rotation
Device
(Typ.)
Split 45°
Cable
Entry
J (Table III)
N (Table V)
M
(Table IV)
K (Table IV)
.140/.130
(3.6/3.3)
Typ.
Split 90°
1.00 (25.4)
Max
Max Wire
Bundle
(Table IV,
Note 3)
L (Table IV)
Cable
P (Table V)
Entry
Ultra Low-Profile Split 90°
© 2005 Glenair, Inc.
STYLE 2
(See Note 3)
STYLE E
STRAIN RELIEF
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 311 - Page 14
with Strain Relief and Optional Shrink Boot
Self-Locking - Rotatable Coupling - Split Shell
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
SHELL SIZE
A-F-L-S
H
08
09
10
11
13
12
14
15
16
17
18
19
20
21
22
23
25
24
TABLE III: SPLIT 90° and SPLIT 45°
G
H
F
Max
Max
Max
.596 (15.1)
1.740 (44.2)
.836 (21.2)
.656 (16.7)
1.800 (45.7)
.906 (23.0)
.716 (18.2)
1.870 (47.5)
.966 (24.5)
1.900 (48.3)
1.026 (26.1)
.776 (19.7)
.836 (21.2)
2.000 (50.8)
1.086 (27.6)
.906 (23.0)
2.060 (52.3)
1.156 (29.4)
.976 (24.8)
2.120 (53.8)
1.216 (30.9)
1.036 (26.3)
2.180 (55.4)
1.276 (32.4)
2.240 (56.9)
1.336 (33.9)
1.096 (27.8)
J
Max
1.680 (42.7)
1.740 (44.2)
1.810 (46.0)
1.840 (46.7)
1.940 (49.3)
2.000 (50.8)
2.060 (52.3)
2.120 (53.8)
2.340 (59.4)
1. Cable Entry is defined
as the accomodation
range for the wire bundle
or cable. Dimensions
shown are not intended
for inspection criteria.
2. Metric dimensions (mm)
are indicated in paren-
theses.
3. When maximum entry
(page 21) is exceeded,
Style 2 will be supplied
(not available for Func-
tion C).
Dimensions F, G, H, & J
will not apply. Please
consult factory.
4. See Shrink Boot Refer-
ence Information (page
40).
5. Angular function "C",
low-profile split elbow,
not available with "S"
connector designator.
SHELL SIZE
A-F-L-S H
09
08
11
10
13
12
14
15
17
16
19
18
21
20
23
22
24
25
TABLE IV: ULTRA LOW-PROFILE SPLIT 90°
M
L
K
Max
Max
Ref.
.837 (21.3)
2.020 (51.3)
.496 (12.6)
.887 (22.5)
2.180 (55.4)
.426 (10.8)
2.180 (55.4)
.887 (22.5)
.426 (10.8)
.987 (25.1)
2.250 (57.2)
.436 (11.1)
2.300 (58.4)
1.137 (28.9)
.576 (14.6)
1.337 (34.0)
2.330 (59.2)
.796 (20.2)
2.330 (59.2)
1.337 (34.0)
.796 (20.2)
1.337 (34.0)
2.480 (63.0)
.696 (17.7)
1.337 (34.0)
2.480 (63.0)
.696 (17.7)
Max Wire
Bundle
.250 (6.4)
.375 (9.5)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.625 (15.9)
.625 (15.9)
.750 (19.1)
.750 (19.1)
TABLE V: CABLE ENTRY/SHRINK BOOT/DIMENSIONS
Dash
N
P
Cable Entry
Shrink
No.
Max
Max
Max
Boot
.781 (19.8)
01
.448 (11.4)
.125 (3.2)
n/a
02
.515 (13.1)
.968 (24.6)
.250 (6.4) 770-001S103
.640 (16.3) 1.046 (26.6)
.375 (9.5) 770-001S103
03
04
.765 (19.4) 1.156 (29.4)
.500 (12.7) 770-001S104
05
.920 (23.4) 1.219 (31.0)
.625 (15.9) 770-001S104
06 1.015 (25.8) 1.343 (34.1)
.750 (19.1) 770-001S105
07 1.140 (29.0) 1.469 (37.3)
.875 (22.2) 770-001S106
08 1.265 (32.1) 1.594 (40.5) 1.000 (25.4) 770-001S106
09 1.432 (36.4) 1.719 (43.7) 1.125 (28.6) 770-001S107
10 1.515 (38.5) 1.844 (46.8) 1.250 (31.8) 770-001S107
GLENAIR
SYMBOL
B
M
NF
TABLE II - STANDARD FINISHES
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab Over
Electroless Nickel
See Inside Back Cover for Complete Finish
Information and Additional Finish Options
