370-008
Water-Tight Cable Sealing Backshell
with Strain Relief
Standard Profile - Rotatable Coupling
370 G S 008 M 17 10 C 6
37
CONNECTOR
DESIGNATOR
Product Series
Connector Designator
Length: S only (1/2 inch incre-
ments: e.g. 6 = 3 inches)
Strain Relief Style (C, E)
G
ROTATABLE
COUPLING
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Cable Entry (Tables IV, V)
Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 5)
A Thread
(Table I)
C Typ.
(Table I)
Length ± .060 (1.52)
Min. Order Length 1.5 Inch
(See Note 5)

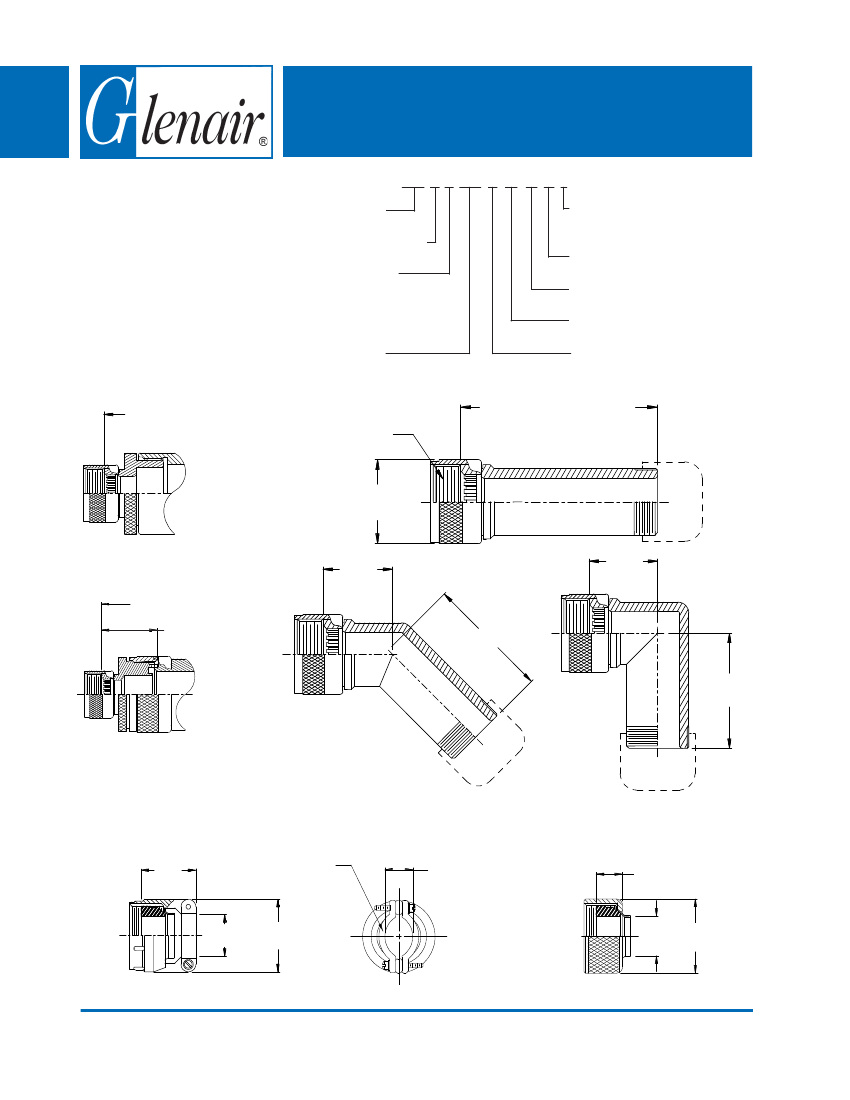

STYLE 2
(STRAIGHT
See Note 1)
Length ± .060 (1.52)
1.25 (31.8)
Max
E
(Table III)
G
(Table III)
F (Table III)
H (Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE C
Medium Duty
(Table IV)
Clamping
Bars
STYLE E
Medium Duty
(Table V)
L (See
Note 3)
M
J
Cable
Range
K
Cable
Range
N
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 37 - Page 16
with Strain Relief
Standard Profile - Rotatable Coupling
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell
E
G
F
Size
Max
Max
Max
11 1.240 (31.5)
.920 (23.4) 1.380 (35.1)
13 1.260 (32.0)
.940 (23.9) 1.440 (36.6)
15 1.290 (32.8)
.970 (24.6) 1.500 (38.1)
17 1.310 (33.3)
.990 (25.1) 1.570 (39.9)
19 1.340 (34.0) 1.020 (25.9) 1.630 (41.4)
23 1.380 (35.1) 1.060 (26.9) 1.730 (43.9)
25 1.410 (35.8) 1.090 (27.7) 1.800 (45.7)
29 1.580 (40.1) 1.260 (32.0) 2.040 (51.8)
33 1.620 (41.1) 1.300 (33.0) 2.130 (54.1)
H
Max
1.060 (26.9)
1.120 (28.4)
1.190 (30.2)
1.250 (31.8)
1.330 (33.8)
1.410 (35.8)
1.480 (37.6)
1.720 (43.7)
1.810 (46.0)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
C
G
M
NF
FINISH
Cadmium Plate, Olive Drab
Anodize, Black
Hard Coat, Anodic
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
J
Max
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.281 (32.5)
1.281 (32.5)
1.406 (35.7)
1.656 (42.1)
1.906 (48.4)
1.906 (48.4)
2.000 (50.8)
TABLE IV: CABLE ENTRY
Cable Range
L
K
Ref
Min
Max
Max
.156 (4.0)
.135 (3.4)
.812 (20.6)
.219 (5.6)
.203 (5.2)
.188 (4.8)
.937 (23.8)
.312 (7.9)
.285 (7.2)
.281 (7.1)
1.062 (27.0)
.438 (11.1)
.350 (8.9)
.312 (7.9)
1.188 (30.2)
.531 (13.5)
.375 (9.5)
.390 (9.9)
1.312 (33.3)
.625 (15.9)
.460 (11.7)
.500 (12.7)
1.562 (39.7)
.750 (19.1)
.510 (13.0)
.625 (15.9)
1.750 (44.5)
.938 (23.8)
.695 (17.7)
.938 (23.8)
2.250 (57.2)
1.250 (31.8)
.715 (18.2)
1.000 (25.4)
2.375 (60.3)
1.375 (34.9)
.915 (23.2)
1.250 (31.8)
2.625 (66.7)
1.625 (41.3)
1.500 (38.1)
1.070 (27.2)
2.812 (71.4)
1.875 (47.6)
1. When maximum cable entry
(page 21) is exceeded, Style 2
will be supplied. Dimensions E,
F, G & H will not apply. Please
consult factory.
2. Metric dimensions (mm) are
indicated in parentheses.
3. Saddles are bottomed on Clamp
Ears.
4. Cable range is defined as the
accommodations range for the
wire bundle or cable. Dimen-
sions shown are not intended for
inspection criteria.
5. Consult factory for shorter
lengths on straight backshells.
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
M
Max
.739 (18.8)
.739 (18.8)
.739 (18.8)
.739 (18.8)
.791 (20.1)
.880 (22.4)
.901 (22.9)
1.031 (26.2)
1.250 (31.8)
1.250 (31.8)
1.312 (33.3)
TABLE V: CABLE ENTRY
Cable Range
N
Max
Max
Min
.219 (5.6)
.812 (20.6)
.156 (4.0)
.312 (7.9)
.937 (23.8)
.188 (4.8)
.438 (11.1)
1.062 (27.0)
.281 (7.1)
.531 (13.5)
1.188 (30.2)
.312 (7.9)
.625 (15.9)
1.312 (33.3)
.375 (9.5)
.750 (19.1)
1.562 (39.7)
.500 (12.7)
.938 (23.8)
1.750 (44.5)
.625 (15.9)
1.250 (31.8)
2.250 (57.2)
.938 (23.8)
1.375 (34.9)
2.375 (60.3)
1.000 (25.4)
1.625 (41.3)
2.625 (66.7)
1.250 (31.8)
1.875 (47.6)
2.812 (71.4)
1.500 (38.1)
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
